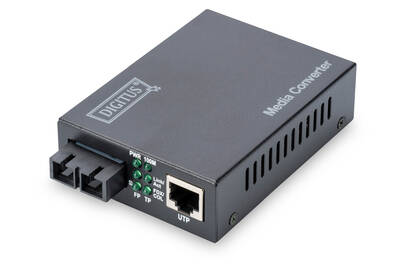

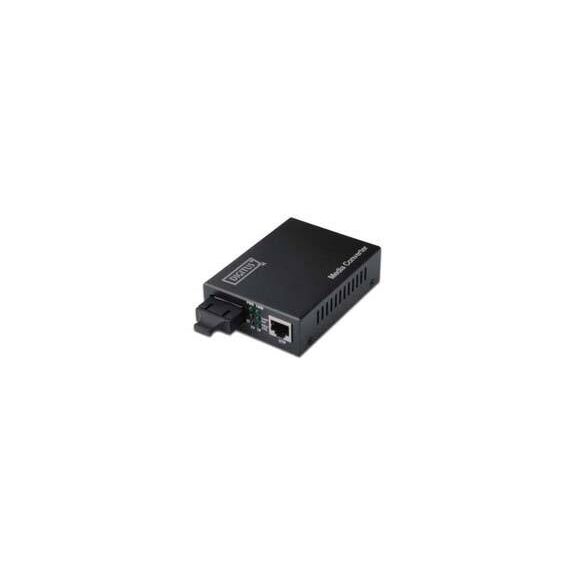

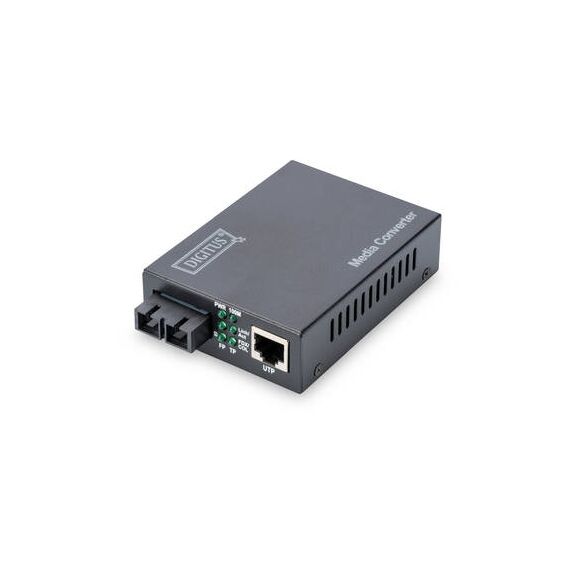

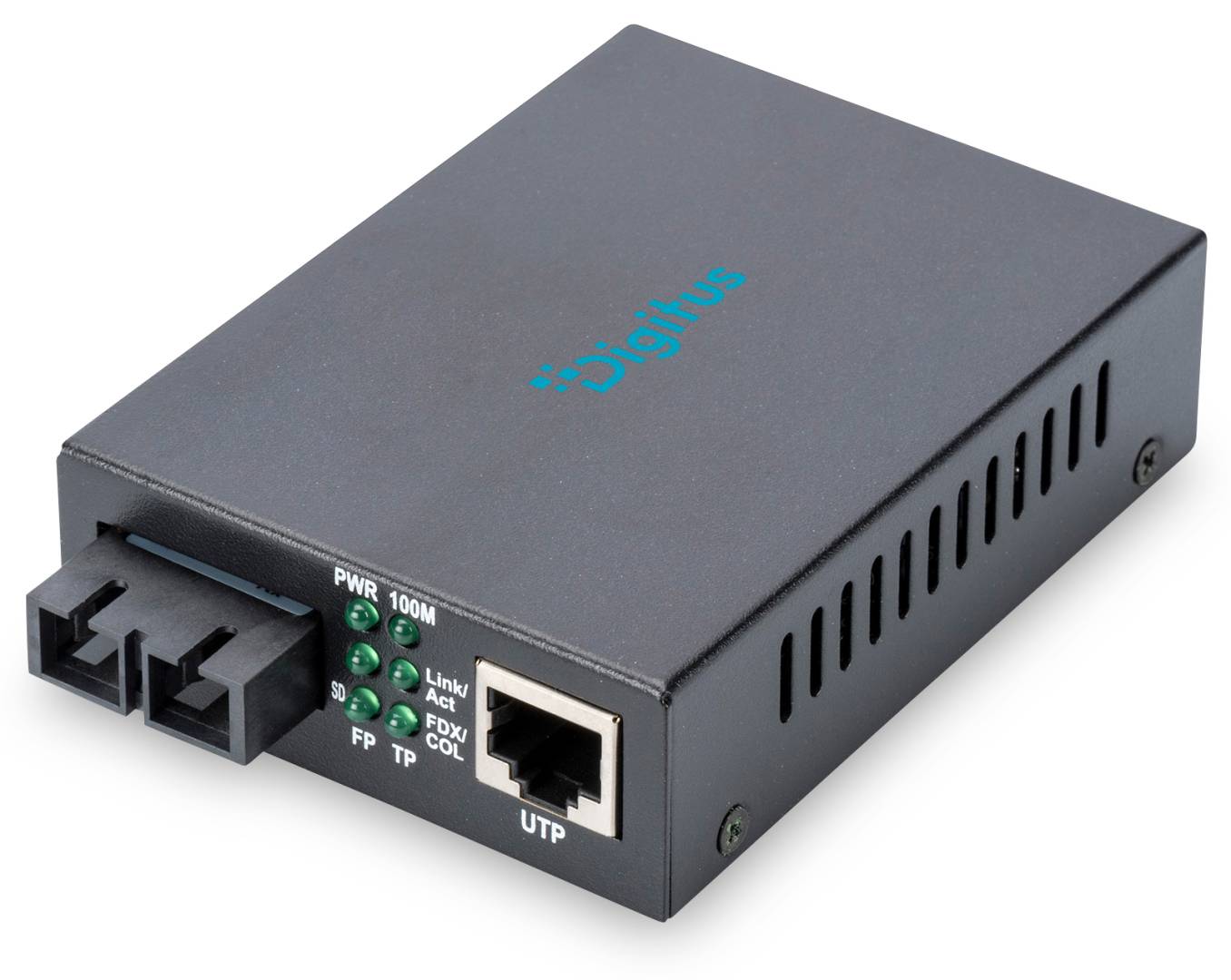

DIGITUS DN-82021-1 - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 20 km - 1310 nm | DN-82021-1
Please sign in so that we can notify you about a reply
Product Features
· Transforms wire based network media to fiber optic· High quality and excellent reliability
· 10/100Base-TX to 100Base-FX

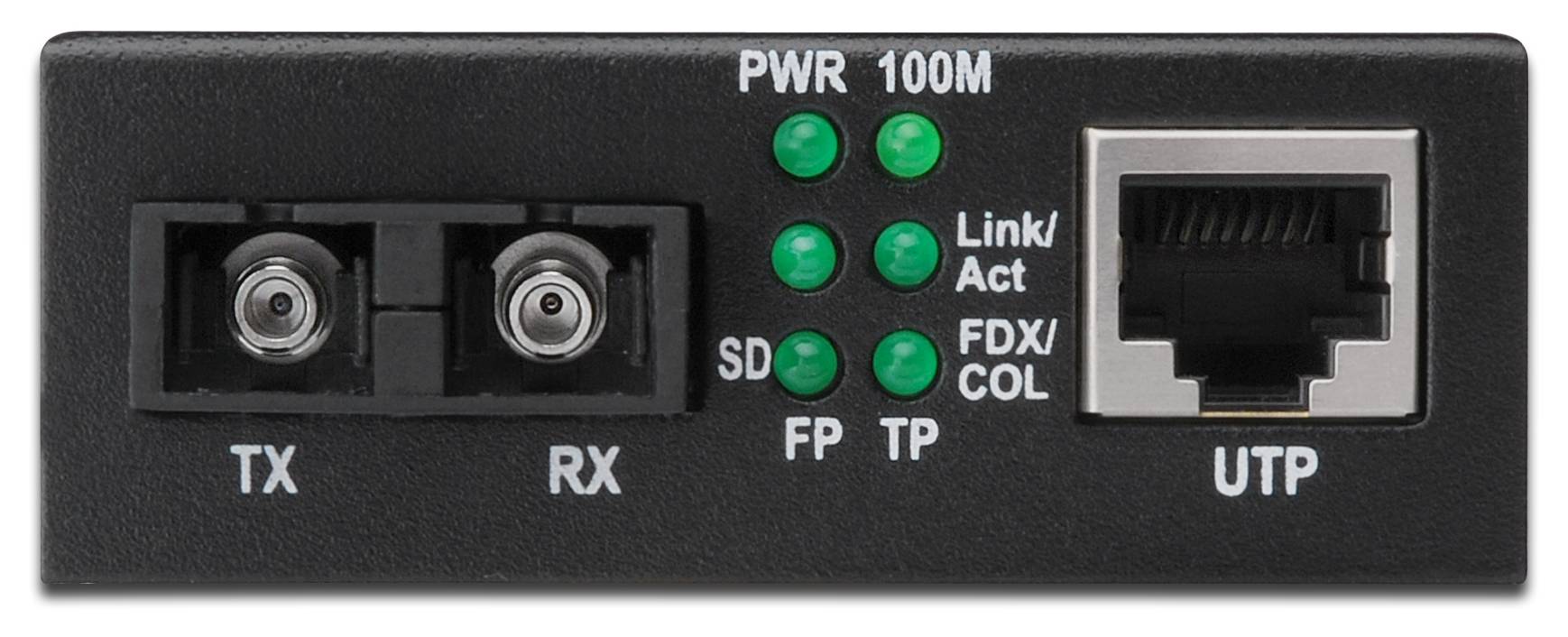

· Connectors: 1x RJ45, 1x SC duplex
· Distance up to 20km
· Wavelength: 1310nm
· Singlemode Dual Fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex

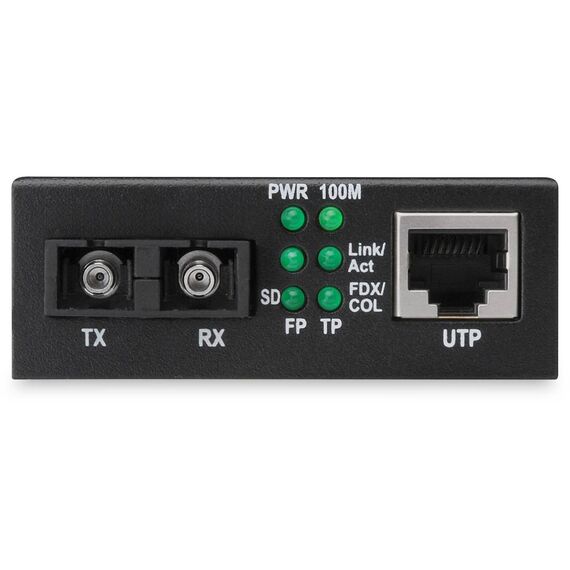

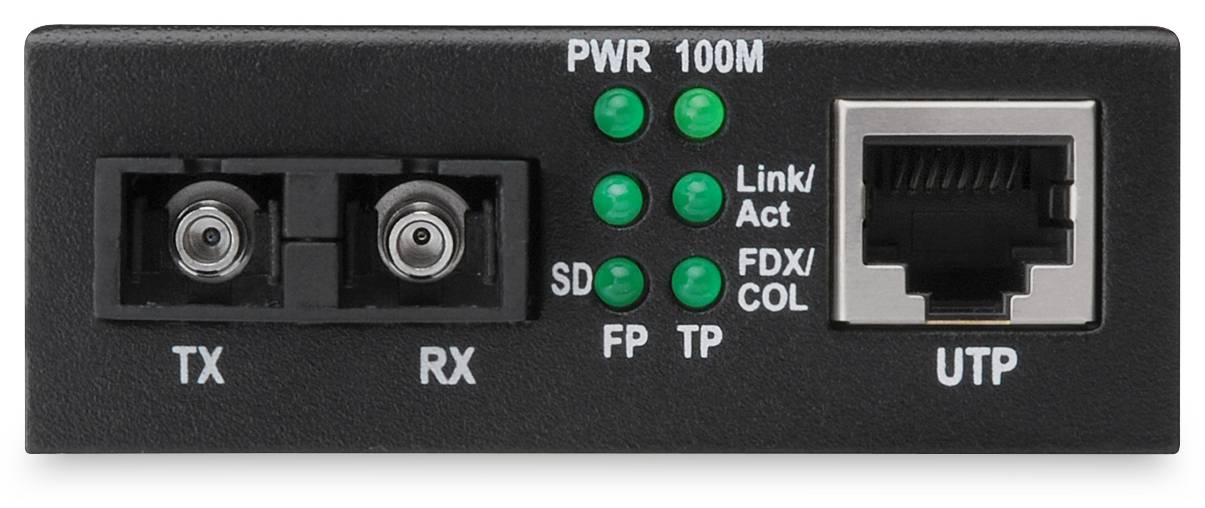

· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 9/125µm Fiber Cables
· Transmission Power: Minimum -15 dBm, Maximum -8 dBm
· Sensitivity Receiving Power: Minimum -38 dBm
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
· 128kB data buffer
· Operating temperature: 0 to 55°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g

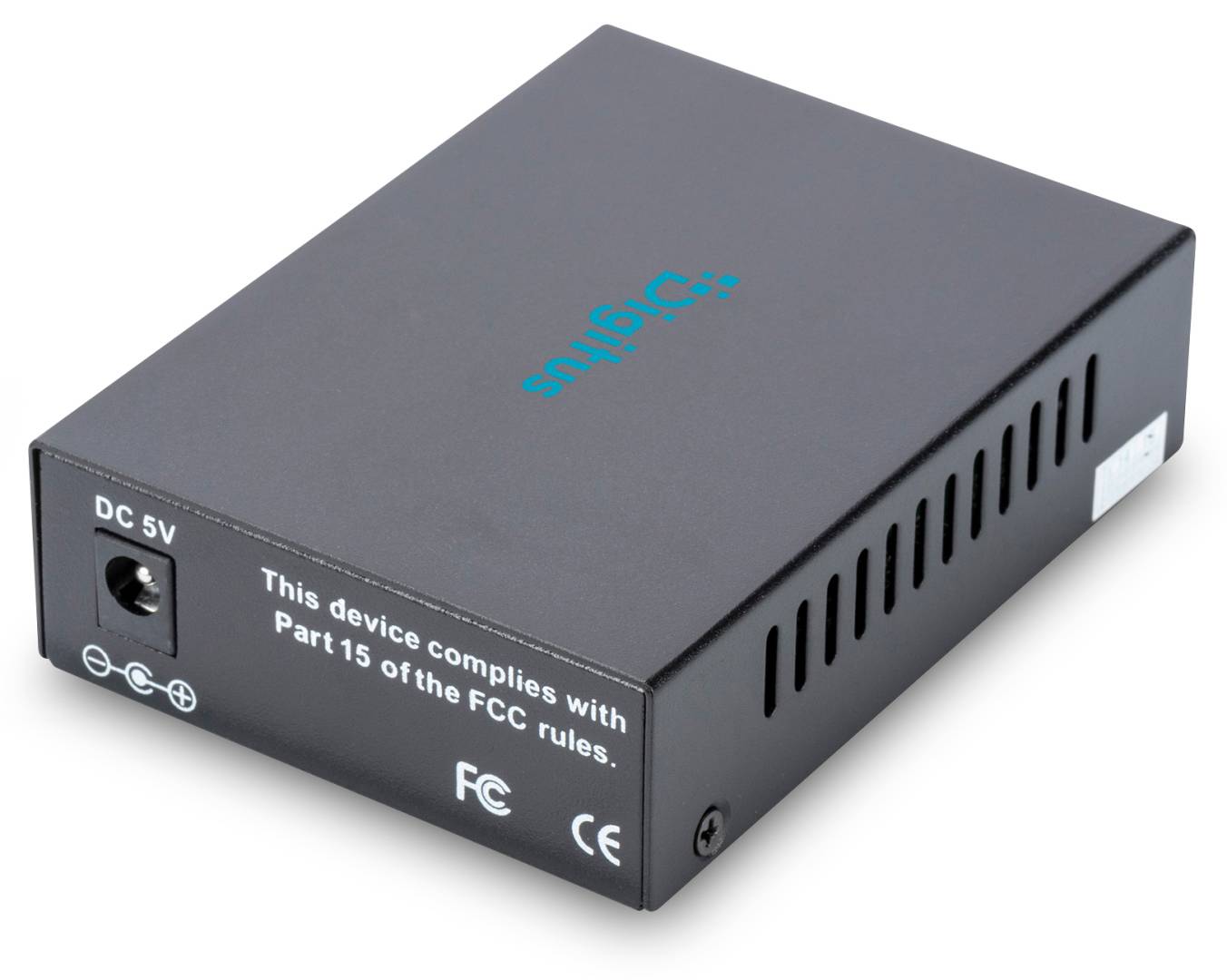

· Standalone Converter with external power supply

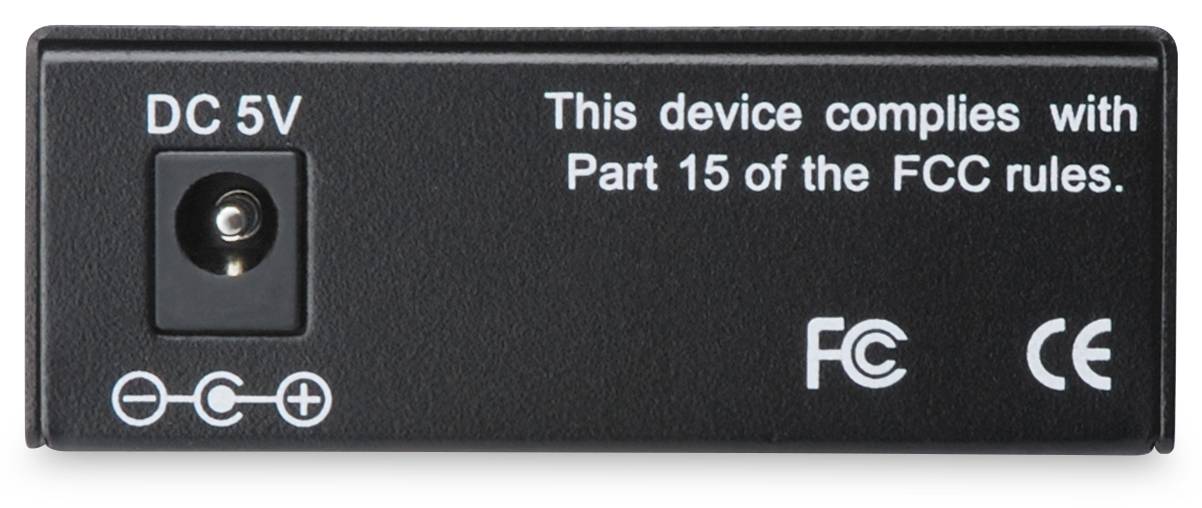

· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
Special Fetures
· Distance up to 20km· Sends data in high quality and additionally provides excellent reliability
· Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Power, link/activity |
| Features | Auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 2.5 Watt |
| Dimensions & Weight | |
| Width | 9.5 cm |
| Depth | 7 cm |
| Height | 2.6 cm |
| Weight | 200 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
Features - Digitus - DN-82021-1
More Details
Product Code
03:149326
EAN Code
4016032293101
Manufacturer
Digitus
