DIGITUS Professional DN-82024 - Media converter - 100Mb LAN - 100Base-FX - SC multi-mode / SC single-mode - up to 20 km - 1310 nm | DN-82024
DIGITUS Professional DN-82024 - Media converter - 100Mb LAN - 100Base-FX - SC multi-mode / SC single-mode - up to 20 km - 1310 nm | DN-82024
€63.86 inc. VAT
DN-82024
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

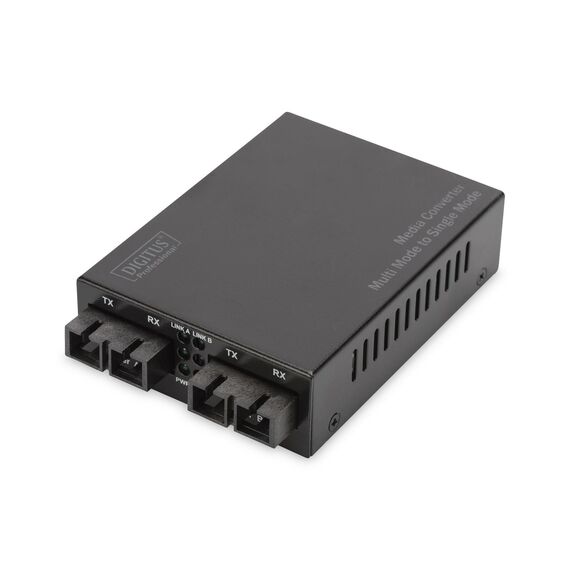

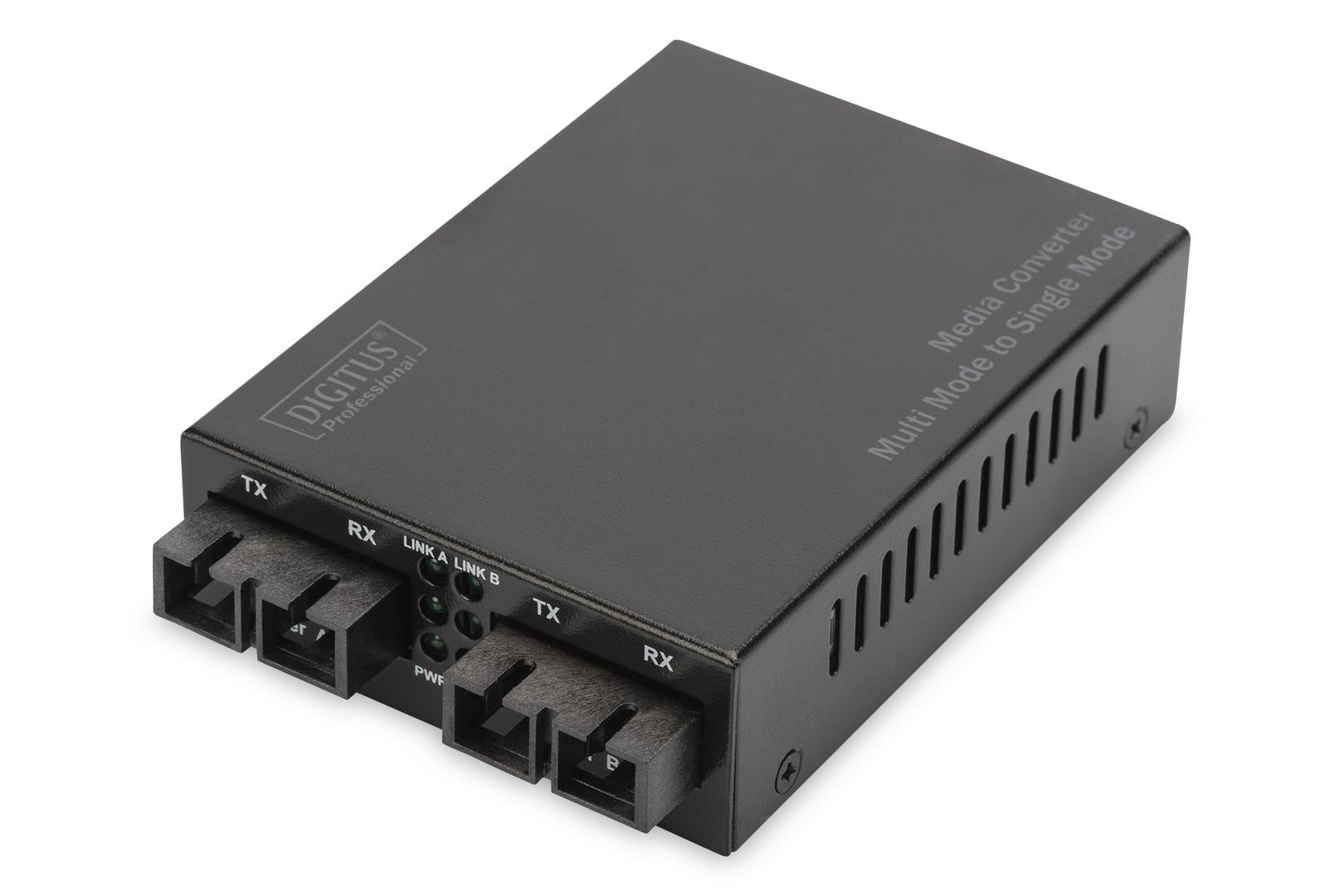

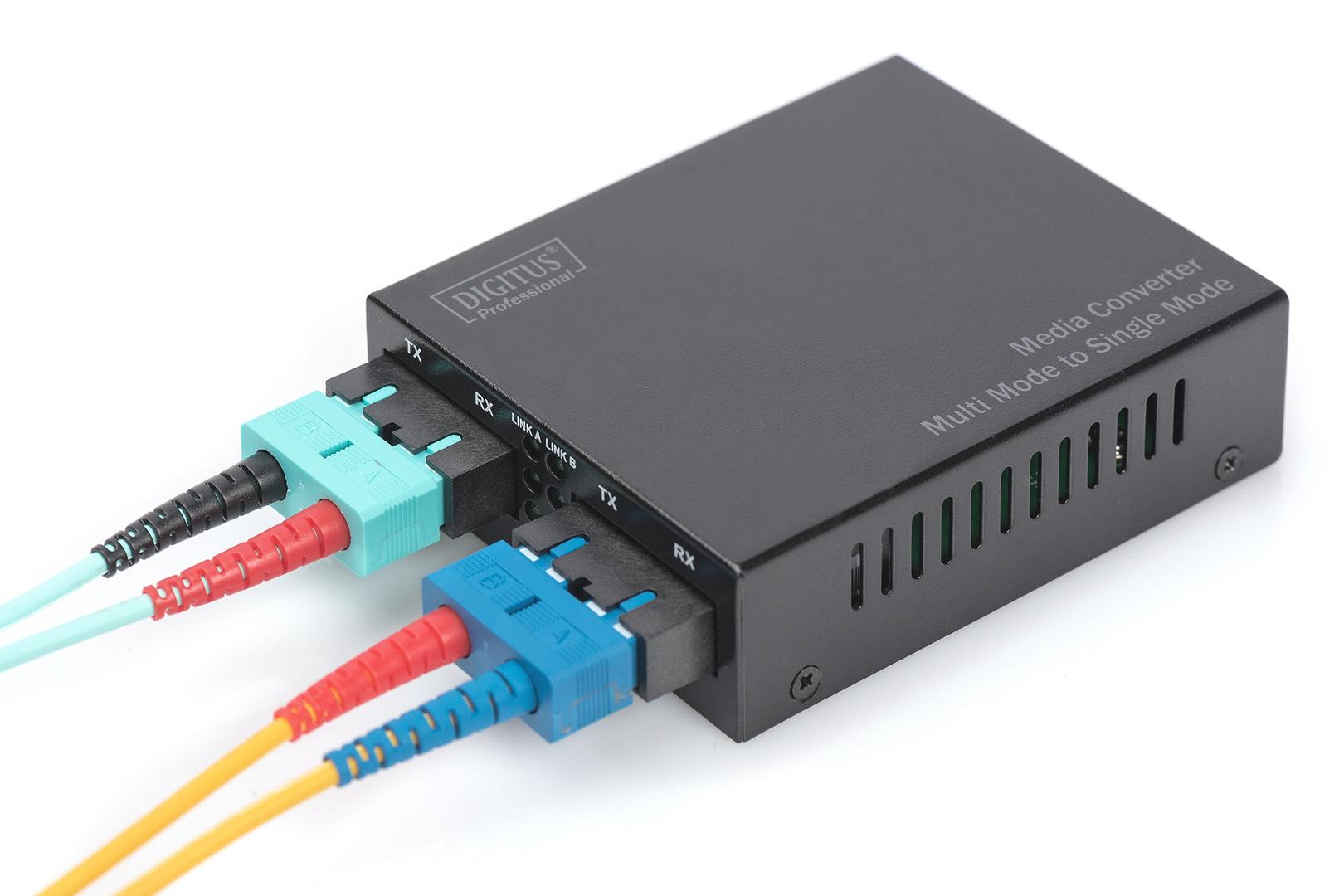

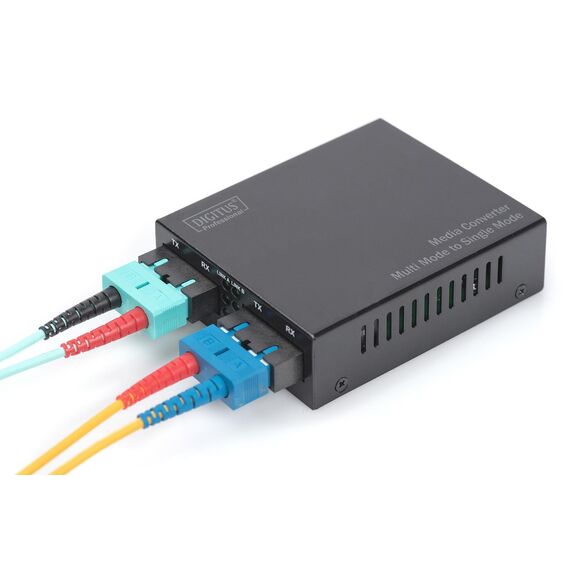

· Converts between single & multimode fiber optic· 100Base-FX SC connector, multimode dual fiber
· 100Base-FX SC connector, singlemode dual fiber
· Wavelength: 1310nm
· Multimode range of up to 2km
· Singlemode range of up to 20km

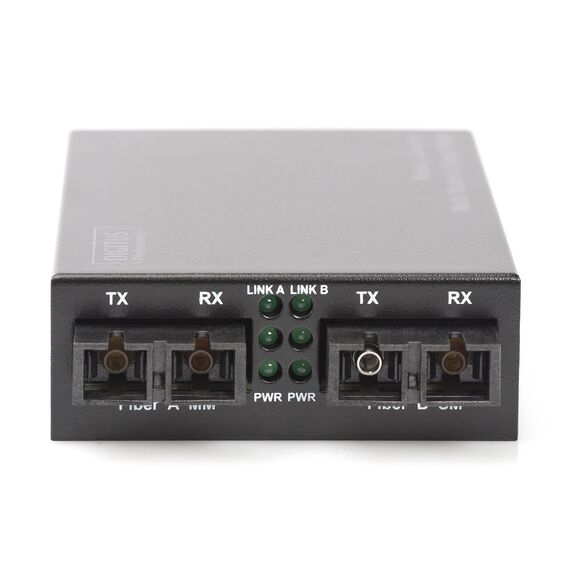

· Diagnostic LEDs for status and activity monitoring
· Suitable for 50/125m, 62.5/125m, and 100/140m fiber optic cables (multimode)
· Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optic cables (singlemode)
· Operating temperature: -10 ~ 55 °C

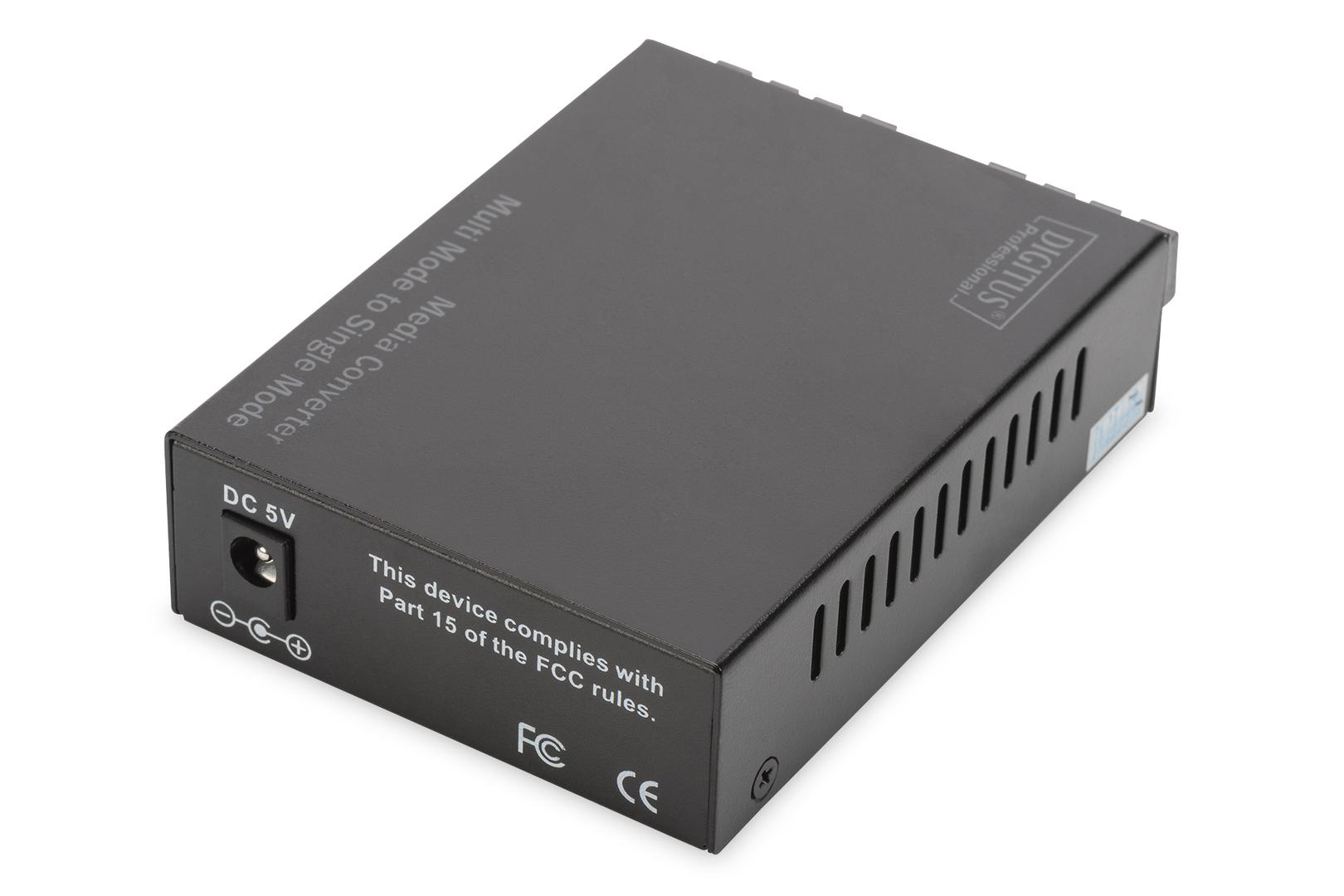

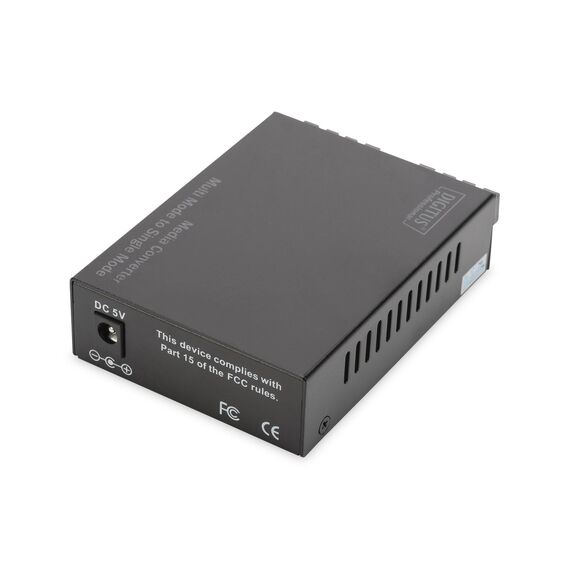

· Standalone converter with external power supply unit

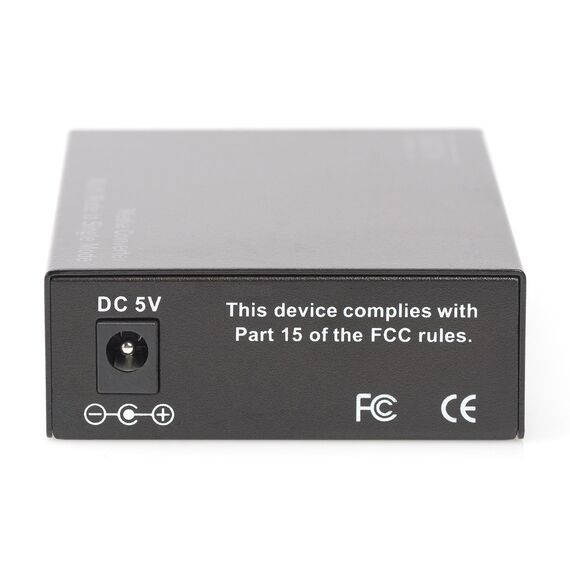

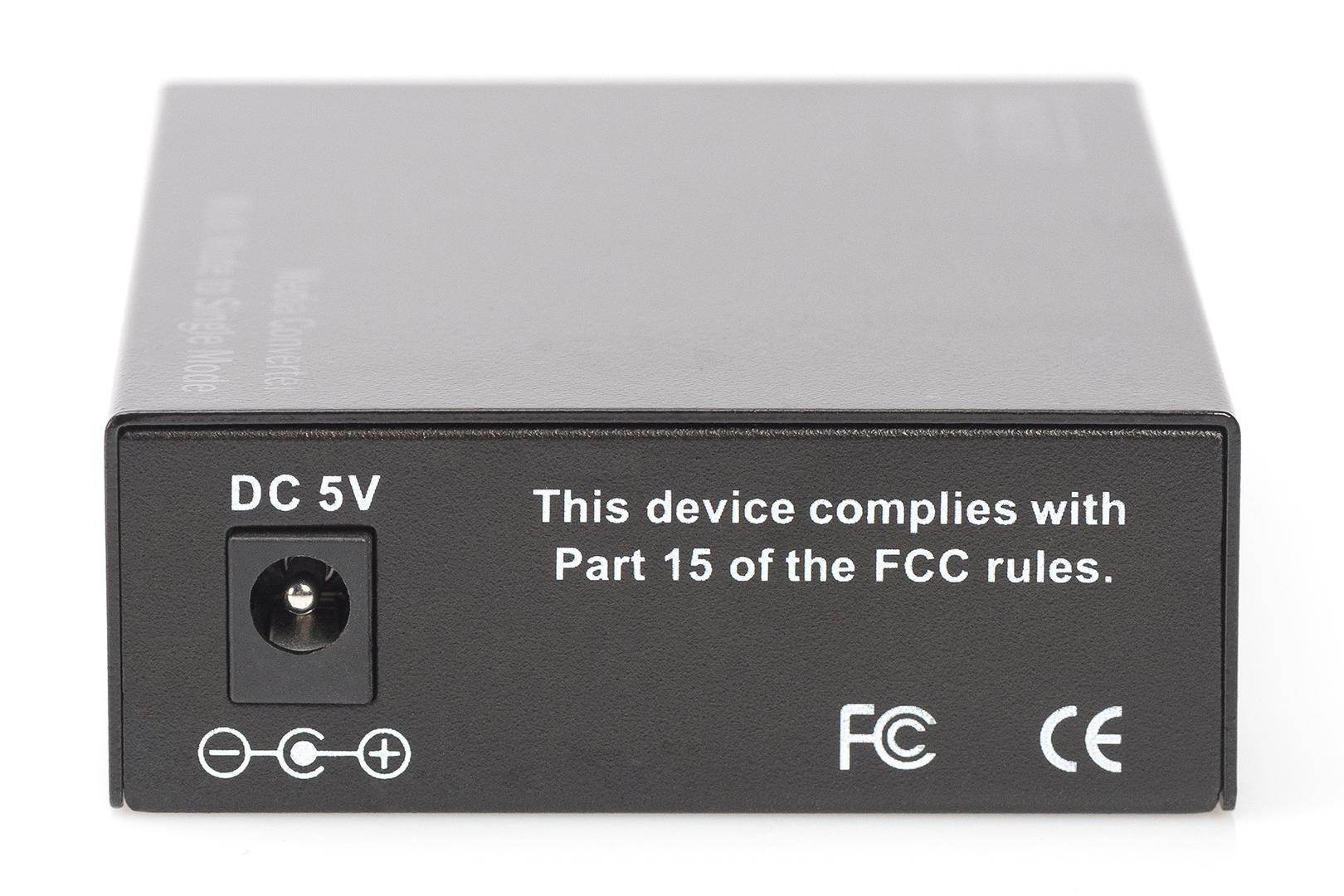

· Input voltage: 5V DC
· Max. current consumption: 1 A
· Power consumption: 3.5W
· Dimensions (L x W x H): 95mm x 70mm x 26mm
Special Fetures
· Easy conversion between multimode and singlemode fiber optic· Fast migration for long distances
· Range of up to 20km
Product Specification
| Device Type | Media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Status, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - SC multi-mode female x 2 ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 3.5 Watt |
| Dimensions & Weight | |
| Width | 9.5 cm |
| Depth | 7 cm |
| Height | 2.6 cm |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
Features - Digitus - DN-82024
More Details
Product Code
5095761
EAN Code
4016032445739
Manufacturer
Digitus
