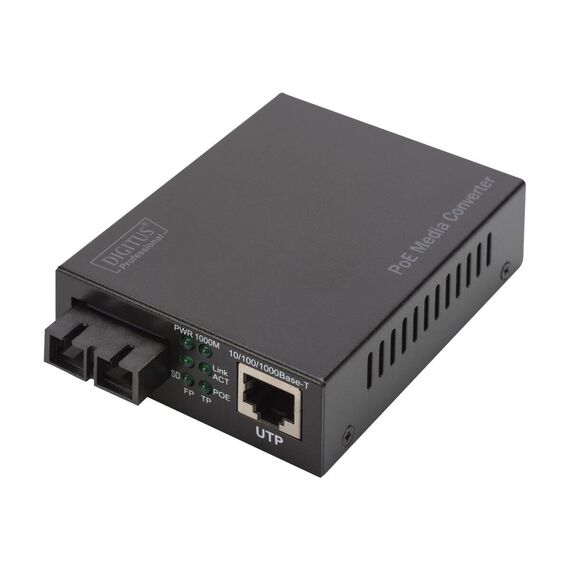

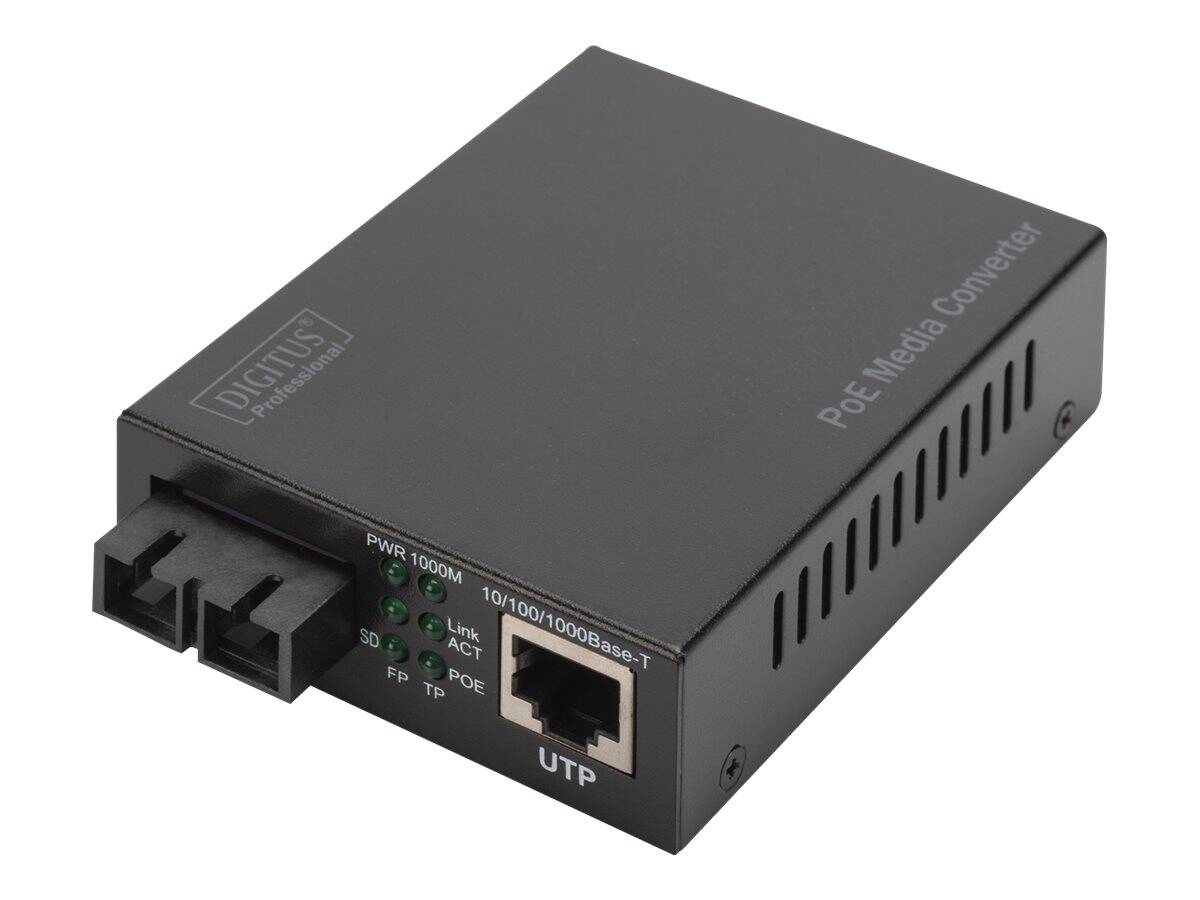

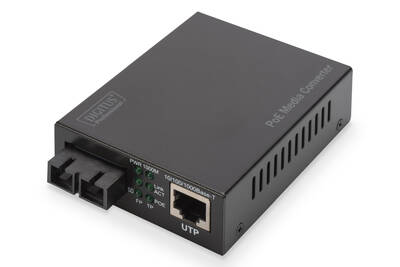

DIGITUS Professional DN-82160 - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - SC single-mode / RJ-45 - up to 20 km - 1310 nm | DN-82160
DIGITUS Professional DN-82160 - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - SC single-mode / RJ-45 - up to 20 km - 1310 nm | DN-82160
€131.86 inc. VAT
DN-82160
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· PoE power supplier, PSE· Compatible with the IEEE802.3af and IEEE802.3at standards
· PoE power supply via PIN 4/5 (V-) and PIN 7/8 (V+)
· Maximum total output of 30 watts
· Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
· Automatic cable recognition - Auto MDI/MDI-X function
· Auto recognition of full and half duplex
· Converts wire-based network signals into fiber optic signals
· 10/100/1000Base-TX to 1000Base-LX

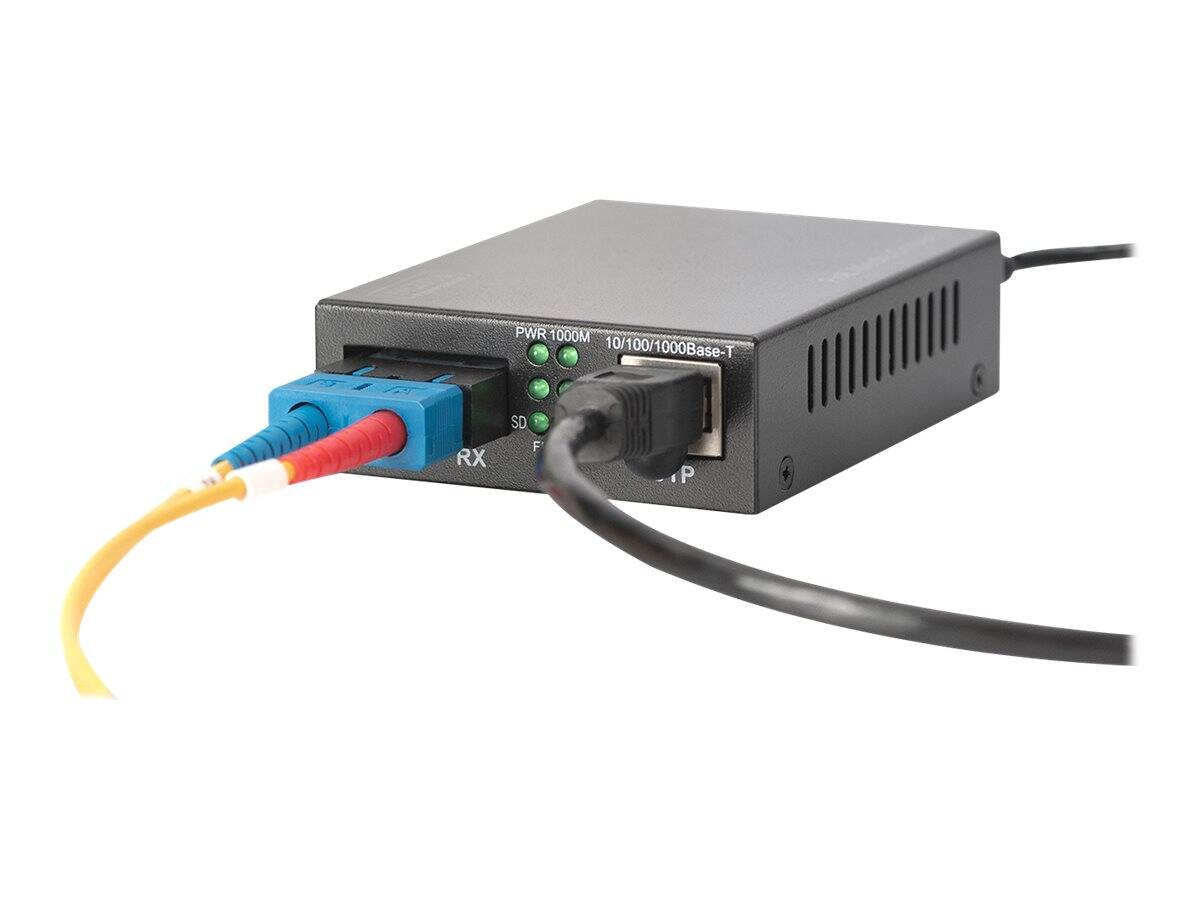

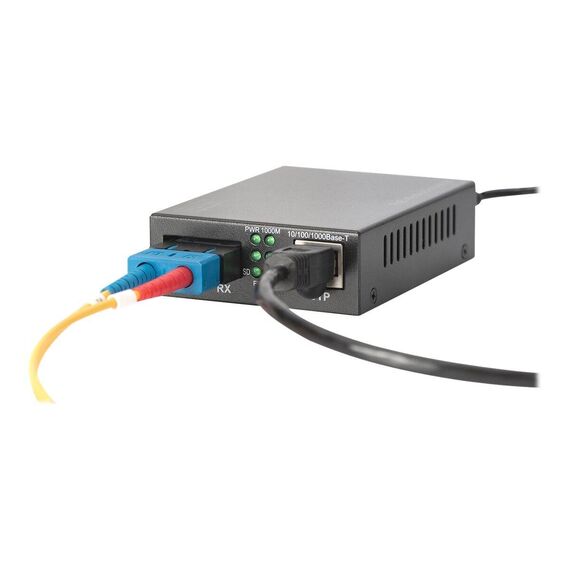

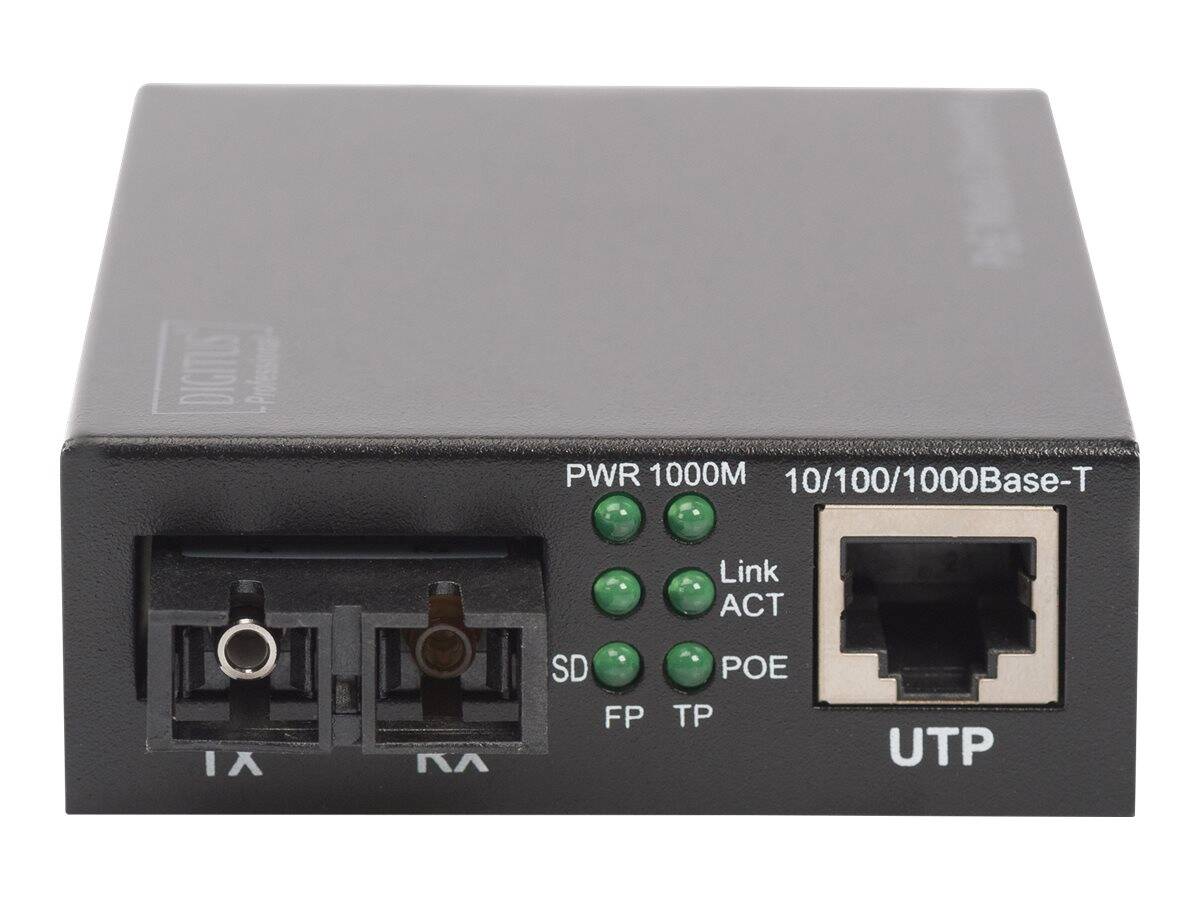

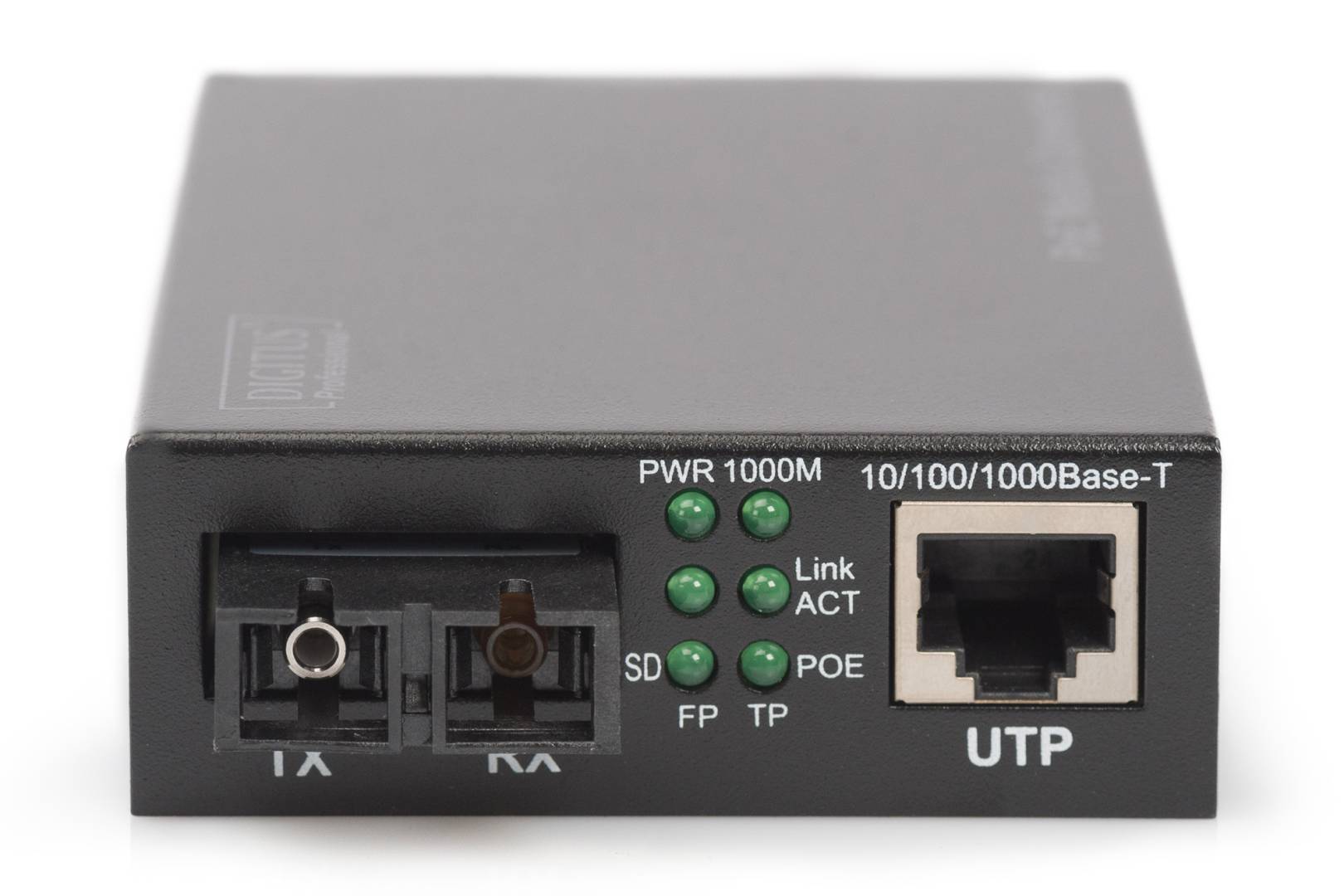

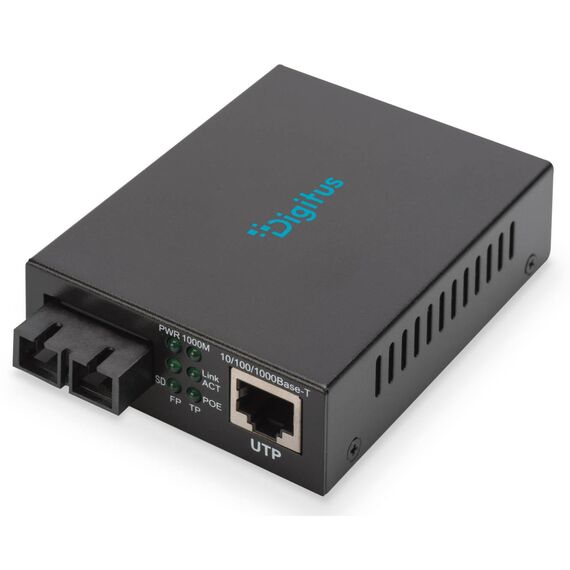

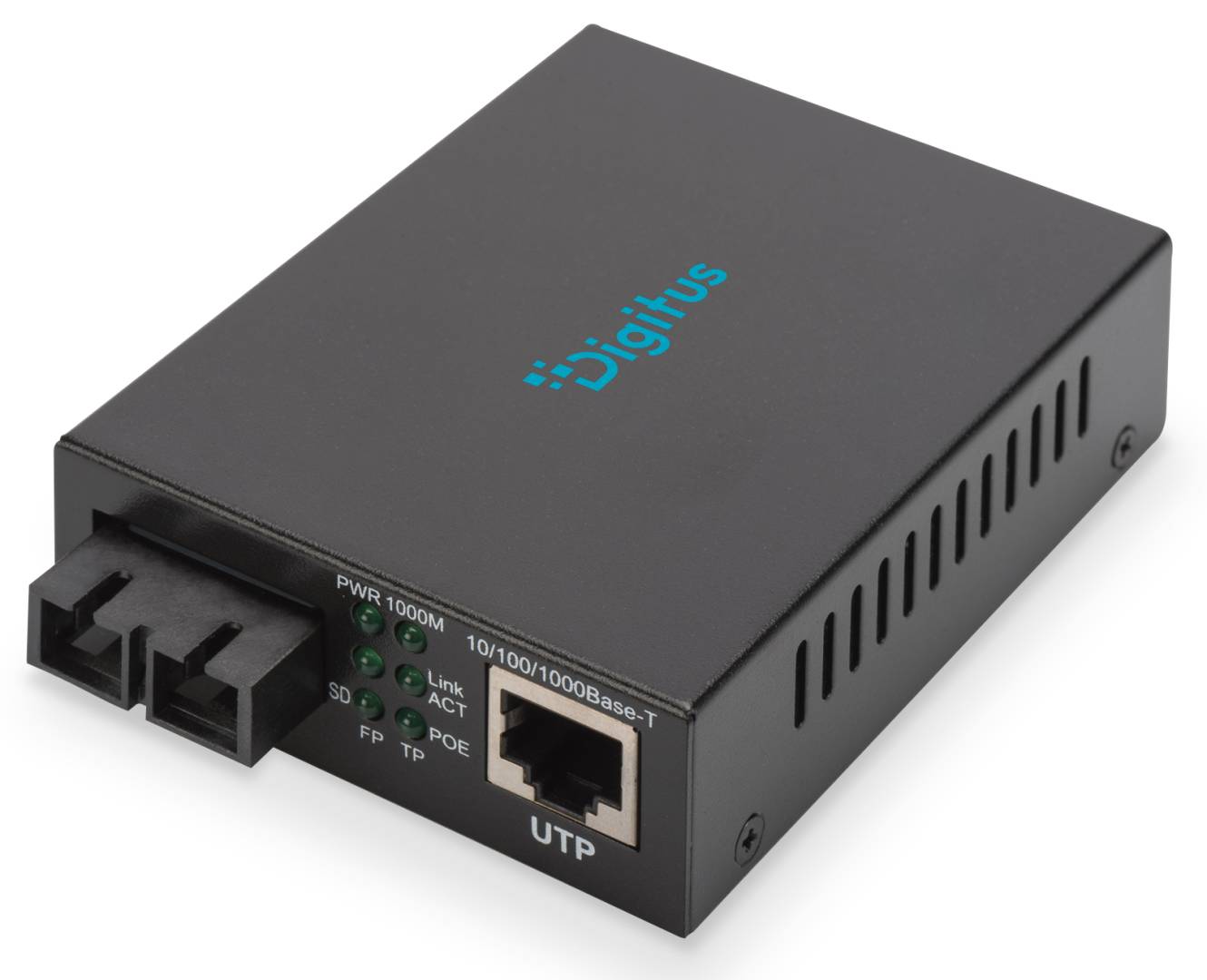

· Ports: 1x RJ45, 1x SC duplex
· Range of up to 20km
· Wavelength: 1310nm
· Singlemode Dual Fiber

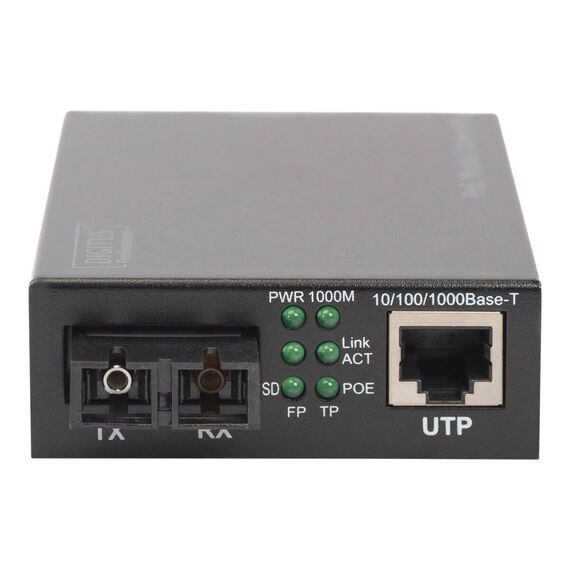

· Diagnostic LEDs for status and activity monitoring

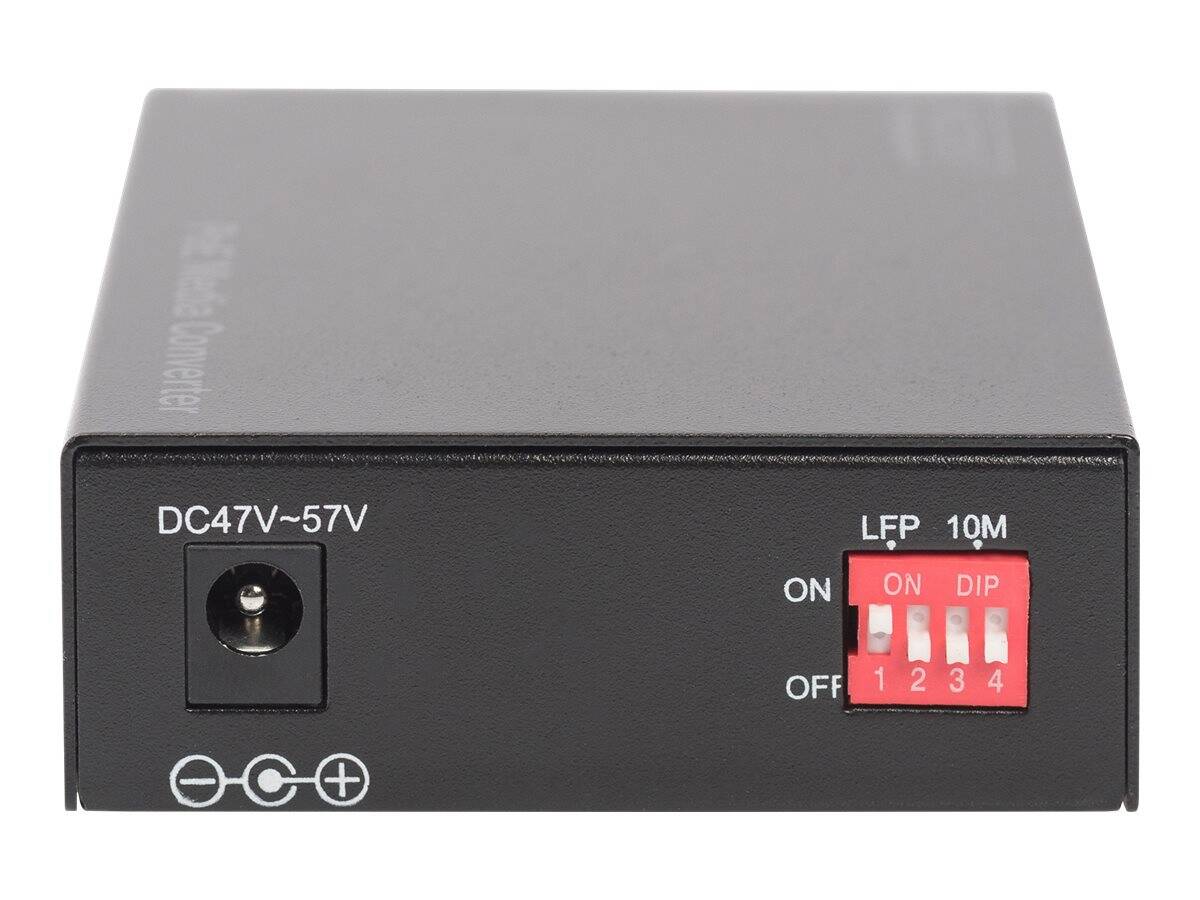

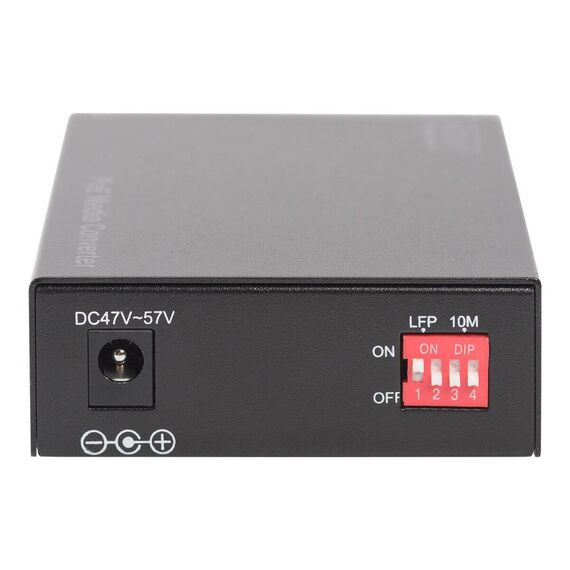

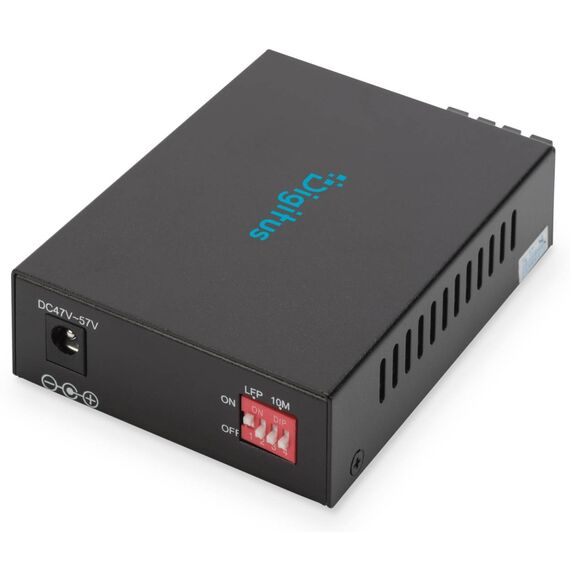

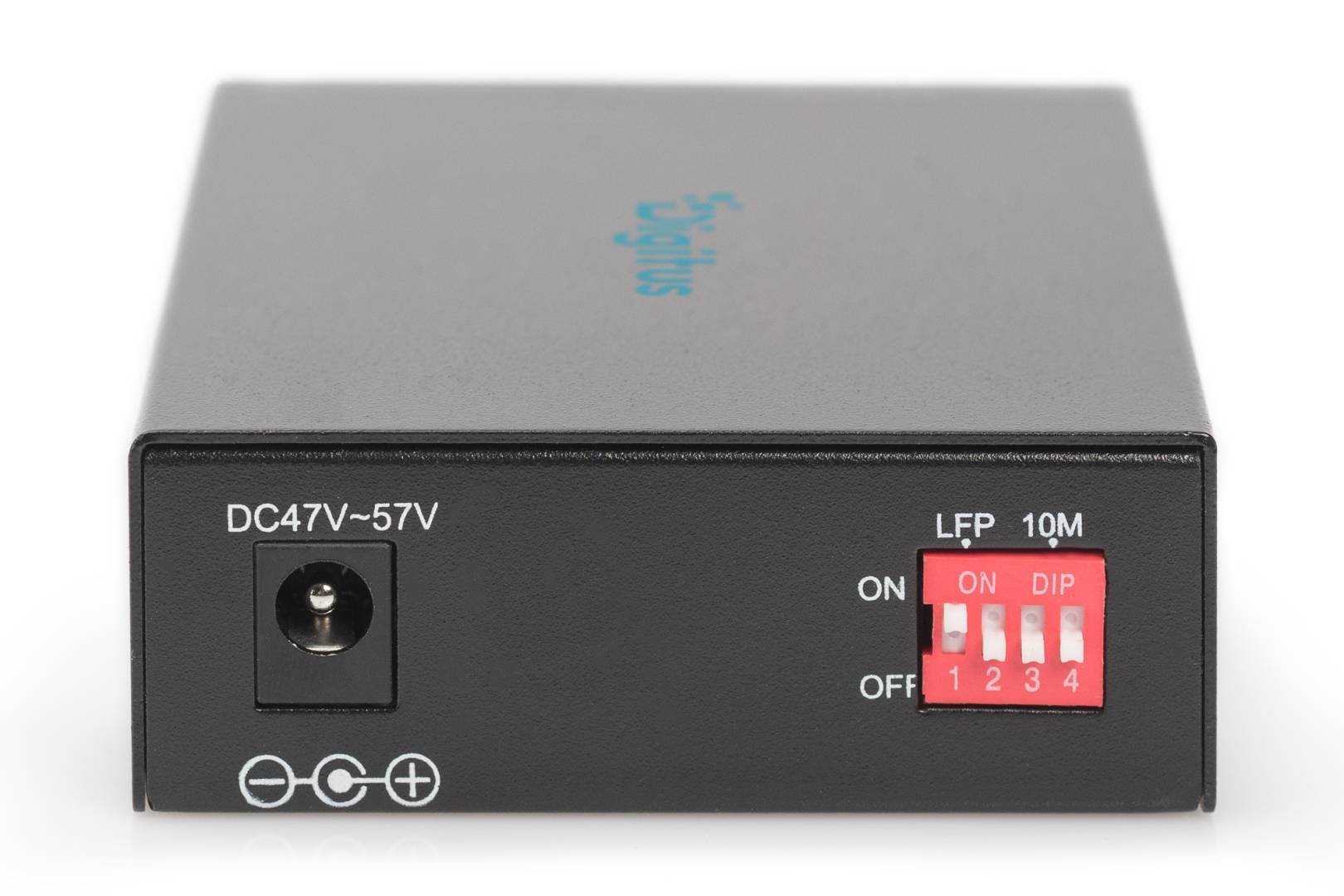

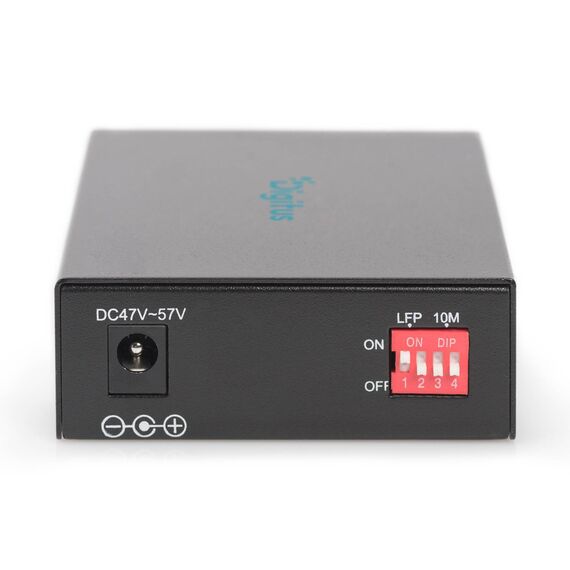

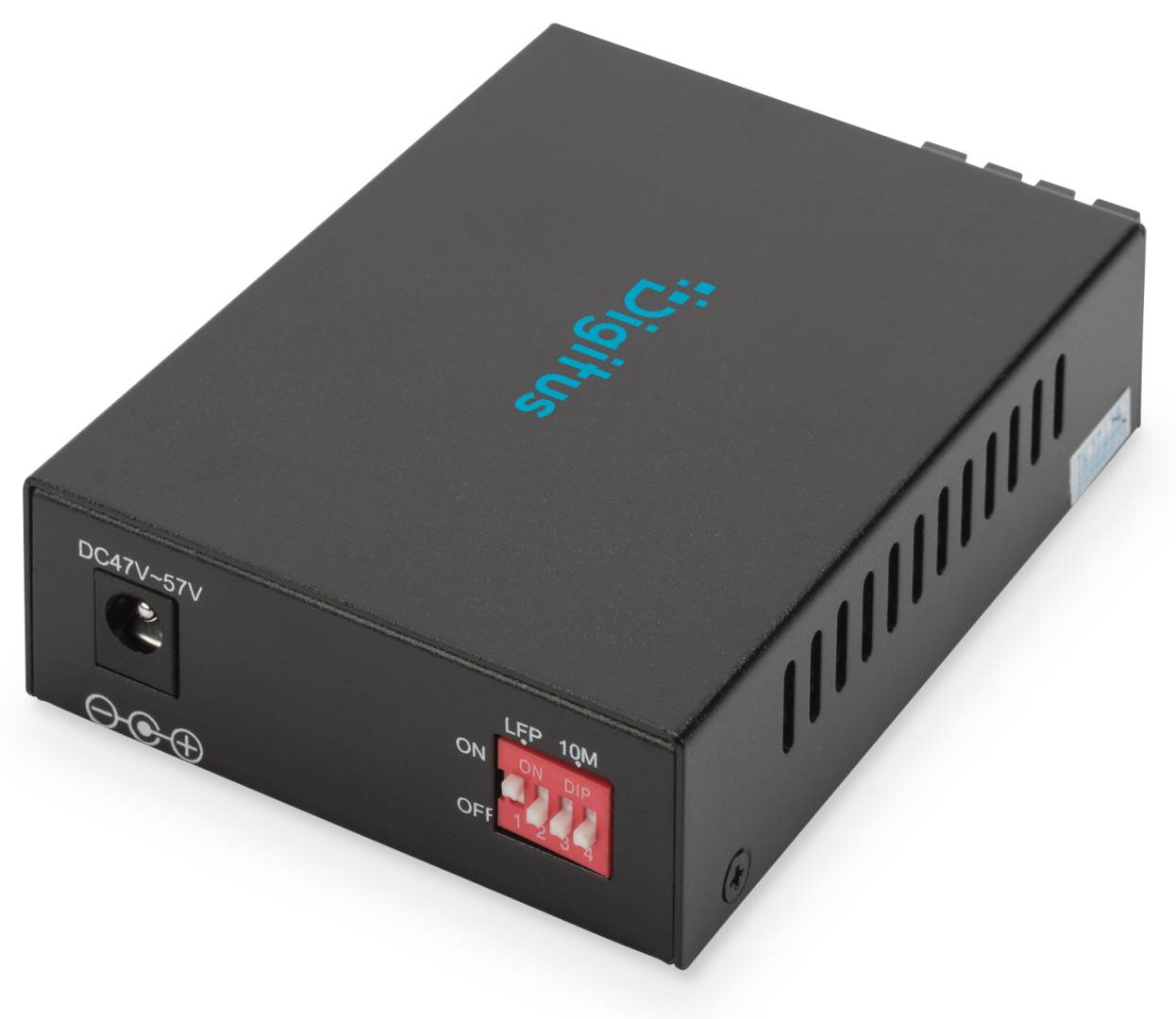

· Power supply: 48~52V DC
· Operating temperature: -20°C - 65°C
· Storage temperature: -40°C - 85°C
· Dimensions (mm): 95(L) x 71(W) x 26(H)
· MTBF: 500,000 hours
Special Fetures
· PoE power supplier, PSE· Sends data with high quality and additionally offers the highest level of failure safety
· A fast transfer in the gigabit range is guaranteed
· Range of up to 20km
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Status, link/activity |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - SC single-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 female |
| Miscellaneous | |
| MTBF | 500,000 hours |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Width | 9.5 cm |
| Depth | 7 cm |
| Height | 2.6 cm |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 65 °C |
Features - Digitus - DN-82160
More Details
Product Code
04:282434
EAN Code
4016032390039
Manufacturer
Digitus
