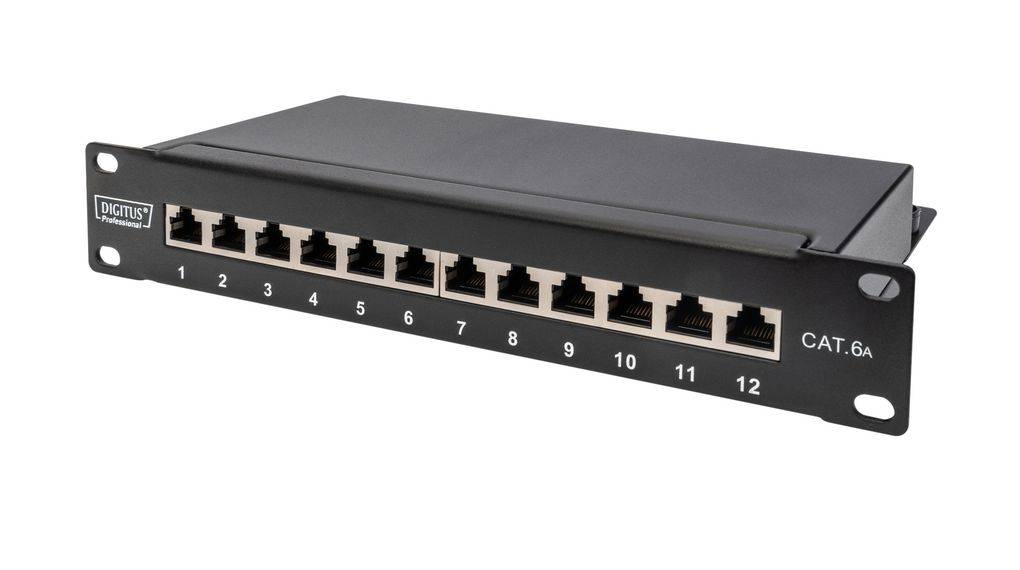

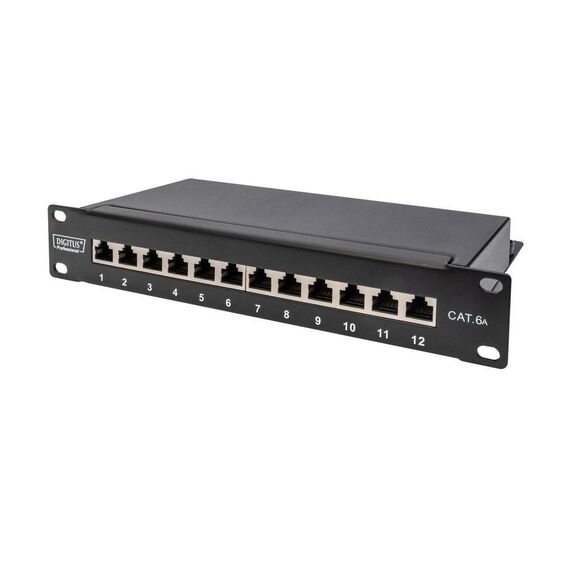

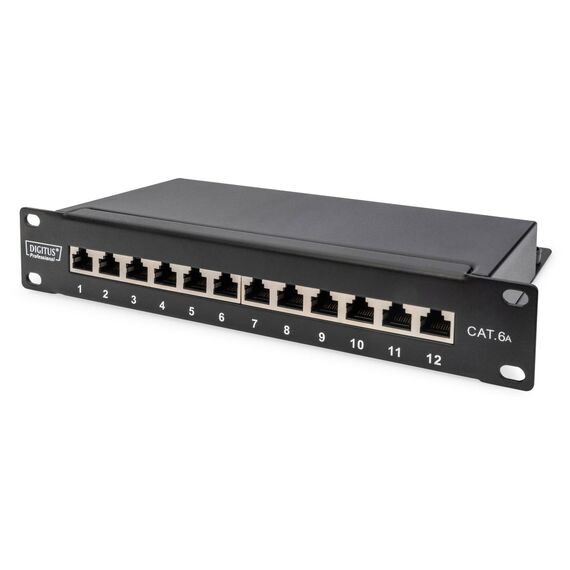

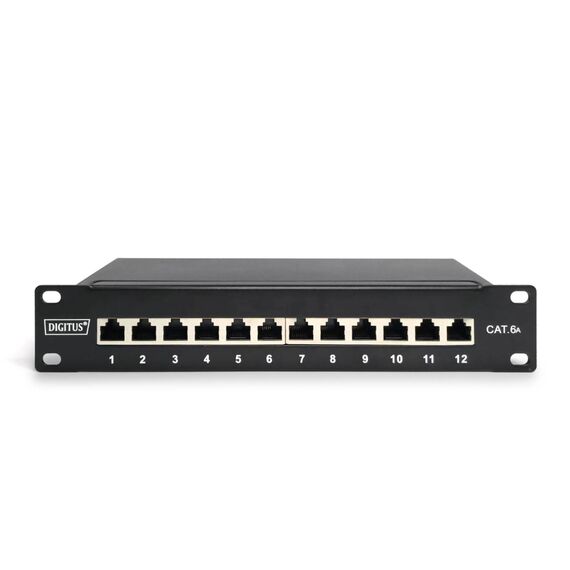

DIGITUS DN-91612S-EA / Patch panel / rack mountable / RJ-45 X 12 / black, RAL 9005 / 1U / 10" | DN-91612S-EA

Product Features

· Transmission properties: Category 6A, Class EA
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· Suitable for surface mount installation
· RJ45 female, 12P12C

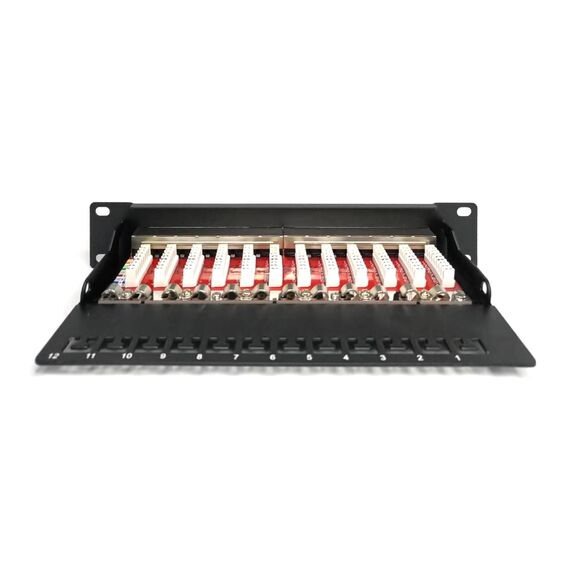

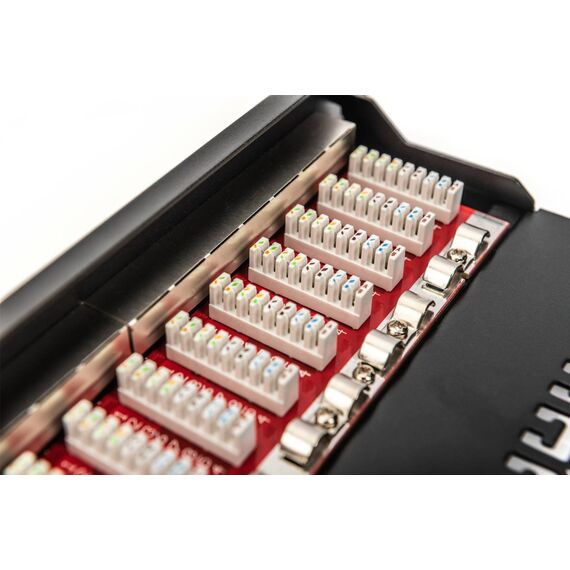

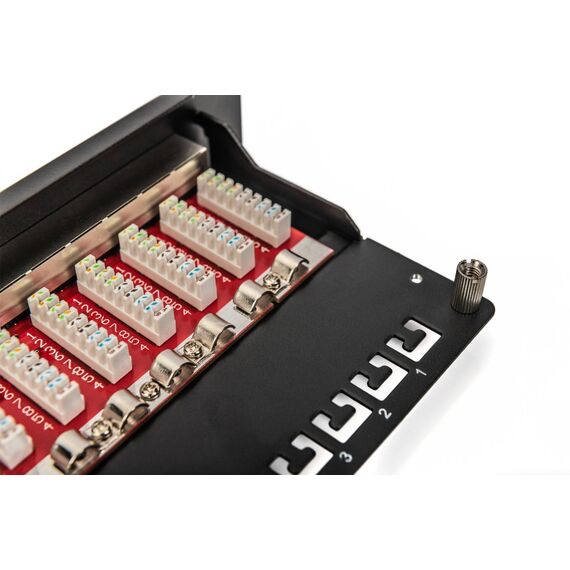

· Cable installation by IDC strips
· Cable fixing with cable ties
· Central ground connection
· 360° shield coverage
· Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 gold-plated contact
· RJ45 shielding: Tinned bronze
· IDC termination clamp: Krone IDC+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
· Ground wire: Not included
· Colour: Black RAL9005

Special Features

· Sturdy patch panel with metal housing
· Complete shielding of housing and shield contact
· Cable installation by IDC-strips
· Central grounding connector
· Dielectric strength up to 1500 VDC (contact/ground)

Product Specification

Product Type	Patch panel - CAT 6a
Placing / Mounting	Rack mountable
Product Material	Cold-rolled steel
Height (Rack Units)	1U
Width	25.5 cm
Depth	11 cm
Height	4.4 cm
Enclosure Colour	Black, RAL 9005
Cabling & Wiring	Cabling & Wiring
Port Qty	12 ports
Termination Type	IDC
Technology	Shielded twisted pair (STP)
Features	Gold-plated connectors, PoE+ support
Compliant Standards	IEEE 802.3af/IEEE 802.3at
Miscellaneous	Miscellaneous
Rack Size	10"
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	26 cm
Shipping Depth	12 cm
Shipping Height	6 cm
Shipping Weight	890 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	70 °C
