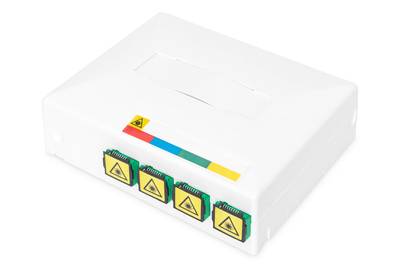

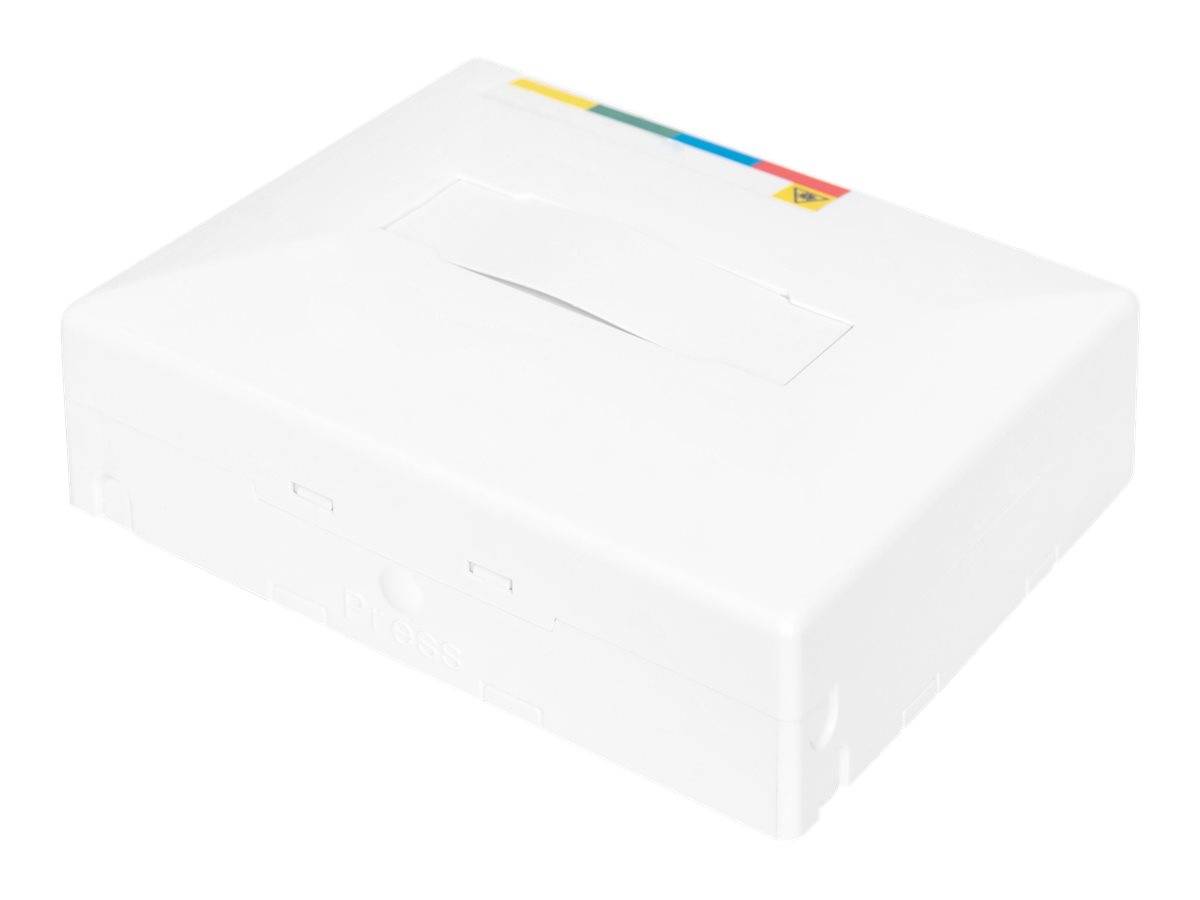

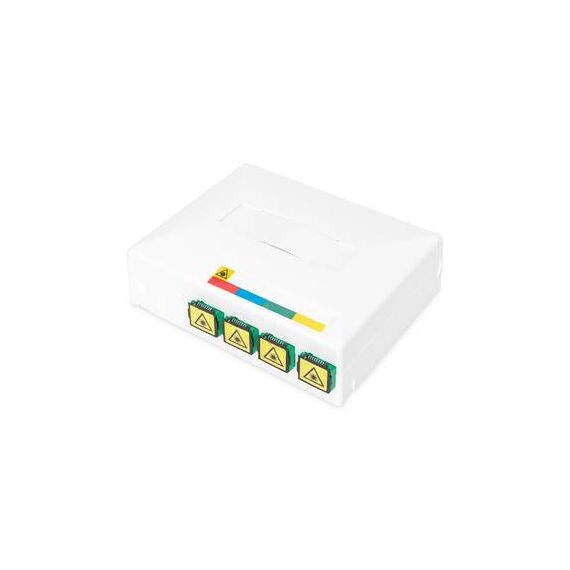

DIGITUS DN-931094 / Fibre-optic splice box / wall mountable, DIN rail mountable / SC/APC x 4 | DN-931094
Please sign in so that we can notify you about a reply
Product Features
· Suitable for 4 ports: 4 x SC SX (integrated) / alternative: 4 x LC DX (not incl.) (without flange)· Integrated splice cassette
· Protection type: IP45
· Installation: Wall or profile rail (DIN rail)
· Suitable for single-mode and multi-mode fiber optic cables
· Return loss: >50dB(UPC), 60dB(APC)
· Operating temperature: -40°C ~ +85°C
· Housing material: PC + ABS
· Dimensions: 100 x 80 x 30 mm (LxWxH)
· Weight: 0.4 kg (without couplings)
Special Features
· Ideal connection box for fiber optic cables in the area of FTTX / FTTH· Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
· Suitable for wall installation and profile rail installation (DIN rail)

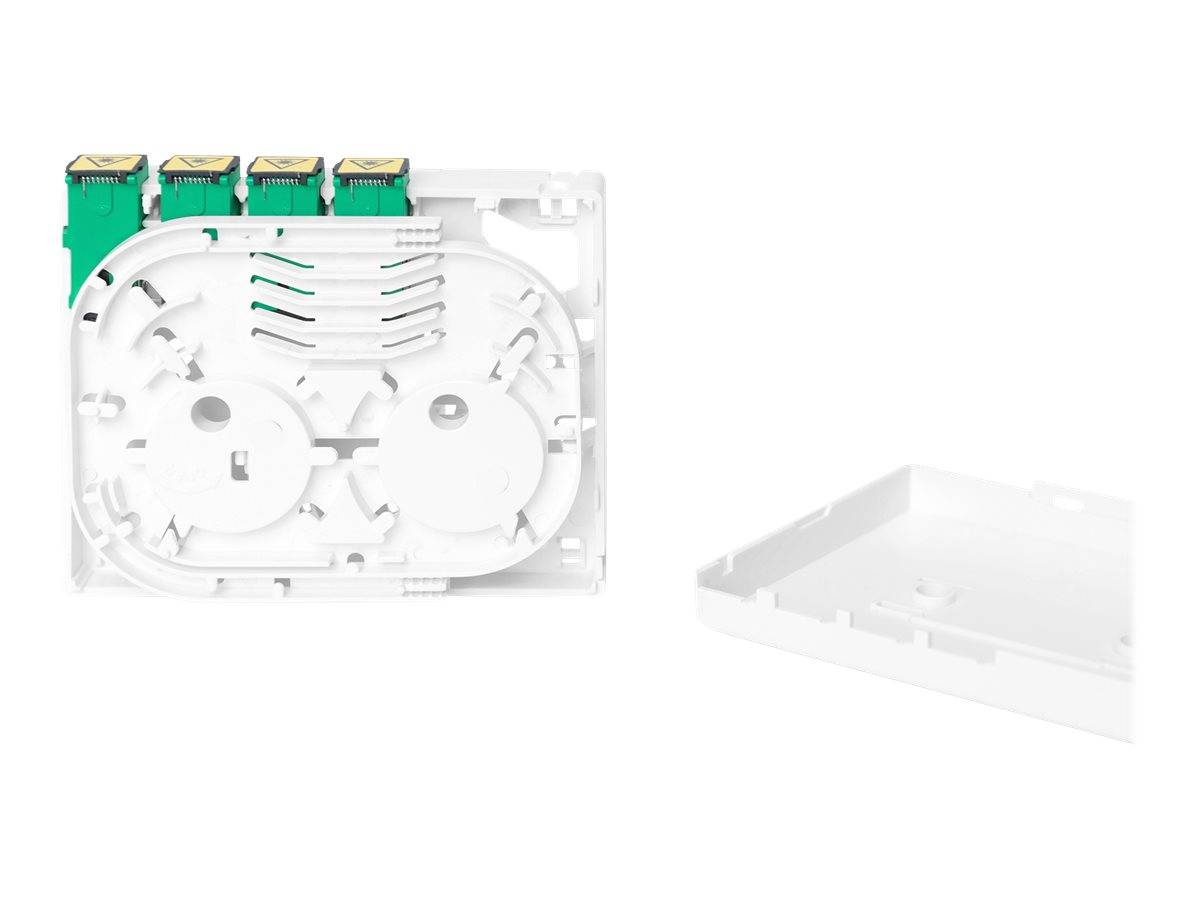

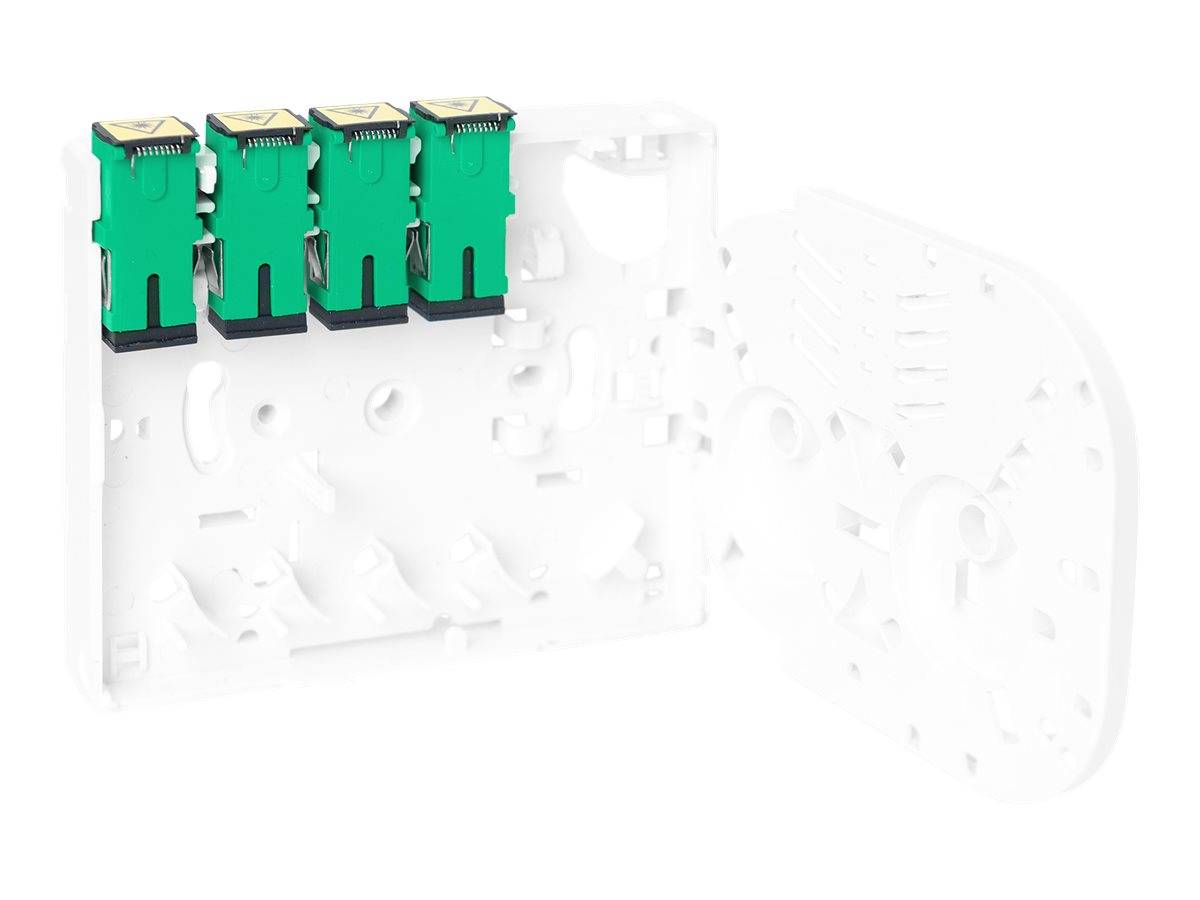

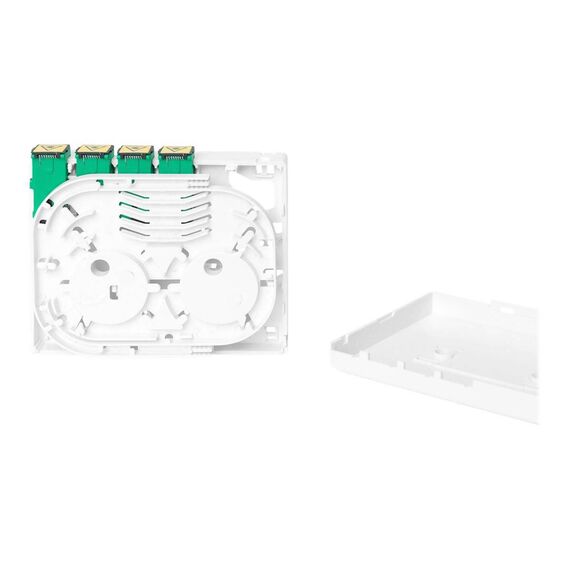

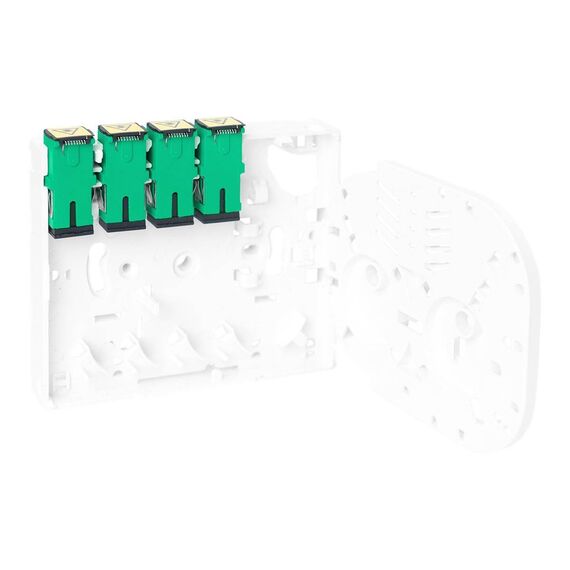

· Integrated splice cassette, hinged with cable routing
· Dust protection design with protection type IP45

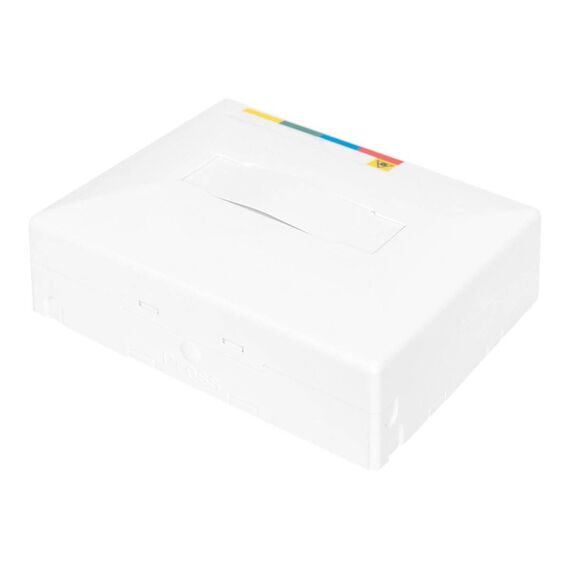

· Integrated labeling field on the housing cover
· Suitable for fusion splicers or mechanical splicers
· Easy maintenance and expansion
Product Specification
| Product Type | Fibre-optic splice box |
| Placing / Mounting | Wall mountable, DIN rail mountable |
| Product Material | PC/ABS |
| Width | 10 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 400 g |
| Cabling & Wiring | Cabling & Wiring |
| Port Qty | 4 ports |
| Technology | Fibre optic |
| Connector Provided | 4 x SC/APC female |
| Miscellaneous | Miscellaneous |
| Compatible Connector Type | Duplex LC / simplex SC |
| Features | Label pocket, dustproof, IP45 protection |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 10.5 cm |
| Shipping Depth | 9.3 cm |
| Shipping Height | 3.8 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
Features - Digitus - DN-931094
More Details
Product Code
03:187007
EAN Code
4016032466536
Manufacturer
Digitus
