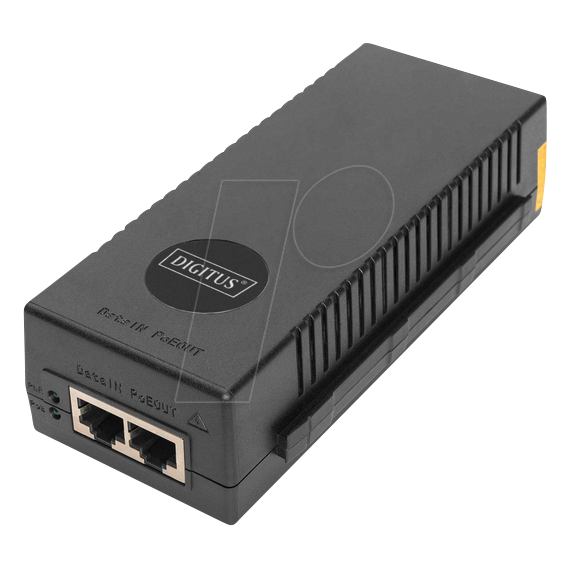

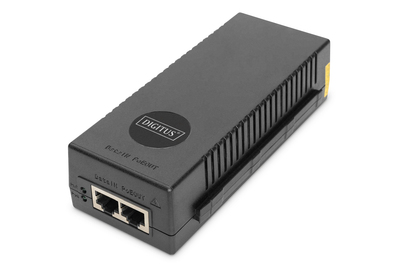

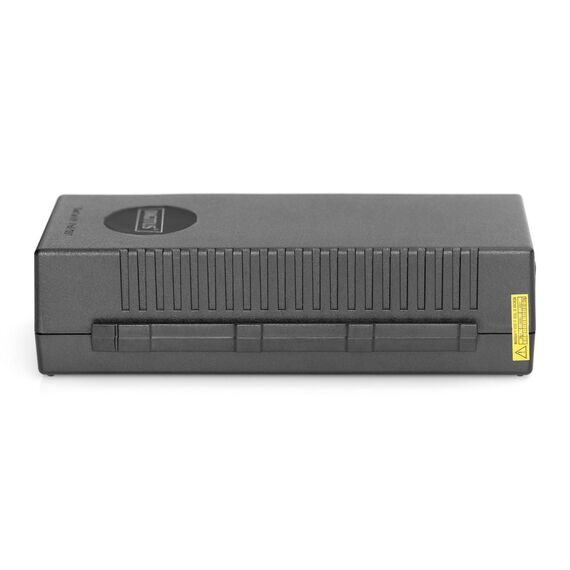

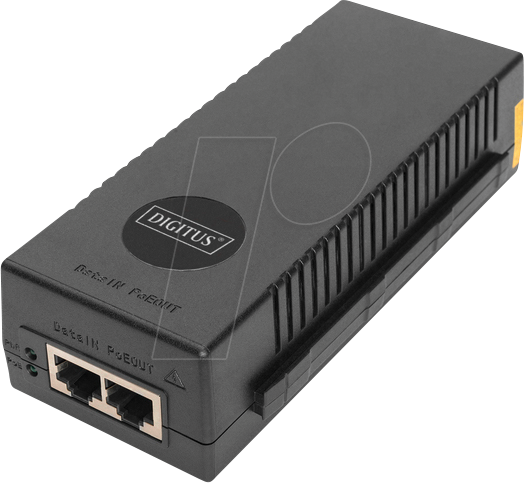

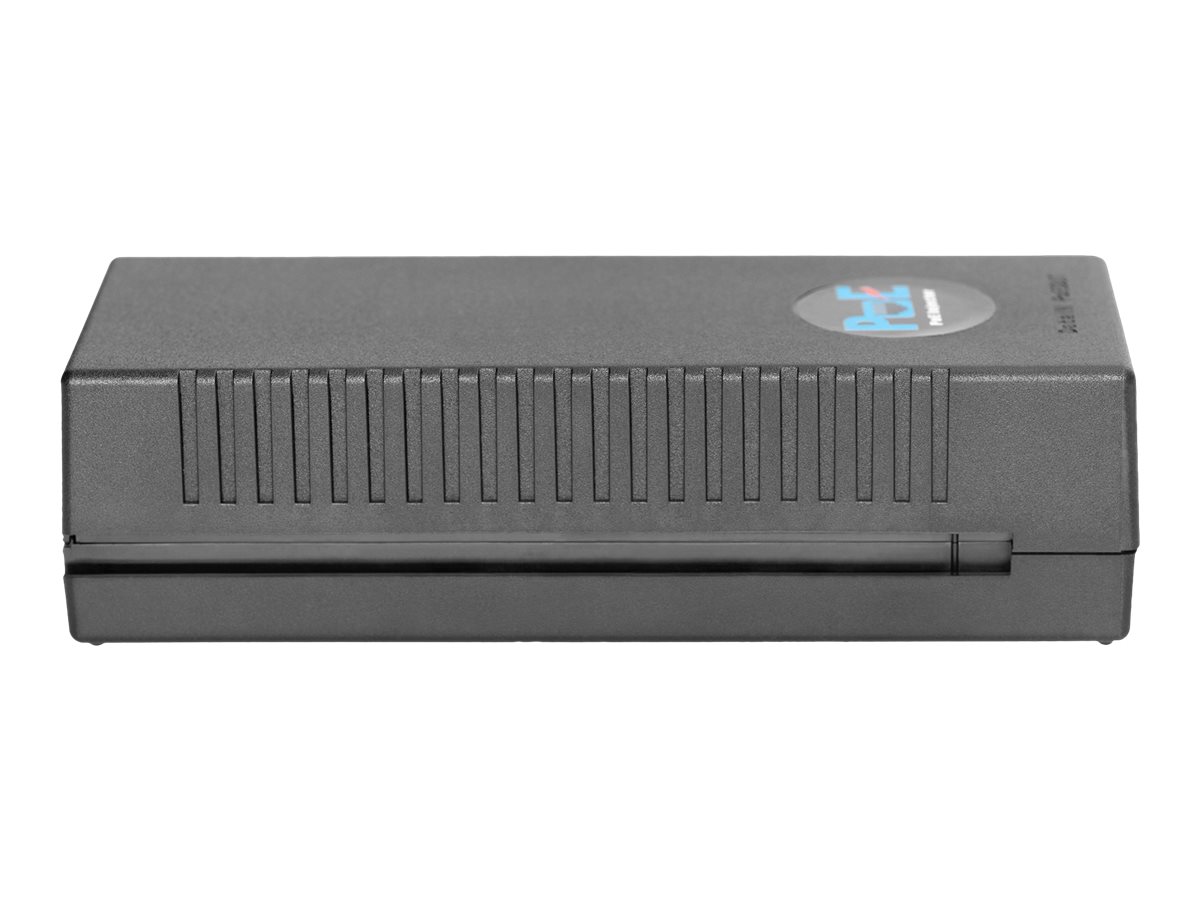

DIGITUS DN-95108 - PoE injector - AC 100-240 V - 30 Watt - output connectors: 1 | DN-95108
DIGITUS DN-95108 - PoE injector - AC 100-240 V - 30 Watt - output connectors: 1 | DN-95108
€55.43 inc. VAT
DN-95108
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Supports 10G, 5G, 2.5G and 10/100/1000 Base-T applications· Supports standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

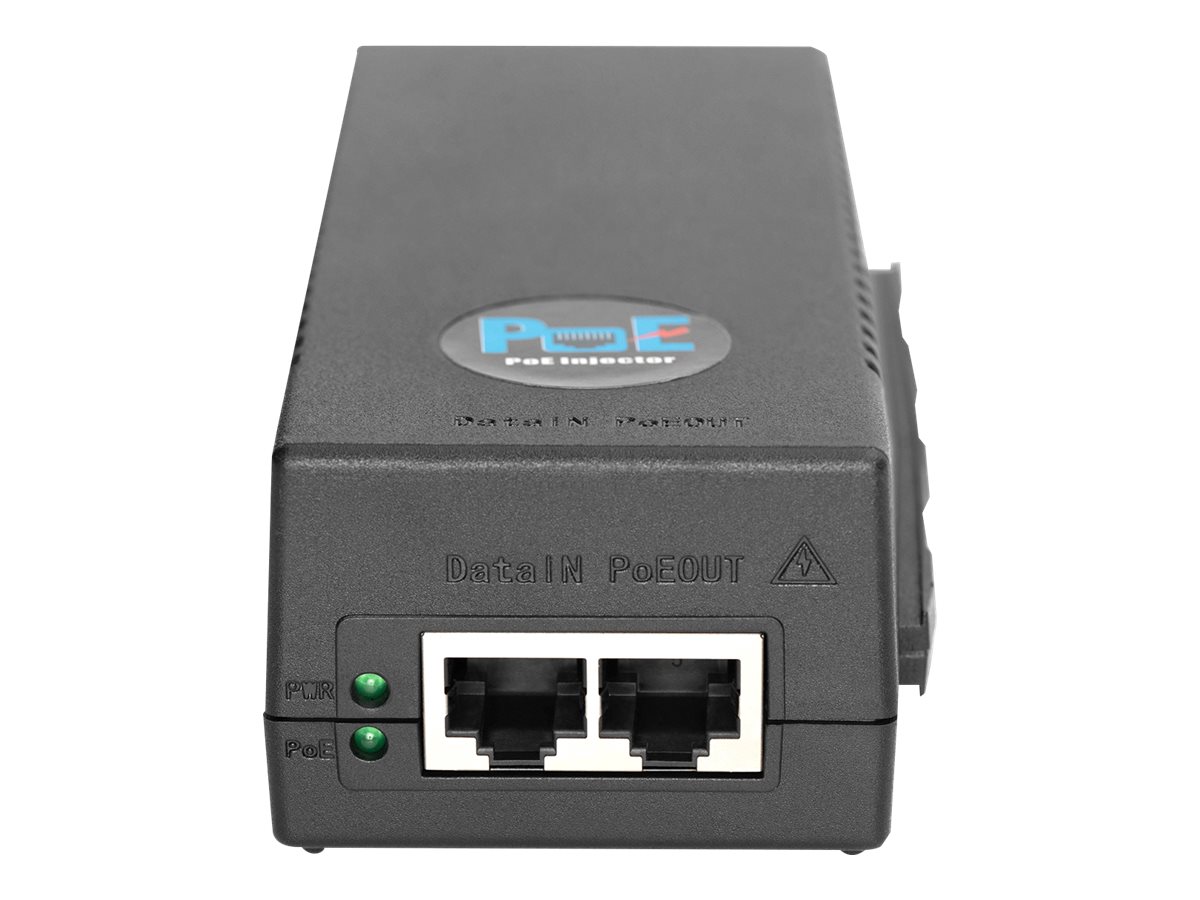

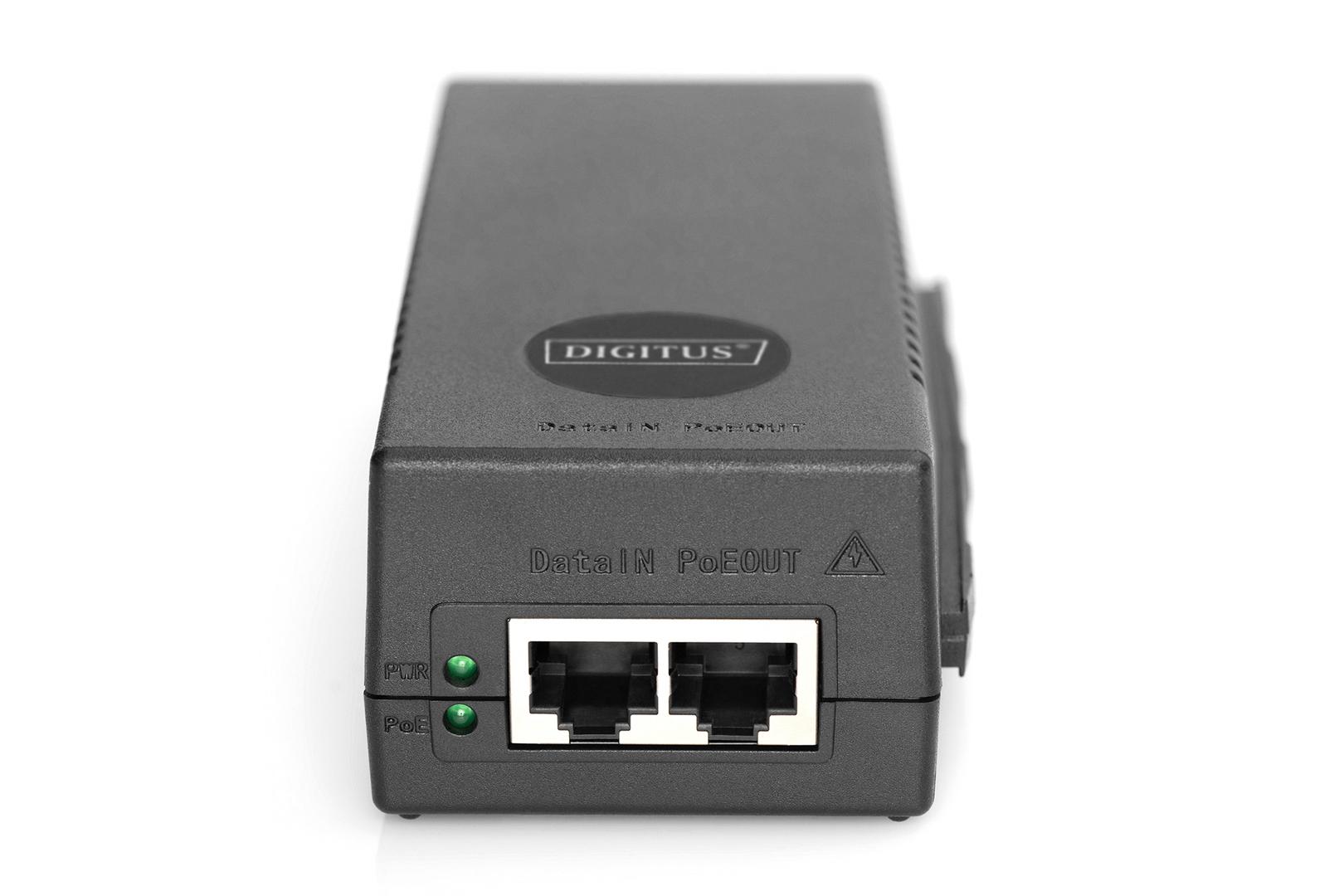

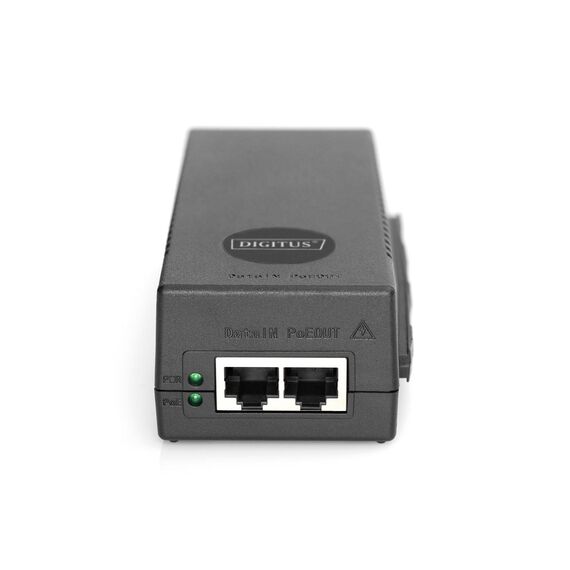

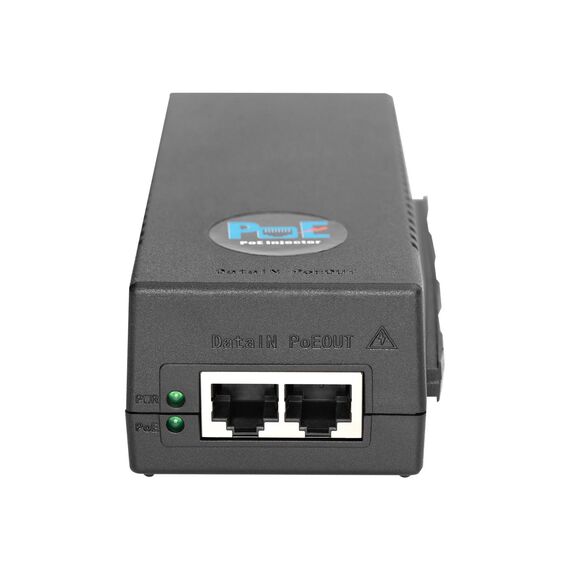

· LED display: Power input / PoE output
· PoE output: 30 W
· For distances of up to 100 m
· LED operating display

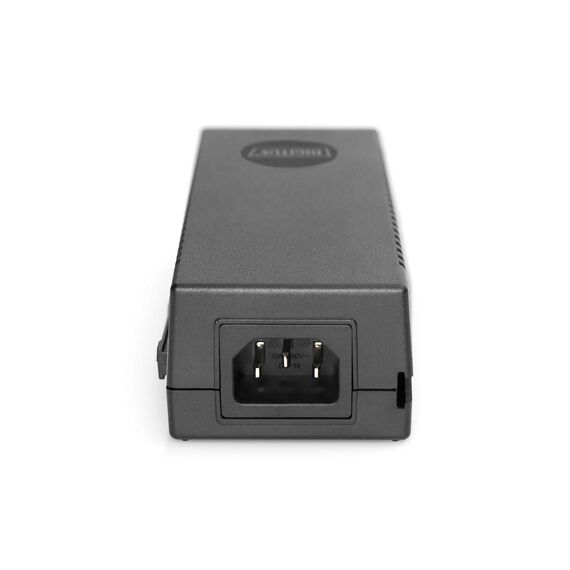

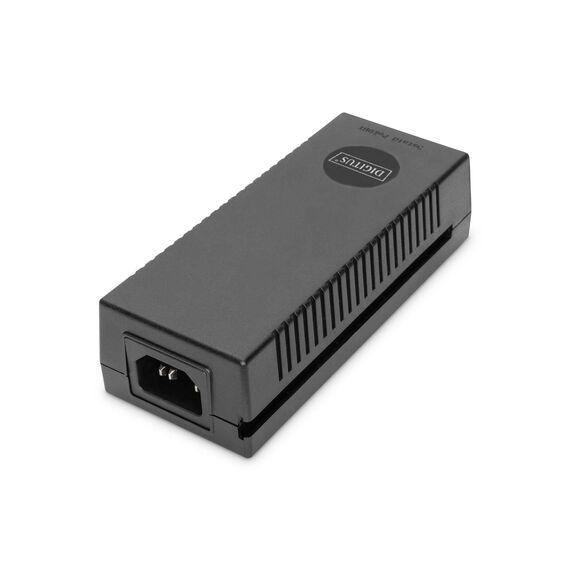

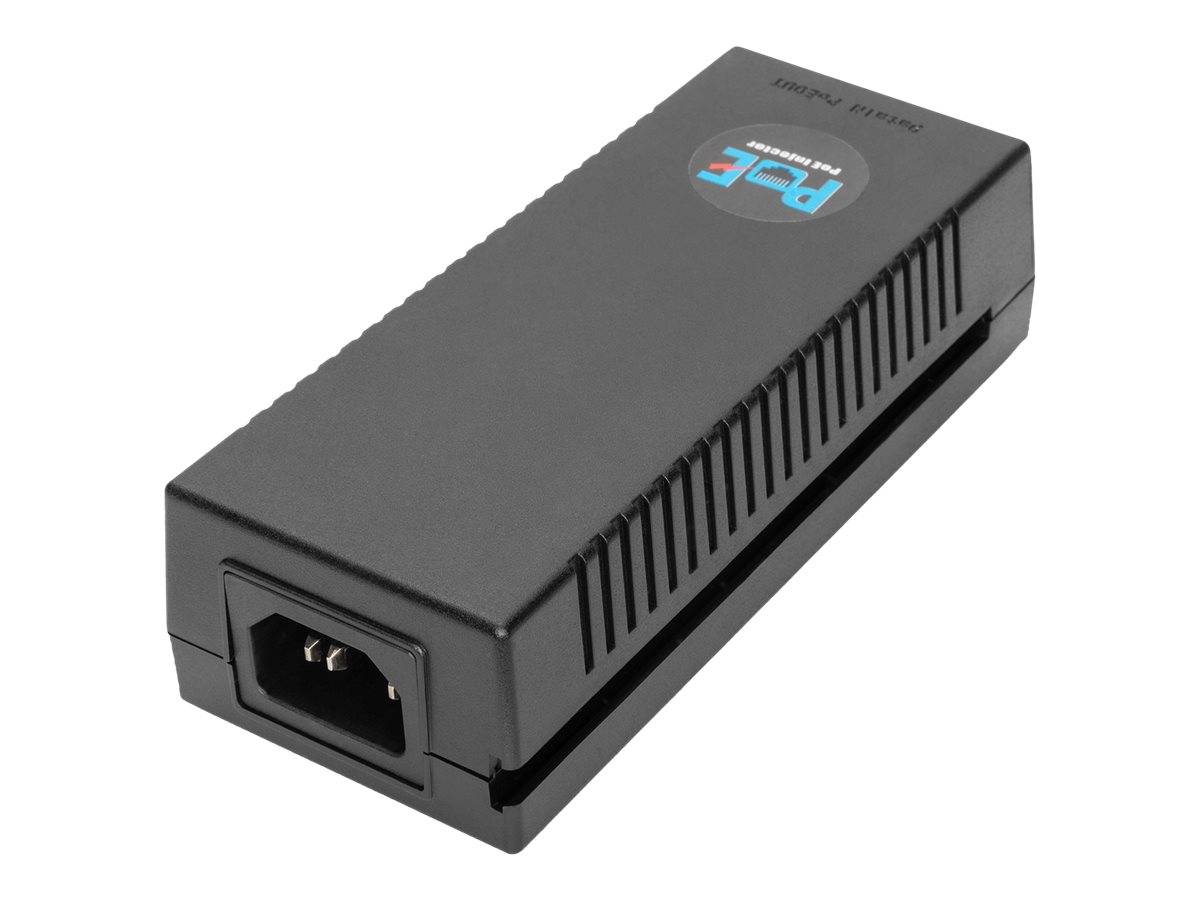

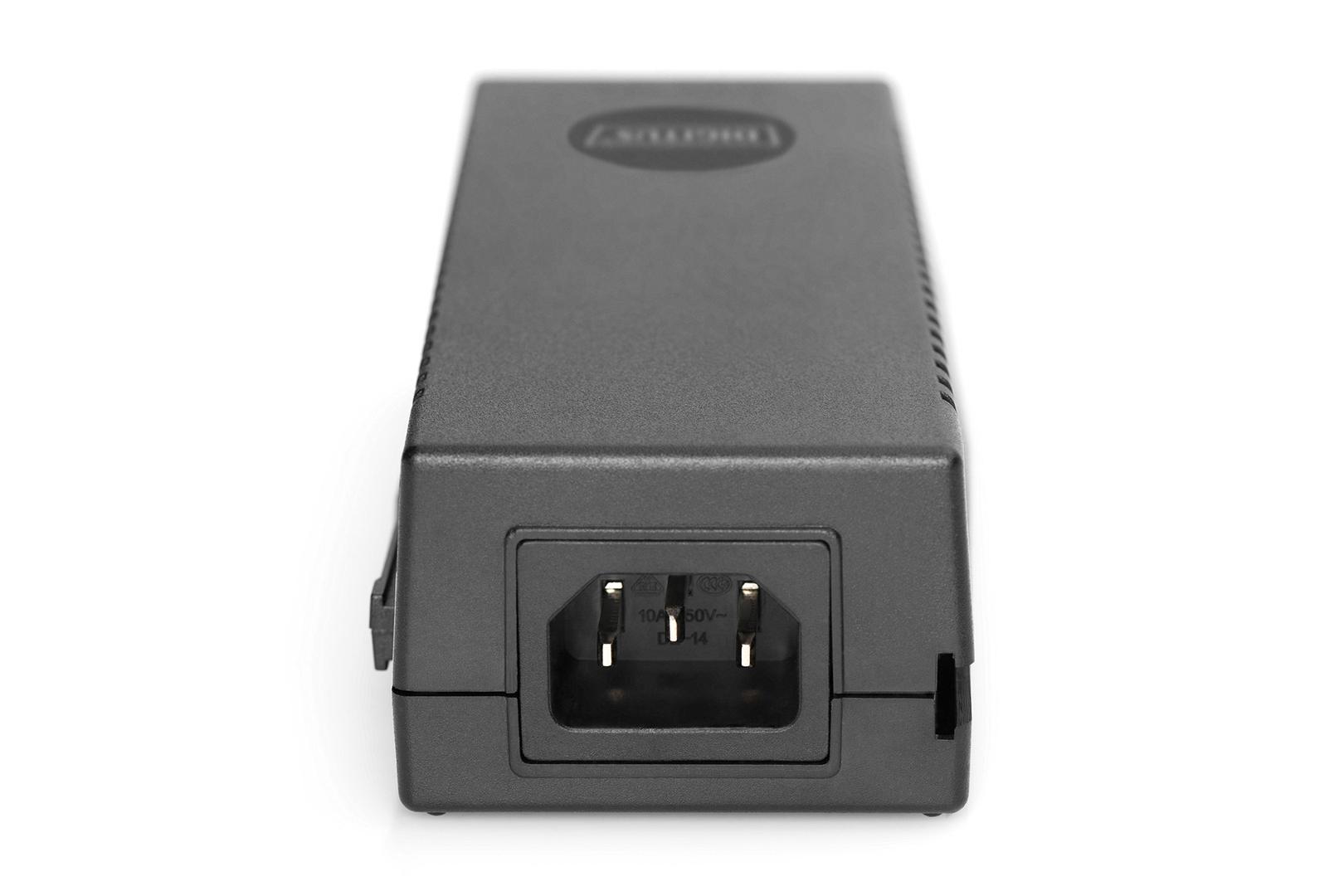

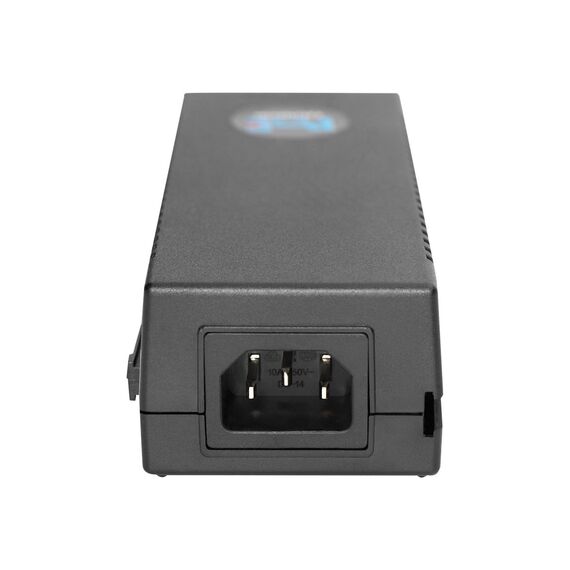

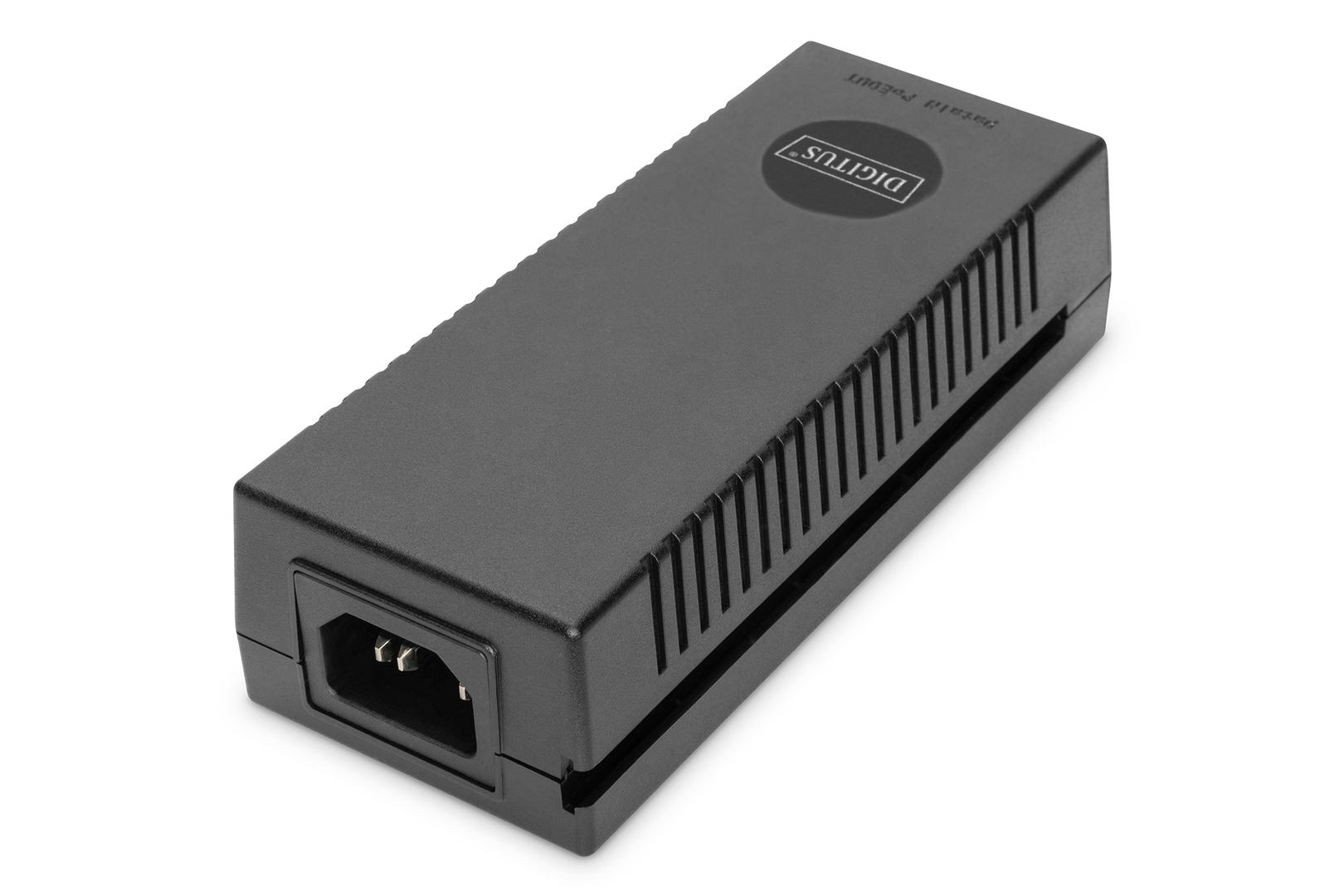

· Integrated power connection for non-heating appliances (C14)
· Excess voltage and short circuit protection
· Automatic detection of PoE devices
· Suitable for wall installation
· Power supply: 100 - 240 VAC / 50/60 Hz
· Total power consumption: 32 W max.
· PoE voltage: 52 VDC / 0.58 A
· PoE budget: 30 W
· PIN assignment: V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2)
· Operating temperature: 0 to 40°C
· Storage temperature: -10 °C to 70 °C
· Operating humidity: 5 - 95% (non condensing)
· Dimensions: 145.5 x 61.5 x 40 mm (L x W x H)
· Weight: 0.45 kg
Special Fetures
· PoE power supply with up to 30 W and 10 Gbps· Supports the IEEE 802.3af/at PoE standard
· Supports 10G, 5G, 2.5G, 10/100/1000 Base-T
· PoE output: 30 W
· For distances of up to 100 m
· LED operating display
· Integrated power connection for non-heating appliances (C14)
· Excess voltage and short circuit protection
· Automatic detection of PoE devices
· Suitable for wall installation
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 52 V |
| Power Capacity | 30 Watt |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable - external |
| Features | LED display, short-circuit protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.15 cm |
| Depth | 14.55 cm |
| Height | 4 cm |
| Weight | 450 g |
Features - Digitus - DN-95108
More Details
Product Code
03:165768
EAN Code
4016032464501
Manufacturer
Digitus
