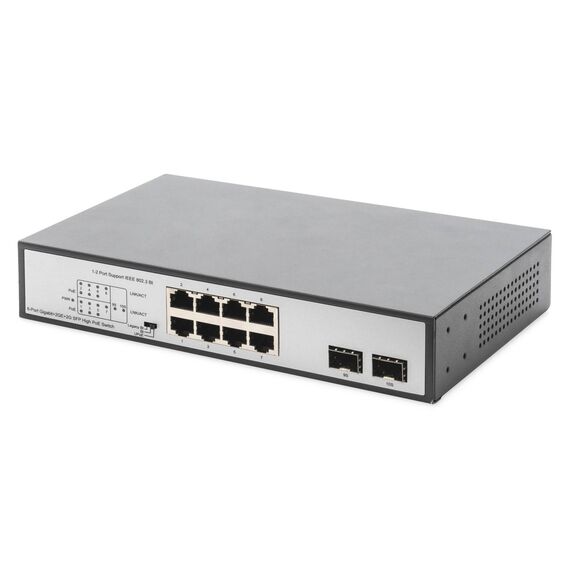

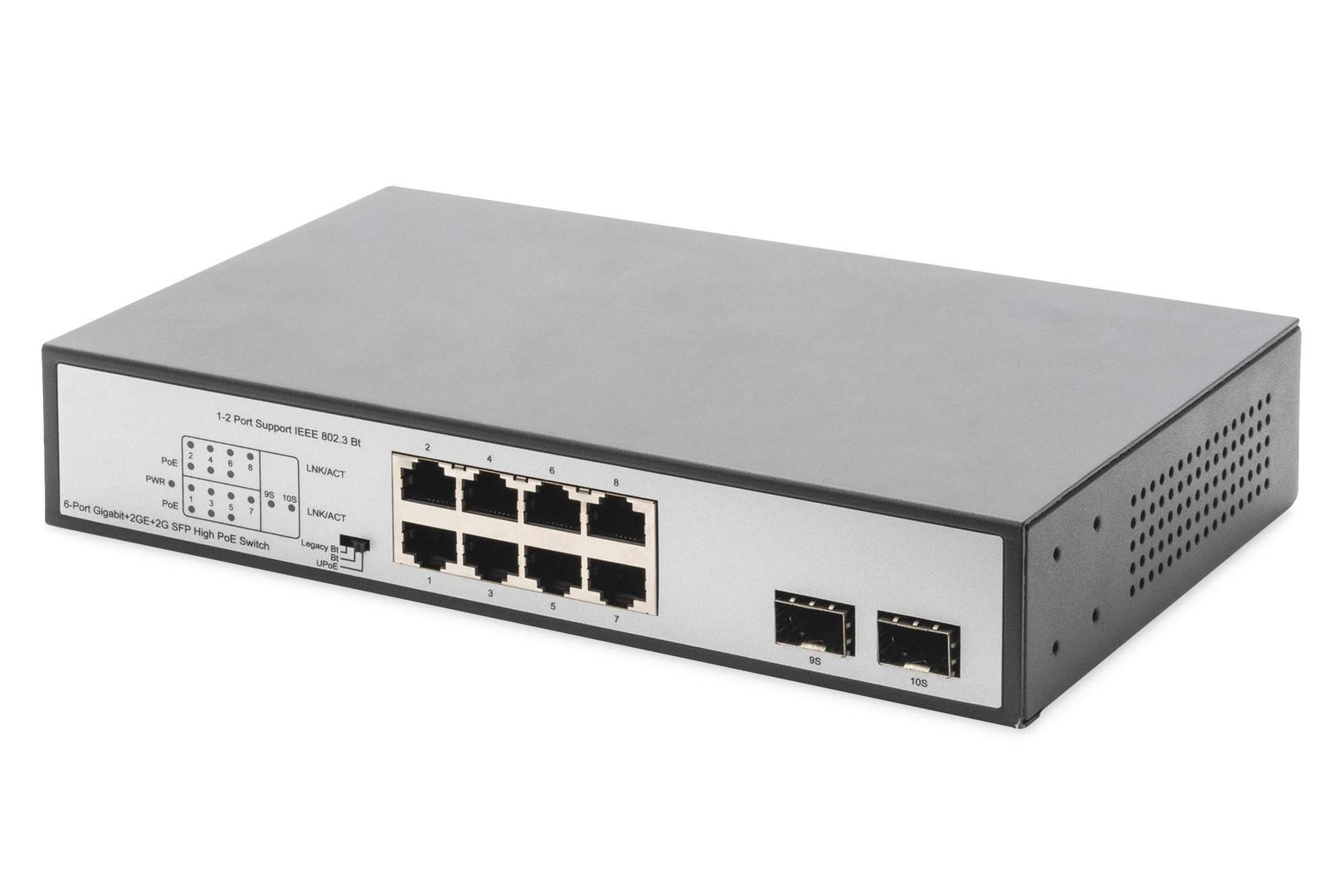

DIGITUS DN-95140 / Switch / unmanaged / 6 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink) / desktop, rack-mountable, wall-mountable / PoE++ (180 W) | DN-95140

Product Features

· Supported Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3x
· Supported PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
· 2 x RJ45 Ports with PoE++ (90 W max.) - 10/100/1000 Mbps
· 4 x RJ45 Ports with PoE++ (30 W max.) - 10/100/1000 Mbps
· 2 x RJ45 Ports - usable as uplink or for LAN devices- 10/100/1000 Mbps
· 2 x SFP Uplink Ports - for fiber glass or copper technology - 100/1000 Mbps
· Supports auto MDI/MDIX for the RJ45 ports
· Supports auto negotiation for the RJ45 ports
· Supported modes: Legacy Bt/BT/UPoE
· Transfer mode: Store and forward
· Backplane: 20 G (switching capacity)
· MAC address list: 4 K, auto-learning, auto-aging
· Jumbo frames: 9216 bytes
· Package Buffer 1.5 Mbit
· Package forwarding rate: 13.39 Mpps
· Total power consumption: 190 W
· PoE budget: 180 W
· Operating temperature: 0 °C to 40 °C
· Operating humidity: 10% - 90% RH (non-condensing)
· Storage temperature: -40 °C to +70 °C
· Storage humidity: 5% to 90% RH (non-condensing)
· Ventilation: Active fan installed
· Network voltage: AC 100 - 240 V / 50/60 Hz
· Surge protection: Differential mode: +/- 4kV - common mode: +/- 6kV
· Electrostatic standard: Contact: +/- 6kV - air: +/- 8kV
· Energy saving: IEEE802.3az (EEE)
· Dimensions: 220 x 150 x 44 mm (LxWxH)
· Weight: 1340 g

Special Features

· Supports the PoE standards IEEE 802.3af, IEEE 802.3at & IEEE 802.3bt
· Total PoE budget of 180 W - supports PoE++
· 6 x RJ45 PoE Ports (2 x 90 W, 4 x 30 W)
· 2 x RJ45 Ports - usable as uplink or for LAN devices
· 2 x SFP Ports - for SFP modules (fiber glass/copper)
· Automatic detection of PoE devices - can also be used for non-PoE devices
· LED status displays on front panel
· Supports legacy BT, BT and UPoE modes

Product Specification

Device Type	Switch - 8 ports - unmanaged
Enclosure Type	Desktop, rack-mountable, wall-mountable
Subtype	Gigabit Ethernet
Ports	6 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE++
PoE Budget	180 W
Performance	Backplane switching capacity: 20 Gbps ¦ Forwarding capacity: 13.39 Mpps
MAC Address Table Size	4K entries
Jumbo Frame Support	9216 bytes
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, 1.5MB packet buffer, MAC address learning, MAC address aging, Energy-Efficient Ethernet (EEE), 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Status Indicators	Power, PoE, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	2 x 1000Base-T RJ-45 PoE++ - 90 W ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP uplink
Power	Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	190 Watt
Miscellaneous	Miscellaneous
Included Accessories	Rubber feet
Rack Mounting Kit	Included
Dimensions & Weight	Dimensions & Weight
Width	22 cm
Depth	15 cm
Height	4.4 cm
Weight	1.34 kg
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	31 cm
Shipping Depth	20 cm
Shipping Height	8 cm
Shipping Weight	1.88 kg
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 90% (non-condensing)
