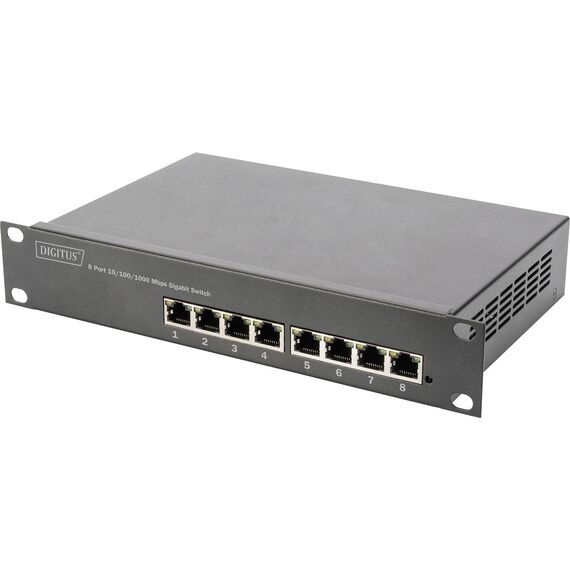

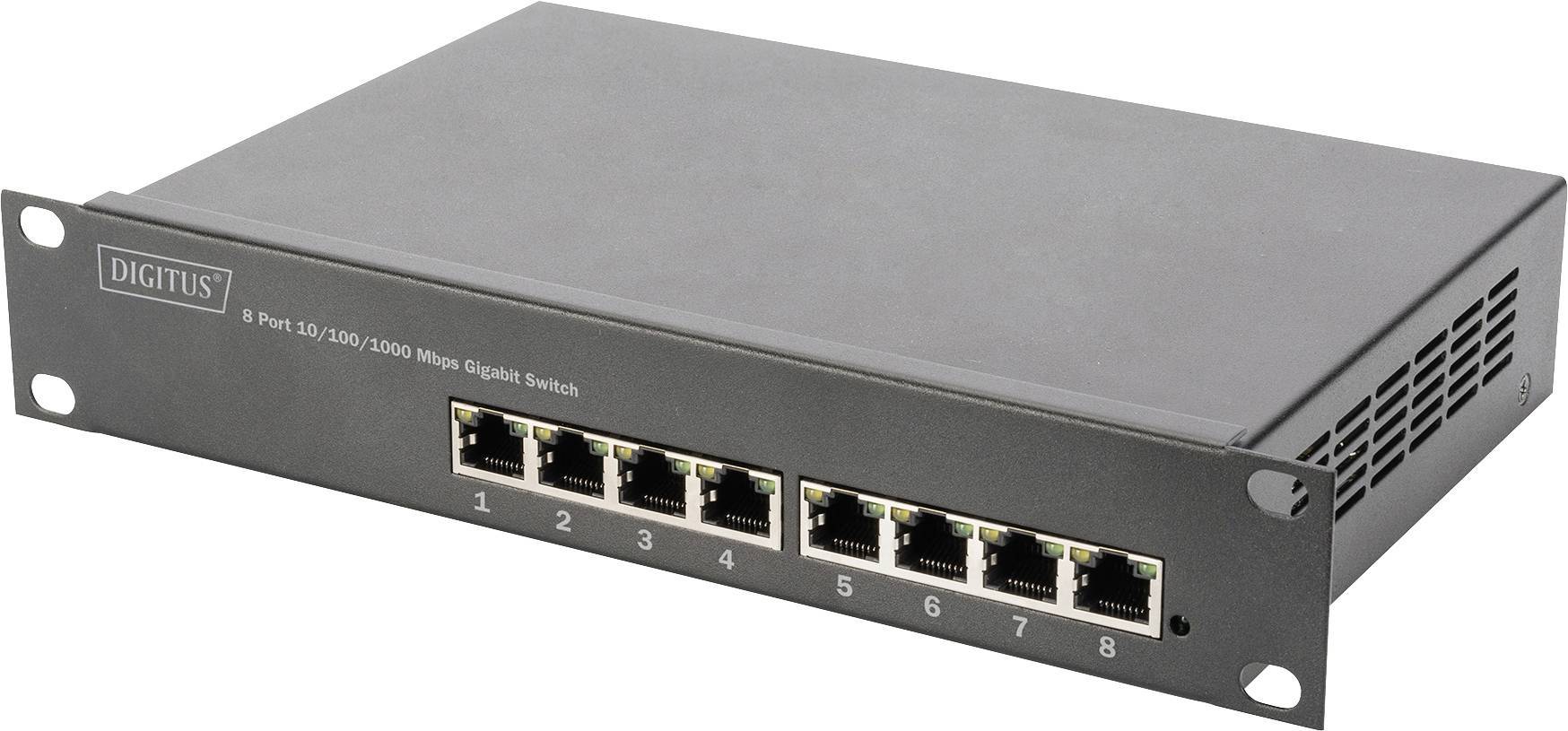

DIGITUS DN-95331 / Switch / L2+ / Managed / 8 x 10/100/1000 (PoE+) / desktop, rack-mountable / PoE+ (80 W) | DN-95331

Product Features

· Number of PoE ports: 8 x 10/100/1000Base-TX RJ45
· Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x full-duplex flow control, IEEE802.3ab link aggregation
· PoE standards: IEEE802.3af, IEEE802.3at
· Forwarding rate: 10/100/1000Mbps
· LED displays: Power, Link/Act
· Backplane bandwidth: 16G
· Forwarding capacity: 11.9 Mpps
· Jumbo frame size: 16 K
· MAC addresses: 8K
· Package buffer storage: 4.1 Mbit
· RAM for CPU: 1 Gbit / Flash memory: 128 Mbit
· PoE total budget: 80 watt output 802.3at (PoE+ support)
· PoE budget per port: 30 watt max.
· PoE voltage: 52 V
· PoE PIN assignment: V- (RJ45 Pin1, 2), V+ (RJ45 Pin 3,6) Mode A, Endspan
· PoE Management: PoE status and control, PoE schedule, PD alive auto check
· Port features: Port Control, Port Isolation, Port Loop Detection
· Port mirroring: Multi to 1 Sniffer
· VLAN: Port-based & 802.1q Tag-based VLANs
· Link aggregation: 8 groups
· Rate limit: 64kbps
· Spanning tree: Supports STP, RSTP, MSTP
· Ring protocol: Supports EAPS
· Multicast: Supports 256 multicast groups & IGMP snooping for multimedia applications
· Supports Static ARP & Static Routing, up to 32 VLAN interfaces
· QoS: 4 lines per port, scheduling algorithm: WRR, SP, WFQ, port-based, MAC-based, 802.1p, DSCP classification
· ACL: Standard IP, Extend IP, MAC IP, ARP, 512 entries
· Security: MAC-based authentication, AAA/RADIUS authentication, WEB/Telnet password protection, Accessing privilege mode password protection
· Supports SMNP
· Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet
· Management interfaces: WEB, SNMP, SSH, CLI, Telnet, TACACS+, RMON
· L3-VLAN Interface: 32
· Operating voltage: 100 - 240 V AC, 50/60 Hz, integrated power adapter (IEC C13 plug for non-heating appliances)
· Power suppy: 96 W max.
· Operating temperature: 0 °C to 40 °C
· Storage temperature: -10 °C to +70 °C
· Operating humidity: 5% - 95% (non condensing)
· Housing: Metal (with protective conductor terminal)
· Dimensions: W 250 x D 150 x H 44 mm
· Weight: 1.140 kg (without packaging)

Special Features

· 8-Port 10/100/1000 Mbps
· 8 x PoE ports with 80 W total output 802.3at (PoE+)
· Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
· IEEE802.3x full-duplex flow control & IEEE 802.3ab link aggregation
· Management interfaces: WEB, SNMP, SSH, CLI, Telnet, TACACS+, RMON
· PoE Management, Port Control, Port Isolation, Loop Detection, Port Mirroring
· Backplane bandwidth: 16 Gbps
· VLAN features
· L2+ layer features

Product Specification

Device Type	Switch - 8 ports - L2+ - Managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)	PoE+
PoE Budget	80 W
Performance	Bandwidth: 16 Gbps ¦ Forwarding capacity: 11.9 Mpps
Capacity	Link aggregation groups: 8 ¦ Multicast groups: 256 ¦ Virtual interfaces (VLANs): 32
MAC Address Table Size	8K entries
Jumbo Frame Support	16KB
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP, RMON, Telnet, HTTP, SSH, CLI
Authentication Method	RADIUS, TACACS+
Features	Flow control, ARP support, IGMP snooping, port mirroring, IPv6 support, half duplex mode, full duplex mode, Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, port isolation, Strict Priority (SP), tagged VLAN, metal housing, 4.1MB packet buffer, Internet Control Message Protocol (ICMP), Link Aggregation, Authentication, Authorization and Accounting (AAA), Weighted Round Robin (WRR), loopback detection, port-based VLAN, multicast mode, DSCP based QoS
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
RAM	1 GB
Flash Memory	128 MB
Status Indicators	Power, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 PoE+ - 30 W
Power	Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	96 Watt
Dimensions & Weight	Dimensions & Weight
Width	25 cm
Depth	15 cm
Height	4.4 cm
Weight	1.14 kg
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	32 cm
Shipping Depth	24 cm
Shipping Height	7 cm
Shipping Weight	1.6 kg
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-10 °C
Max Storage Temperature	70 °C
