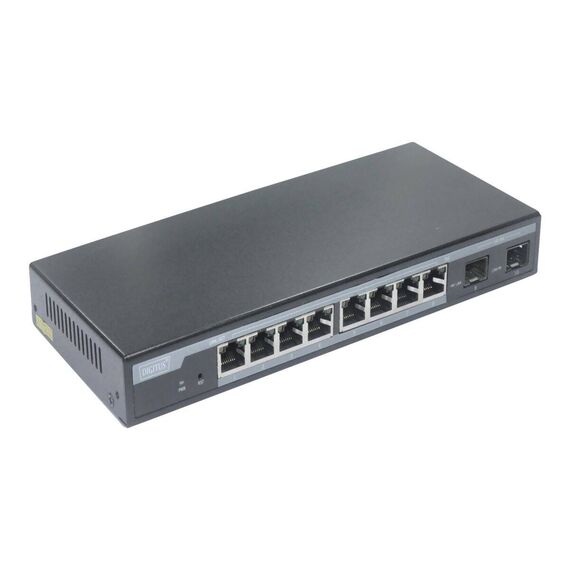

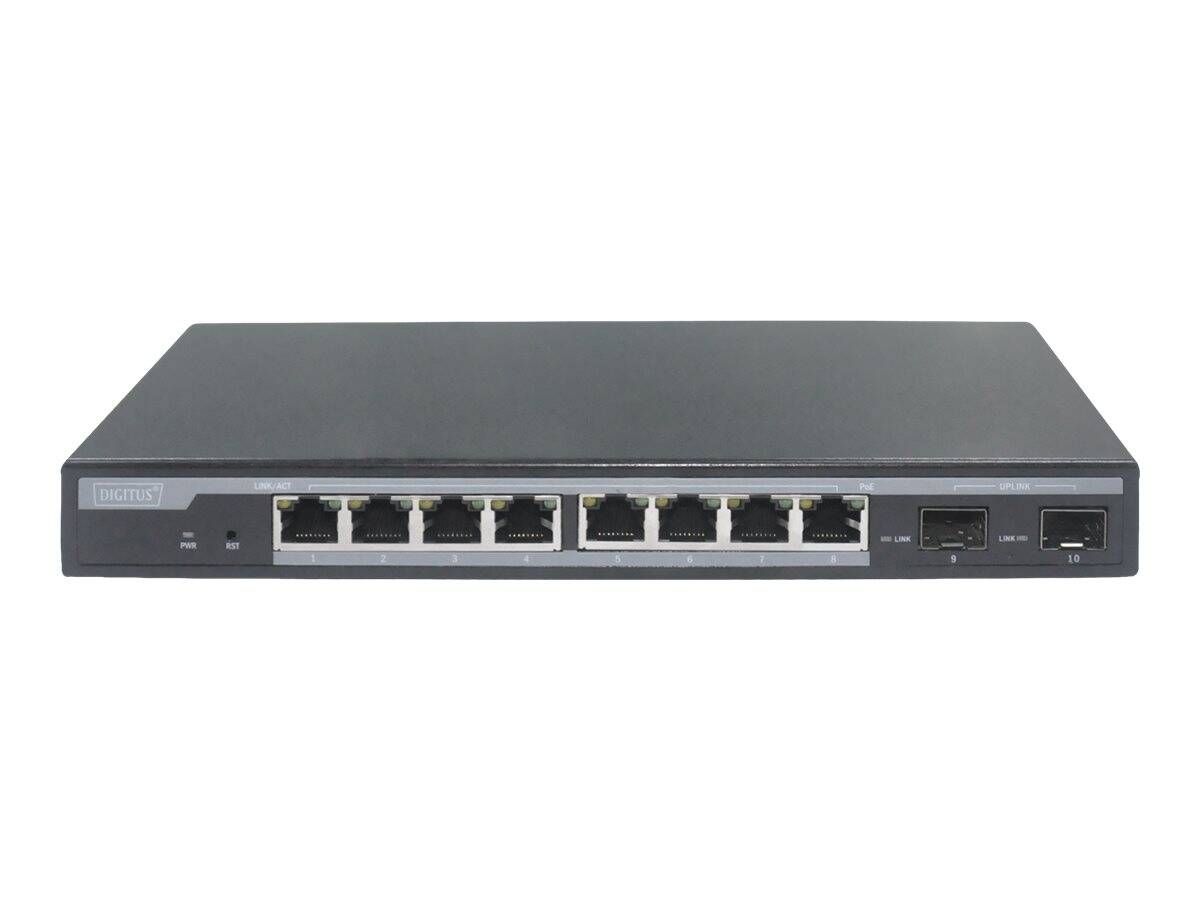

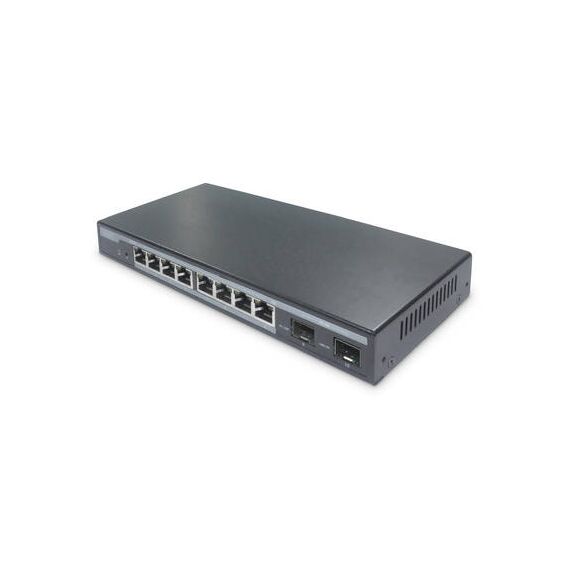

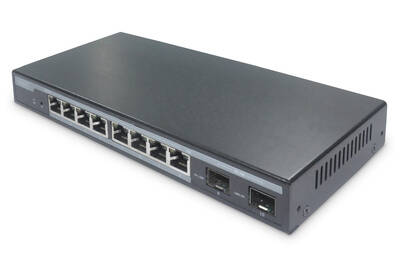

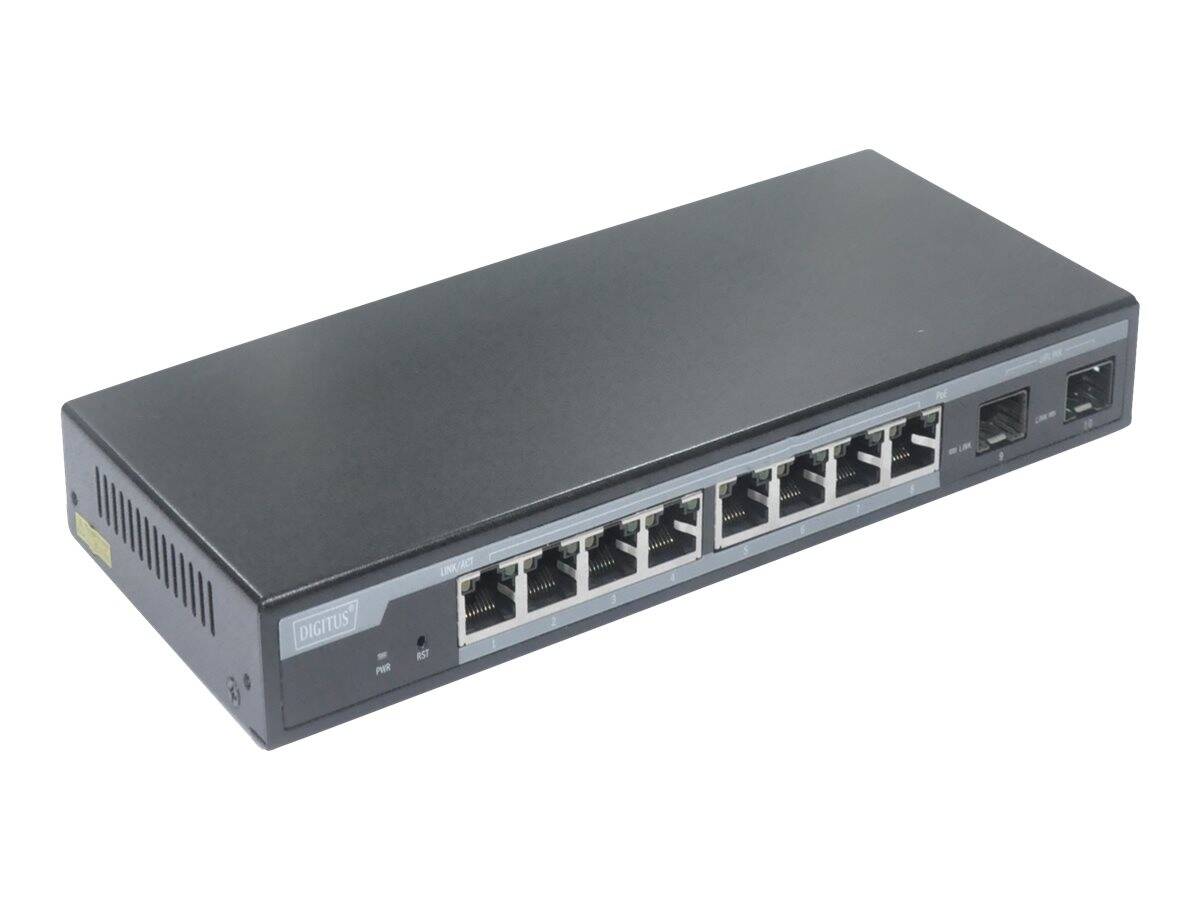

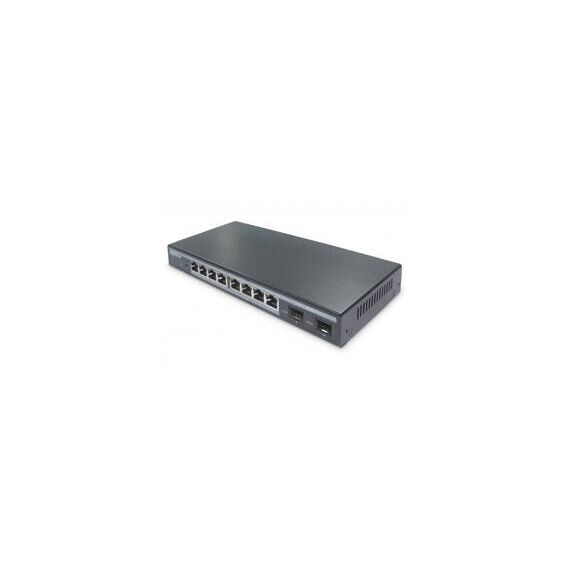

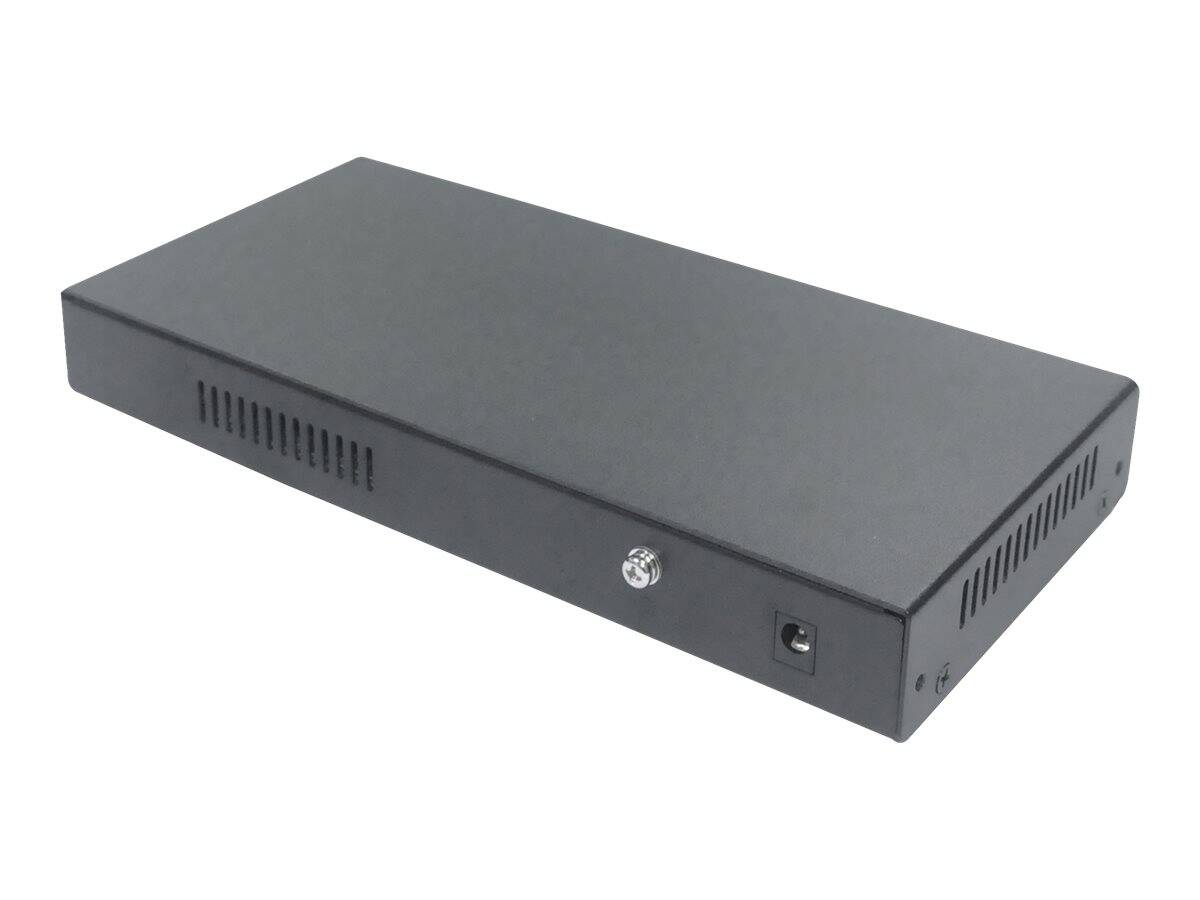

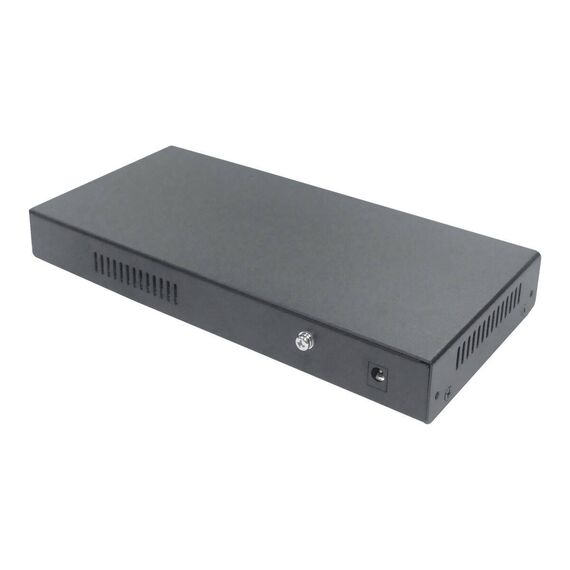

DIGITUS Professional DN-95344 - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - desktop - PoE+ (86 W) | DN-95344

Product Features

· 8-Port 10/100/1000Base-T with PoE support
· 2-Port Gigabit SFP Uplink
· PoE- Current output 44 ~ 57V DC voltage, max. 30 W per port
· PoE Power Mode A, PIN 1/2(+), 3/6(-)
· VLAN settings Port-based / Tag-based / MAC based / IP-based / Voice VLAN / VLAN mapping / Double VLAN
· Trunk settings, Rapid Spanning Tree support (IEEE802.1d STP, IEEE802.1w RSTP, IEEEEEE802.1s MSTP
· QoS support
· MAC address filtering, TCP/UDP filtering
· Tacacs+ and Radius authentication
· Supports non-blocking, non-head-of-line forwarding
· Supports back-pressure and bandwidth control at each port
· Store-and-forward technology for optimized data transfer
· Automatic speed and half/full duplex detection/adjustment
· Auto MDI / MDI-X function
· Backplane with 20Gbps
· Supports up to 8K MAC addresses
· Maximum output line 86 Watt
· Power consmption: 5W
· DC plug Size: 5.5x2.1mm

Special Fetures

· 8-Port 10/100/1000Base-T with PoE support
· 2-Port Gigabit SFP Uplink
· Meets the network standards IEEE 802.3, IEEE802.3ad, IEEE802.1d, IEEE 802.3u, IEEE 802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1q, IEEE802.1w, IEEE802.1s, IEEE802.1z, IEEE802.3ah, IEEE802.1ag, IEEE 802.3af and IEEE802.3at
· Supports Port Configuration, PoE Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Power Control
· Maximum PoE power of 86 watts

Product Specification

Device Type	Switch - 8 ports - Managed
Enclosure Type	Desktop
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	86 W
Performance	Backplane speed: 20 Gbps
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP, Telnet, SSH
Authentication Method	RADIUS, TACACS+
Features	VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, store and forward, MAC address filtering, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Quality of Service (QoS), bandwidth control, Back Pressure Support, port trunking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1z, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x Gigabit LAN SFP uplink
Power
Power Device	Internal power supply
Dimensions & Weight
Width	25 cm
Depth	11.5 cm
Height	3.9 cm
Weight	670 g
