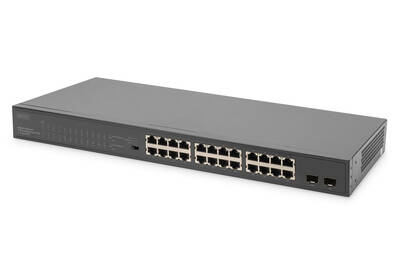

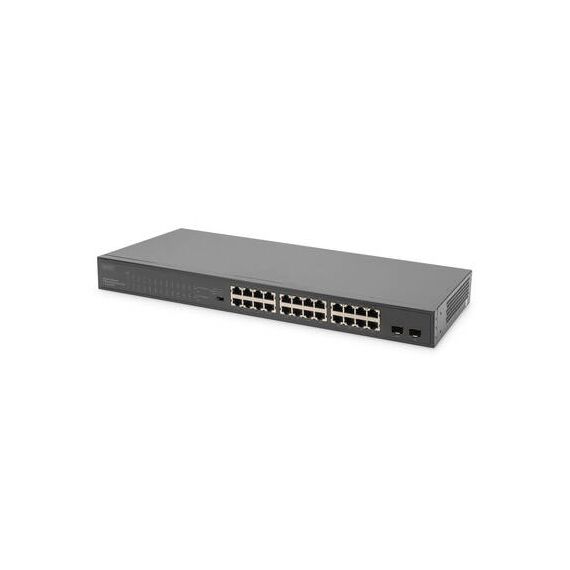

DIGITUS DN-95348-1 - Switch - unmanaged - 24 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink) - rack-mountable - PoE+ (370 W) | DN-95348-1

Product Features

· Comply with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az standards
· Support IEEE802.3af, IEEE802.3at standards
· Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
· The maximum output power of a single port is 30W, and the total output power of PoE is 370W
· Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard
· Support MAC address self-learning
· 24 x 10/100 / 1000Mbps self-adaptive RJ45 ports, support port auto flip (Auto MDI / MDIX)
· 2 x 1000Mbps optical fiber adaptive ports
· Use store-and-forward architecture
· Backplane: 52Gbps
· Packet forwarding rate: 38.688Mbps
· Packet Cache: 4.1Mbit
· Mac address table: 8K
· Jumbo frame: 9216 bytes
· LED indicators for monitoring power, link/activity
· Working Mode-Normal mode: Enable Flow Control and all ports can communicate with each other.
· Working Mode-Flow Control mode: Disable Flow Control and all ports can communicate with each other.
· Working Mode-VLAN mode: Port 1-24 cannot communicate with each other, but can communicate with the uplink port 25F-26F.
· Power supply: AC 100-240V 50 / 60Hz Built-in power
· Power consumption: Max (full load on the port): 400W (220V / 50Hz)
· Dimensions: 440 * 240 * 44mm

Special Fetures

· Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
· PoE power budget: 370 Watts
· Gigabit Ethernet Speed
· Additional 2 port SFP-Uplink for Fiber Technology
· Rack mountable in system rack (1U)
· 24 x 10/100 / 1000 Mbps self-adapting RJ45 ports, support port auto-flip (Auto MDI/MDIX);
· 2 x 1000 Mbps SFP ports;
· The UTP port supports the auto-negotiation function and automatically configures the transmission mode and the transmission rate;
· Use of Store-and-Forward architecture

Product Specification

Device Type	Switch - 24 ports - unmanaged
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Backplane speed: 52 Gbps ¦ Forwarding rate: 38.688 Mbps
Capacity	Packet forwarding cache: 4.1 Mbit
MAC Address Table Size	8K entries
Jumbo Frame Support	9216 bytes
Features	Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Status Indicators	Power, link/activity
Expansion / Connectivity
Interfaces	1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000 (uplink) SFP
Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Miscellaneous
Included Accessories	Power cord
Rack Mounting Kit	Included
Dimensions & Weight (Shipping)
Shipping Width	55.5 cm
Shipping Depth	29.5 cm
Shipping Height	8.8 cm
Shipping Weight	4.08 kg
