DIGITUS DS-12862 - KVM / audio / USB switch - 2 x KVM port(s) - 1 local user - desktop | DS-12862

Product Features

· UHD resolution: 4K / 60 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

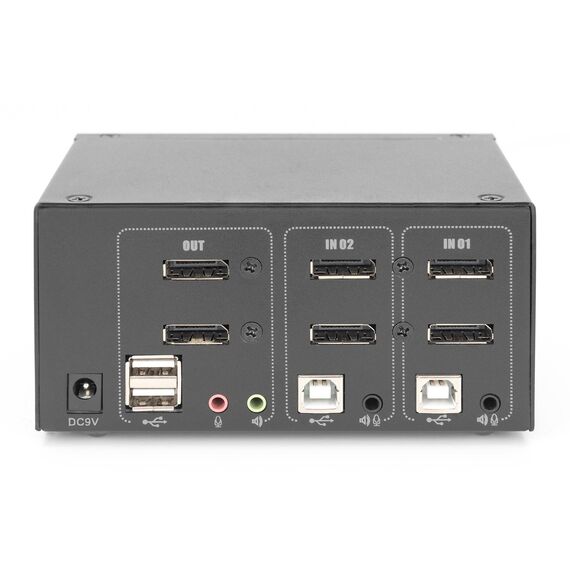

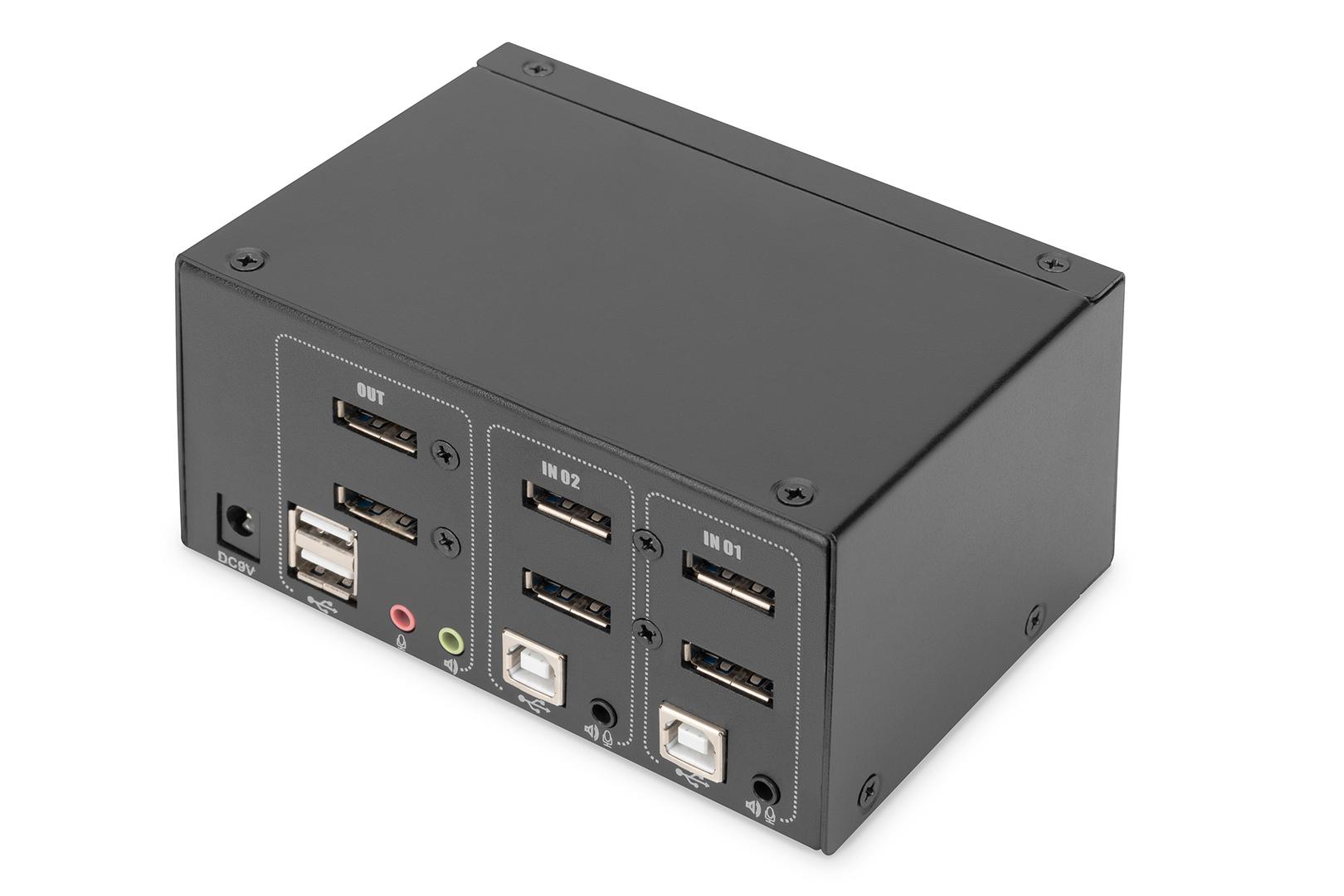

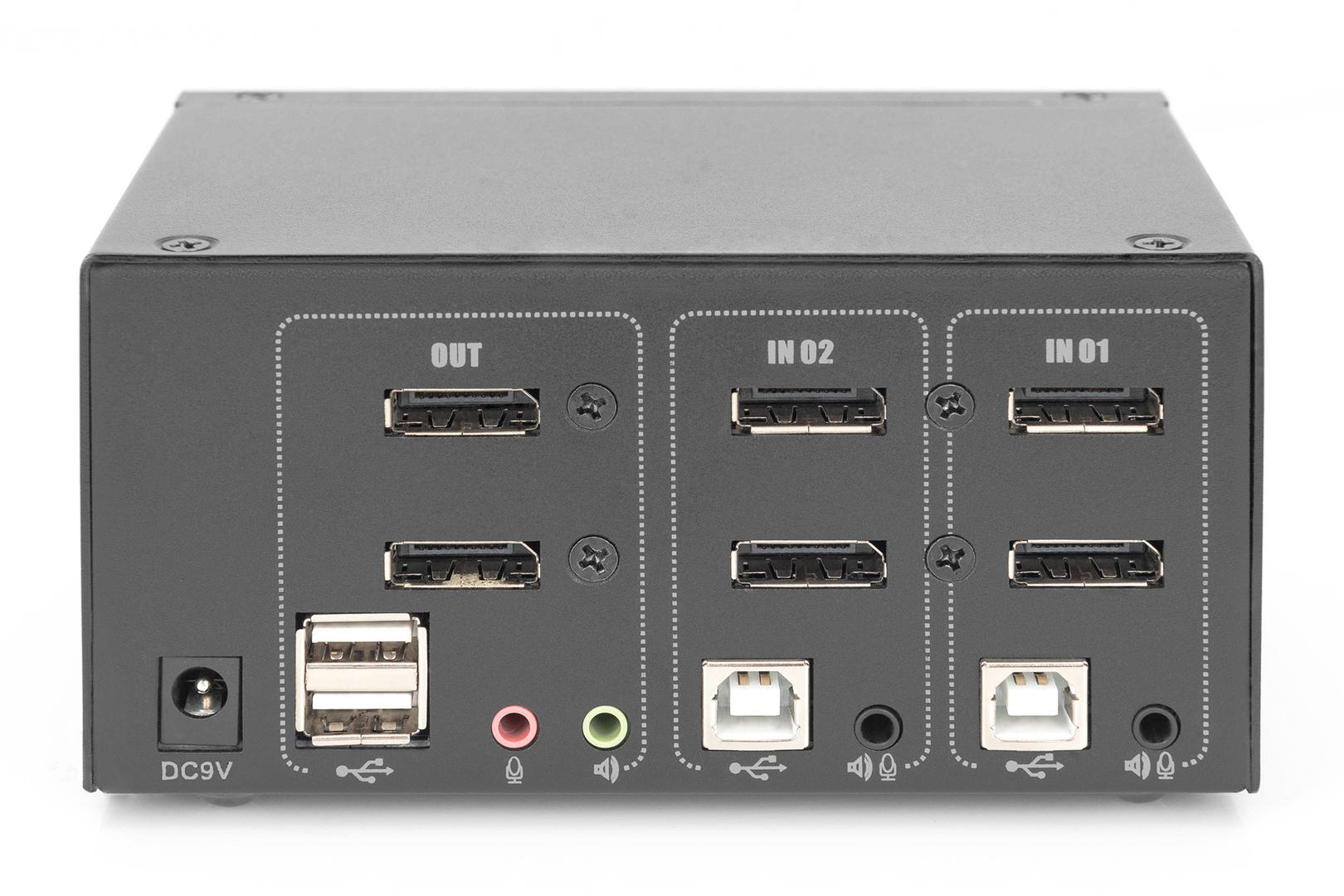

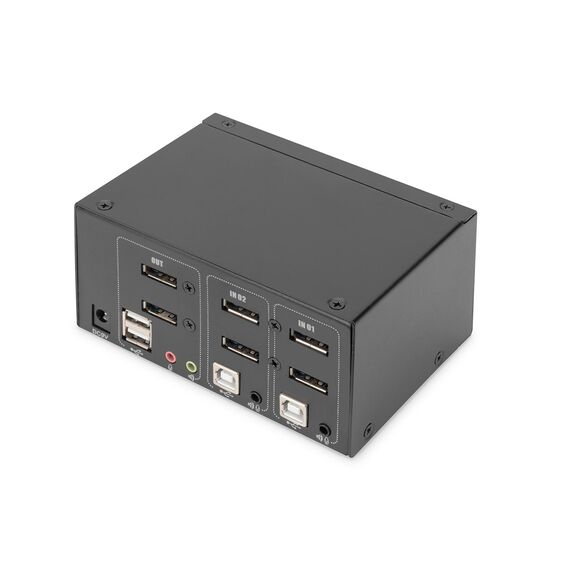

· Inputs: 4 x DP® inputs (2x2), 2 x USB B, 2 x Audio combo socket 3.5 mm jack (microphone, speaker)
· Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x Stereo audio 3.5 m jack (microphone, speaker)

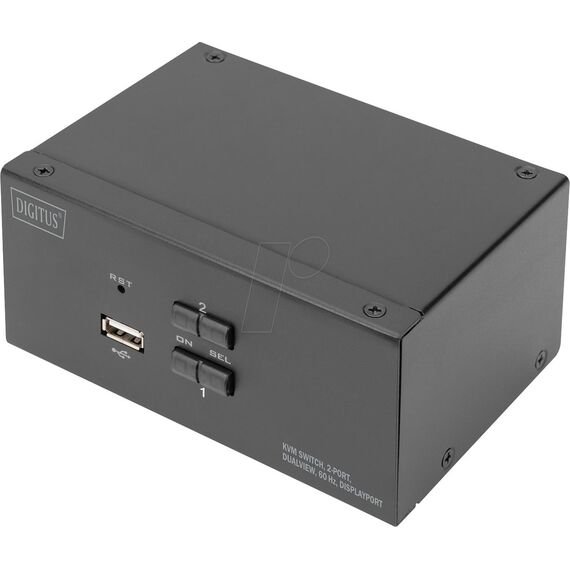

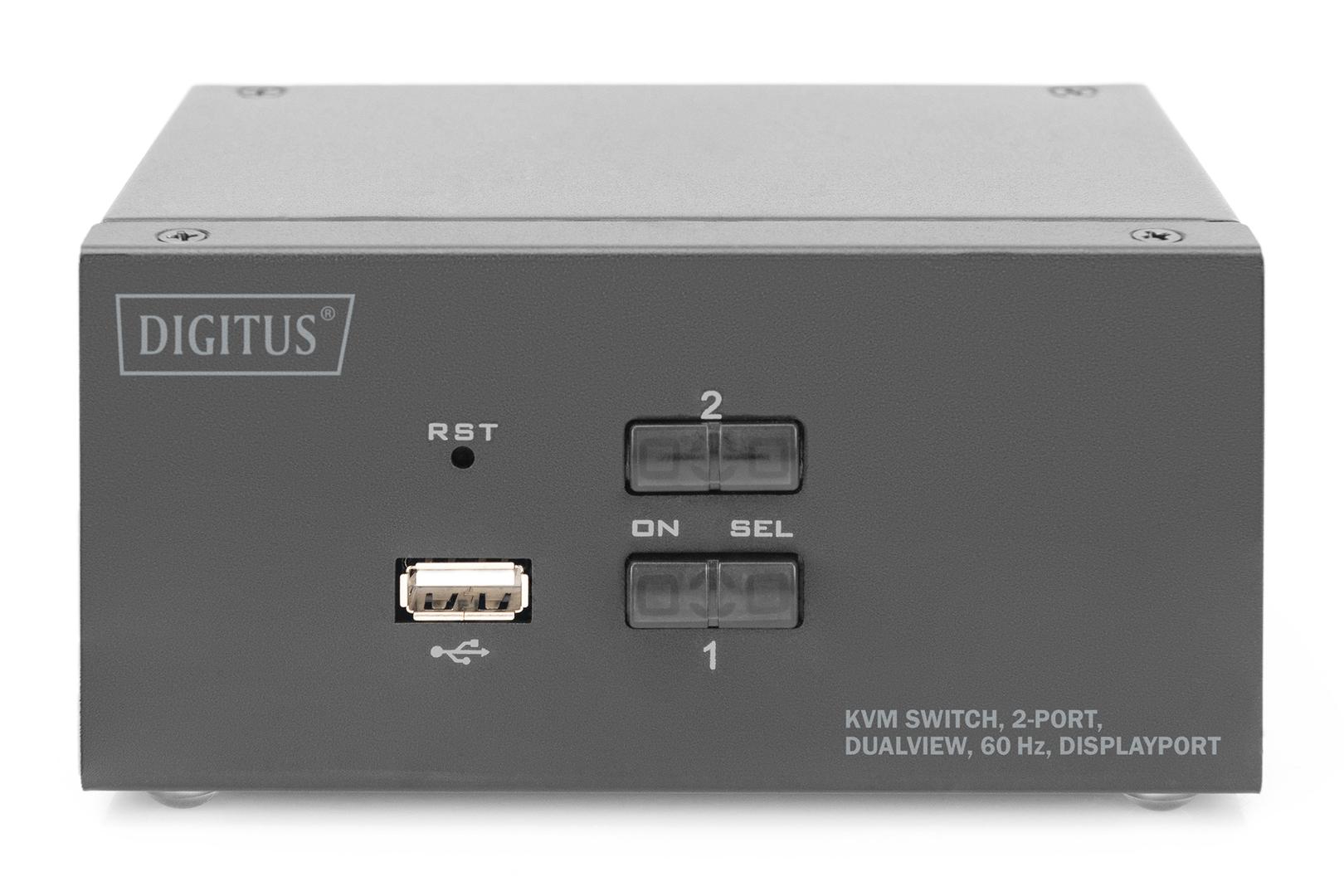

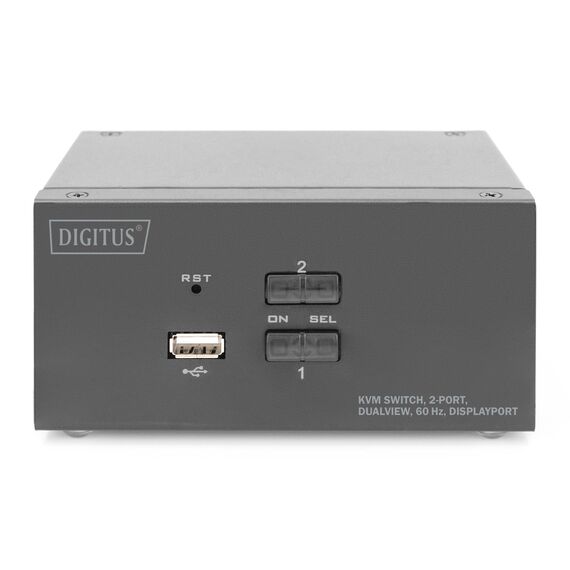

· Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
· USB specifications: USB 2.0 compliant (full speed)
· Supported audio formats: Dolby True HD, DTS HD Master Audio

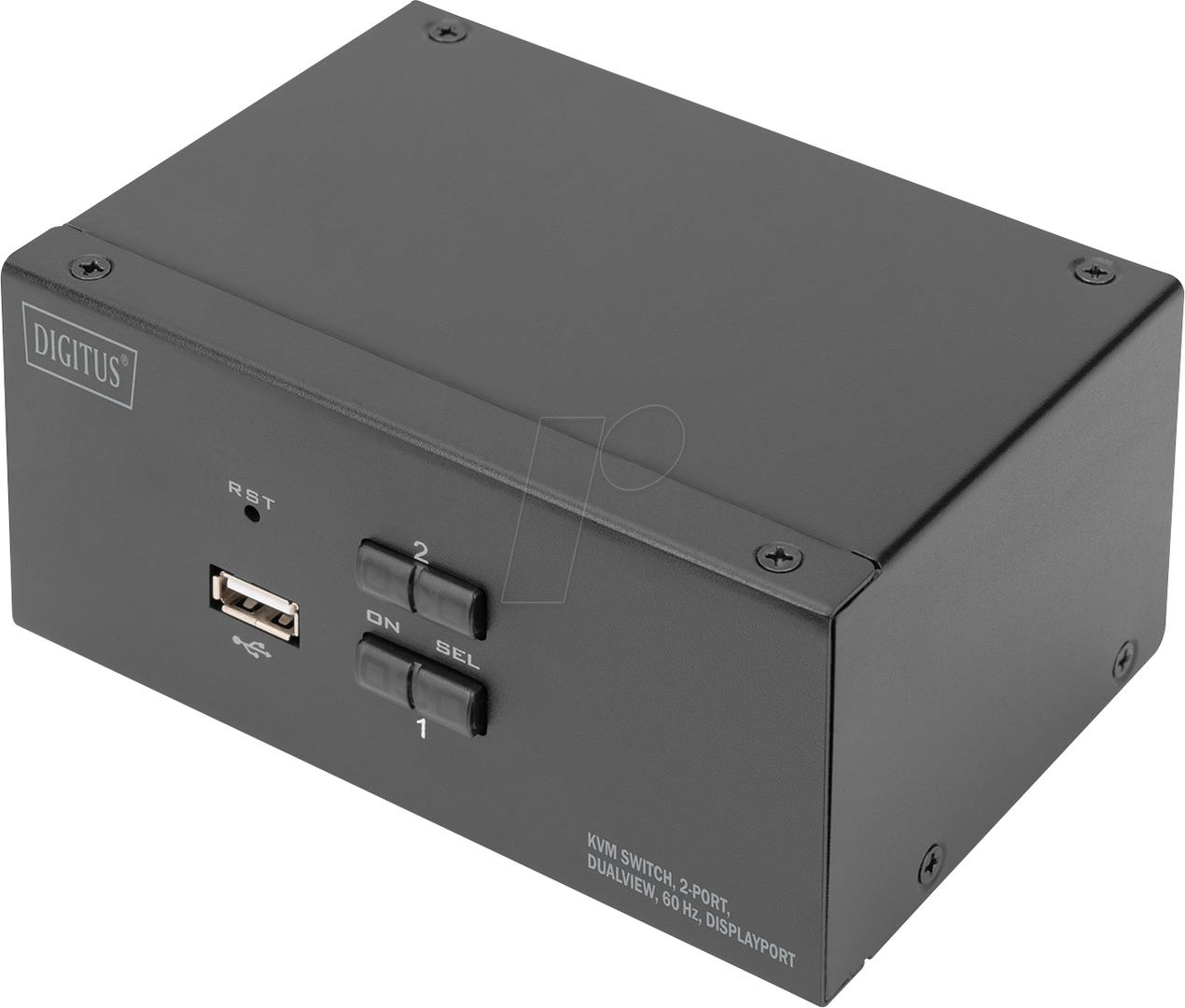

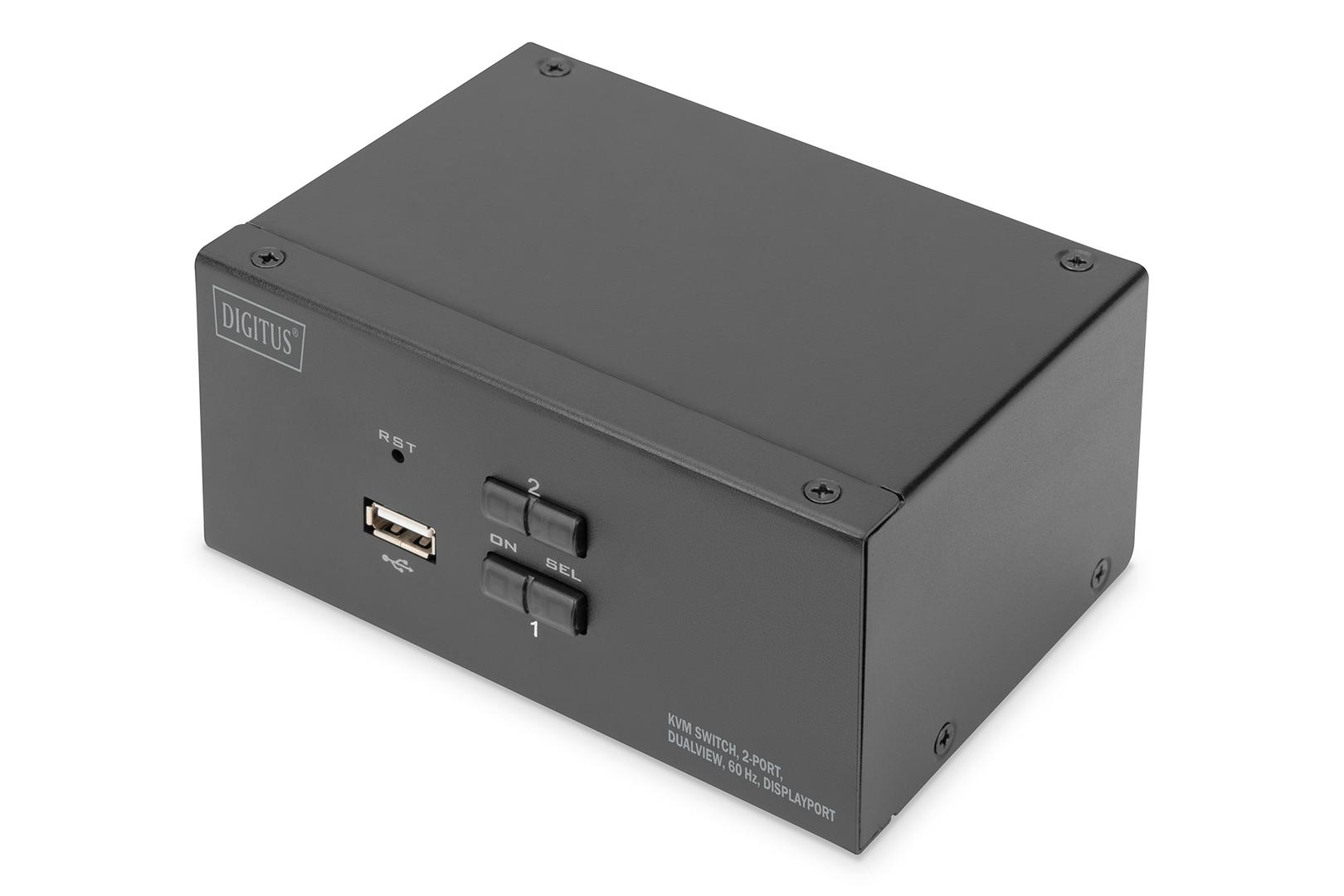

· Switching between the PCs: Switch on the front side or hot keys
· Status LED on front side shows current configuration
· The device is platform-independent, suitable for all operating systems
· Operating temperature: 0 °C to 80 °C
· Storage temperature: -20 °C to +60 °C
· Operating humidity: 0% - 80% RH (non-condensing)
· Case material: Metal
· Power supply device: USB power supply or optional 9 V DC power adapter (300 mA, 5.5x2.1 mm plug)
· Dimensions: 13.2 x 9.2 x 6.6 cm (WxDxH)
· Weight: 580 g
· Power Spec: AC 100-240V
· Power Consmption: 2.7W
· DC plug Size: 5.5*2.1mm

Special Fetures

· Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
· Supports a maximum UHD resolution of 4K / 60 Hz
· USB ports for mouse and keyboard
· Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
· Integrated USB hub with USB A port for additional peripheral equipment
· Switching between the PCs via switch on the KVM switch or hot key on the keyboard
· LED status and functional displays on the front side
· The KVM switch is supplied with power via the USB connection through a connected computer
· Real Plug and Play - no software or driver installation required (BIOS hardware connection)
· Sturdy metal housing

Product Specification

Device Type	KVM / audio / USB switch - 2 ports
Enclosure Type	Desktop
Subtype	KVM
Ports	2 x KVM port(s)
KVM Local Users Qty	1 local user
Keyboard / Mouse Interface	USB
Max Resolution	3840 x 2160 @ 60 Hz
Features	Metal housing, Dolby TrueHD support, DTS-HD Master Audio support, coloured LED status
Compliant Standards	USB 2.0
Built-in Devices	USB 2.0 hub
Expansion / Connectivity
Interfaces	4 x DisplayPort input ¦ 2 x DisplayPort input ¦ 4 x USB 2.0 Type B ¦ 2 x audio / microphone ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x audio output mini-jack
Miscellaneous
Cables Included	2 x DisplayPort cable ¦ 2 x keyboard / mouse / video cable
Compliant Standards	Plug and Play
Dimensions & Weight
Width	13.2 cm
Depth	9.2 cm
Height	6.6 cm
Weight	580 g
Dimensions & Weight (Shipping)
Shipping Width	21 cm
Shipping Depth	21 cm
Shipping Height	12 cm
Shipping Weight	18.12 kg
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	80 °C
Humidity Range Operating	0 - 80% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	60 °C
