DIGITUS DS-30040-2 / Parallel/serial adapter / PCIe / parallel, serial | DS-30040-2
|

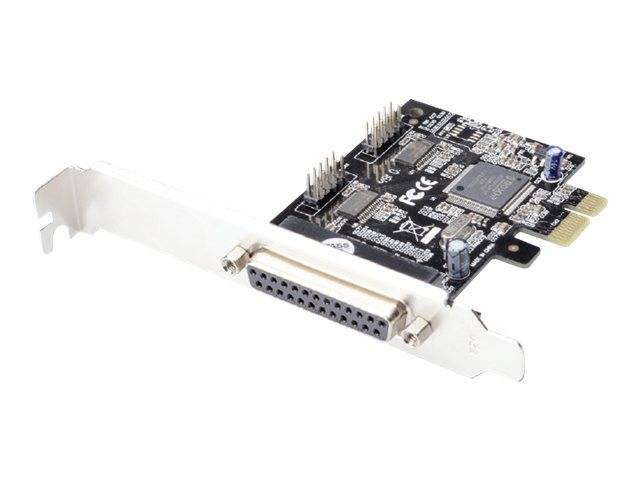

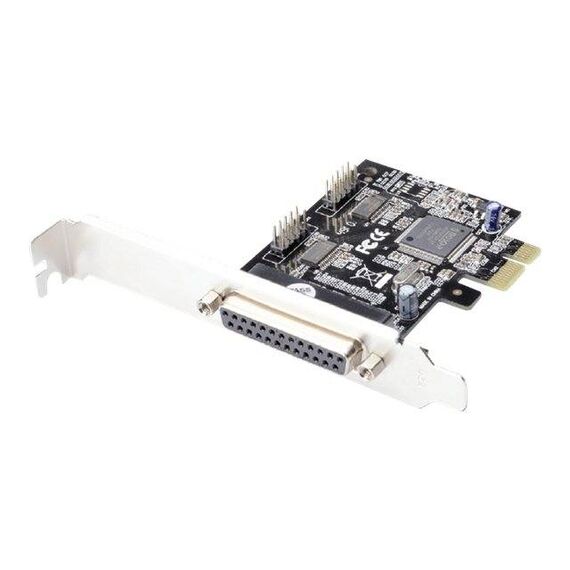

Description Multi I/O PCIe card1 x DSUB 25, parallel port, jackSupports Standard Parallel Port (SPP), Enhanced Parallel Port (EPP) and Enhanced Capability Port (ECP)Compliant with PCI Express Base Specification 1.0a DIGITUS Parallel/serial adapter / PCIe | DS-30040-2Special Features
|
Product Specification
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.0a |
| Connectivity Technology | Wired |
| Data Link Protocol | Parallel, serial |
| Data Transfer Rate | 1.5 Mbps |
| Interfaces | 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) (external) ¦ 2 x serial - 9 pin D-Sub (DB-9) (on bracket) |
| Compatible Slots | 1 x PCI Express x1 |
| Included Accessories | 1 x bracket with two DB9 connectors |
| Compliant Standards | FCC, WEEE |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 2000, Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Vista / XP / 7 (64-bit versions) |
