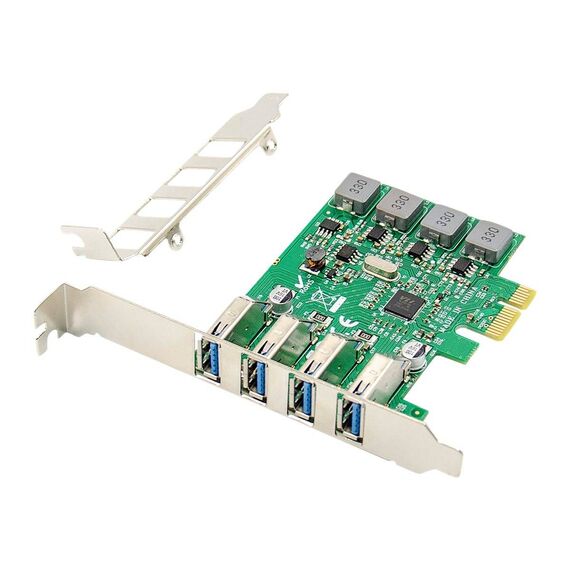

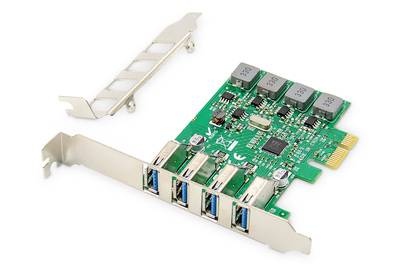

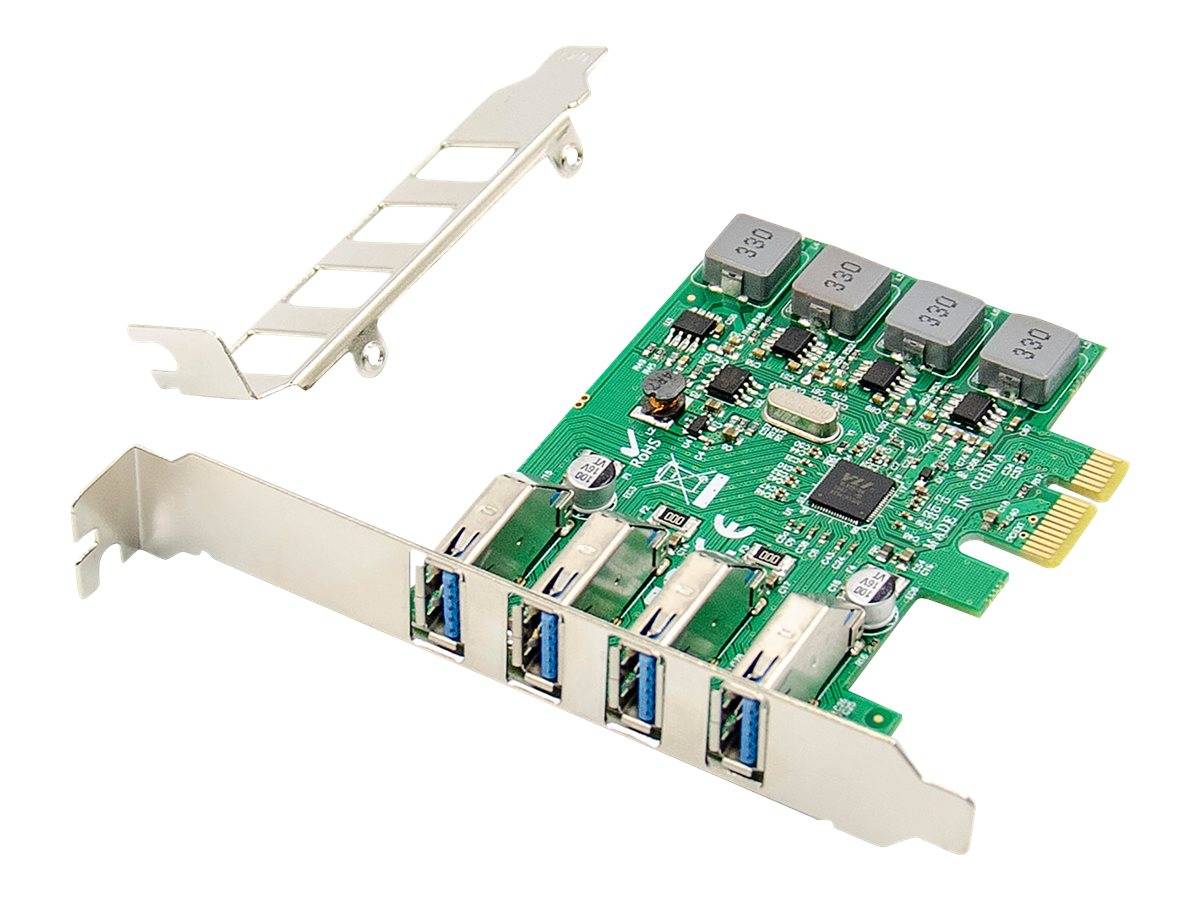

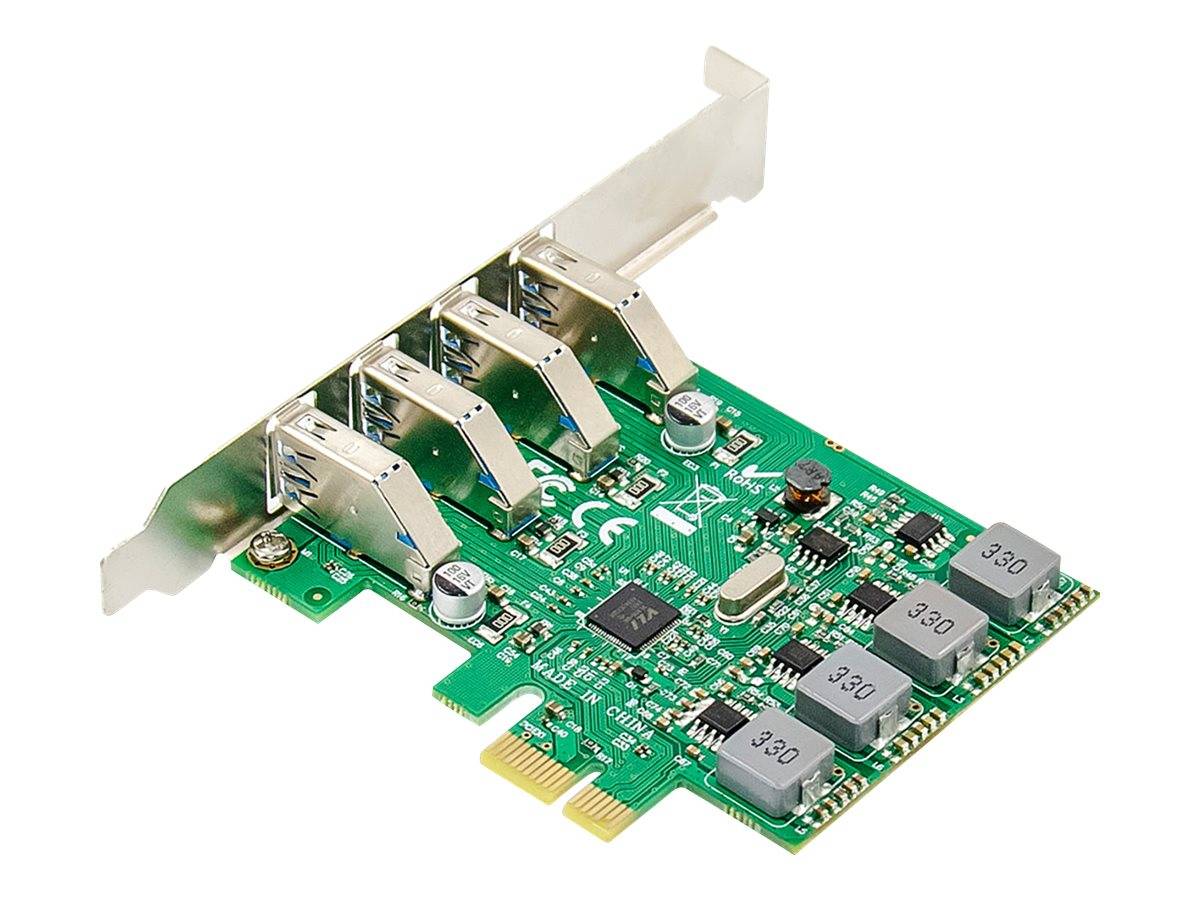

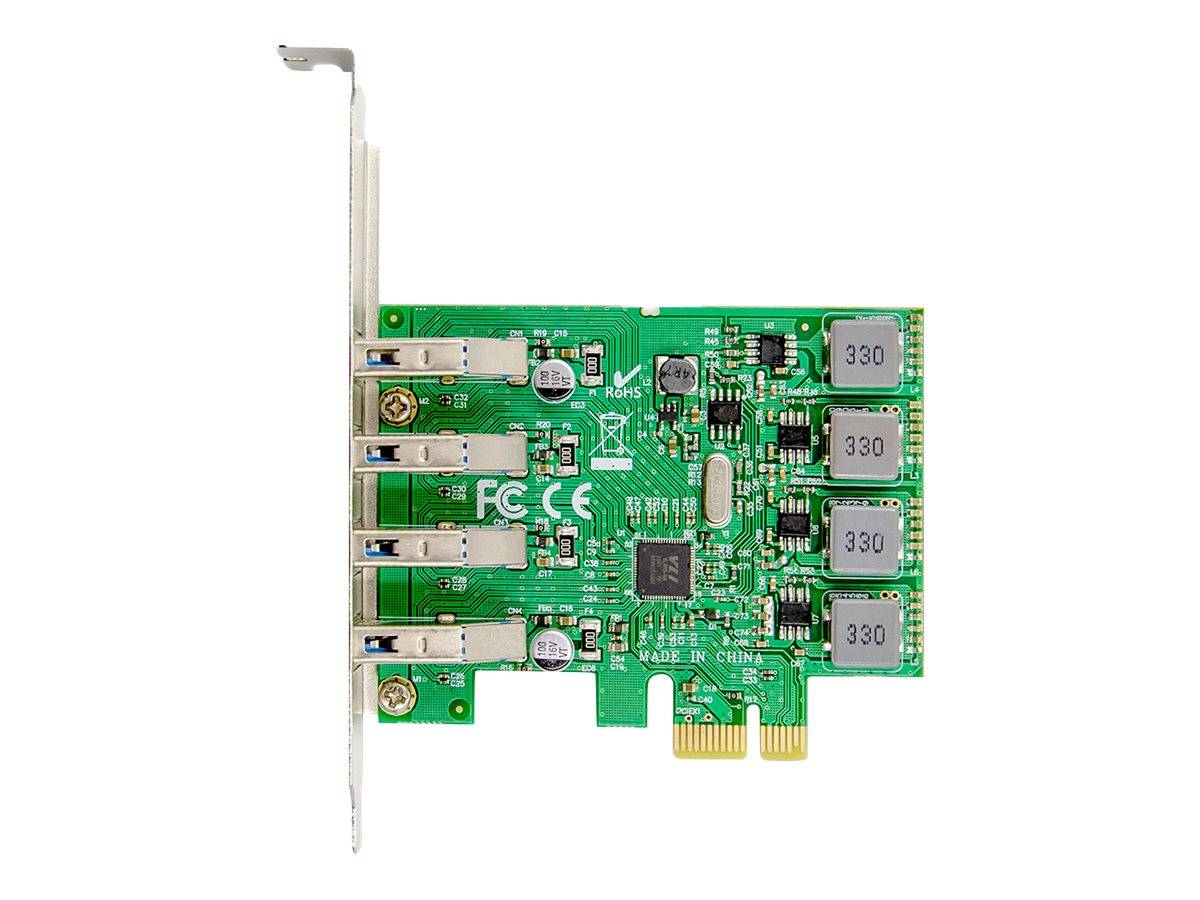

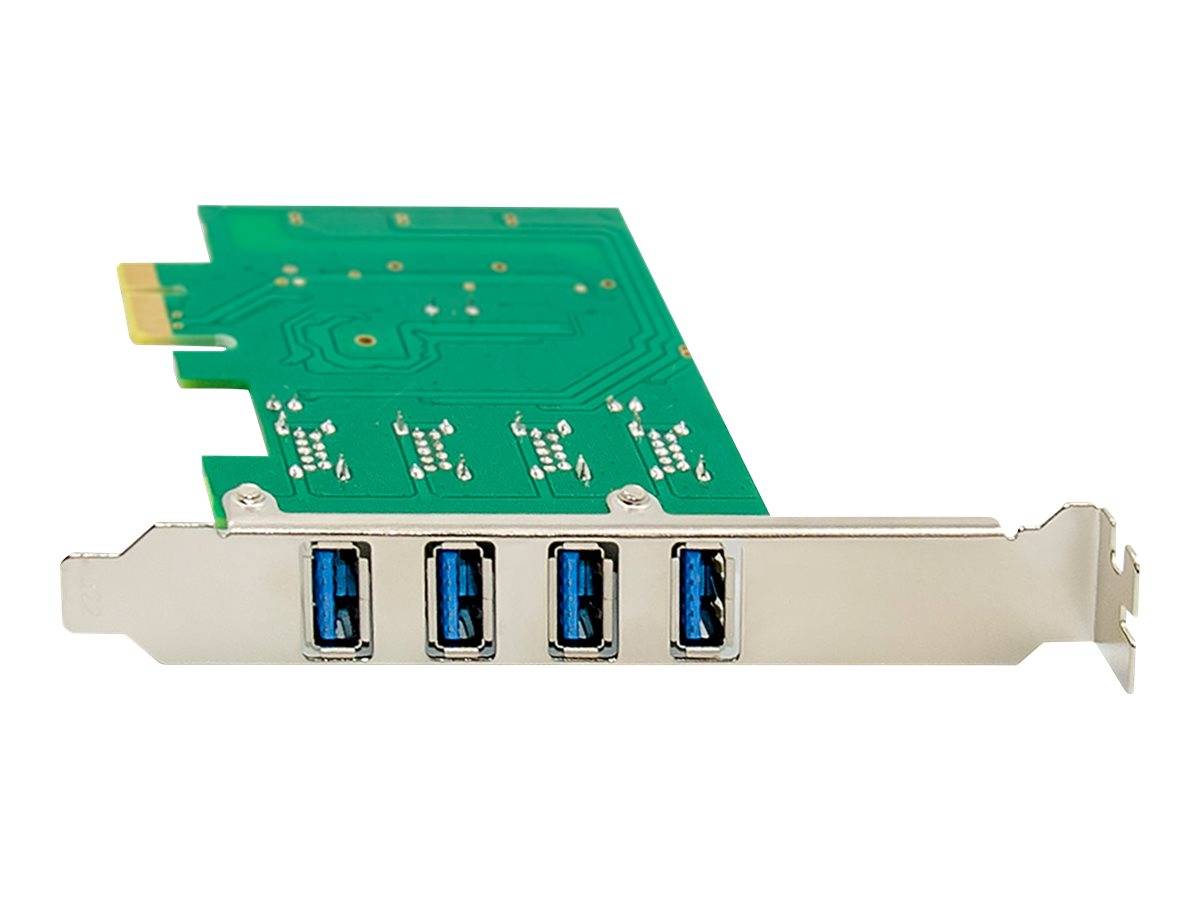

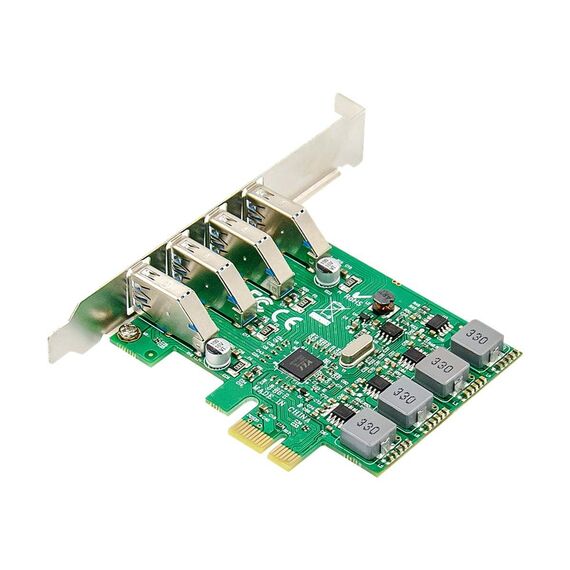

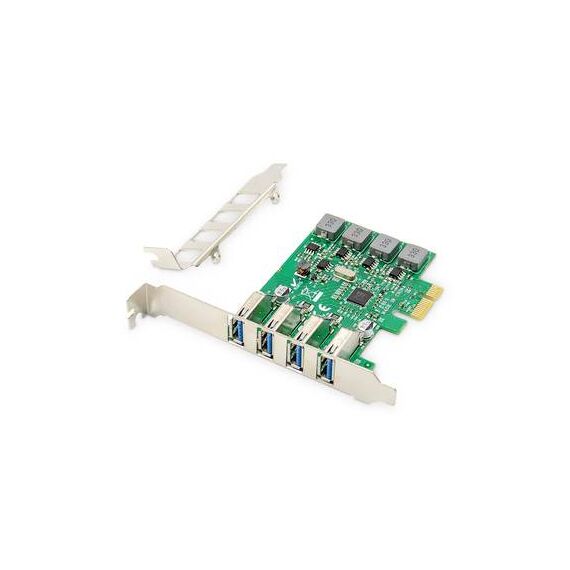

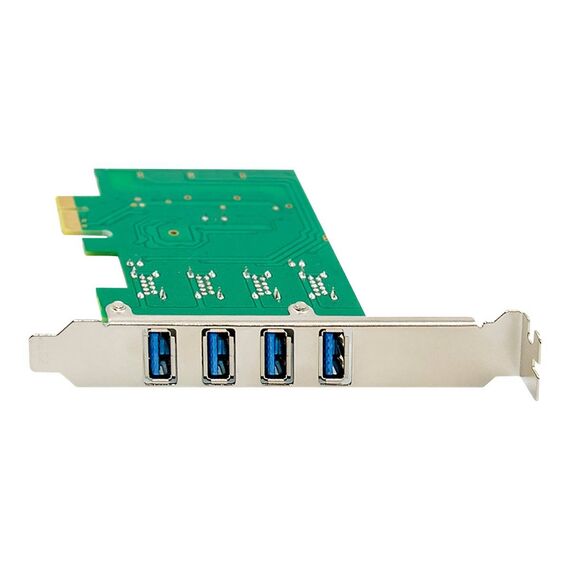

DIGITUS DS-30226 / USB adapter / PCIe low profile / USB 3.0 x 4 | DS-30226
DS-30226
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Connections: 4 x USB A (USB 3.0)· USB data transfer rates: SuperSpeed (5 Gbps), Hi-Speed (480 Mbps), Full Speed (12 Mbps) & Low Speed (1.5 Mbps)
· Power supply: 5 V / 3000 mA per port max.
· Chipset: VIA / VL805
· For PCIe slots: x1/x4/x8/x16
· No external power adapter required, power supply via PCIe slot
· Complies with Universal Serial Bus 3.0 specification (Rev. 1), backwards compatible with 2.0
· Complies with Extensible Host Controller Interface Specification Rev. 1.0
· Complies with PCI Express Specification 2.0, backwards compatible with 1.0
· Supports USB legacy function
· USB Attached SCSI Protocol (USAP) Mode
· Plug and Play - no driver installation required
· Supported operating systems: Windows 10/8.1/8/7, Linux (32/64Bit)
· Dimensions: 10 x 12.1 x 2 cm (W x D x H)
· Weight: 60 g
Special Features
· Data transfer in SuperSpeed with up to 5 Gbps, backwards compatible· Power supply: 5 V / 3000 mA per port max.
· Chipset: VIA / VL805
· Supports USB legacy function
· USB Attached SCSI Protocol (USAP) Mode
· Plug and Play - no driver installation required
· No external power adapter required
· Supports hot plugging
· Low-profile slot bracket
Product Specification
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express |
| Networking | Networking |
| Ports | USB 3.0 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Processor / Memory | Processor / Memory |
| Processor | 1 x VIA VL805 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x USB 3.0 - 9 pin USB Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | Plug and Play |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Microsoft Windows 7 / 8 / 8.1 / 10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2 cm |
| Depth | 12.1 cm |
| Height | 10 cm |
| Weight | 60 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 14 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 110 g |
Features - Digitus - DS-30226
More Details
Product Code
04:347369
EAN Code
4016032464396
Manufacturer
Digitus
