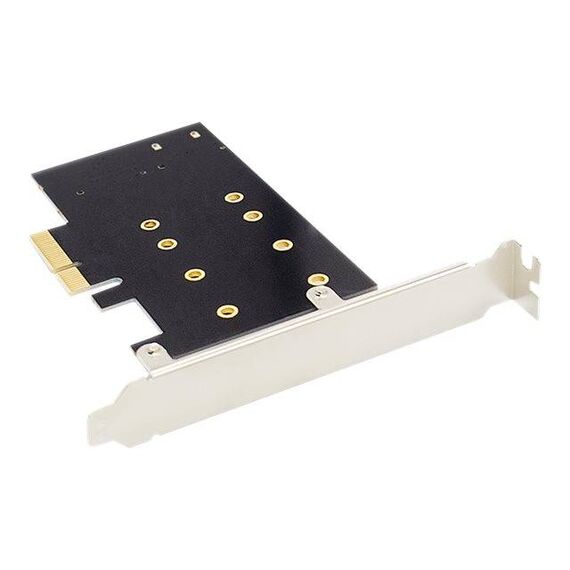

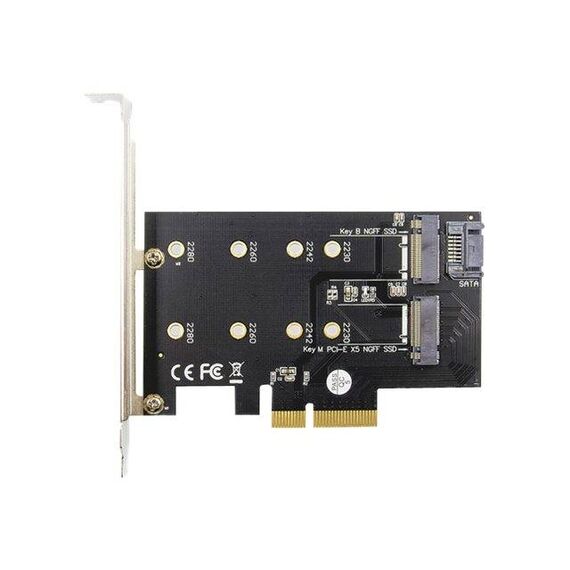

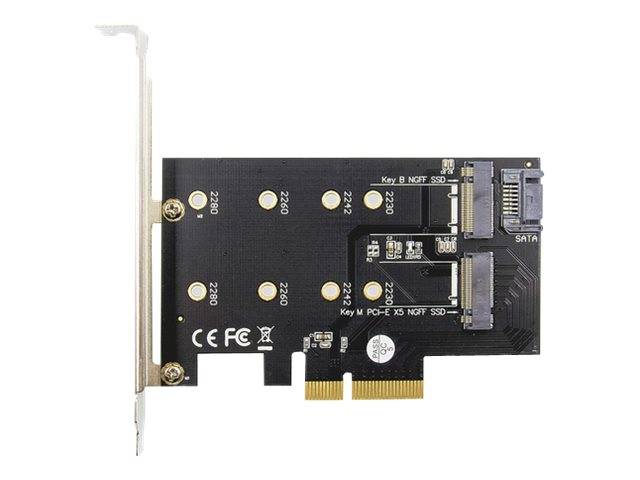

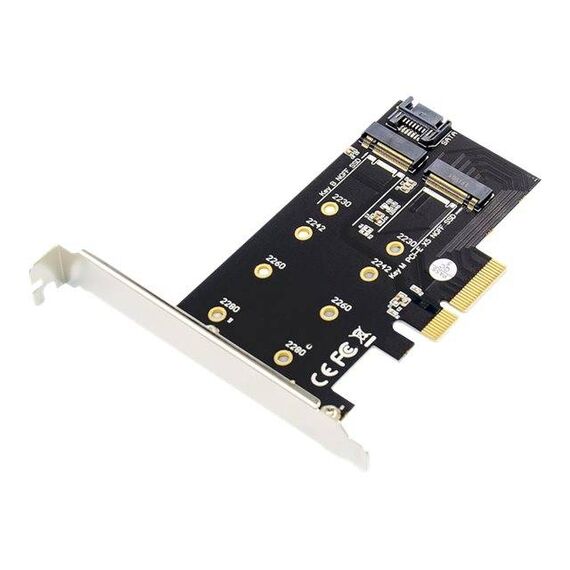

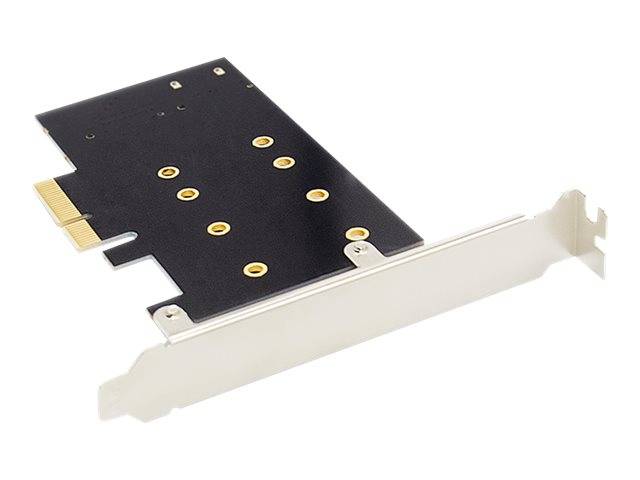

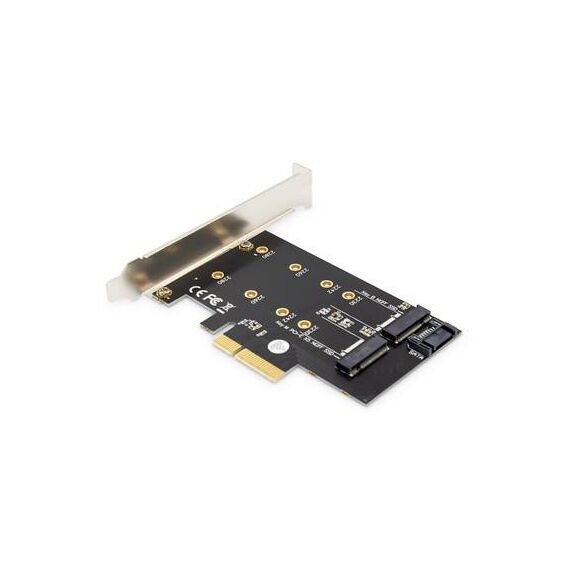

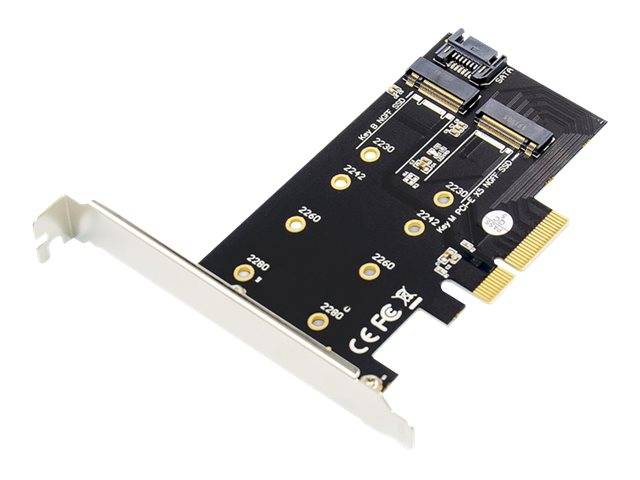

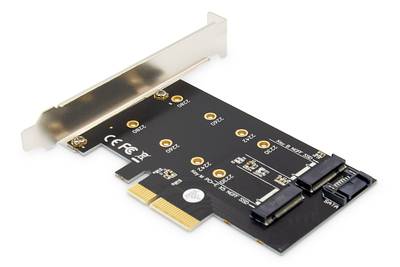

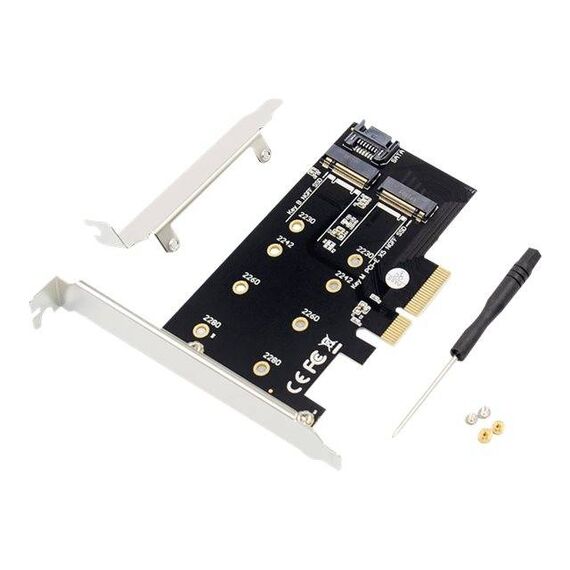

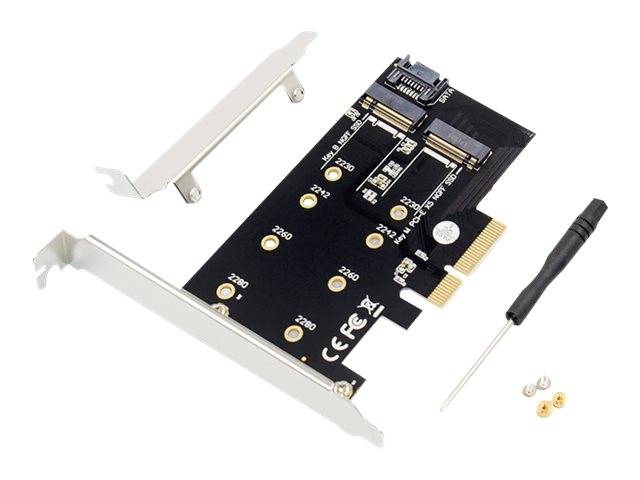

DIGITUS DS-33170 / Interface adapter / M.2 / 2 Channel / M.2 Card / PCIe 3.0 x4 | DS-33170
DIGITUS DS-33170 / Interface adapter / M.2 / 2 Channel / M.2 Card / PCIe 3.0 x4 | DS-33170
€15.43 inc. VAT
DS-33170
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Adapter Card for PCIe Slots x4/ x8/ x16· Supports PCIe 3.0 (x4)
· Data transfer rate: up to 6Gbps (32GT/S)
· Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
· Hard disk sizes: 80, 60, 42 & 30 mm
· Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
· Bus type: PCIe 3.0 (complies with PCI express specification Rev. 3)
· SATA: 3.0 (complies with SATA specification Rev. 3)
· Backwards compatible with PCIe 2.0 and 1.0 mainboards
· Power supply via PCIe interface (3.3 V)
· Supported operating systems: Windows10/8/8.1/Server 2012 R2/Linux/Ubuntu
· Dimensions: 11.4 x 7 x 2 cm (W x D x H)
· Weight: 41.2 g
Special Features
· NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16· Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
· Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
· Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
· Supports PCIe 3.0 / SATA 3.0
· Low-profile slot bracket included
Product Specification
| Device Type | Interface adapter - plug-in card |
| Hard Drive Form Factor Compatibility | M.2 |
| Host Bus | PCIe 3.0 x4 |
| Storage Controller | Storage Controller |
| Interface | M.2 Card |
| Supported Devices | Solid state drive |
| Channel Qty | 2 |
| Max Storage Devices Qty | 2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x M.2 Card - M.2 B+M Key |
| Connections | 1 x PCIe 3.0 x4 1 x SATA 6Gb/s |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket, screwdriver, screws |
| Cables Included | 1 x Serial ATA cable |
| Features | Supports NVM Express |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Ubuntu, Microsoft Windows Server 2012 R2, Windows 8 / 8.1 / 10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 14 cm |
| Depth | 13 cm |
| Height | 3 cm |
| Weight | 120 g |
Features - Digitus - DS-33170
More Details
Product Code
04:347371
EAN Code
4016032464419
Manufacturer
Digitus
