DIGITUS DS-55315 / Wireless video/audio/infrared extender / receiver / 802.11a / up to 100 m | DS-55315

Product Features

· Receiver connections:
· 1x HDMI (output)
· 1x IR (output)
· 1x power adaptor (5 V/DC)
· Transmission distance 1:1 connection: up to 80 m (unobstructed view)
· Transmission distance 1:2 connection: up to 60 m (unobstructed view)
· Transmission distance 1:3 connection: up to 45 m (unobstructed view)
· Transmission distance 1:4 connection: up to 25 m (unobstructed view)
· Frequency: 5 GHz
· Wireless standard: 802.11a
· HDMI transfer rate: 6.75 Gbps
· Colour depth: 12 bits per channel
· Interlaced resolutions: 480i, 576i, 1080i (50/60 Hz)
· Progressive resolutions: 480p, 576p, 720p, 1080p (50/60 Hz)
· Compression: H.264
· Audio sampling rate: 44.1 / 48 kHz
· HDMI version: 1.3
· HDCP version: 1.3
· Frequency range of IR signals: 20 60 Hz
· Transmission latency: 150 200 ms
· LED indicators: Power / Link / Status
· Reset button
· Operation temperature: 0 °C 50 °C
· Storage humidity: 5% 90% RH (non-condensing)
· Power adaptor: 5 V/DC / 2 A
· Receiver unit power consumption: 3.0 W
· Dimensions: L 13 x W 10 x H 2.6 cm
· Receiver weight: 145 g
· Enclosure material: Metal
· Note: The transmission distance with limited visibility cannot be determined arbitrarily and depends on local circumstances
· Note: Walls, glass, etc. restrict signal coverage or cause signal loss

Special Features

· Set extension for the Wireless HDMI® Extender Set (DS-55314) to up to 4 receivers
· Supports multicast (point-to-multipoint) transmission for up to 4 receiver units
· IR input for forwarding the remote control signal to the source device
· Distribute your HDMI® signal on up to 4 TVs/monitors
· Plug and Play - no software or drivers needed
· Transmission of HDMI® signals with max. resolution of 1080p / 60 Hz

Product Specification

Device Type	Wireless video/audio/infrared extender (receiver)
Form Factor	Wall mountable
Networking	Networking
Connectivity Technology	Wireless
Data Link Protocol	802.11a
Data Transfer Rate	6.75 Gbps
Frequency Band	5 GHz
Max Resolution	1080p @ 60 Hz
Max Transfer Distance	100 m
Status Indicators	Power, status, link/activity
Features	HDCP compliant, reset button, 3D support, 12-bit Deep Colour support, Full HD (1920 x 1080) streaming video support, Point-to-Point (PtP) link mode, multicast mode, Point-to-Multipoint (PtMP) link mode
Compliant Standards	IEEE 802.11a, HDCP 1.3
Expansion / Connectivity	Expansion / Connectivity

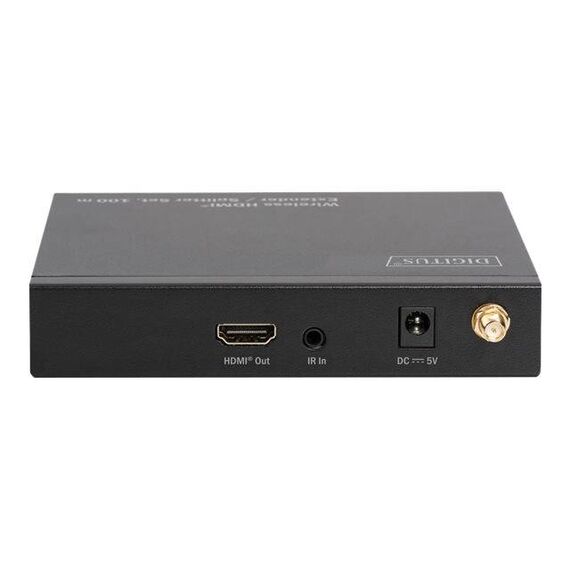

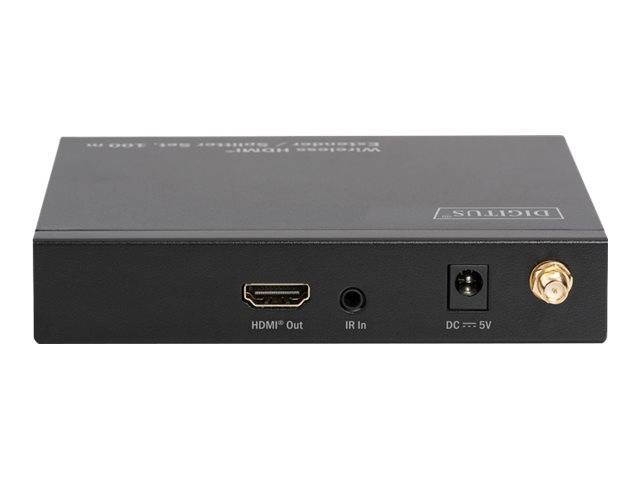

Interfaces	1 x HDMI (output) - 19 pin HDMI Type A ¦ 1 x IrDA (output)
Miscellaneous	Miscellaneous
Included Accessories	Wall mounting kit, WiFi aerial
Cables Included	1 x IR cable - 1.2 m
Power	Power
Power Device	External power adapter
Dimensions & Weight	Dimensions & Weight
Width	10 cm
Depth	13 cm
Height	2.6 cm
Weight	145 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	5 - 90% (non-condensing)
