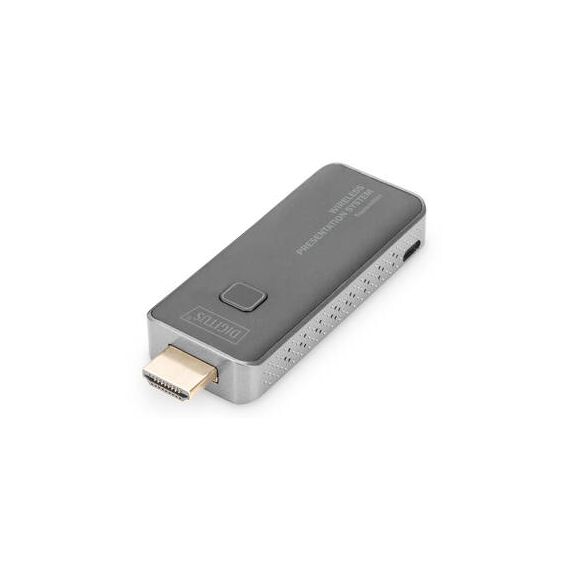

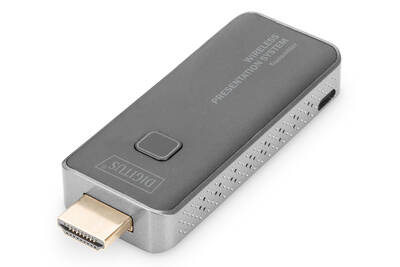

DIGITUS DS-55320 / Wireless video/audio extender / transmitter / Wi-Fi 5 / up to 50 m | DS-55320

Product Features

· Wireless HDMI signal transmission up to 50 m (unobstructed view)
· Supports resolutions up to 1920x1080p
· Wireless channel: IEEE 802.11ac, 5 GHz, 2T2R
· HDMI version: 1.4
· HDCP version: 1.3
· AES 128 bit encryption
· WPA2 protocol
· Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
· Supports Windows, macOS
· Connections per unit: 1x HDMI plug, 1x Micro-USB jack
· Power supply: HDMI jack (0.5A required) or via Micro-USB (DC 5V/0.5A)
· Connection button with LED status display
· Audio: Stereo, 16 bit / 48 KHz
· ABS housing
· Power consumption: approx. 2.5W
· Operating temperature: 0-40 °C
· Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
· Weight (1 unit): 27 g
· Color: Black
· The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed.
· Walls, glass etc. shorten the signal range or cause signal losses.

Special Features

· Wireless HDMI signal transmission up to 50 m (with unobstructed view)
· With this transmitter unit, extend the Wireless Presentation System (DS-55319) to up to 16 transmitters
· Switch to the desired transmitter quickly and easily at the press of a button in order to reproduce your content
· Supports resolutions up to Full HD (1080p / 60 Hz)
· Easy operation and handling thanks to Plug & Play - Just plug in and get started
· Transmitter can be supplied with power via your devices HDMI connection (> 500 mAh required). To have a safe and stable operation, we recommend to use always the Micro USB cables for power supply of TX and RX.

Product Specification

Device Type	Wireless video/audio extender (transmitter)
Form Factor	External
Colour	Black
Networking	Networking
Connectivity Technology	Wireless
Data Link Protocol	Wi-Fi 5
Frequency Band	5 GHz
Max Resolution	1920 x 1080 / 1080p
Max Transfer Distance	50 m
Status Indicators	Status
Encryption Algorithm	WPA2, WPA-PSK, 128-bit AES, WPA2-Enterprise
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI - 19 pin HDMI Type A
Miscellaneous	Miscellaneous
Cables Included	1 x micro-USB cable - 0.5 m
Power	Power
Power Consumption Operational	2.5 Watt
Dimensions & Weight	Dimensions & Weight
Width	8.3 cm
Depth	3.2 cm
Height	1.3 cm
Weight	27 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
