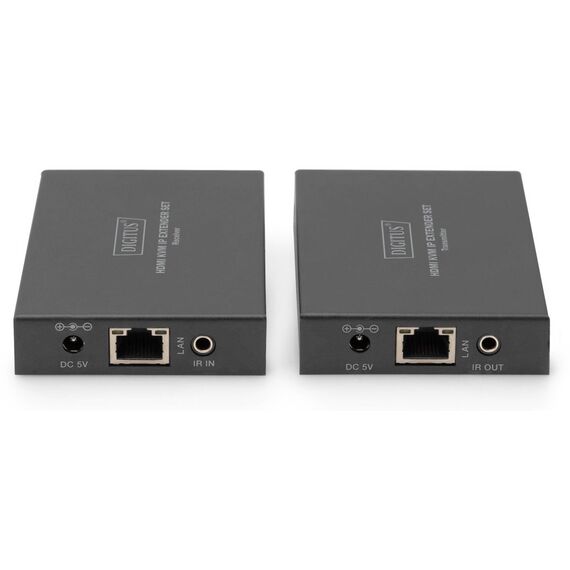

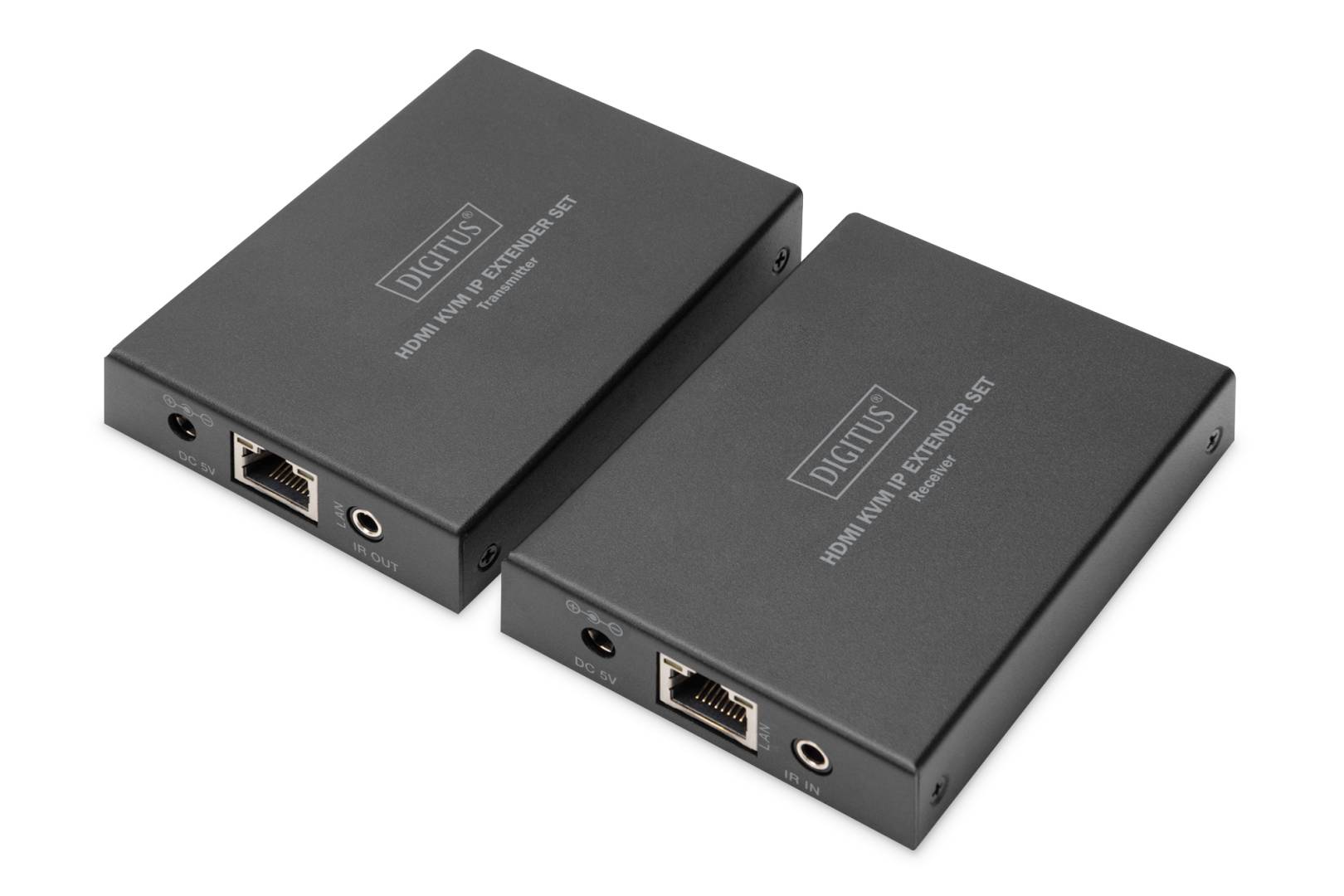

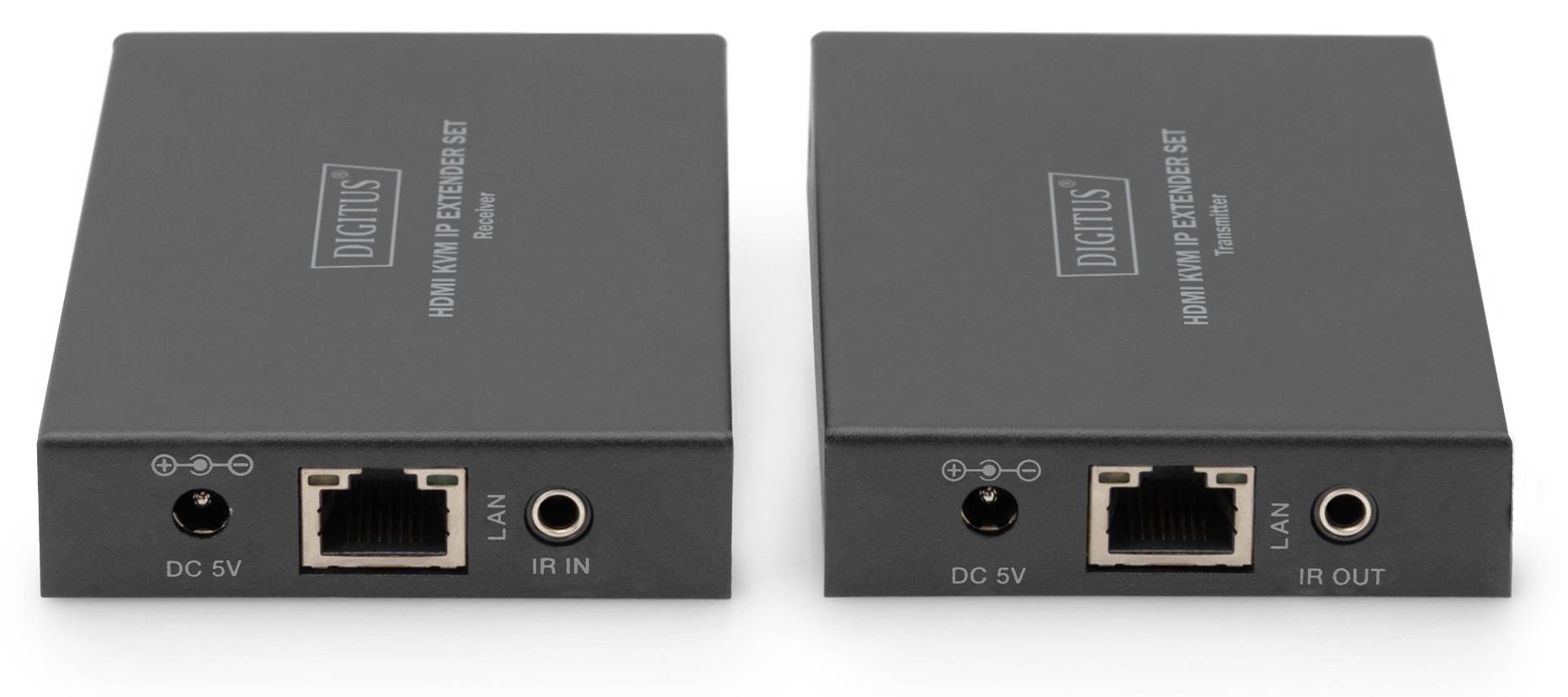

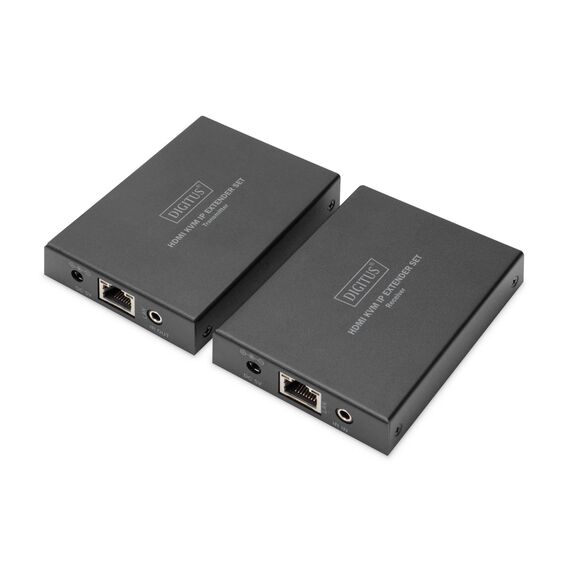

DIGITUS DS-55507 - Transmitter and receiver - video/audio/infrared extender - HDMI - over CAT 5e/6/6a/7 - up to 150 m | DS-55507

Product Features

· HDMI 1.4
· 6.75 Gbps video bandwidth
· Supports Full HD, 1920x1200/60 Hz, 4:4:4
· HDCP 1.4
· Supports CAT 5e, 6, 6A, 7, 8 network cable
· Maximum transmission distance: 150 m (point-to-point connection)
· Supports H.256 encoding/decoding
· USB 1.1
· Compression: H.265
· Transmitter unit connections:
· 1x HDMI input (1920x1200/60Hz) - Connection signal source
· 1x RJ45 output - Connection CAT transmission cable
· 1x USB-B input - Connection host PC for use of KVM functionality
· 1x IR output - Connection of IR transmitter
· 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
· Receiver unit connections:
· 1x HDMI output (1920x1200/60Hz) - Connection output device
· 1x RJ45 input - Connection CAT transmission cable
· 2x USB-A (1.1) input - Connection of mouse and keyboard
· 1 x IR input - Connection of IR receiver
· 1x Power adapter input (DC 12V/1A) - Connection for external power adapter
· ESD protection
· Operating temperature: -10-50 °
· Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
· Housing: Metal
· Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
· Weight: Transmitter 155 g, Receiver 150 g
· Color: Black

Special Fetures

· Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
· Extension of the signal (unlimited distance) via the existing local network infrastructure or commercial network switches (IP connection)
· Supports video resolutions up to: Full HD (1920x1200/60 Hz, 4:4:4)
· KVM functionality for connection to mouse and keyboard
· Supports CAT 5e, 6, 6A, 7, 8 network cable
· IR transmission
· Compact design for easy and flexible installation
· Sturdy metal housing

Product Specification

Device Type	Video/audio/infrared extender
Form Factor	External
Networking
Connectivity Technology	Wired
Data Link Protocol	HDMI
Max Resolution	1080p @ 60 Hz
Max Transfer Distance	150 m
Features	HDCP compliant, metal housing, ESD Protector, H.265 video codec
Compliant Standards	HDCP 1.4
Expansion / Connectivity
Interfaces	1 x HDMI input - 19 pin HDMI Type A female ¦ 1 x IR (transmitter) ¦ 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x IR (receiver) ¦ 2 x USB (receiver) - Type A ¦ 1 x USB (transmitter) - Type B ¦ 1 x network (output) - RJ-45 ¦ 1 x network (input) - RJ-45
Miscellaneous

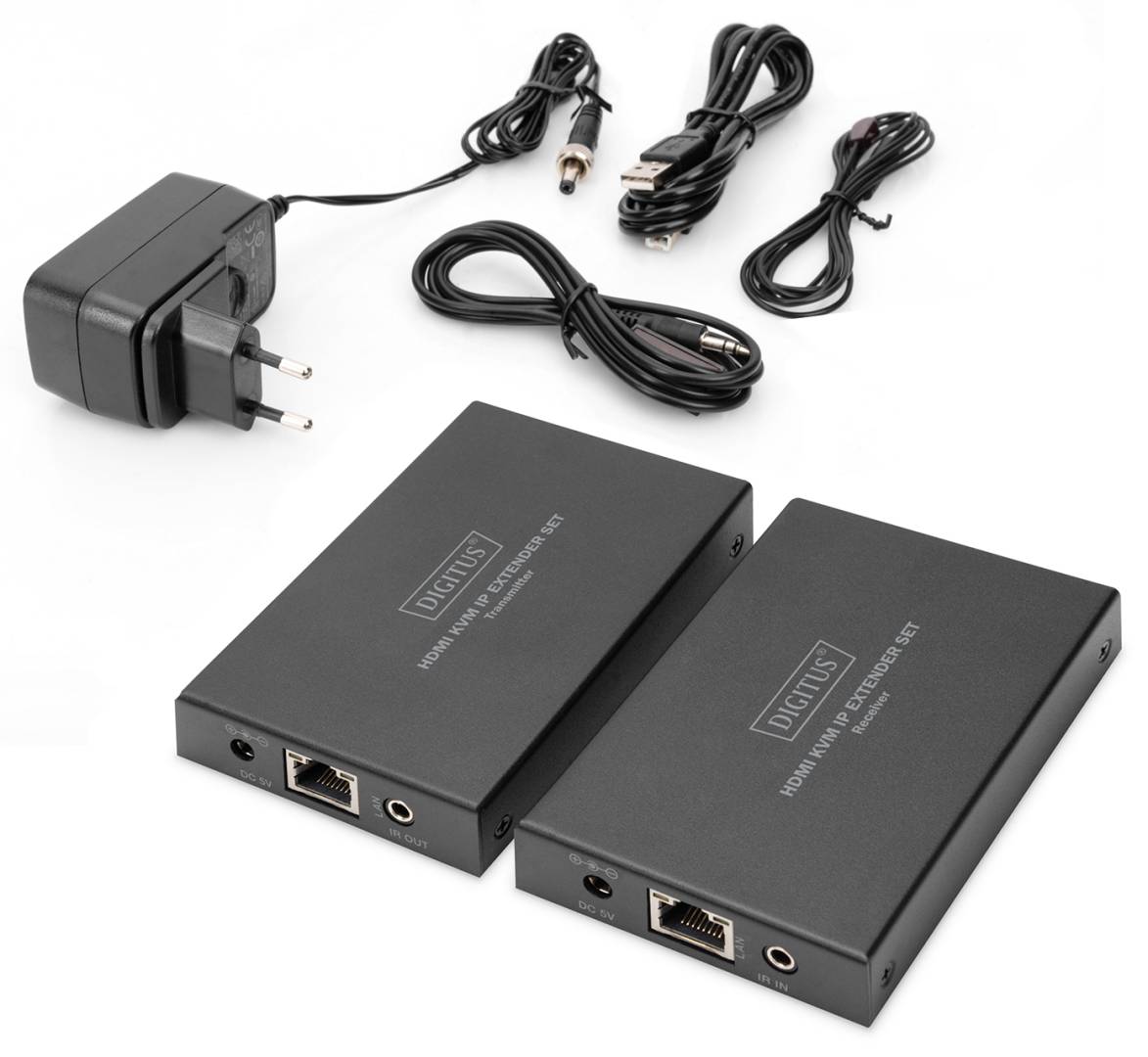

Cables Included	2 x IR cable - 1.5 m ¦ 1 x USB-B to USB-A cable
Power
Power Device	External power adapter
Installed Qty	2
Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 6.7 cm x 9.15 cm x 1.75 cm / 150 g ¦ Transmitter: 6.7 cm x 9.15 cm x 1.75 cm / 155 g
Environmental Parameters
Min Operating Temperature	-10 °C
Max Operating Temperature	50 °C
