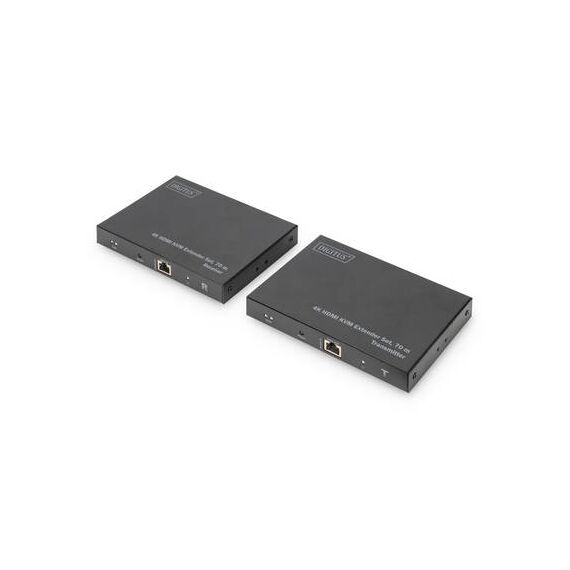

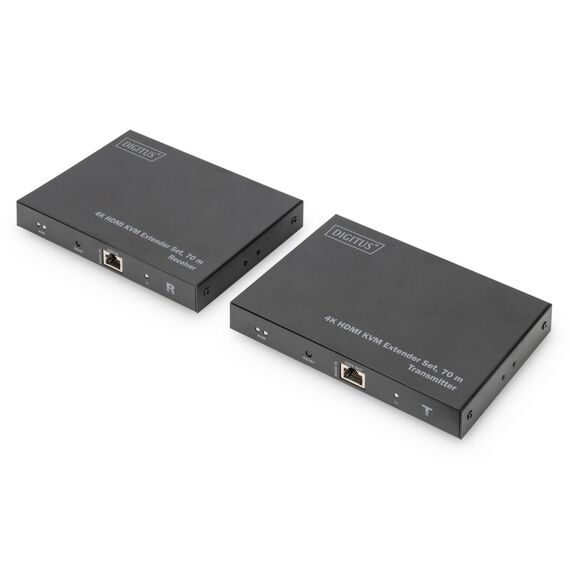

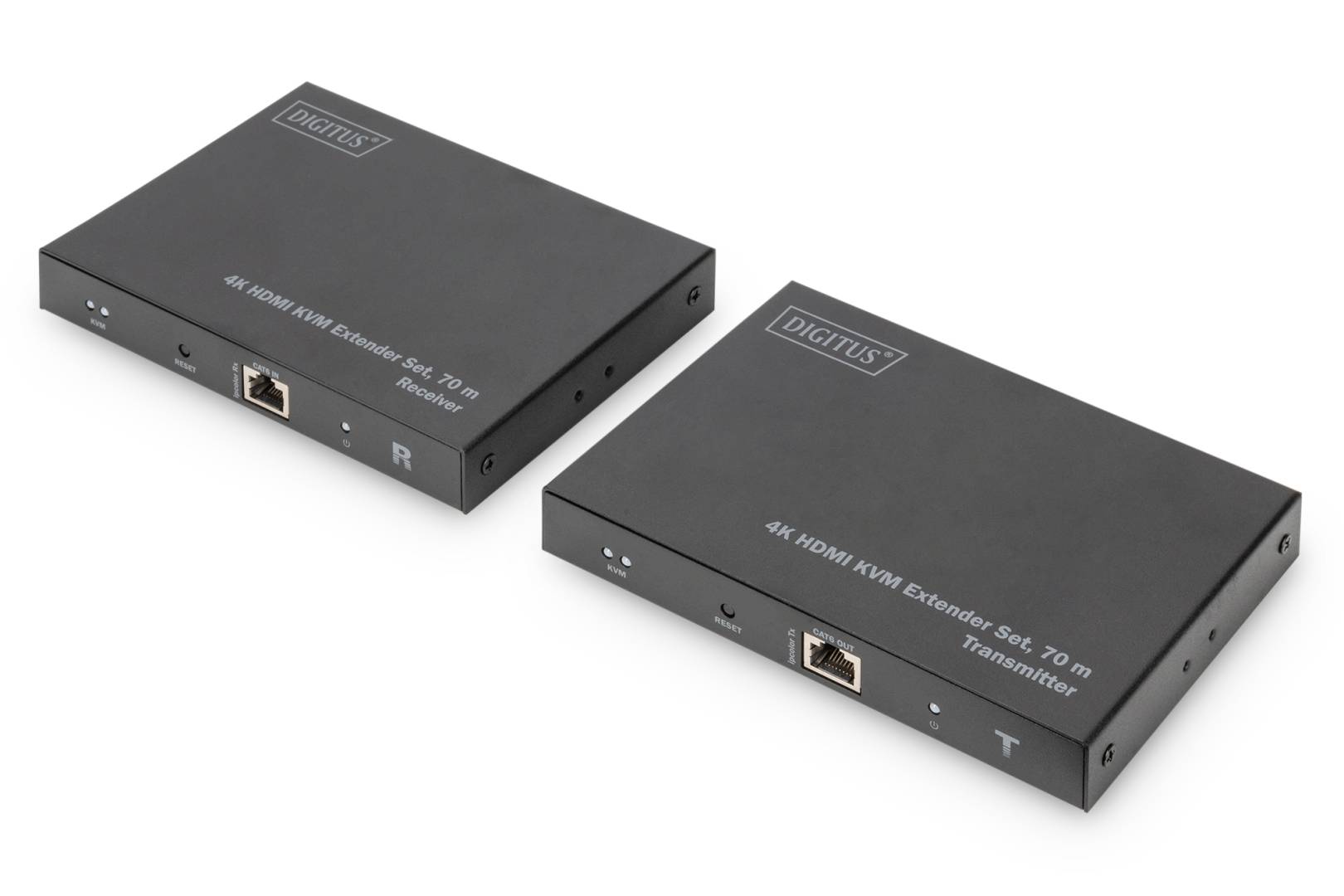

DIGITUS DS-55513 / Transmitter and receiver / KVM / USB extender / HDMI / over CAT 6/7/8 / up to 70 m | DS-55513

Product Features

· Supports 4K2K/60Hz (HDR, 4:4:4)
· Video bandwidth: 18 Gbps
· Maximum transmission distance (UHD 4K2K): 70 m
· Supports CAT 6/7/8 cables
· HDCP 2.2 / 1.4
· HDMI 2.0

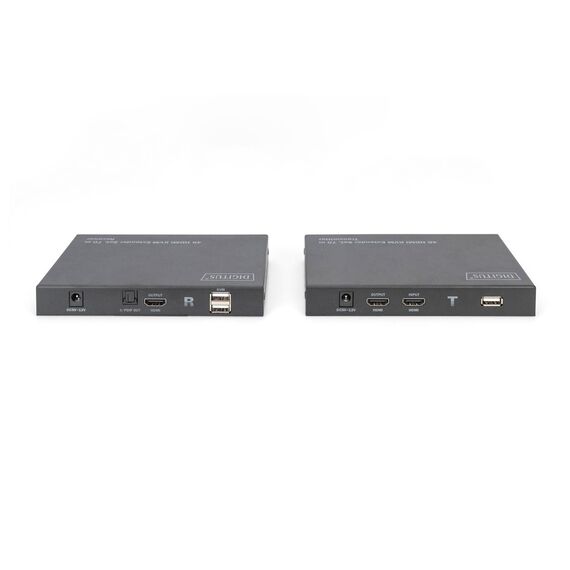

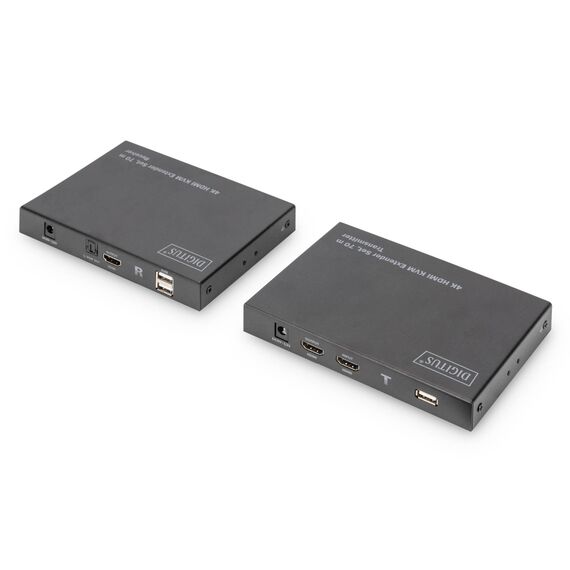

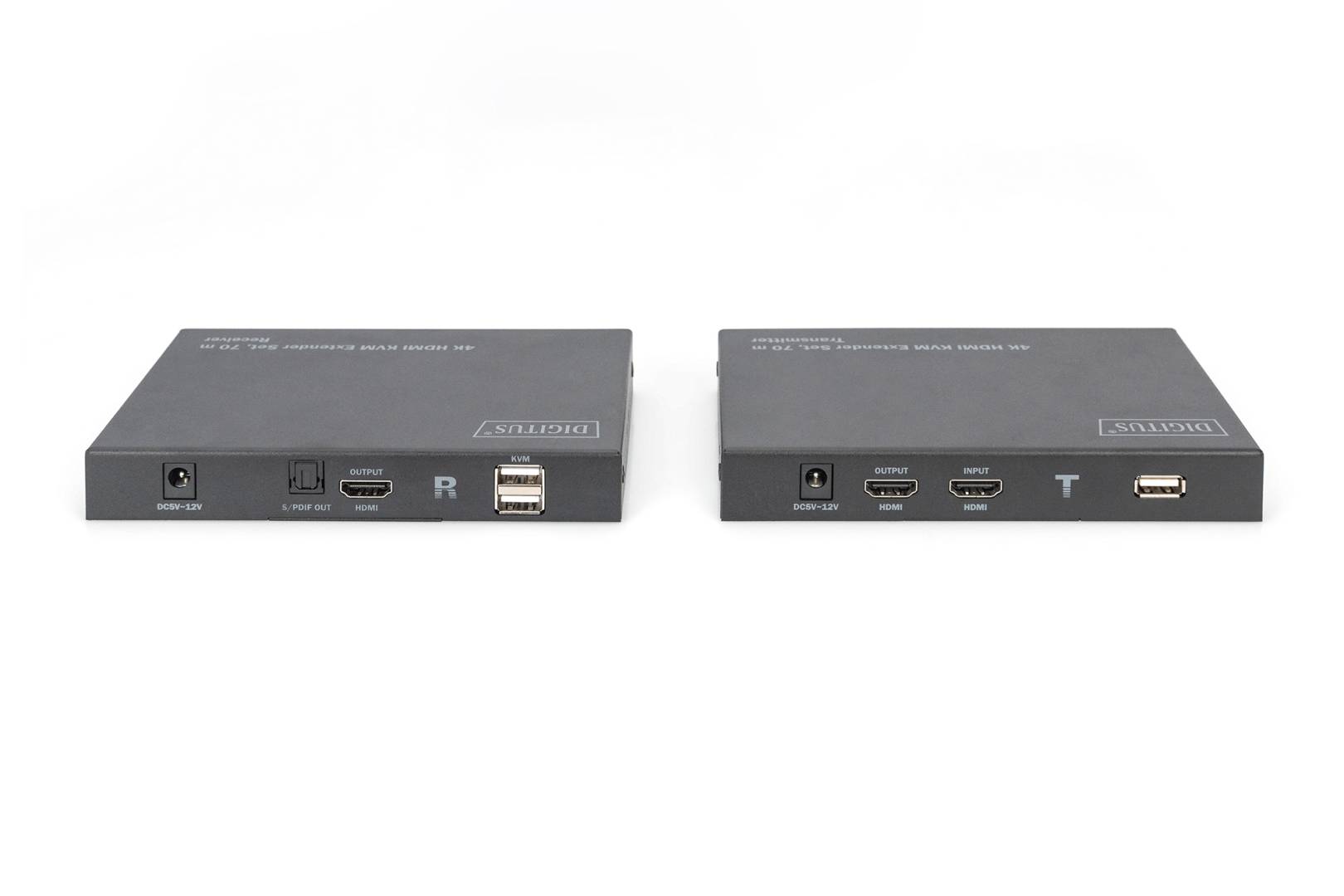

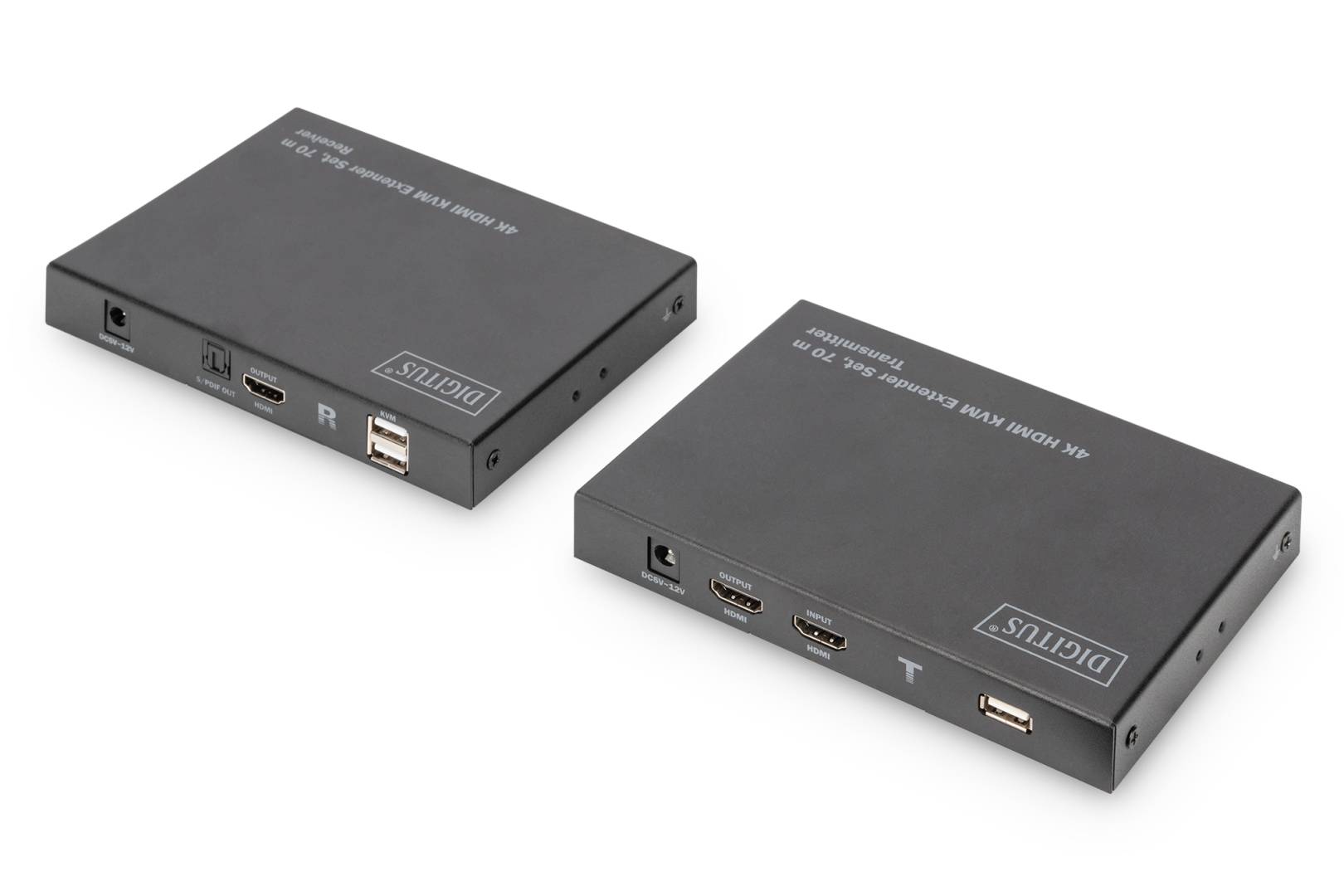

· Transmitter unit connections:
· 1x HDMI input (4K/60Hz) - Connection signal source
· 1x RJ45 output - Connection CAT transmission cable
· 1x HDMI loop-out / output Connection of local monitor (source device)
· 1x USB-A port - Connection to source device
· 1x Power adapter input (DC 5V/2A)
· 1x Reset button
· 3x LED status display
· Receiver unit connections:
· 1x HDMI output (4K/60Hz) - Connection output device
· 1x RJ45 input - Connection CAT transmission cable
· 2x USB-A port - Connection of mouse, keyboard, touchscreen
· 1x Audio output (digital - S/PDIF - Connection of external speakers
· 1x Power adapter input (DC 5V/2A)
· 1x Reset button
· 3x LED status display
· Surge protection & ESD protection
· Suitable for wall mounting
· Operating temperature: -20-60°
· Power consumption: Transmitter / receiver ca. 4W
· Housing: Metal
· Dimensions (1 unit): L 10.7 x W 15 x H 2.8 cm
· Weight (1 unit): 260 g
· Color: black

Special Features

· Supports 4K2K/60Hz (HDR, 4:4:4)
· Video bandwidth: 18 Gbps
· Maximum transmission distance (UHD 4K2K): 70 m
· KVM/USB functionality Connection of mouse, keyboard, touchscreen
· HDMI loop-out to the transmitter unit
· Supports CAT 6/7/8 cables
· Audio extractor on the receiver unit (S/PDIF)
· EDID passback
· HDCP 2.2 / 1.4
· HDMI 2.0

Product Specification

Device Type	KVM / USB extender
Form Factor	External
Colour	Black
Networking	Networking
Connectivity Technology	Wired
Data Link Protocol	HDMI
Max Resolution	4K @ 60 Hz
Max Transfer Distance	70 m
Status Indicators	Power, KVM
Features	Wall mountable, reset button, over-voltage protection, metal housing, HDR support, 4:4:4 chroma subsampling support, 18 Gbps bandwidth, ESD Protector, USB touch panel support
Compliant Standards	USB 1.1
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x CATx (transmitter) - RJ-45 ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x USB (transmitter) - Type A ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x CATx (receiver) - RJ-45 ¦ 2 x USB (receiver) - Type A ¦ 1 x SPDIF (receiver output)
Miscellaneous	Miscellaneous

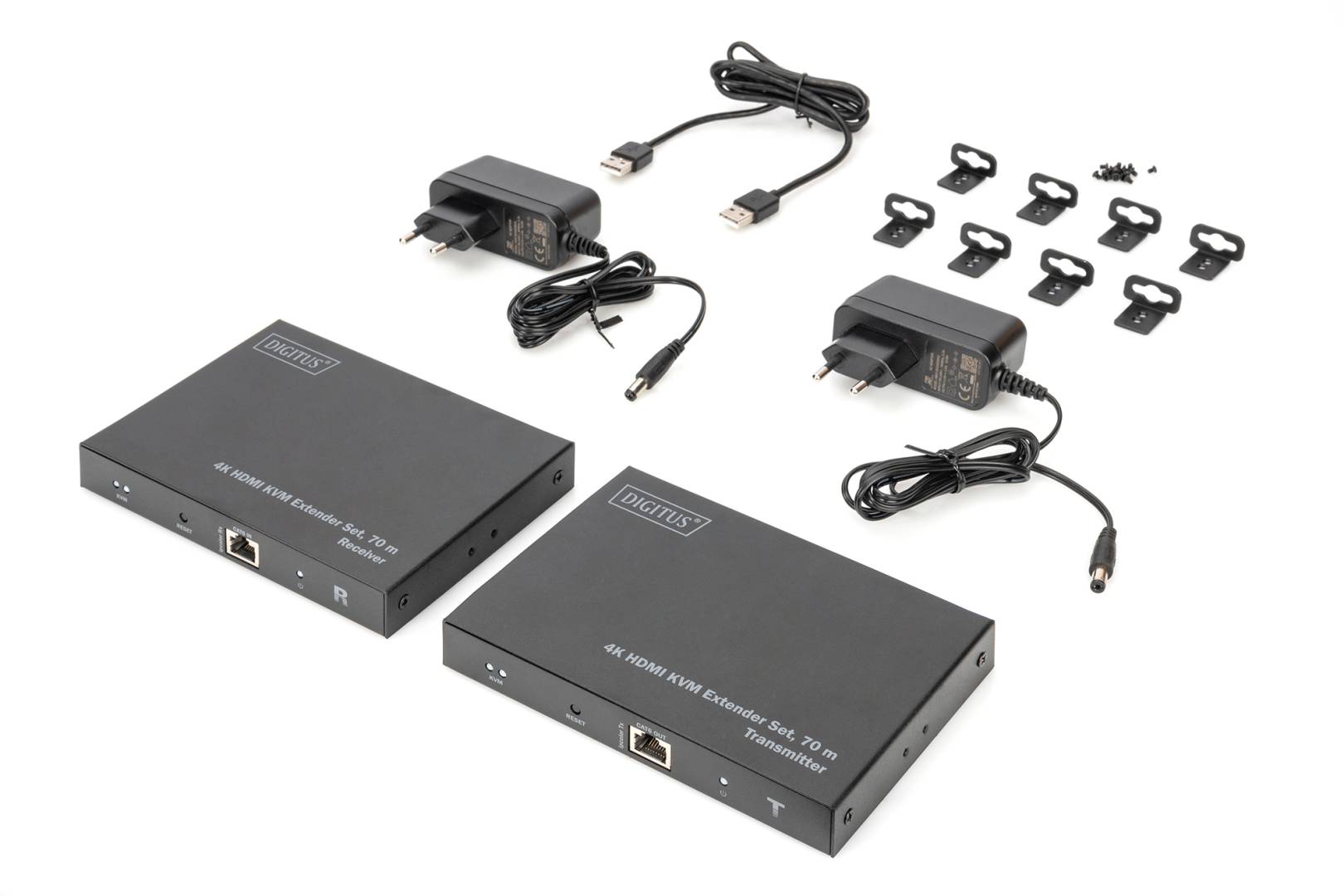

Included Accessories	Wall mounting kit
Cables Included	1 x USB cable
Compliant Standards	EDID compatible, HDCP 2.2, HDCP 1.4
Power	Power
Power Device	External power adapter
Installed Qty	2
Power Consumption Operational	4 Watt
Dimensions & Weight	Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 15 cm x 10.7 cm x 2.8 cm / 260 g ¦ Transmitter: 15 cm x 10.7 cm x 2.8 cm / 260 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
