DIGITUS DS-55523 / Transmitter and receiver / KVM / audio / serial / USB extender / HDBaseT 3.0 / up to 100 m | DS-55523

Product Features

· HDBaseT 3.0 technology
· Supports eARC/ARC function (the sound is returned to the HDMI IN connection, HDMI OUT connection (only audio) and SPDIF OUT connection of the transmitter)
· Bi-directional IR transmission
· Bi-directional PoC (Power over Cable) transmission (24V) - Only the unit requires an external power adapter

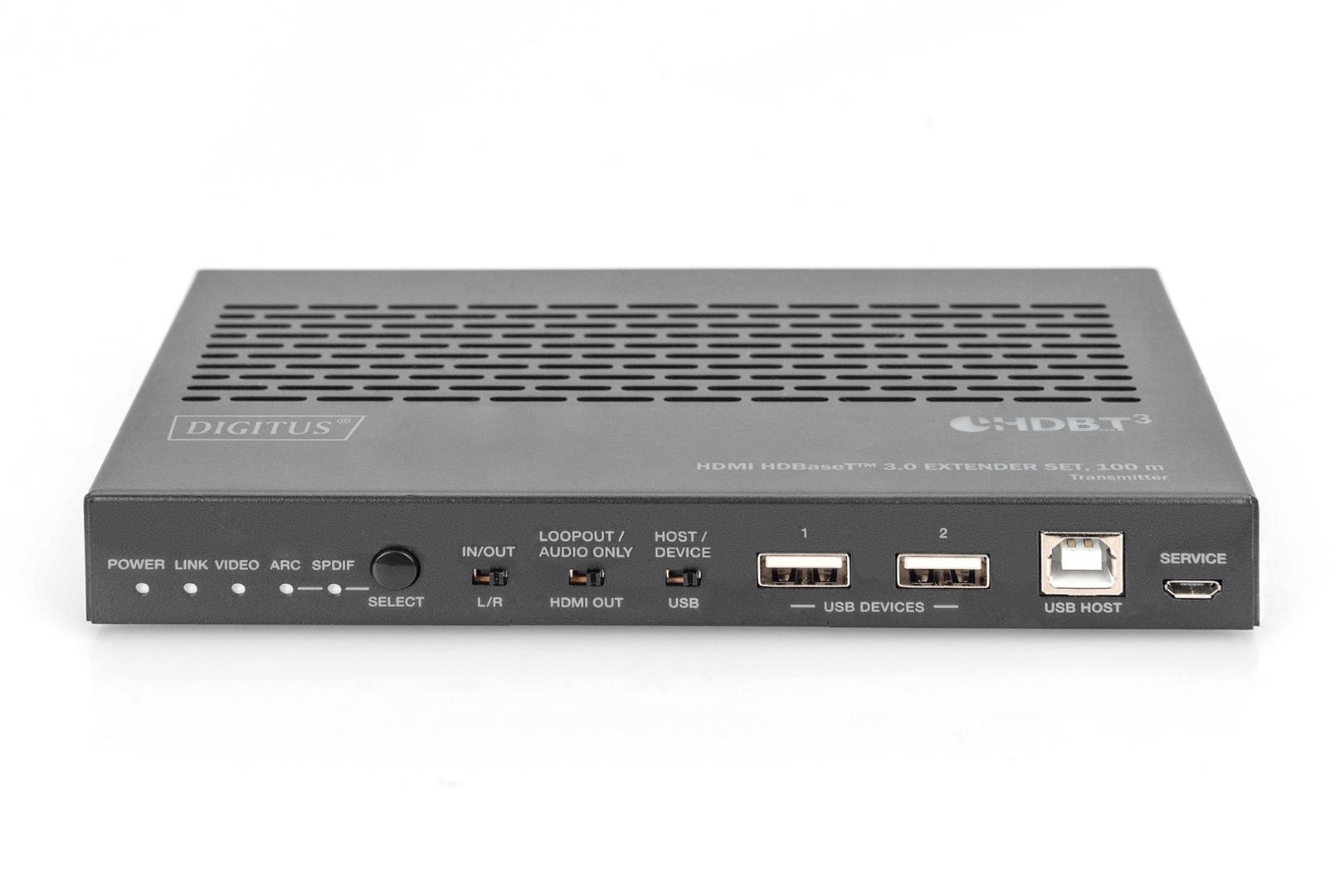

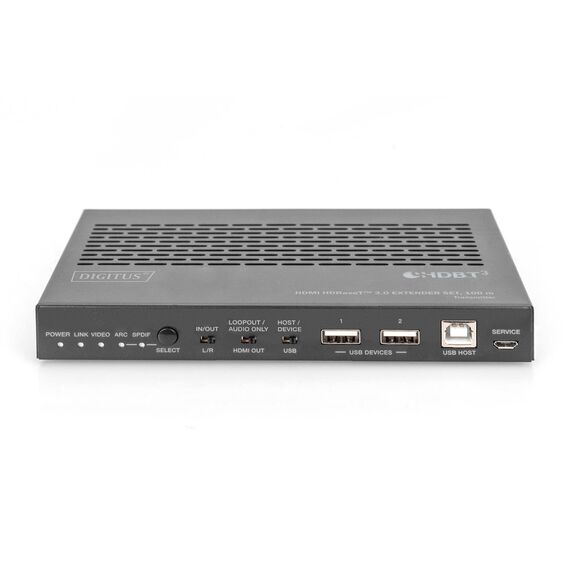

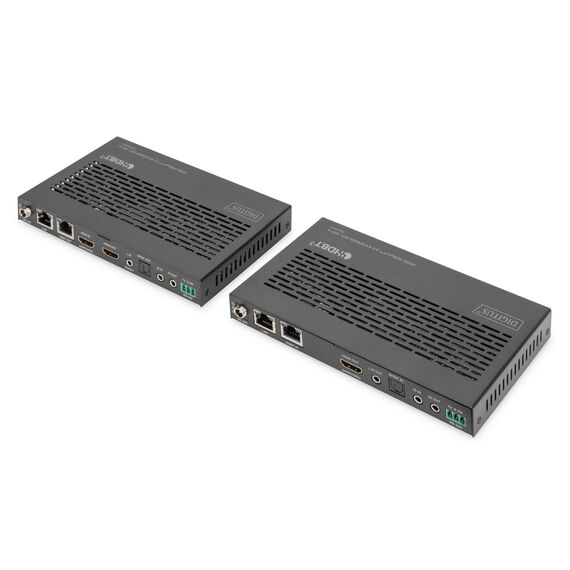

· Transmitter unit connections:
· 1x HDMI input (4K/60Hz) with eARC/ARC - Connection for signal source, 1x HDMI output (loop out) - AV output for local TV or only audio output

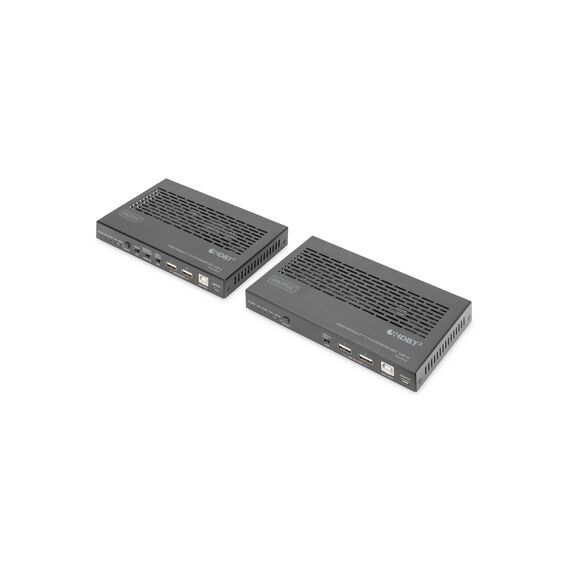

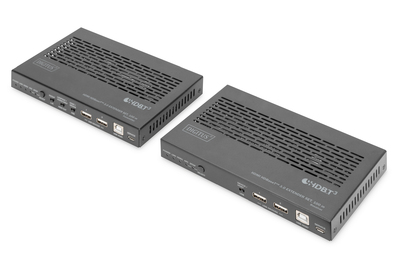

· 2x USB-A 2.0 for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc.
· 1x USB-B input - Connection host PC for use of KVM functionality
· 1x RJ45 output (HDBaseT 3.0) - Connection CAT transmission cable
· 1x RJ45 (Gigabit Ethernet) network connection
· 1x RS232 (3-pin Phoenix) for RS232 command transmission
· 1x Toslink (S/PDIF) output
· 1x 3.5 mm audio (L/R, input/output)
· 1x IR input, 1x IR output
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· 1x Micro USB input - Service/remote maintenance update
· 3x Changeover switch, 1x selection key
· 5x Status LED

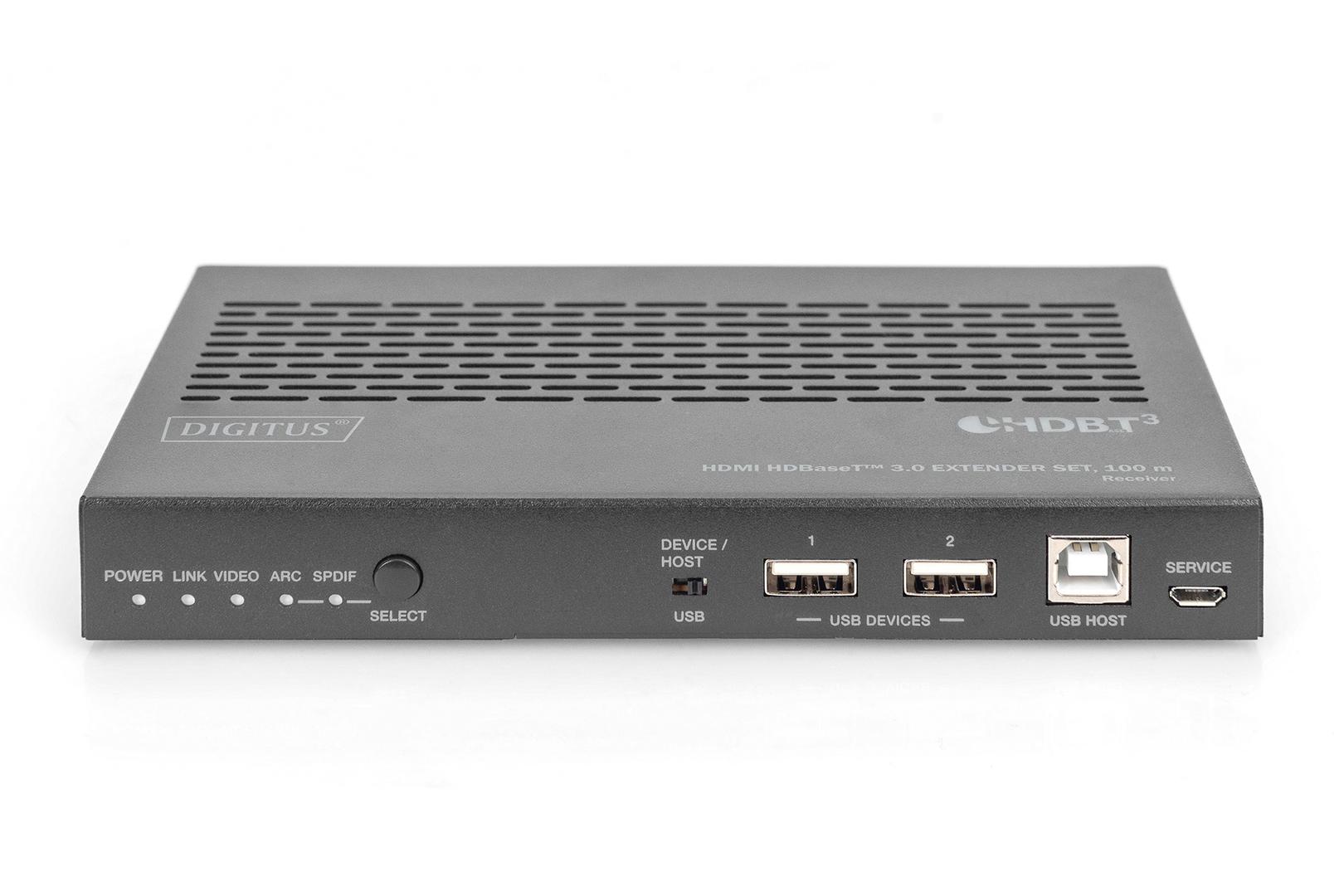

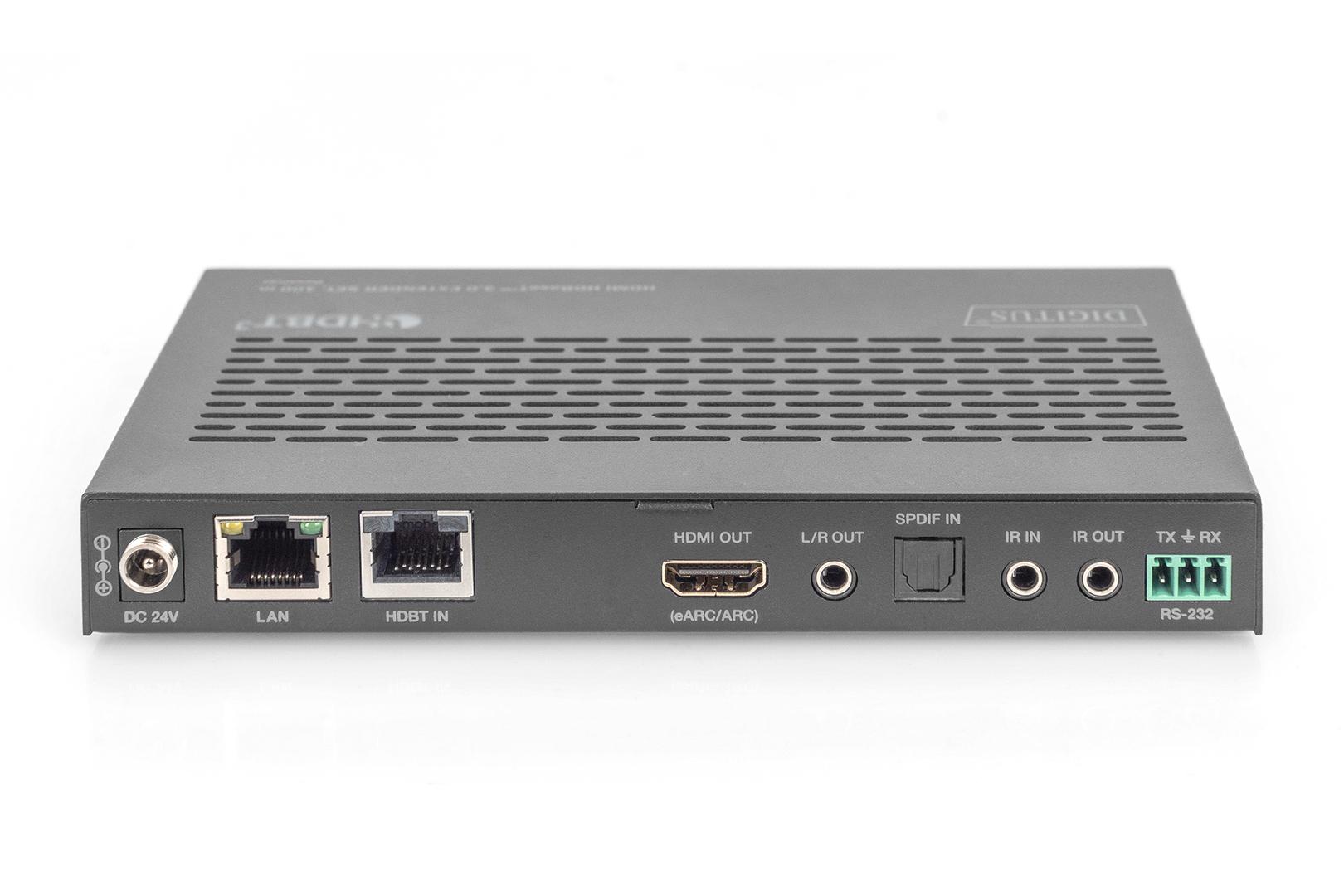

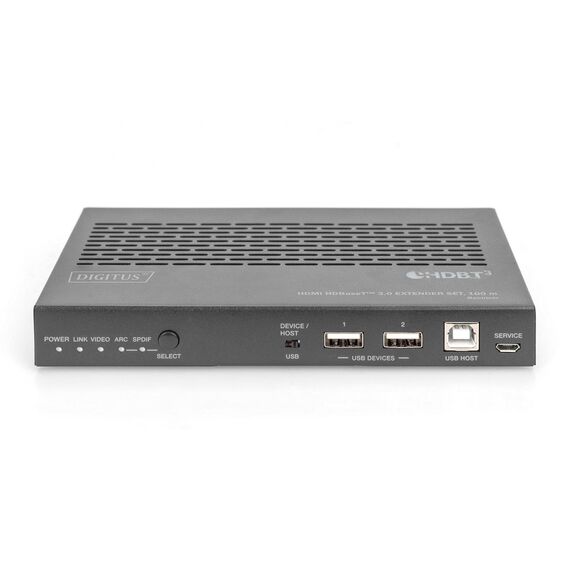

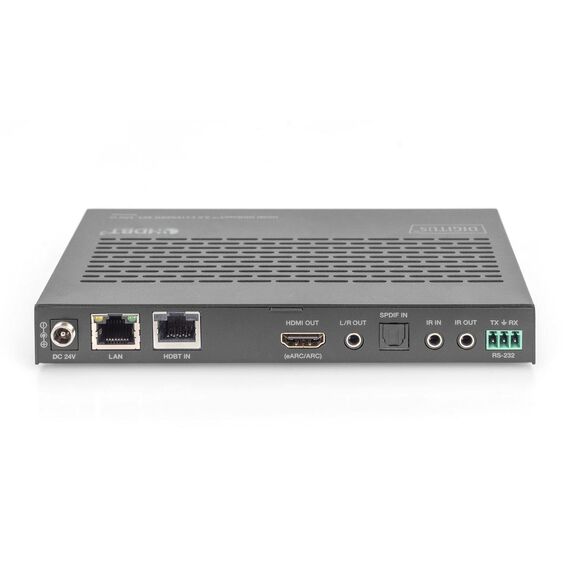

· Receiver unit connections:
· 1x HDMI output (eARC, ARC) - AV output for local TV with eARC, ARC
· 1x RJ45 input (HDBaseT 3.0) - Connection CAT transmission cable
· 2x USB-A 2.0 for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc.
· 1x USB-B input - Connection host PC for use of KVM functionality
· 1x RJ45 (Gigabit Ethernet) network connection
· 1x RS232 (3-pin Phoenix) for RS232 command transmission
· 1x Toslink (SPDIF) input
· 1x 3.5 mm audio (L/R, output)
· 1x IR input, 1x IR output
· 1x Micro USB input - Service/remote maintenance update
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· 1x Changeover switch, 1x Selection key
· 5x Status LED
· ESD protection
· Suitable for wall mounting
· Operating temperature: 0-40°
· Housing: Metal
· Dimensions (1 unit): L 17 x W 10.2 x H 2.2 cm
· Weight: Transmitter 425 g, receiver 437 g
· Color: Black

Special Features

· HDBaseT 3.0 technology
· HDMI 2.0b, HDCP 2.2
· Uncompressed signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s
· Transmission distance of up to 100 m via CAT 6A (or higher) cables
· 2x USB-A 2.0 connection on each unit for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc.
· eARC/ARC function
· PoC (Power over Cable) - Only the unit requires an external power adapter
· R232 signal transmission
· 1x RJ45 (Gigabit Ethernet) network connection on each unit - bi-directional Ethernet transfer
· 1x HDMI loop-out to the transmitter unit

Product Specification

Device Type	KVM / audio / serial / USB extender
Form Factor	External
Colour	Black
Networking	Networking
Connectivity Technology	Wired
Data Link Protocol	HDBaseT 3.0
Max Resolution	4K @ 60 Hz
Max Transfer Distance	100 m
Features	Power over Ethernet (PoE), wall mountable, metal housing, ARC support, bi-directional IR, bi-directional power over cable (PoC), 4:4:4 chroma subsampling support, 18 Gbps bandwidth, ESD Protector, eARC support
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 2 x USB 2.0 (transmitter) - Type A female ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A female ¦ 1 x USB (transmitter input) - Type B ¦ 1 x HDBaseT (transmitter output) - RJ-45 ¦ 1 x Ethernet 1000Base-T (transmitter) - RJ-45 ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix ¦ 1 x SPDIF (transmitter output) - TOSLINK ¦ 1 x audio (transmitter) - mini jack ¦ 1 x IR input (transmitter) ¦ 1 x IR output (transmitter) ¦ 1 x USB (transmitter input) - micro-USB ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x HDBaseT (receiver input) - RJ-45 ¦ 2 x USB 2.0 (receiver) - Type A ¦ 1 x USB (receiver) - Type B ¦ 1 x Ethernet 1000Base-T (receiver) - RJ-45 ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x SPDIF (receiver input) - TOSLINK ¦ 1 x audio (receiver output) - mini jack ¦ 1 x IR input (receiver) ¦ IR output (receiver) ¦ 1 x USB (receiver input) - micro-USB
Miscellaneous	Miscellaneous
Included Accessories	2 x 3-pin Phoenix connectors, mounting kit
Cables Included	1 x IR emitter cable - 1.5 m ¦ 1 x IR receiver cable - 1.5 m
Compliant Standards	HDCP 2.2
Power	Power
Power Device	External power adapter
Dimensions & Weight	Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 10.2 cm x 17 cm x 2.2 cm / 437 g ¦ Transmitter: 10.2 cm x 17 cm x 2.2 cm / 425 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
