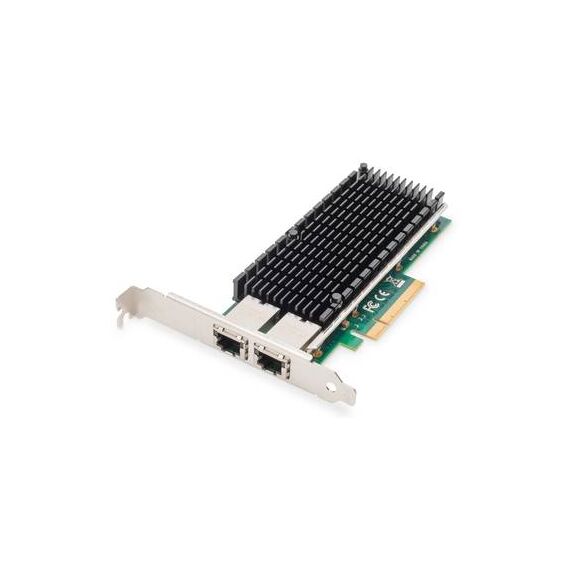

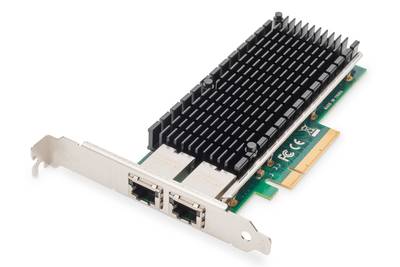

DIGITUS 10Gbps Dual Port Ethernet Server adapter | DN-10163

Product Features

· Standard CAT-6a cabling with RJ45 connectors
· Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
· Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
· Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
· Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
· Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
· Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS
· Features Link Aggregation Control Protocol (LACP)
· Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
· Dual Port 10GbE adapters
· PCI Express v2.1,5.0 GT/s, x8 lanes
· PXE, iSCSI, FCoE boot
· Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE
· Controller: Intel X540 BT2
· "Network Standard Physical Layer Interfaces: Cat-6A 10G up to 100m, Cat-6 10G up to 55m Cat-5E/Cat-6/Cat-6A 1G/100M up to 100m"
· Jumbo Frame Support: Up to 9.5 KB
· Network Virtualization: VMDq, PCI-SIG SR-IOV, Intel VT-c
· IEEE 802.3an/ab and 10G Ethernet Specification Compliance
· Low Profile and Full-Height bracket
· System Requirements: FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10 / 11
· System Requirements: One available PCI Express x1 slot

Special Features

· Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
· Standard CAT-6a cabling with RJ45 connectors
· Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
· Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
· Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
· Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
· Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
· Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS

Product Specification

Internal	Yes
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Maximum data transfer rate	10000 Mbit/s
Product colour	Green, Silver
