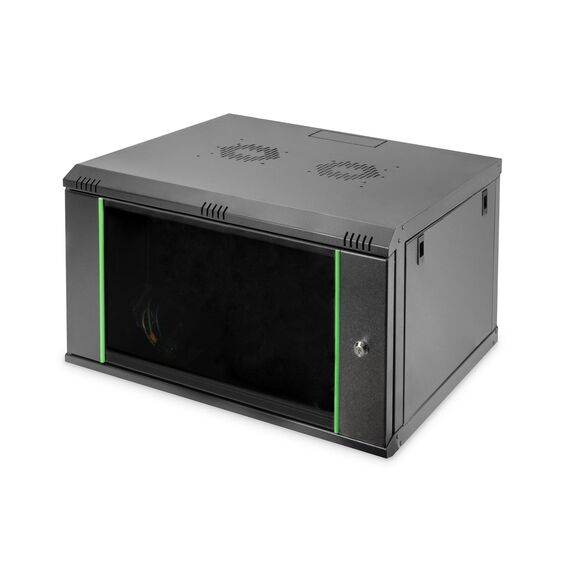

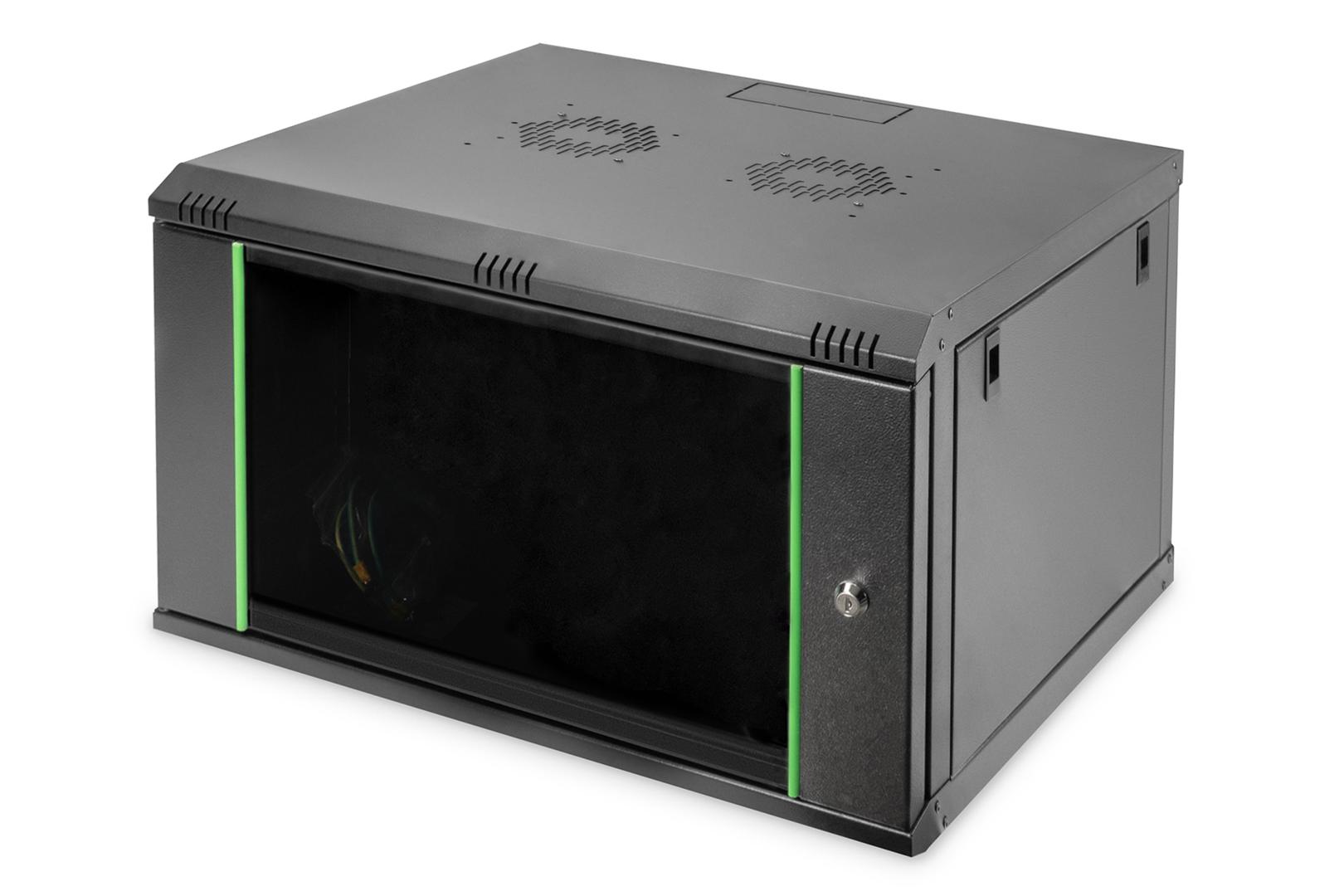

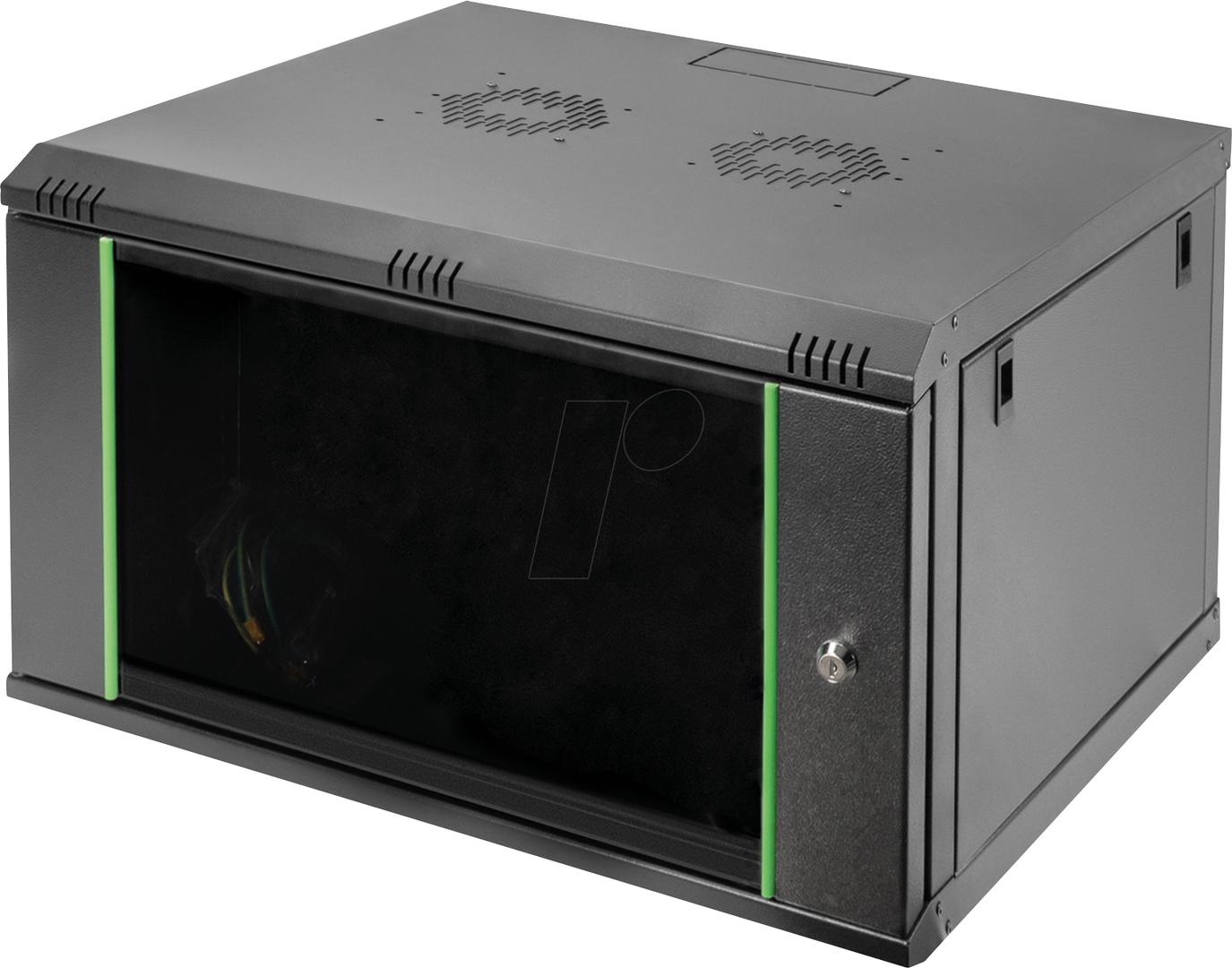

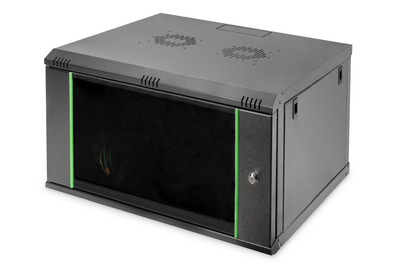

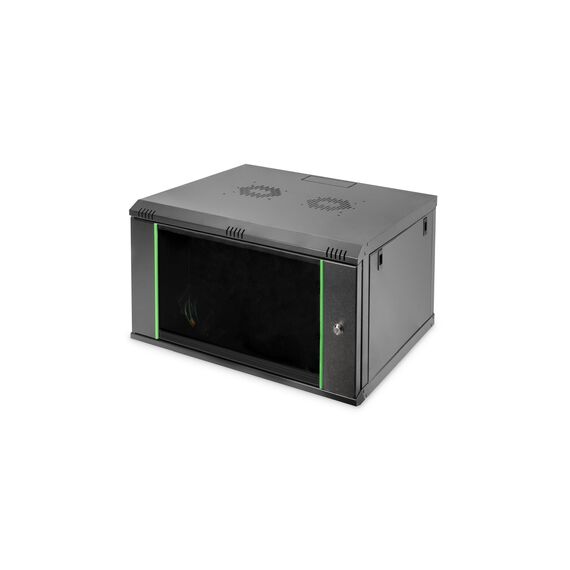

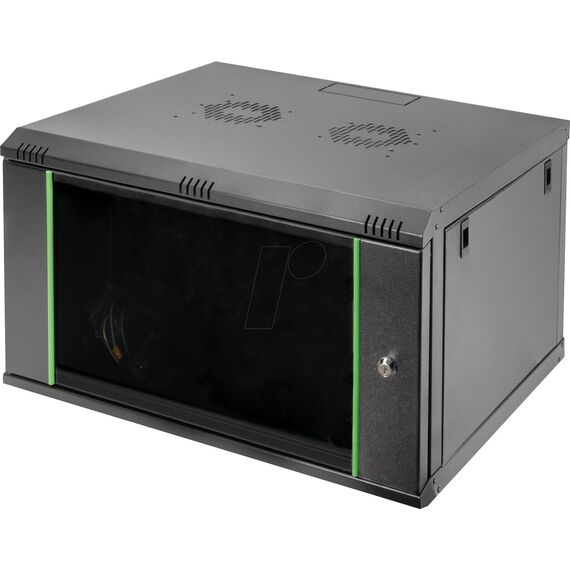

DIGITUS Dynamic Basic DN-19 07U-6/6-EC-SW - Rack cabinet - wall mountable - RAL 9005 - 7U - 19" | DN-19 07U-6/6-EC-SW
DIGITUS Dynamic Basic DN-19 07U-6/6-EC-SW - Rack cabinet - wall mountable - RAL 9005 - 7U - 19" | DN-19 07U-6/6-EC-SW
€307.95 inc. VAT
DN-19 07U-6/6-EC-SW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

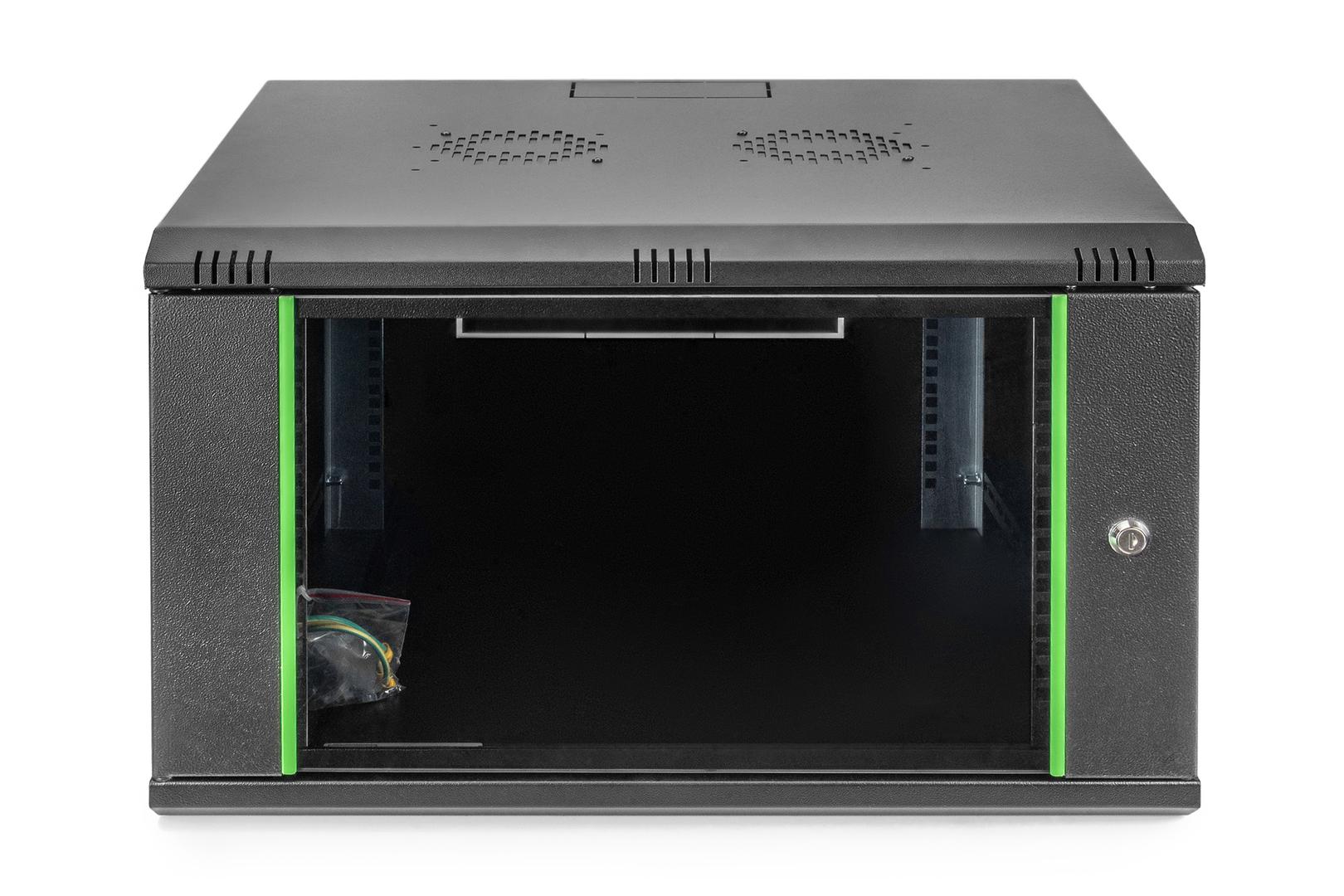

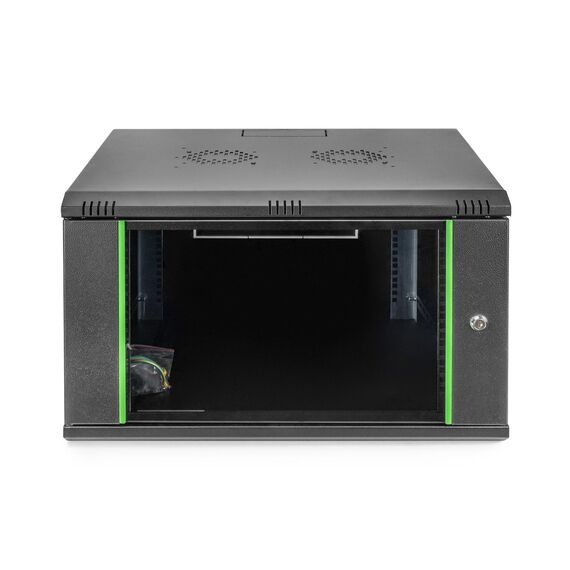

· Safety class rating IP20· Lockable safety-glass door with steel frame

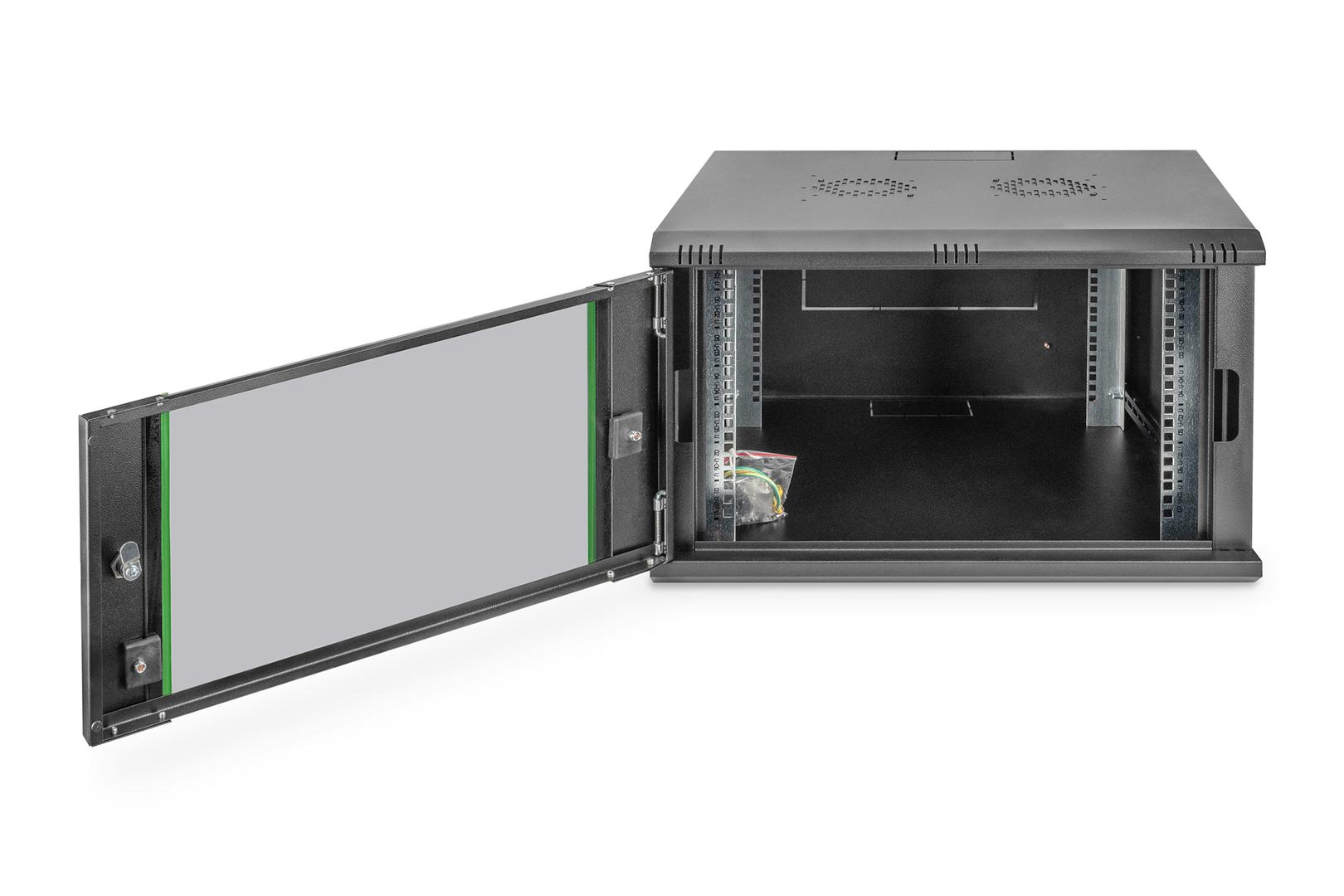

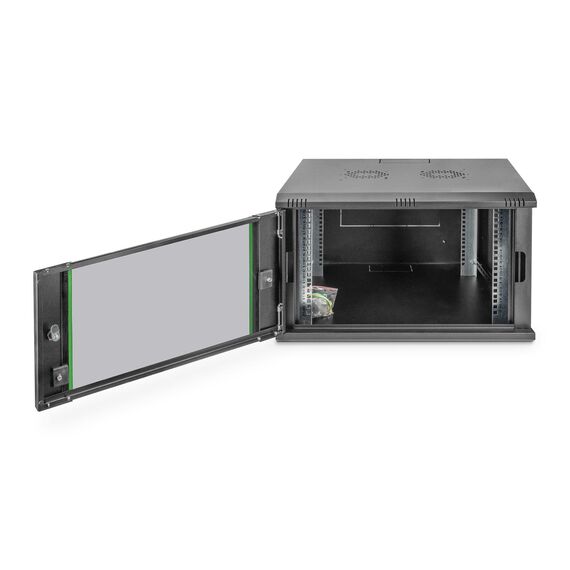

· 210° door opening angle

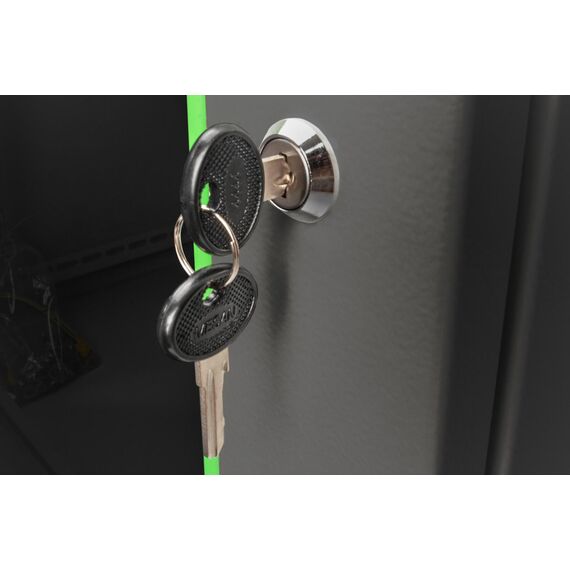

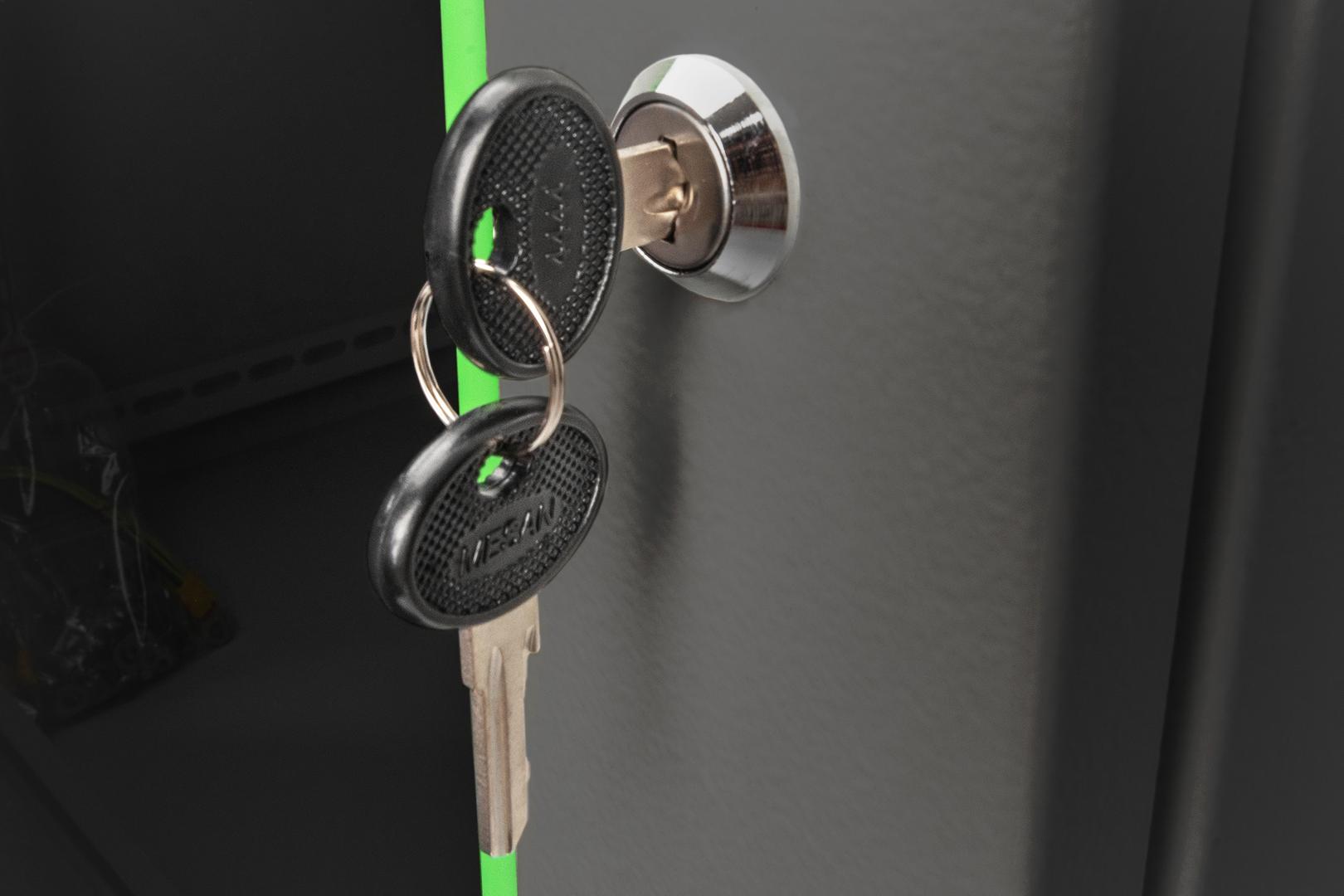

· 1-point-locking-mechanism on the front door

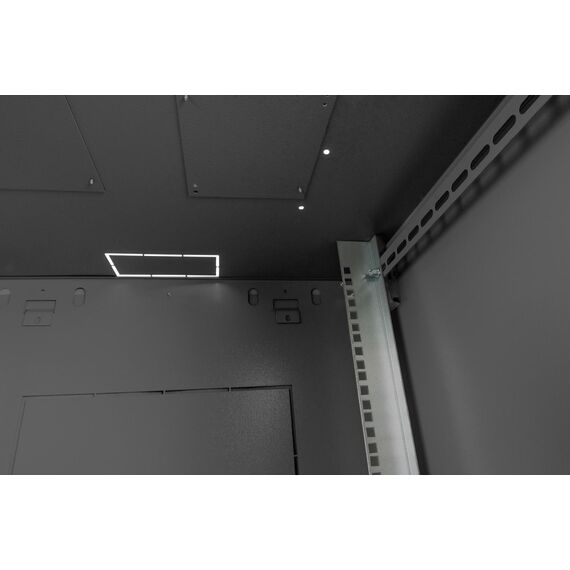

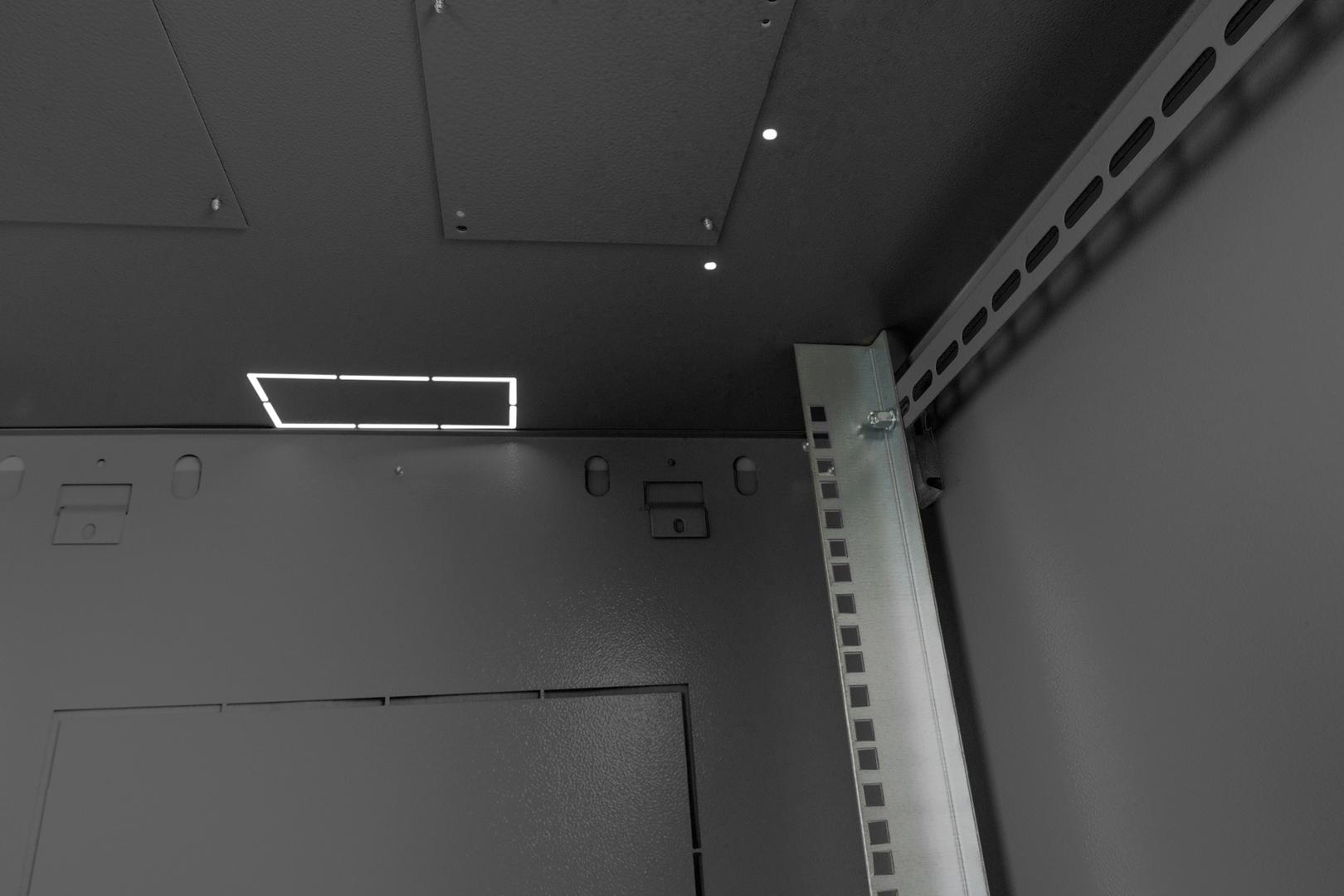

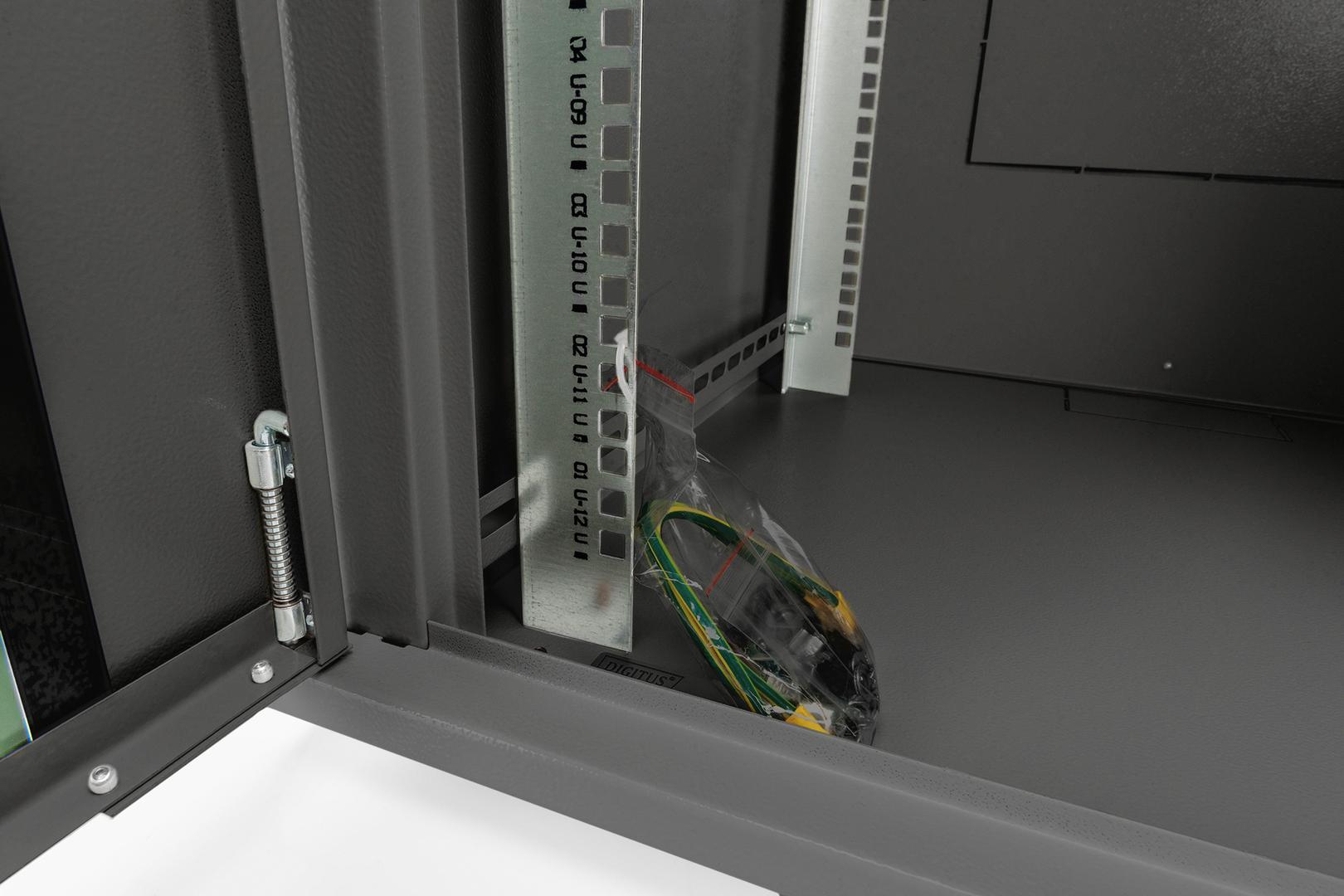

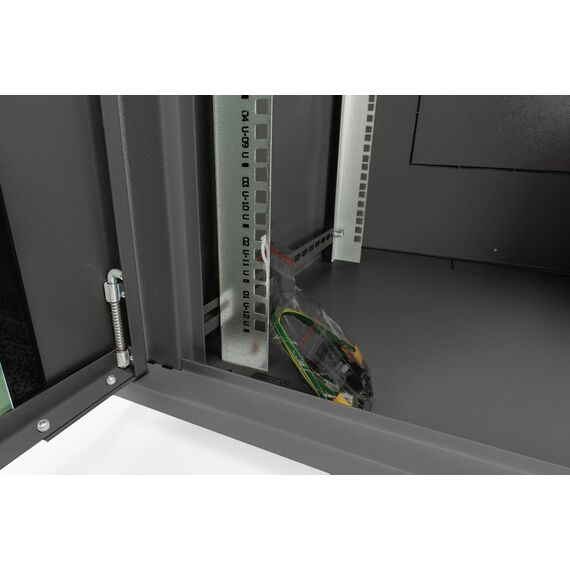

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

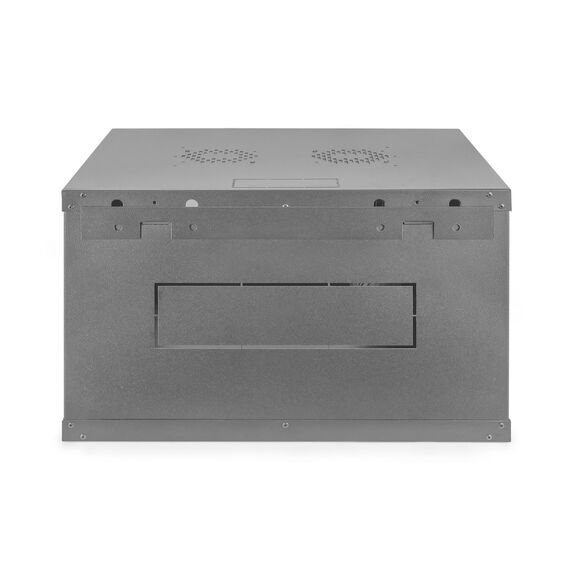

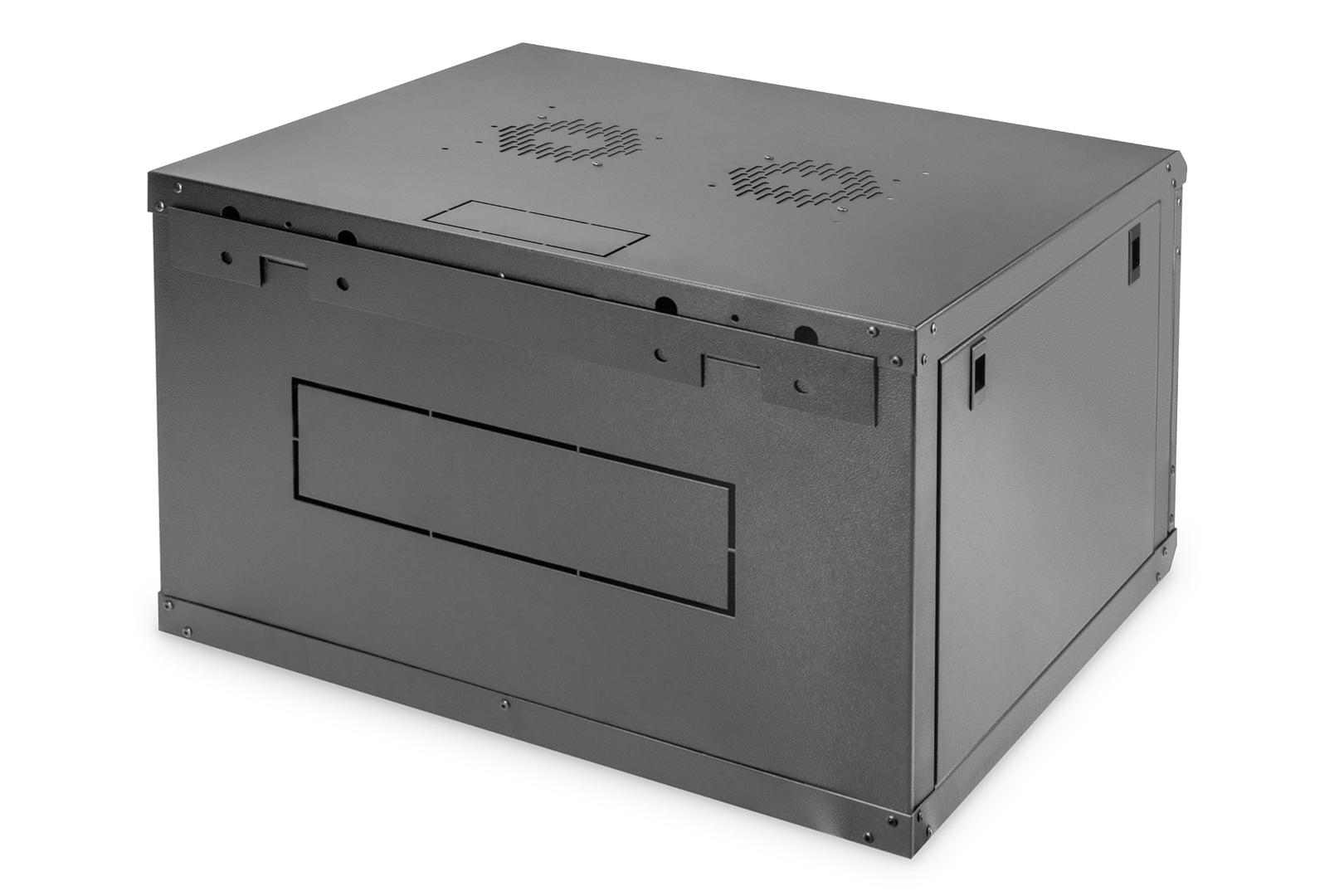

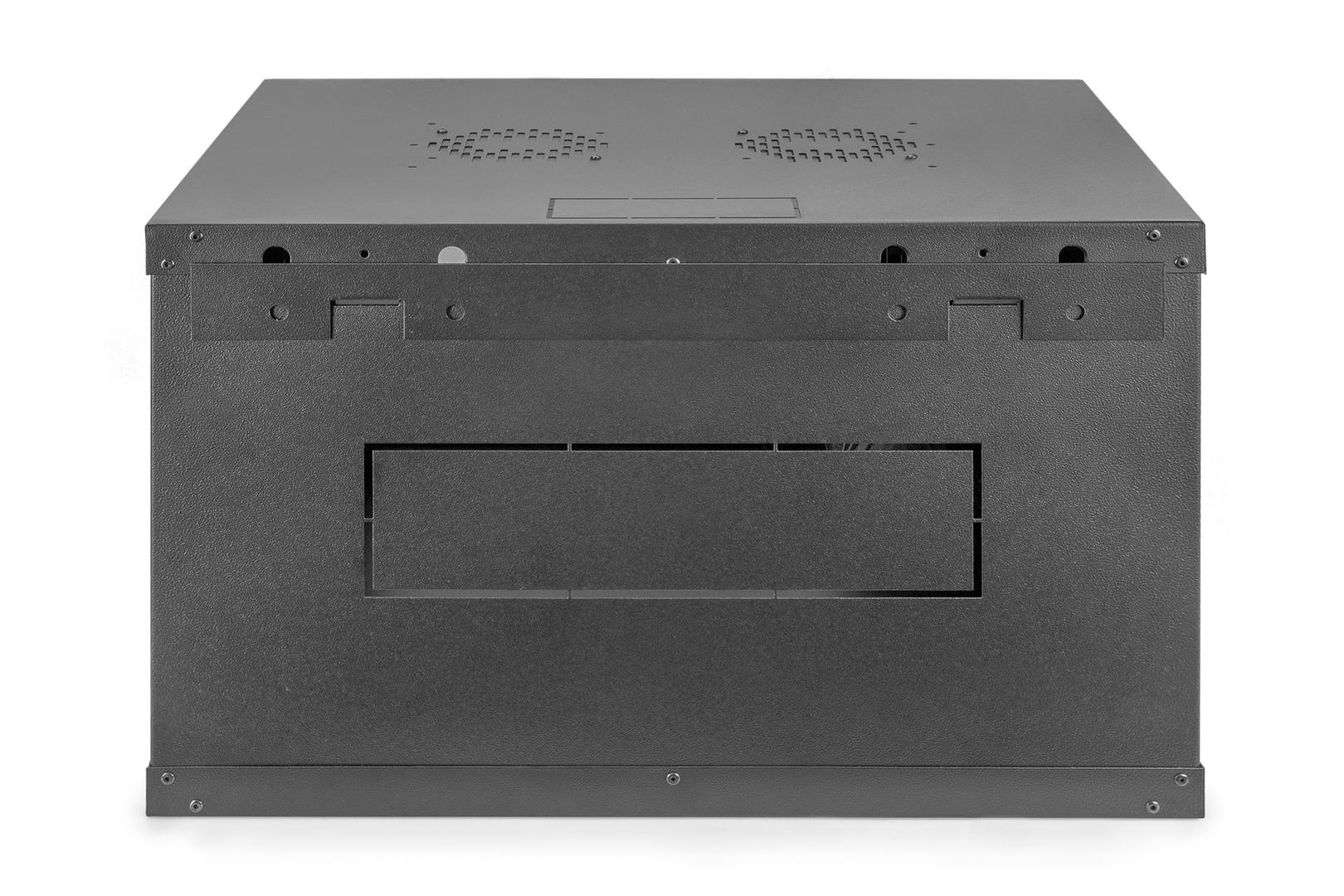

· Cable entry on the rear side, roof and base (pre-punched break-outs)
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 320 - 450 mm
Special Fetures
· Optimized air ventilation and exhaustion· Lockable glass door ensures safety
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 7U |
| Width | 60 cm |
| Depth | 60 cm |
| Height | 41.6 cm |
| Weight | 24 kg |
| Shipping Dimensions (WxDxH) / Weight | 66 cm x 66 cm x 48 cm / 25 kg |
| Colour | RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Weight Limit | 60 kg |
| Features | Glass door, 210° opening angle, integrated grounding points, front key lock |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 07U-6/6-EC-SW
More Details
Product Code
04:364542
EAN Code
4016032257790
Manufacturer
Digitus
