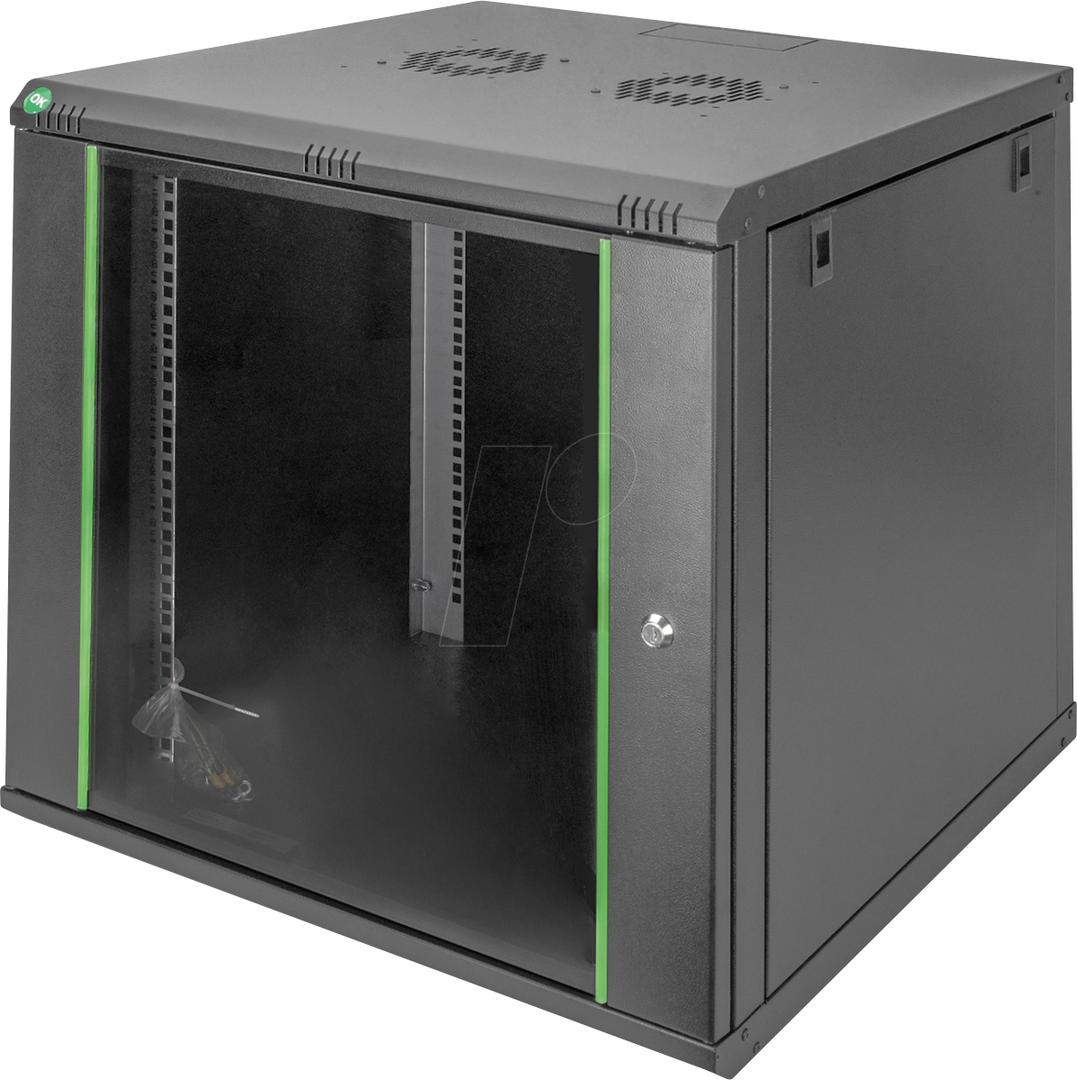

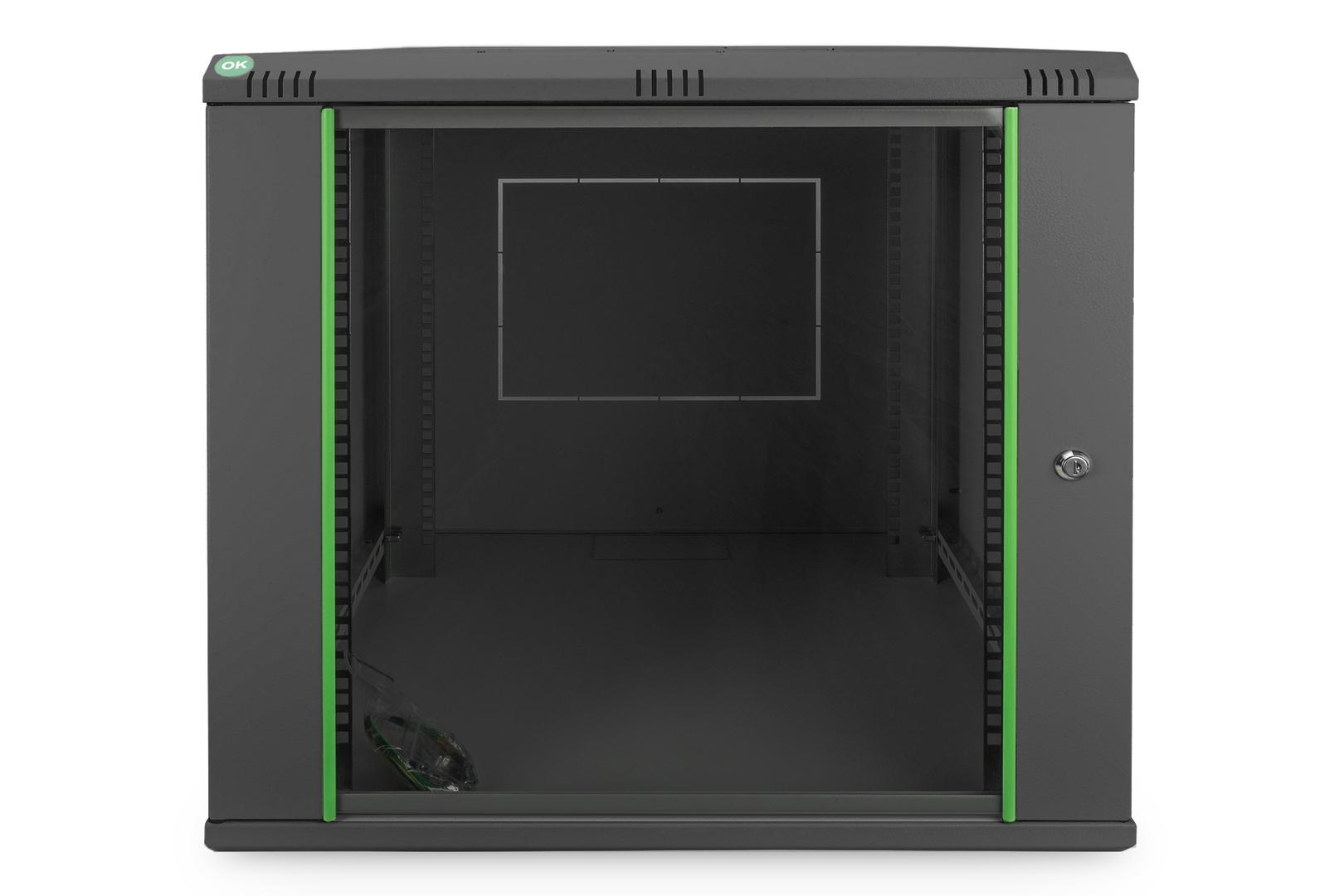

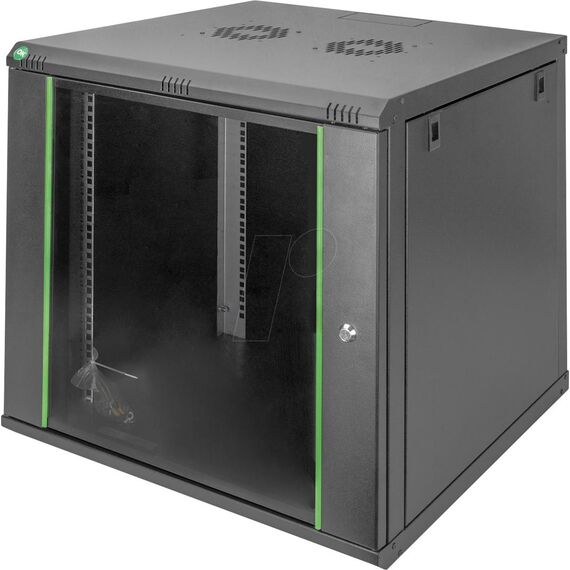

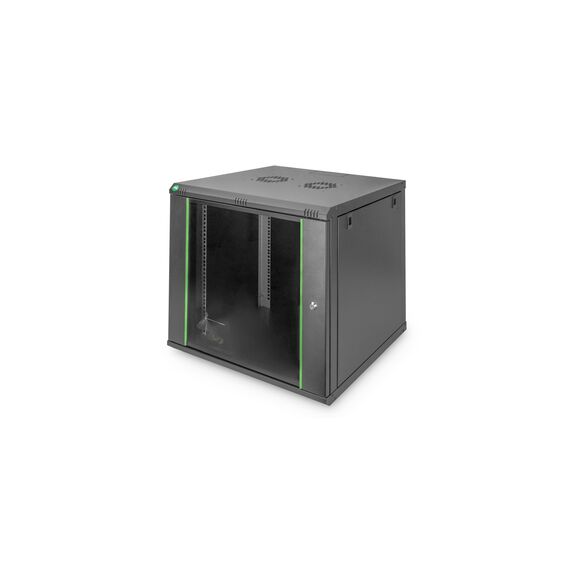

DIGITUS Dynamic Basic DN-19 12U-6/6-EC-SW - Rack cabinet - wall mountable - black, RAL 9005 - 12U - 19" | DN-19 12U-6/6-EC-SW
Please sign in so that we can notify you about a reply
Product Features

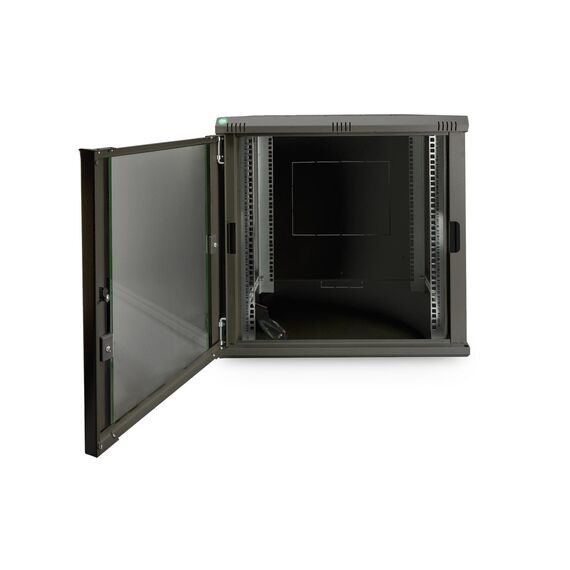

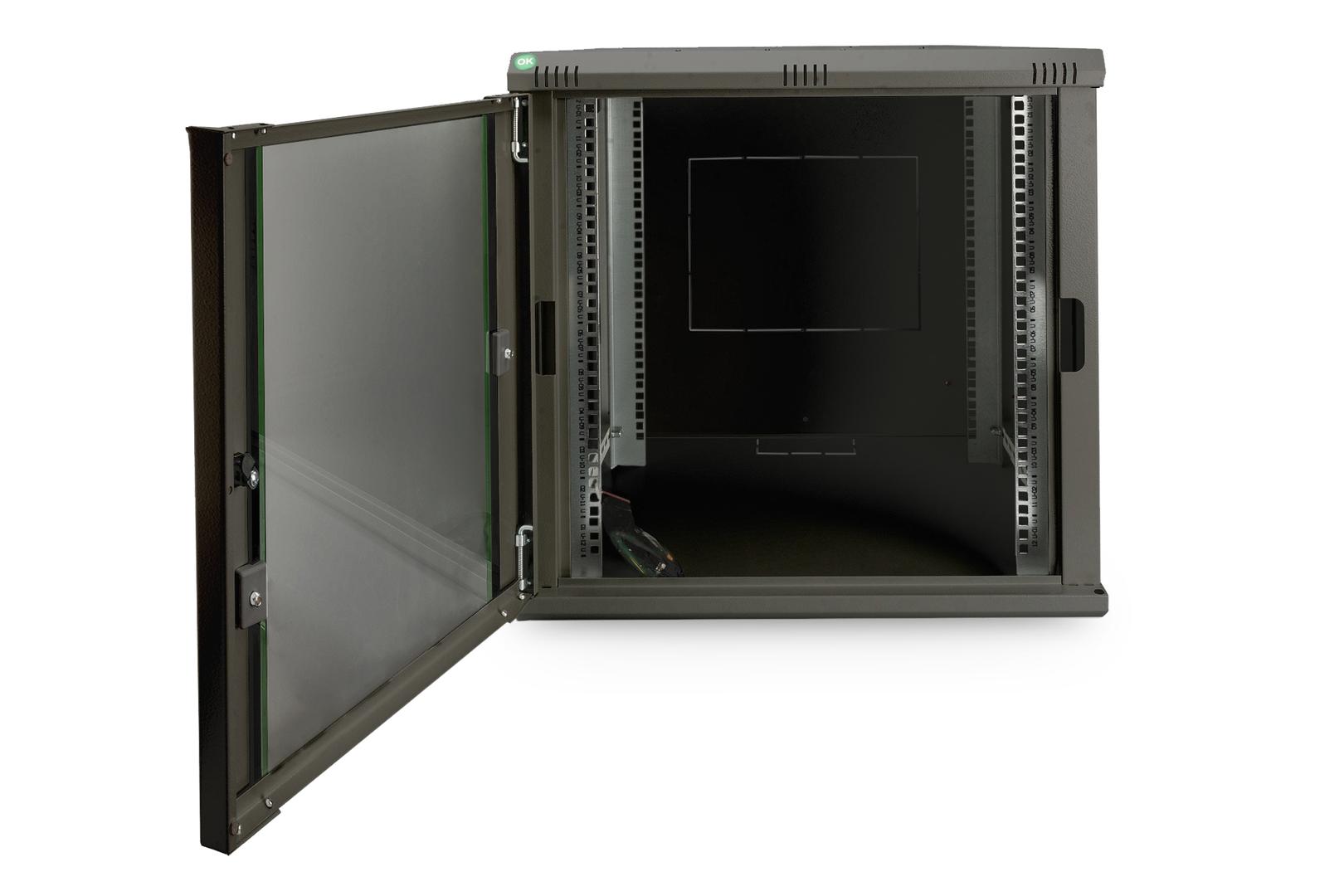

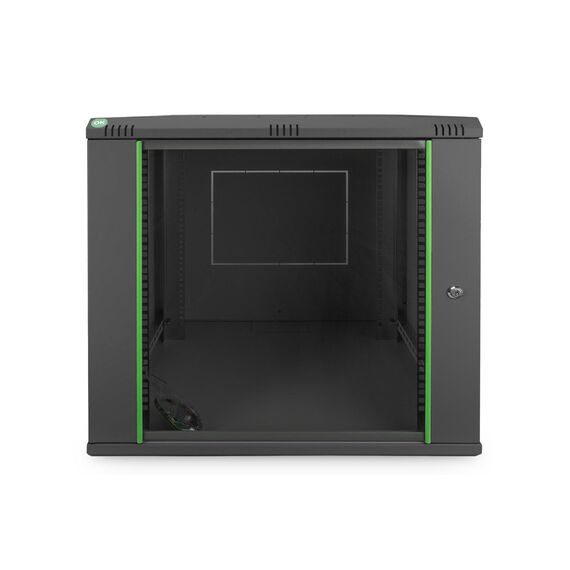

· Safety class rating IP20· Lockable safety-glass door with steel frame
· 210° door opening angle

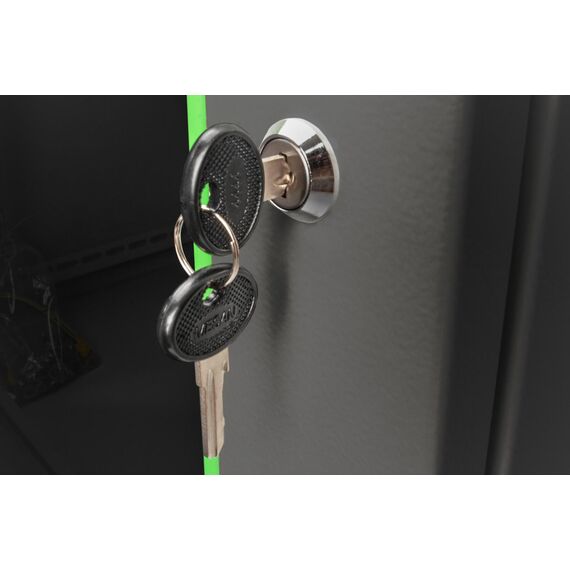

· 1-point-locking-mechanism on the front door

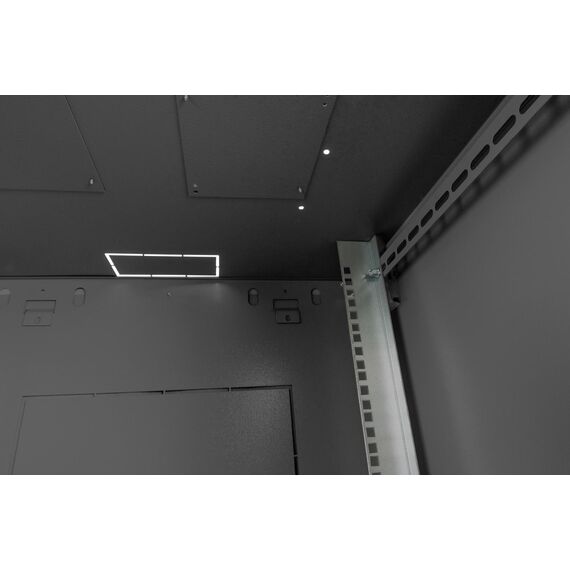

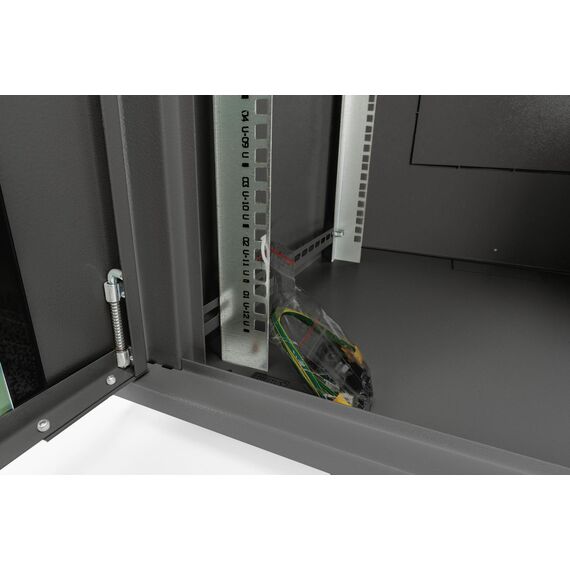

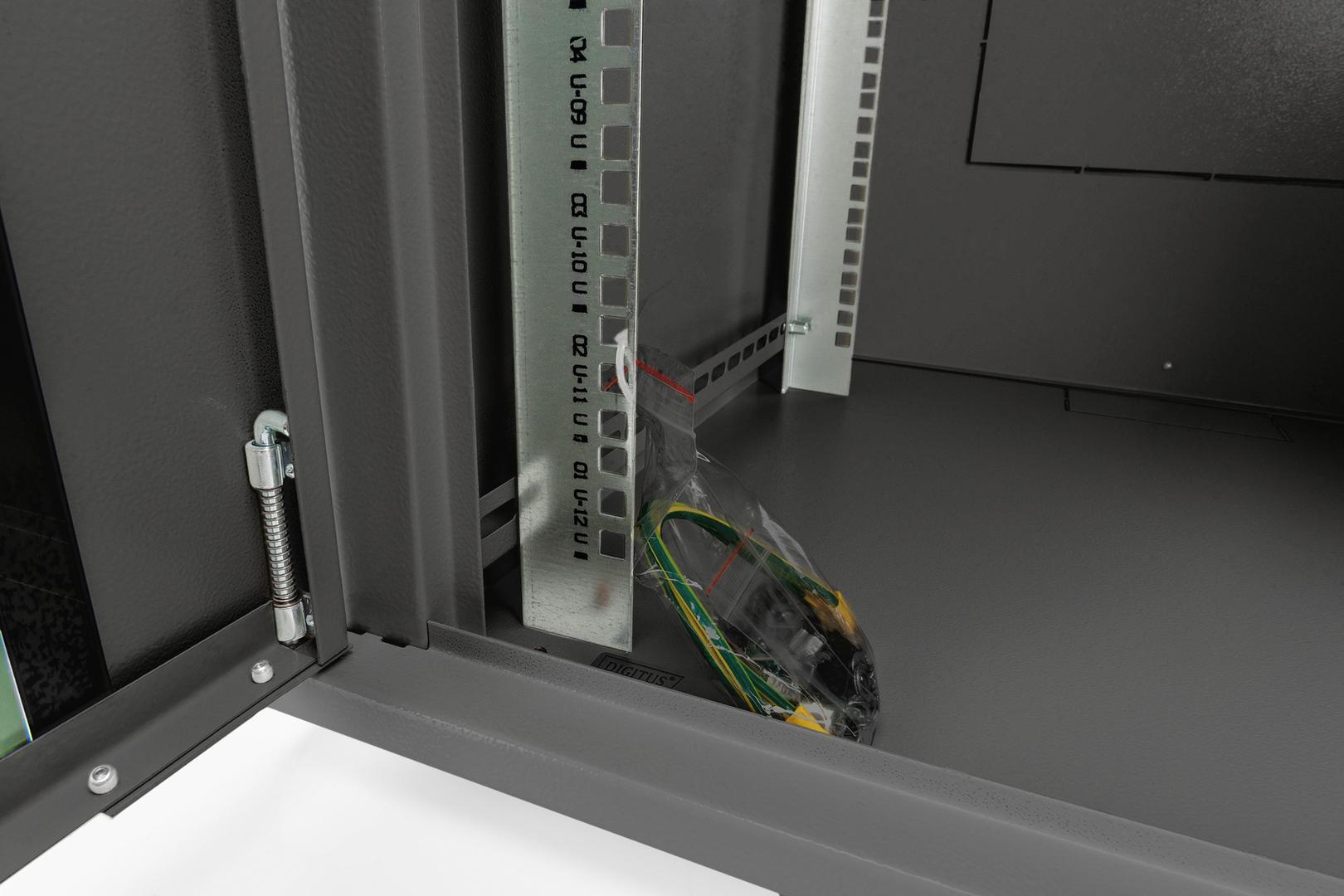

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

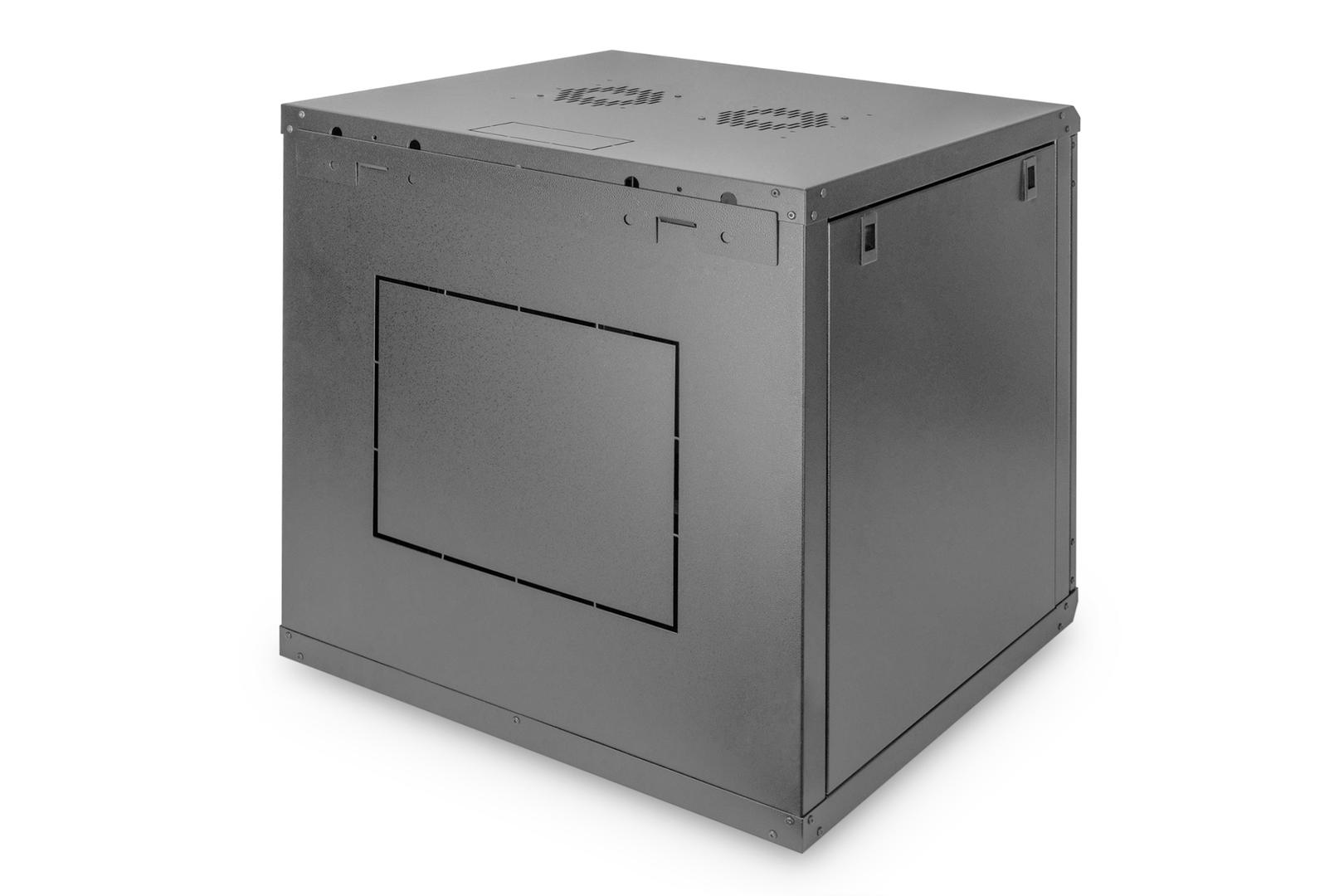

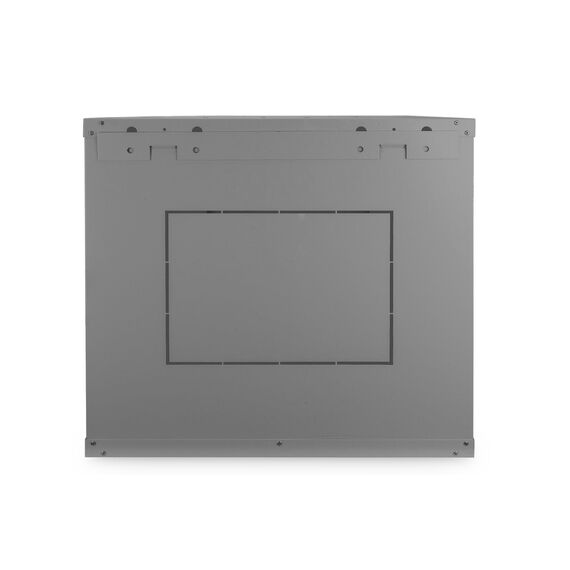

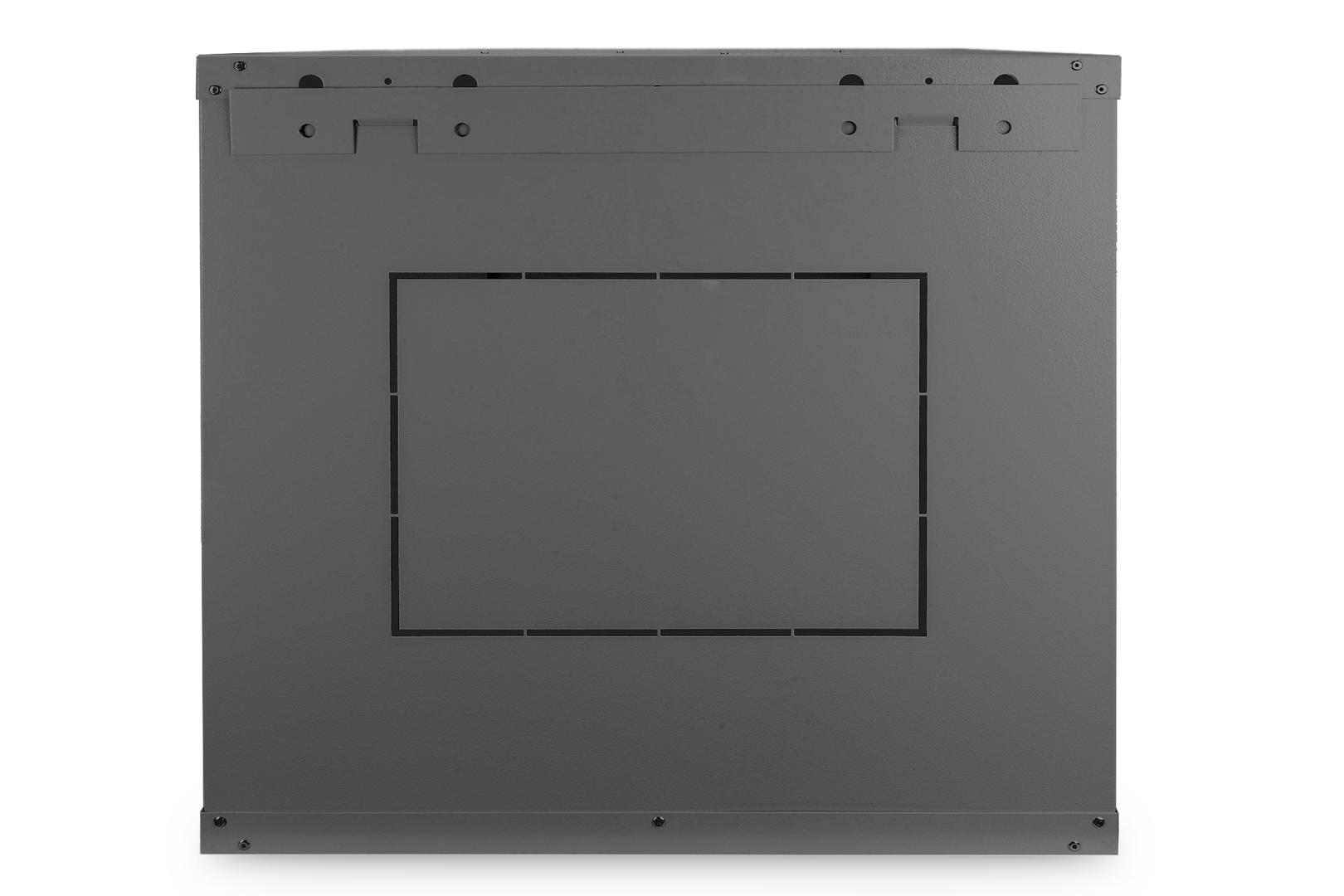

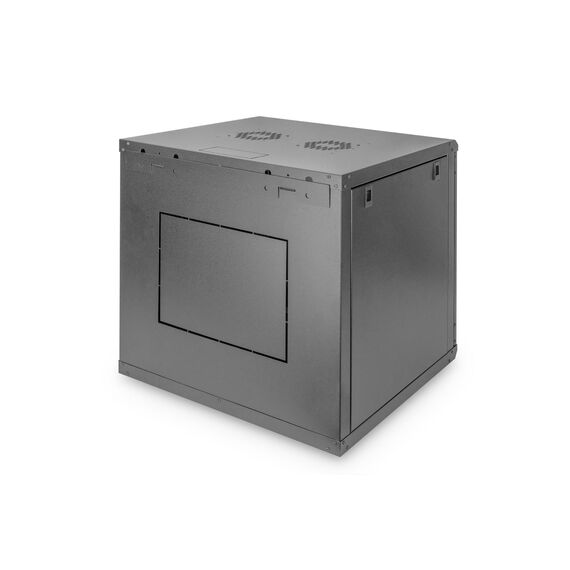

· Cable entry on the rear side, roof and base (pre-punched break-outs)

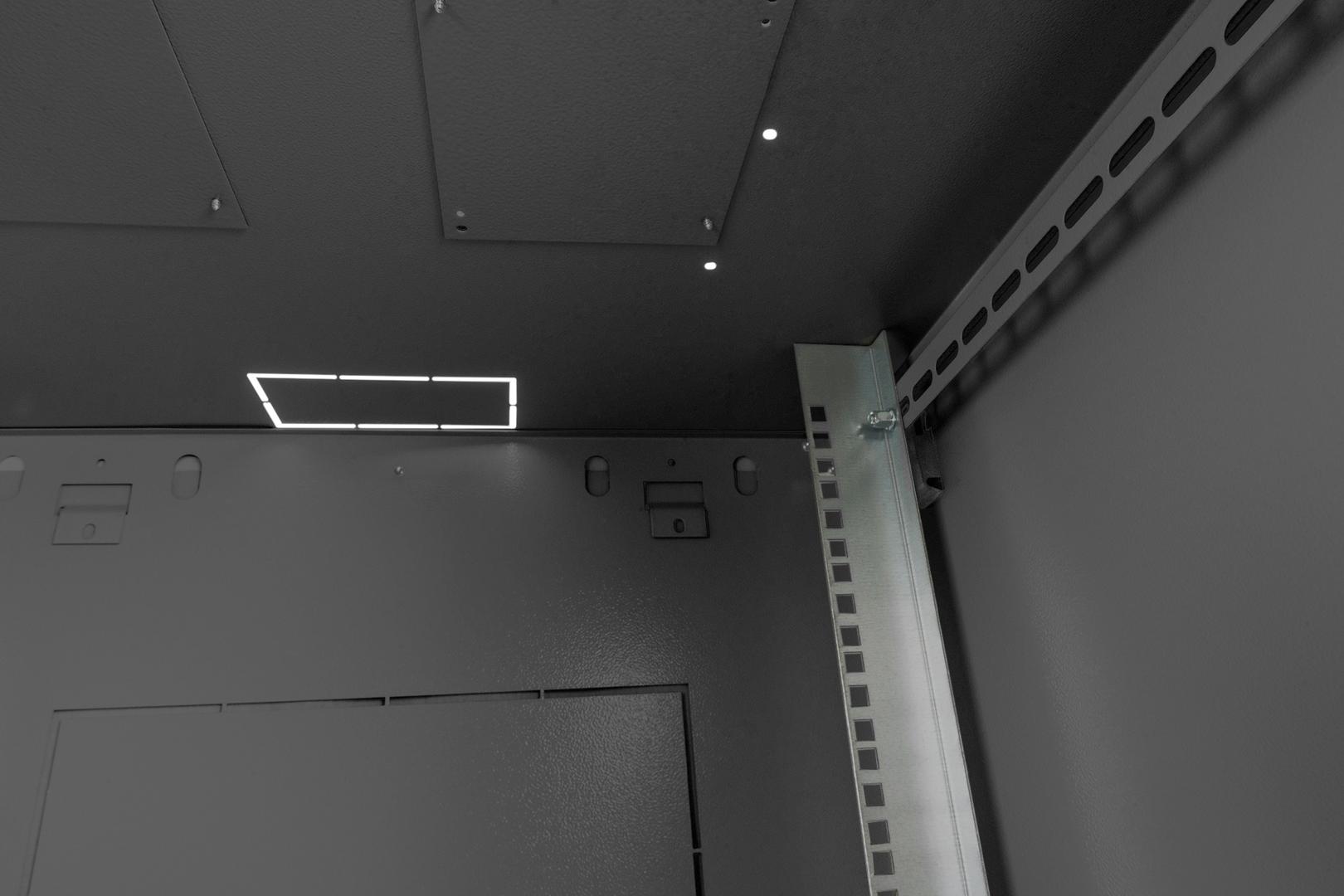

· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting

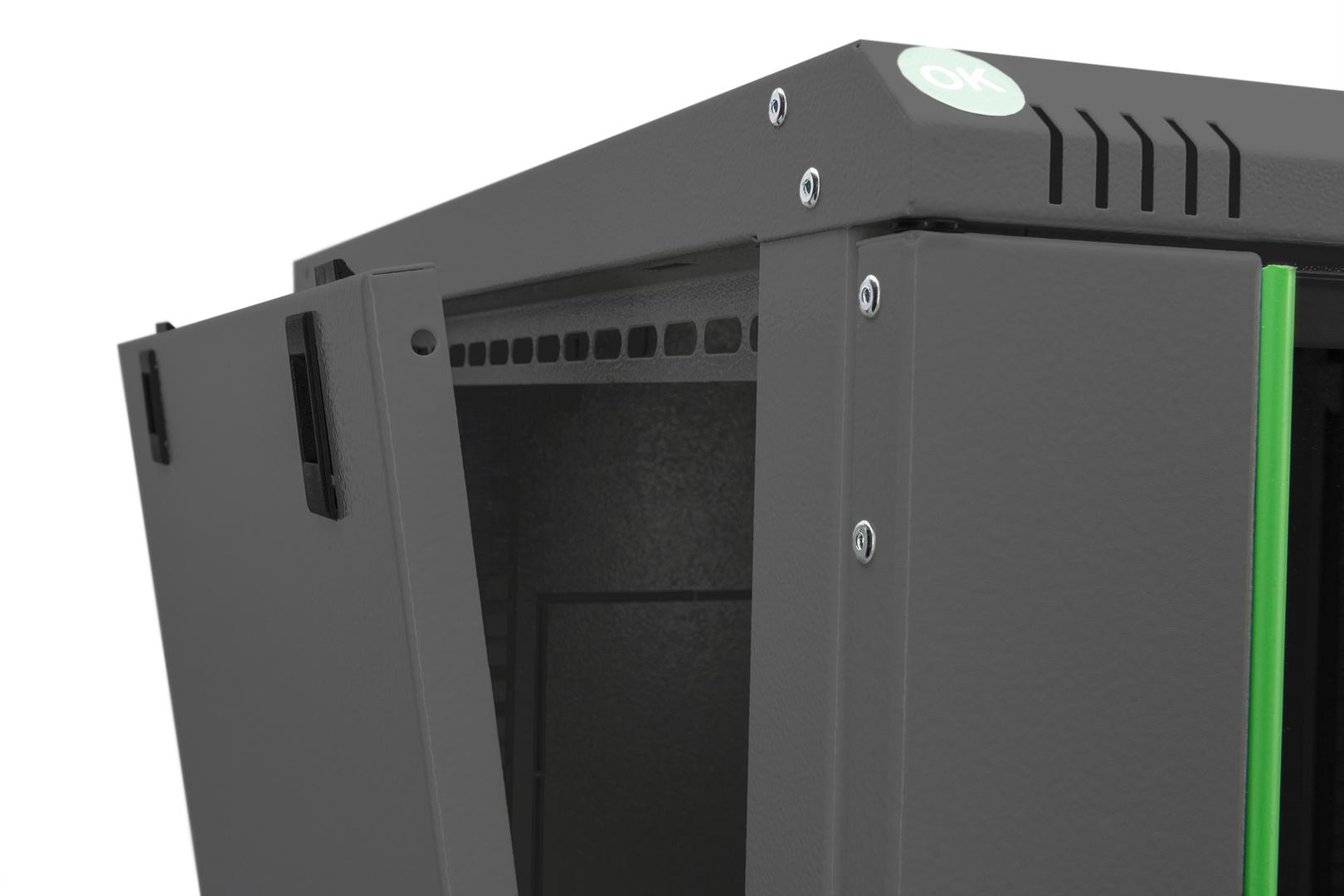

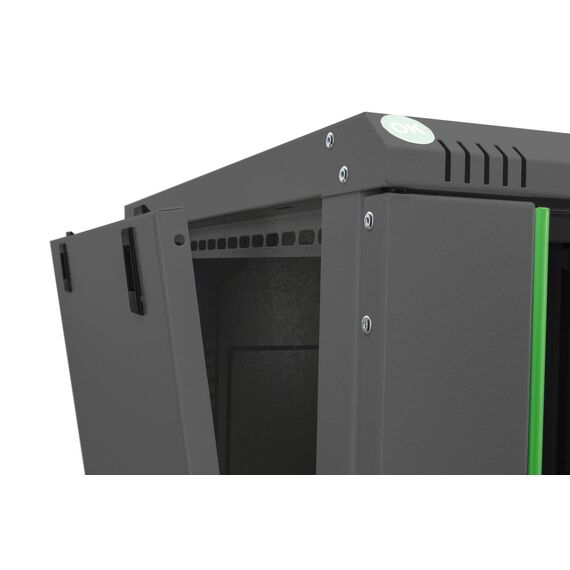

· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 320 - 450 mm
Special Fetures
· 450 mm depth provides a space saving installation· Optimized air ventilation and exhaustion
· Lockable safety-glass door with steel frame
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 12U |
| Width | 60 cm |
| Depth | 60 cm |
| Height | 63.8 cm |
| Weight | 29 kg |
| Shipping Dimensions (WxDxH) / Weight | 66 cm x 66 cm x 69.5 cm / 30.5 kg |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Weight Limit | 60 kg |
| Features | Lockable front door, fan mount, rear cable entry, "L" shaped rails, top cable entry, glass front door, adjustable front and rear rails, 210° opening angle, passive ventilation, 4 earthing points (base, side panel and front door) with protection cap, galvanised rails, 1 point-locking mechanism |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 12U-6/6-EC-SW
More Details
Product Code
CA85825
EAN Code
4016032257820
Manufacturer
Digitus
