DIGITUS Dynamic Basic DN-19 16-U-EC-SW - Rack cabinet - wall mountable - RAL 9005 - 16U - 19" | DN-19 16-U-EC-SW
Please sign in so that we can notify you about a reply
Product Features

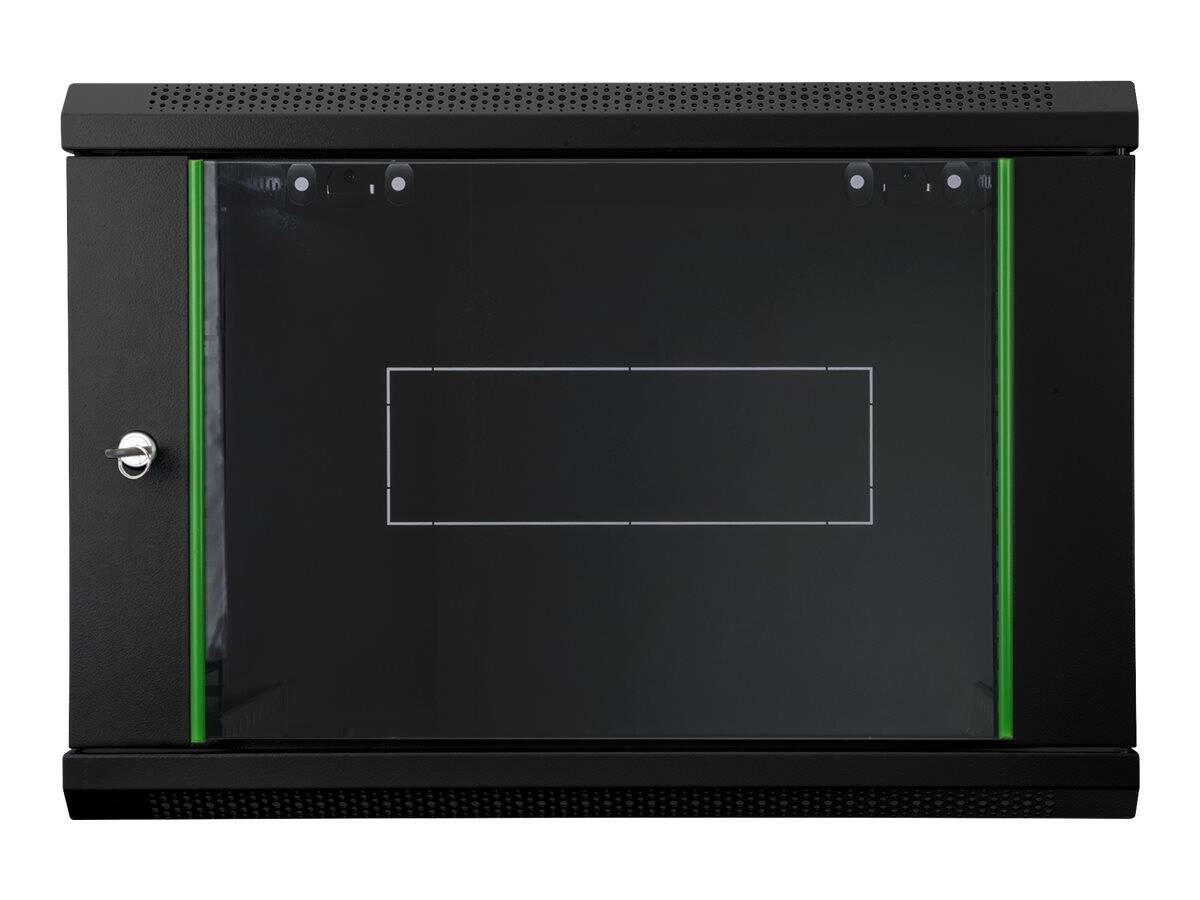

· Safety class rating IP20· Lockable safety-glass door with steel frame

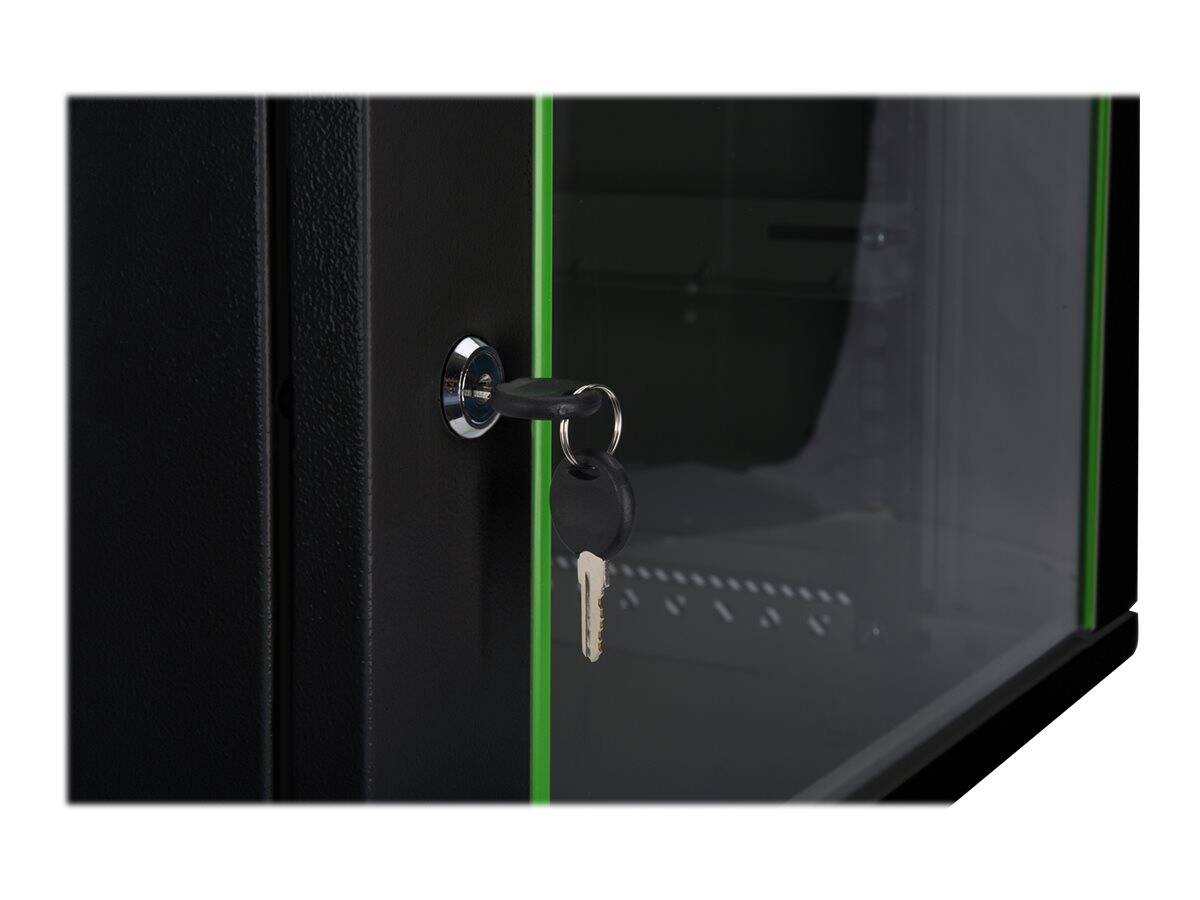

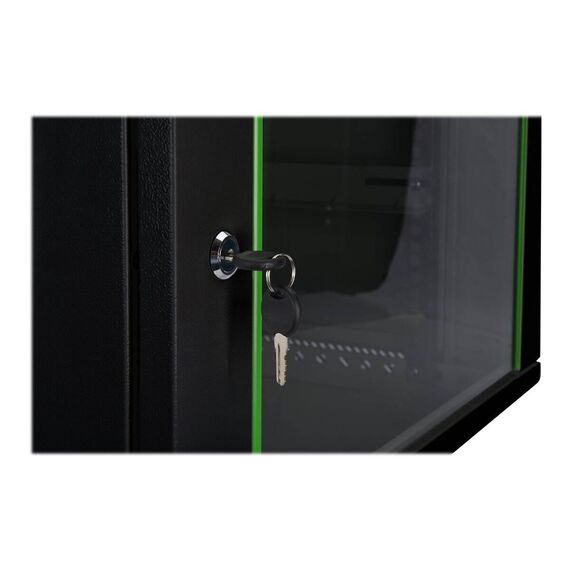

· Lockable safety glass door with steel frame

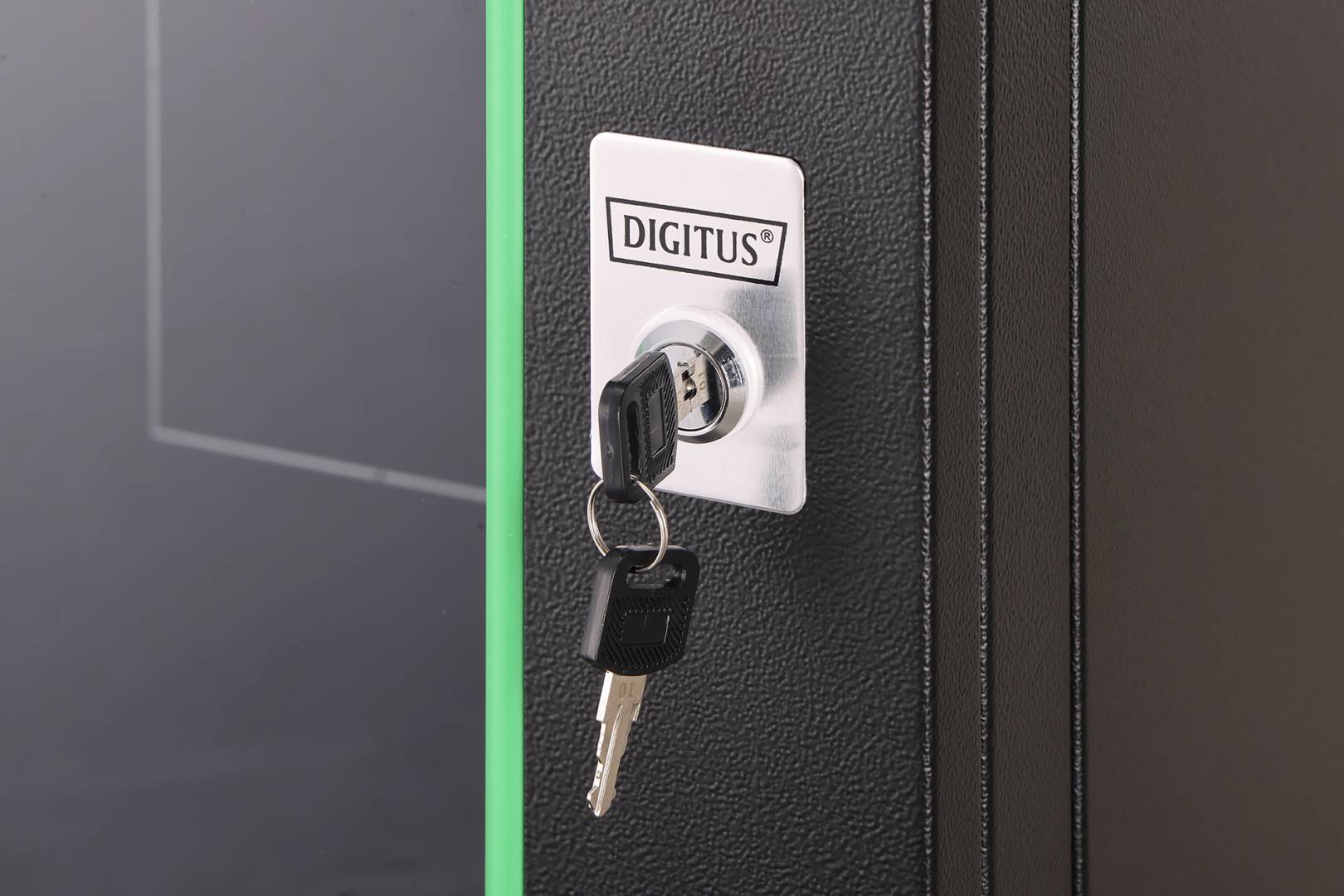

· 1-point-locking-mechanism on the front door
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
· Cable entry on the rear side, roof and base (pre-punched break-outs)

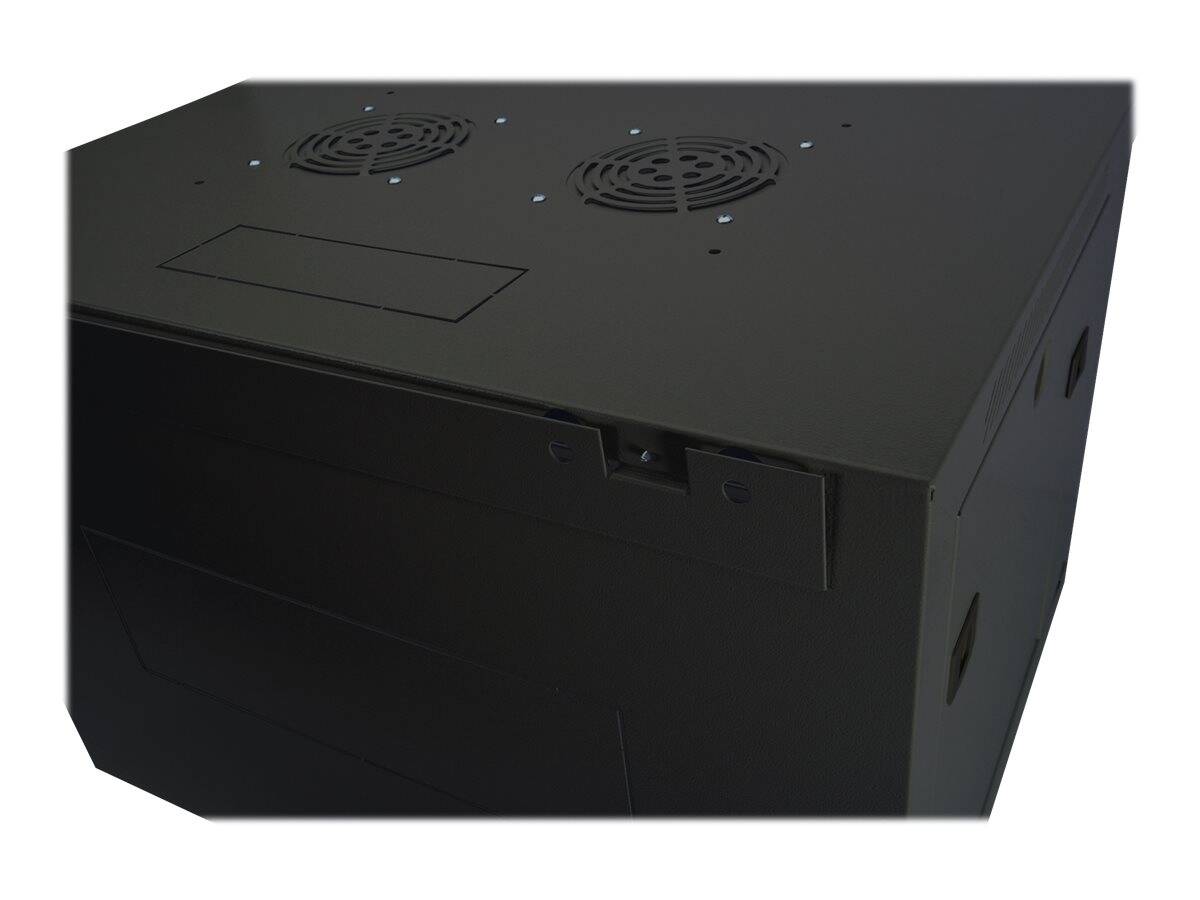

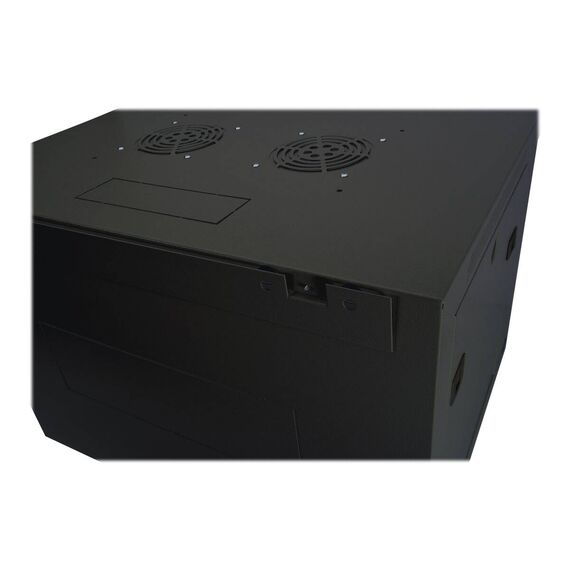

· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 335 -380 mm
Special Fetures
· 450 mm depth provides a space saving installation· Optimized air ventilation and exhaustion
· Lockable safety-glass door with steel frame
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 16U |
| Width | 60 cm |
| Depth | 45 cm |
| Height | 81.6 cm |
| Weight | 26 kg |
| Shipping Dimensions (WxDxH) / Weight | 66 cm x 51 cm x 87.5 cm / 28 kg |
| Colour | RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Weight Limit | 60 kg |
| Features | Glass door, 210° opening angle, integrated grounding points, front key lock |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 16-U-EC-SW
More Details
Product Code
CA85832
EAN Code
4016032257844
Manufacturer
Digitus
