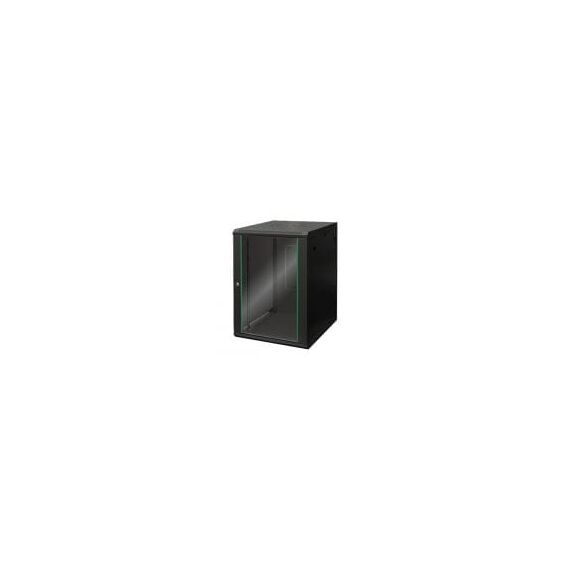

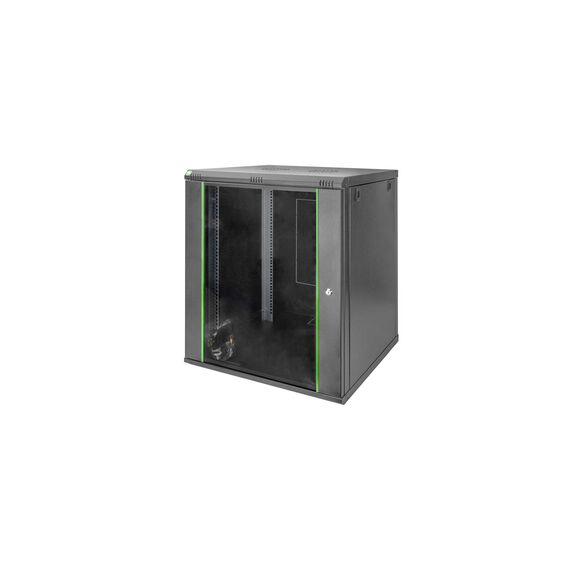

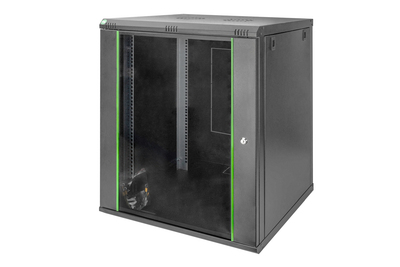

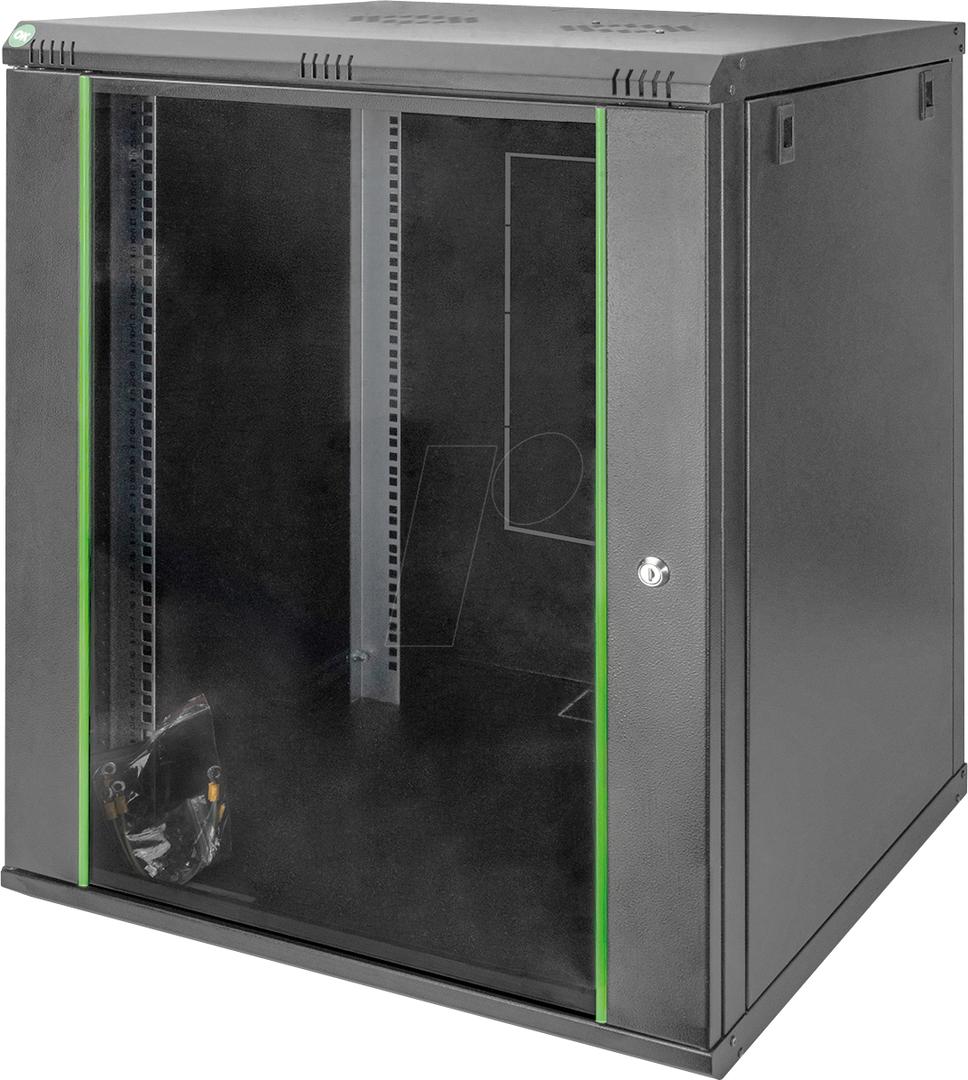

DIGITUS Dynamic Basic DN-19 16U-6/6-EC-SW - Rack cabinet - wall mountable - black, RAL 9005 - 16U - 19" | DN-19 16U-6/6-EC-SW
Please sign in so that we can notify you about a reply
Product Features

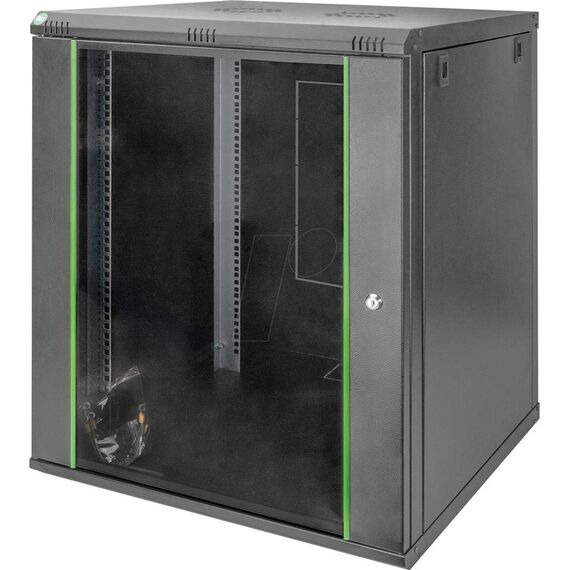

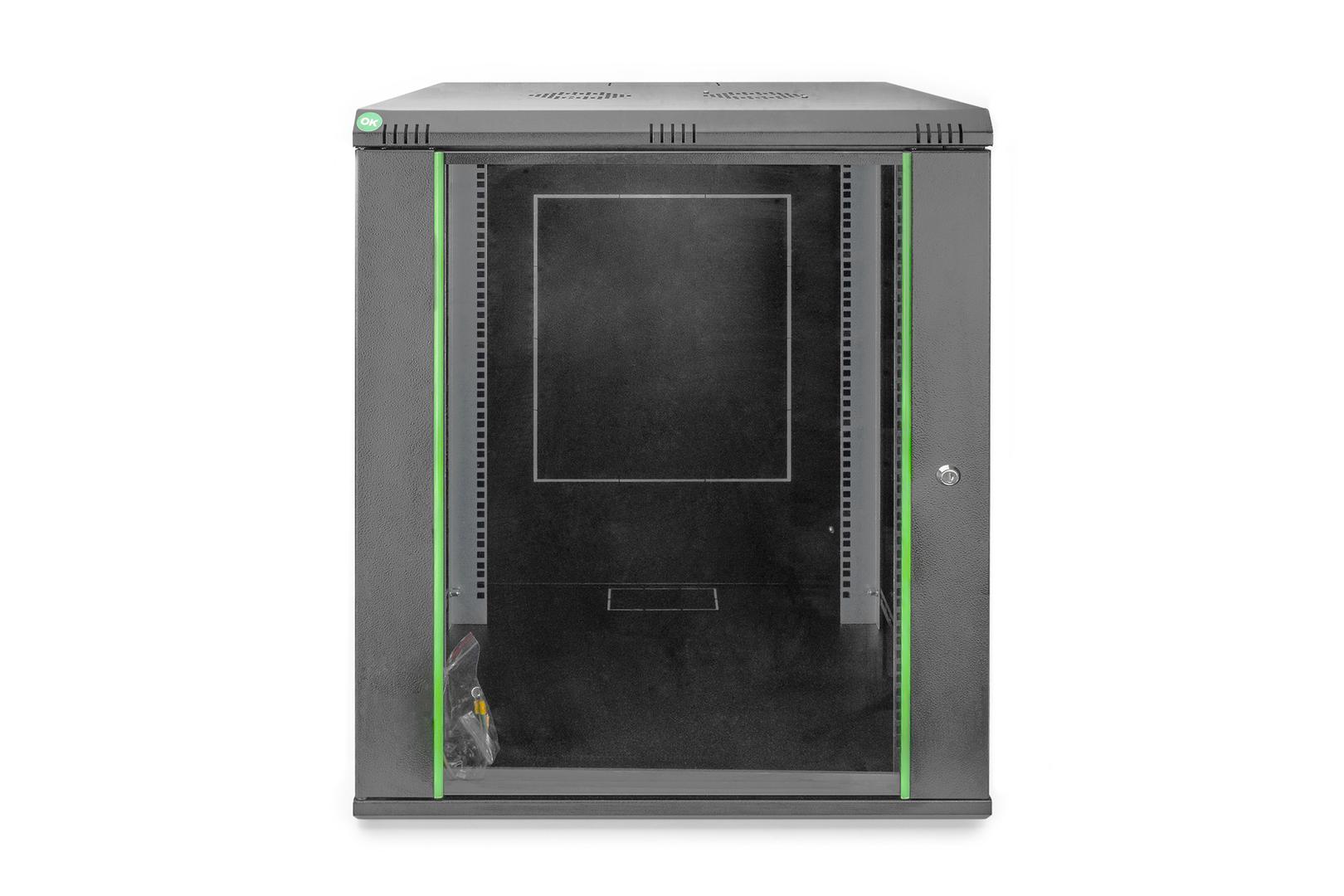

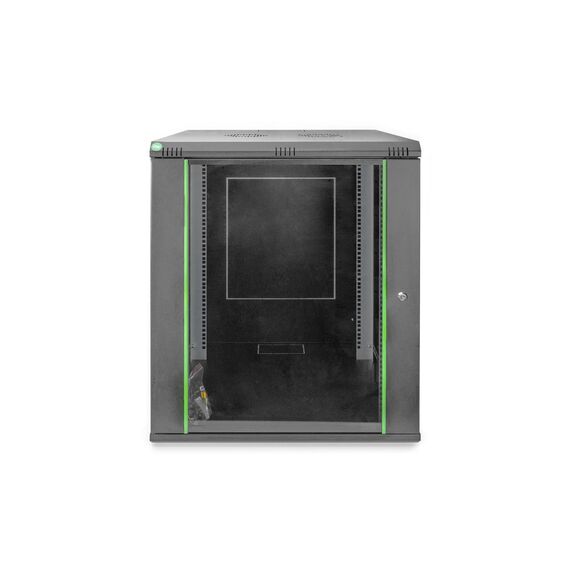

· Safety class rating IP20· Lockable safety-glass door with steel frame

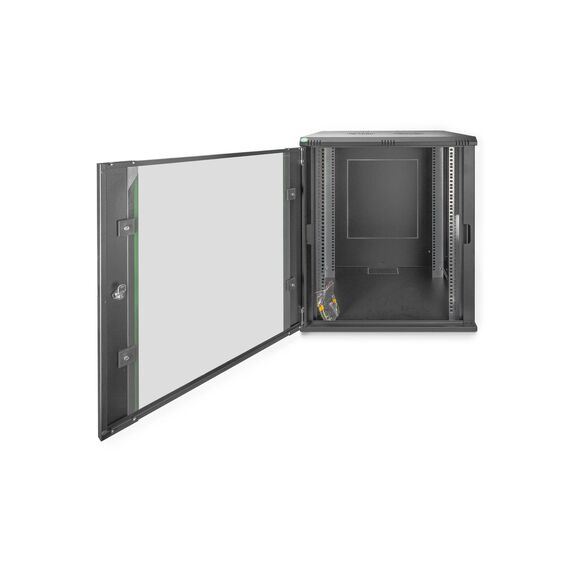

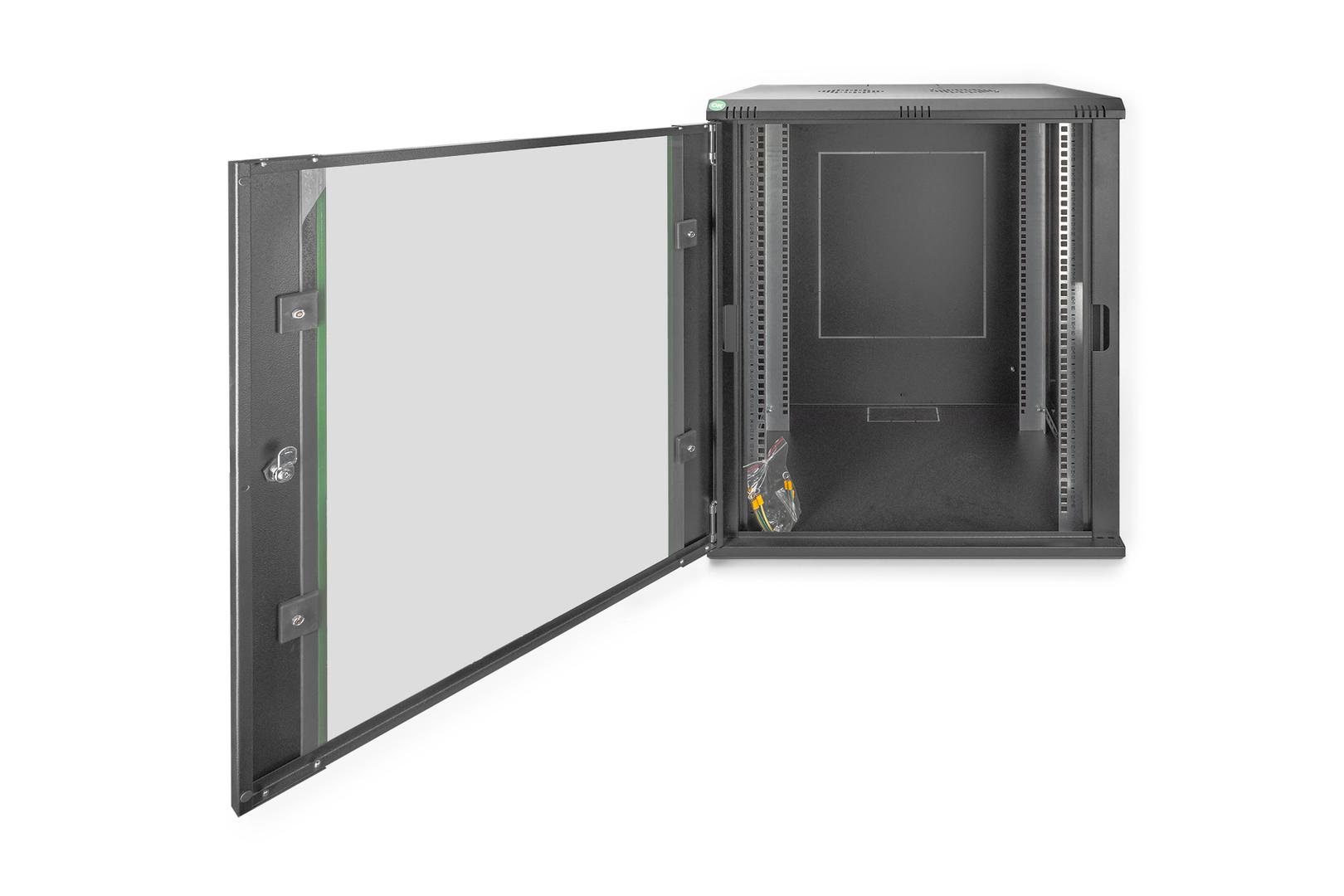

· 210° door opening angle

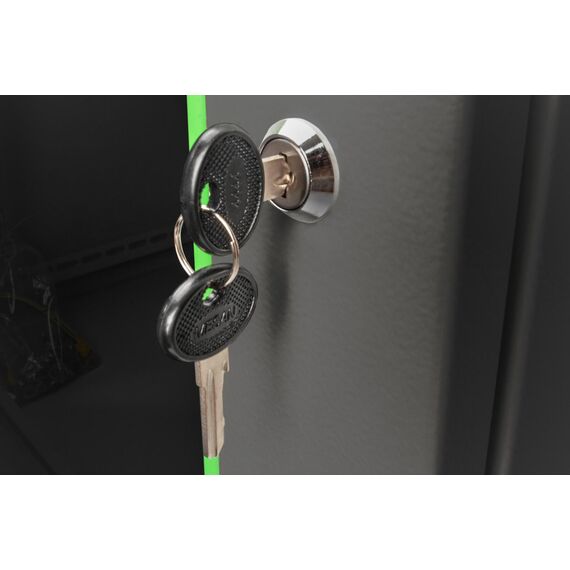

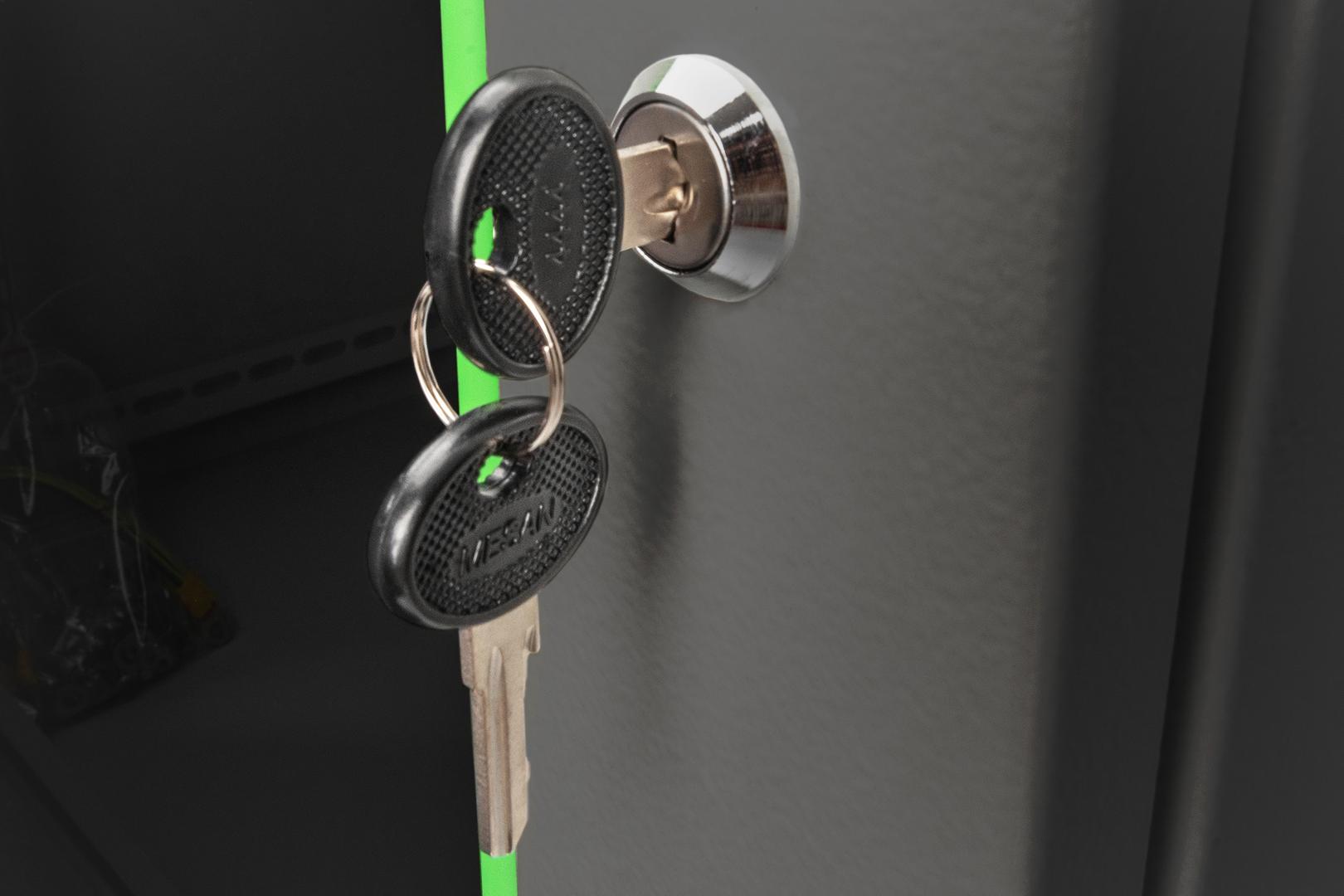

· 1-point-locking-mechanism on the front door

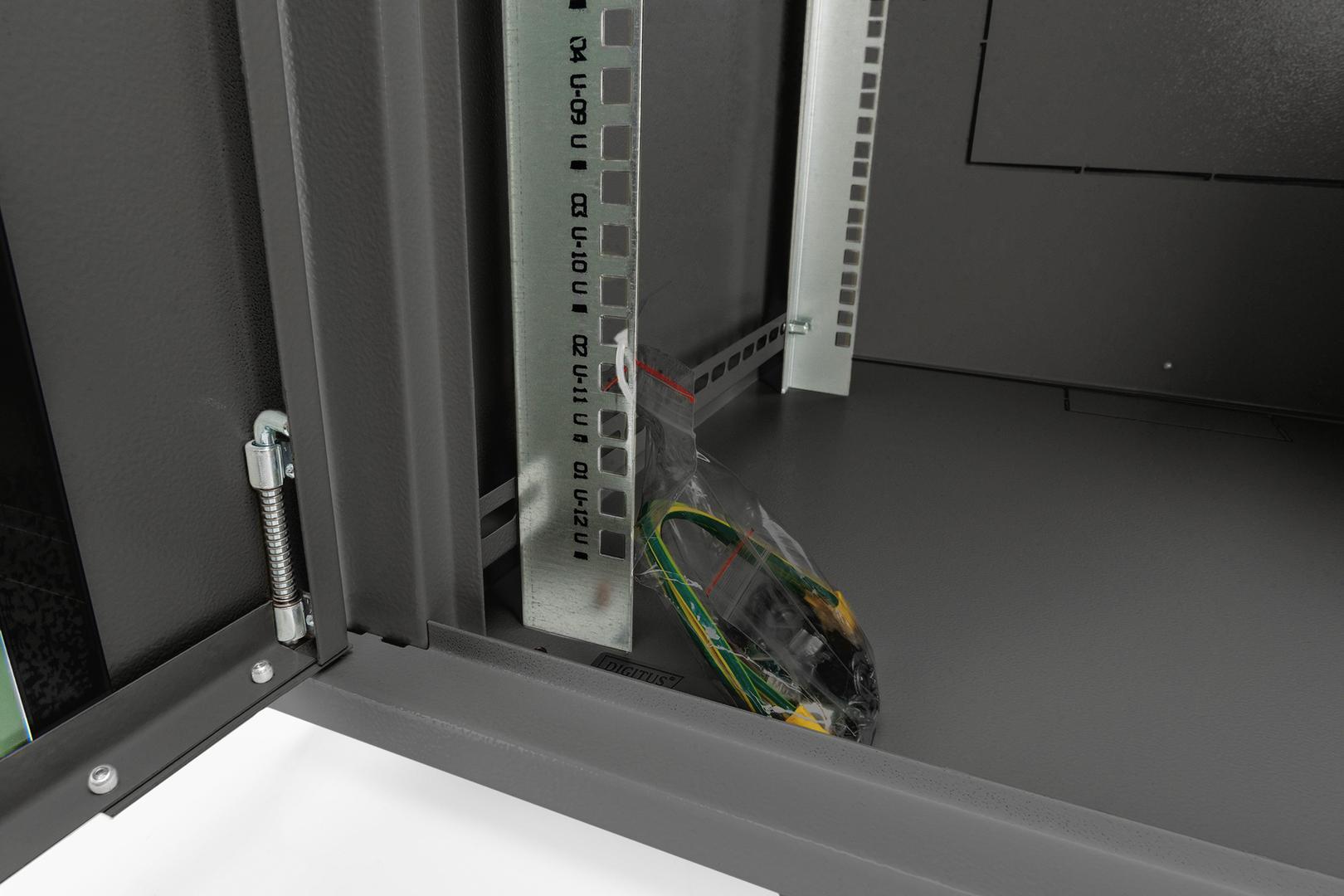

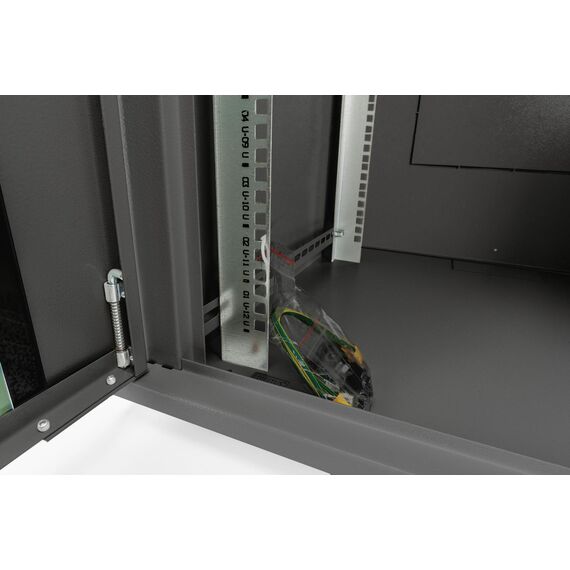

· 483 mm (19) profile rails are adjustable in depth and with height unit marking

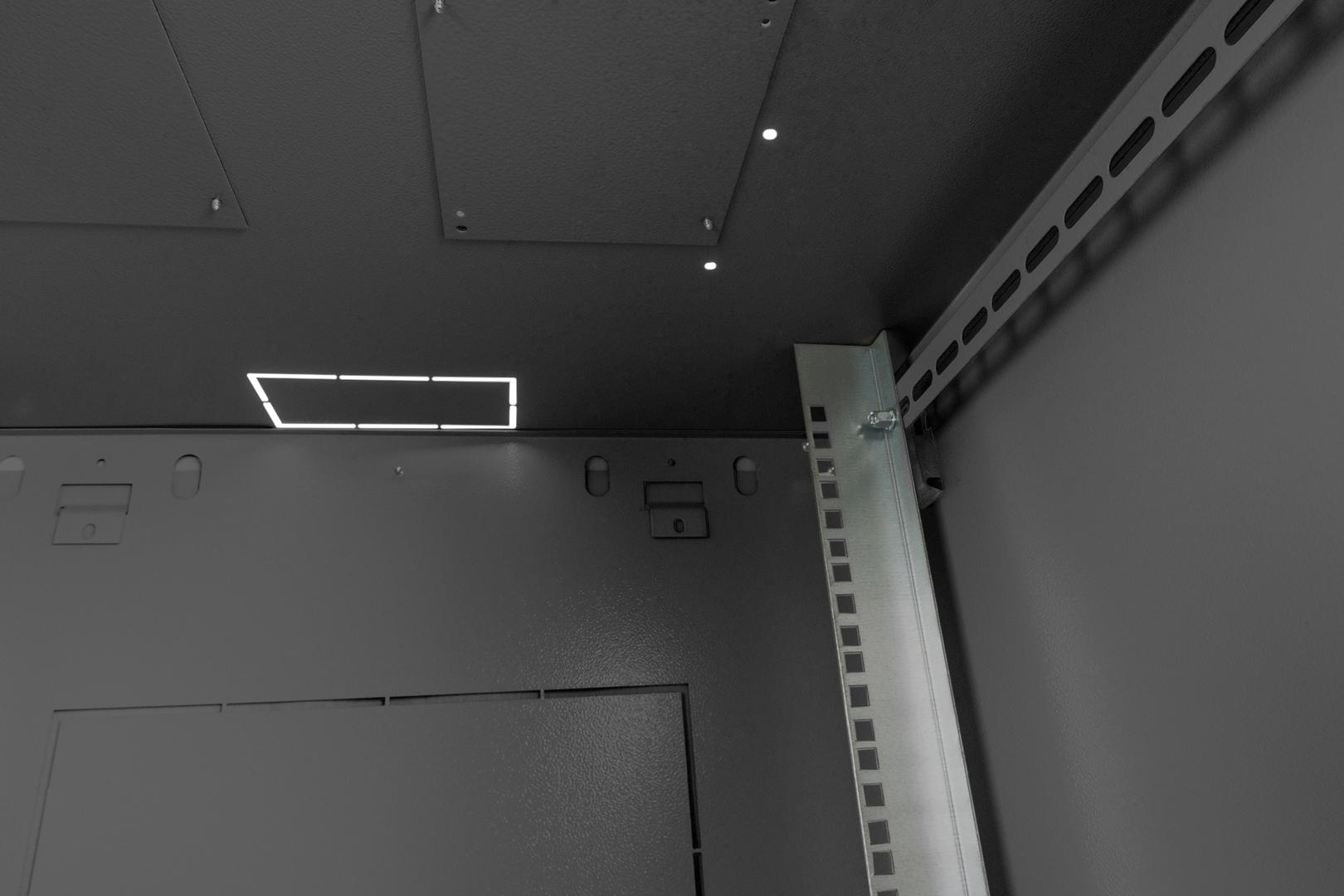

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

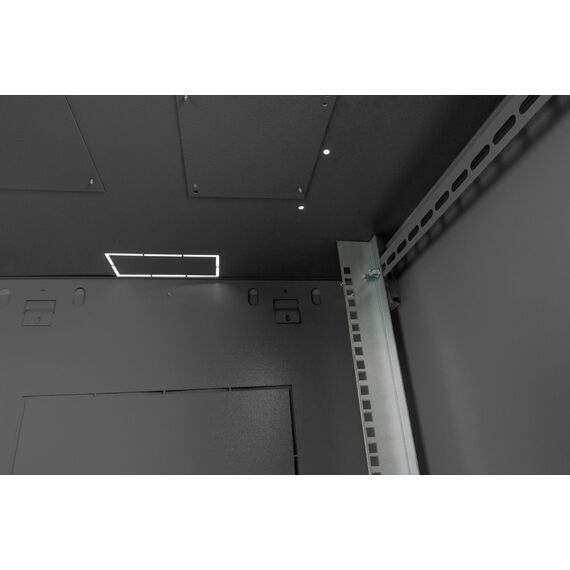

· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting

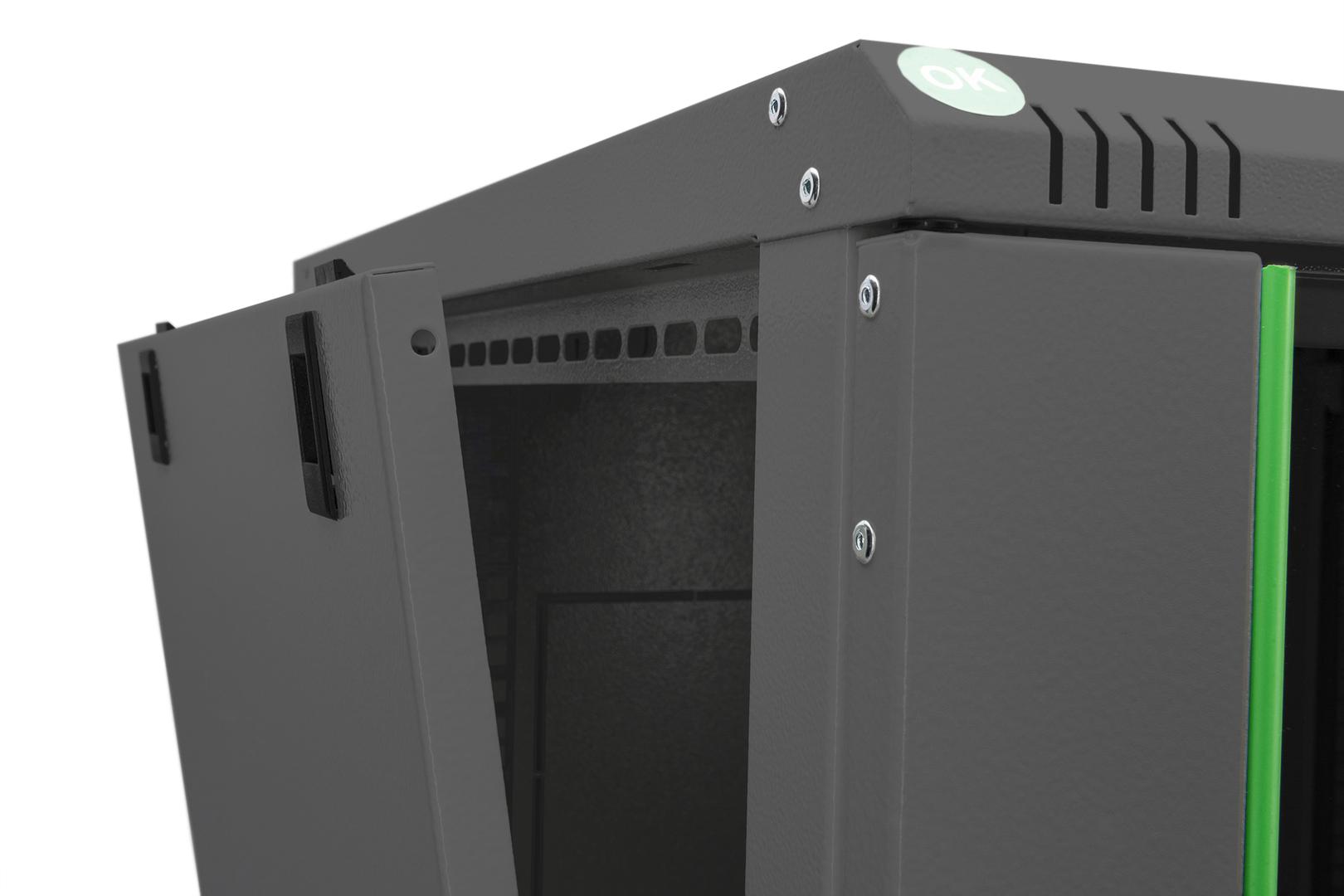

· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 320 - 450 mm
Special Fetures
· Optimized air ventilation and exhaustion· Lockable glass door ensures safety
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Package Content | L-shaped rails |
| Rack Size | 19" |
| Height (Rack Units) | 16U |
| Width | 60 cm |
| Depth | 60 cm |
| Height | 81.6 cm |
| Shipping Dimensions (WxDxH) / Weight | 68 cm x 68 cm x 85 cm / 31 kg |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Features | Lockable front door, glass door, ventilation system, fan mount, adjustable rails, 210° opening angle, with permanent frame, 4 earthing points (base, side panel and front door) with protection cap, galvanised rails |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 16U-6/6-EC-SW
More Details
Product Code
03:161271
EAN Code
4016032257875
Manufacturer
Digitus
