Digitus / EV charging station / 3.7 kW / 16 A (IEC 62196 Type 2) | DK-1P16-A-050-BL

Product Features

· Rated power : 3,7 kW
· Rated voltage. : 230 V
· Rated current : 8 A/ 10 A/ 12 A / 16 A (adjustable current)
· LCD Display : Showing charging current, voltage, power, charging time, charging status, Internal temperature
· Protection : Over voltage protection, Under voltage protection, Over current protection, Over temperature protection
· Length : 5 m
· Cable type connecting cable: H05 VV-F 3 x 2.5 mm²
· Cable type connecting cable: EV07EE-H 3 x 2.5 mm² + 2 x 0.5 mm²

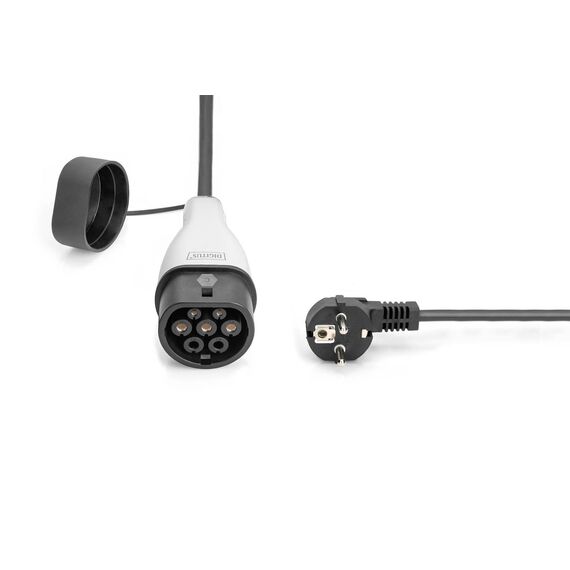

· Plug : EN 62196-2 Type 2
· Protection class: IP55 (water-jet protected)
· Operating temperature: -20+50

Special Features

· Compact and easy to carry - lightweight and flexible cable, easy to store in car boot or hang it in garage
· Adjustable output power - maximum 16 A output power with four choices (8 A, 10 A, 12 A and 16 A) and 10 A are recommended
· Safety and durability - high quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
· Connectivity - compatible for all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
· Charging - supports charging process 1-phase to max. 3.7 kW
· Safety and protection - built-in power compensator of the EV charging cable that protects against over current, surge, overheating and lightning
· Display - the LCD display shows all charging data during charging, even if there is an error during charging.
· Easy and time saving charging.

Product Specification

Product Type	EV charging station
Width	29 cm
Depth	6 cm
Height	33 cm
Power Device	Power Device
Input Connectors	Power CEE 7/4
Input Connectors Qty	1
Output connectors	IEC 62196 Type 2
Power Provided	3.7 kW
Max Electric Current	16 A
Features	LCD display, over voltage protection, over-current protection, adjustable charging current, under-voltage protection, over-temperature protection
Enclosure Rating	IP55
Output Cable Length	5 m
Miscellaneous	Miscellaneous
Compliant Standards	IK10, IP55
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	33 cm
Shipping Depth	36 cm
Shipping Height	10 cm
Shipping Weight	6.9 kg
