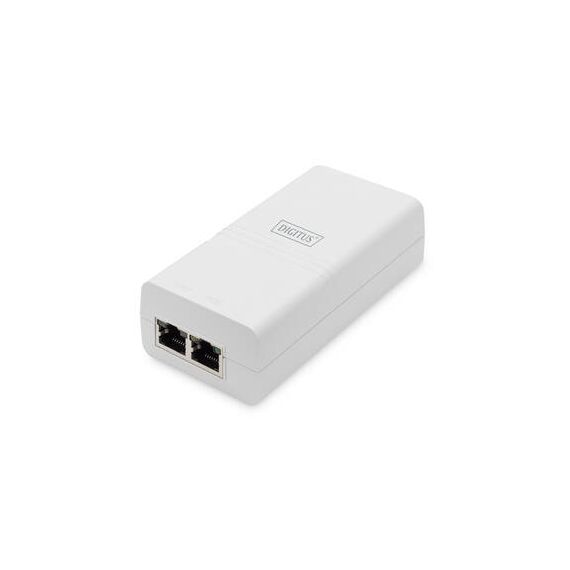

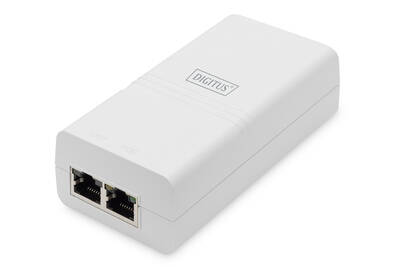

DIGITUS - PoE injector - gigabit, active, 802.3af, midspan - AC 100-240 V - 15.4 Watt - Ethernet 10/100/1000 - white | DN-95131
Please sign in so that we can notify you about a reply
Product Features
· IEEE802.3 10Base-T Ethernet· IEEE802.3u 100Base-Tx Fast Ethernet
· IEEE802.3ab 1000Base-T Gigabit Ethernet
· Full compliant with IEEE802.3af PoE standard
· RoHS Compliance
· WEEE Compliance
· Input :100-240Vac 0.5A 50/60Hz
· Output: 48Vdc 320mA
· Power Pins: 4/5(+), 7/8(-)
· Data Speed: 10/100/1000Mbps
· Operating Temperature: 0 to 40
· Operating Humidity: 20% to 80%, non-condensation
· Storage Temperature: -20 to 70
· Storage Humidity: 10% to 90%, non-condensation
· Operating Altitude: up to 2000meters
· Safety Approvals: CE/FCC
· Case: Plastic
· Color: White
· IP Rated: IP40
· Size: 85mm X 30mm X 46mm
· Weight: 100g
· Power Indicator : Yellow
· PoE Load Indicator : Green
Special Fetures
· Provides 48Vdc, 0.32A power for remote PDs over 2 pairs output· Supports both 10/100 Base-T and Gigabit device
· Works with a wide input voltage of 100-240 VAC, 50 or 60 Hz
· Easily merge of power and data cables into a single cable
· Each output port has output current limited, short-circuit protection, complete Powered Device (PD) detection and classification
· The Injector can be used independent of operating system
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE (IEEE 802.3af) |
| Colour | White |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x IEC C5 |
| Power Output Connectors Details | 2 x RJ-45 |
| Output Voltage | 48 V |
| Max Electric Current | 0.32 A |
| Power Capacity | 15.4 Watt |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 2 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Included Accessories | Power cord |
| Cables Included | AC input cable - external |
| Features | Plastic housing, LED indicators |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, FCC, RoHS, WEEE, IP40 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.6 cm |
| Depth | 8.5 cm |
| Height | 3 cm |
| Weight | 100 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 cm |
| Shipping Depth | 16.8 cm |
| Shipping Height | 4.3 cm |
| Shipping Weight | 300 g |
Features - Digitus - DN-95131
Colour
white
More Details
Product Code
04:426982
EAN Code
4016032486107
Manufacturer
Digitus
