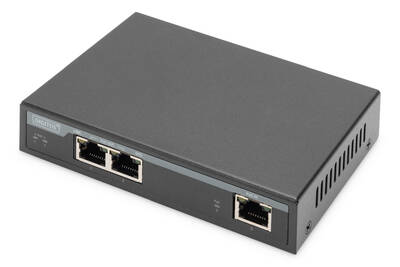

DIGITUS - Switch - gigabit, 802.3at - 2 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE+ input) - desktop - 4PPoE (60 W) | DN-95127-1

Product Features

· PoE inputs: 1x 10/100/1000Base-T RJ45
· PoE outputs: 2x 10/100/1000Base-T RJ45
· PoE input voltage: 50 57 V/DC, up to 60 W (max. class 5 - 4PPoE)
· PoE output voltage: 44 57 V/DC, up to 30 W per port, max. 60 W
· PoE power budget: 45 W @ IEEE 802.3at for 4PPoE input
· PoE power budget: 20 W @ IEEE 802.3at for PoE+ input
· PoE power budget: 10 W @ IEEE 802.3af for PoE input
· PoE input PIN assignment: 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
· PoE output PIN assignment: 1/2 (-), 3/6 (+)
· Meets the following standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), IEEE802.3at (4PPoE)
· LED indicators: PoE active / link active
· Recommended network cables: CAT 5e or higher
· Max. forwarding rate: 1.488 Mpps per port / 7.44 Mpps total
· Switch architecture: Store and forward
· MAC addresses: 2K
· Backplane bandwidth: 6 Gbps
· Buffer: 2 Mbps
· IEEE 802.3x full-duplex flow control
· Operation temperature: 0 °C 40°C
· Operating humidity: max. 90% (non-condensing)

Special Fetures

· Supports 1 / 2 ports with PoE+, PoE
· Transmits data and power via a network cable to your (PoE) network devices
· No additional power adaptor required
· Automatic detection of PoE network devices
· Easy plug-and-play installation
· Full bandwidth over the entire PoE distance

Product Specification

Device Type	Switch - 2 ports
Enclosure Type	Desktop
Subtype	Gigabit Ethernet
Ports	2 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE+ input)
Power Over Ethernet (PoE)	4PPoE
PoE Budget	60 W
Performance	Forwarding rate: 7.44 Mpps ¦ Backplane speed: 6 Gbps
MAC Address Table Size	2K entries
Features	Power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), automatic topology detection, PoE+, self-powered mode, cascadable, 2MB packet buffer, full bandwidth support
Compliant Standards	IEEE 802.3af, IEEE 802.3at
Status Indicators	PoE, link/activity
Expansion / Connectivity
Interfaces	2 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 PoE+ / input
Miscellaneous
Included Accessories	QIG
Compliant Standards	Plug and Play
Dimensions & Weight (Shipping)
Shipping Width	12.7 cm
Shipping Depth	5 cm
Shipping Height	16.7 cm
Shipping Weight	430 g
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	90% (non-condensing)
