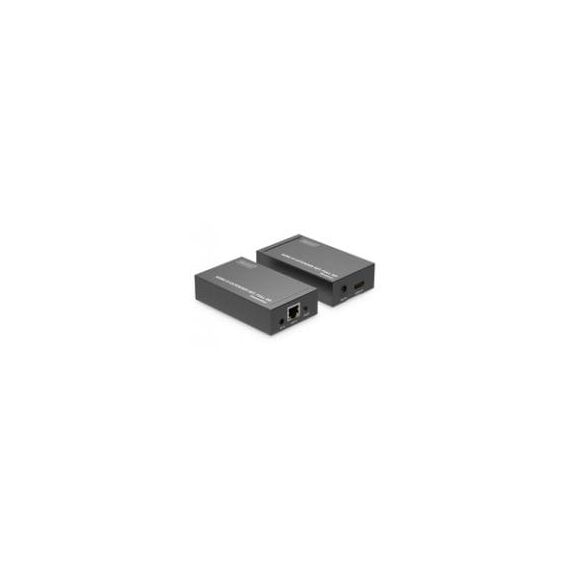

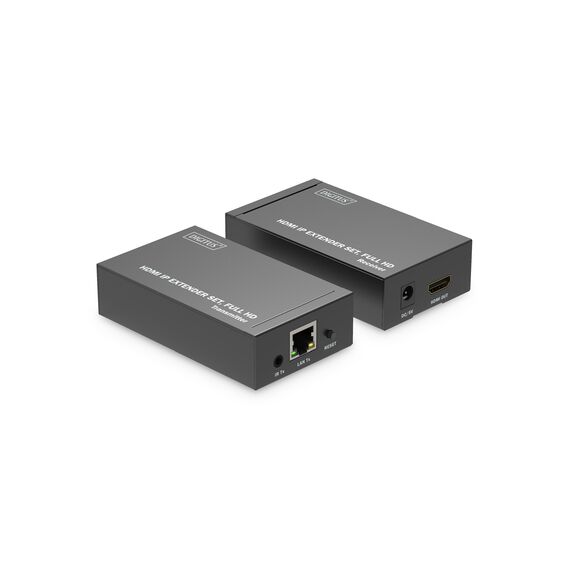

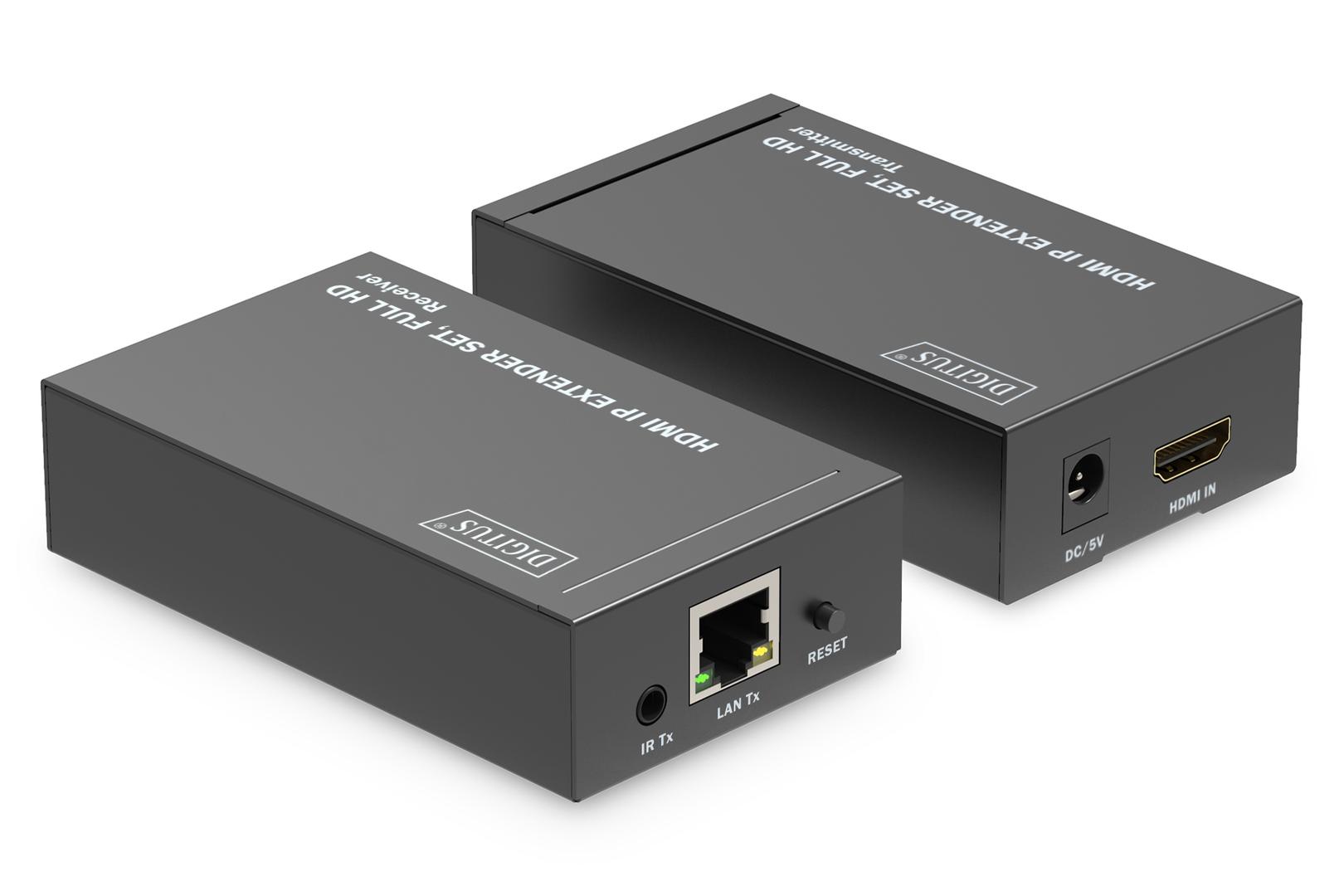

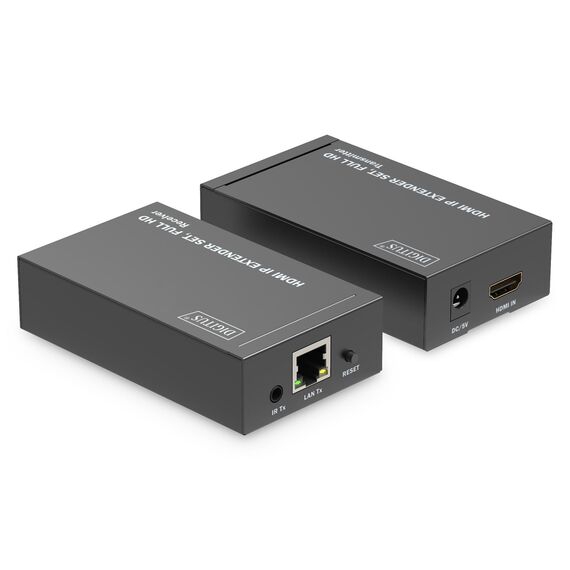

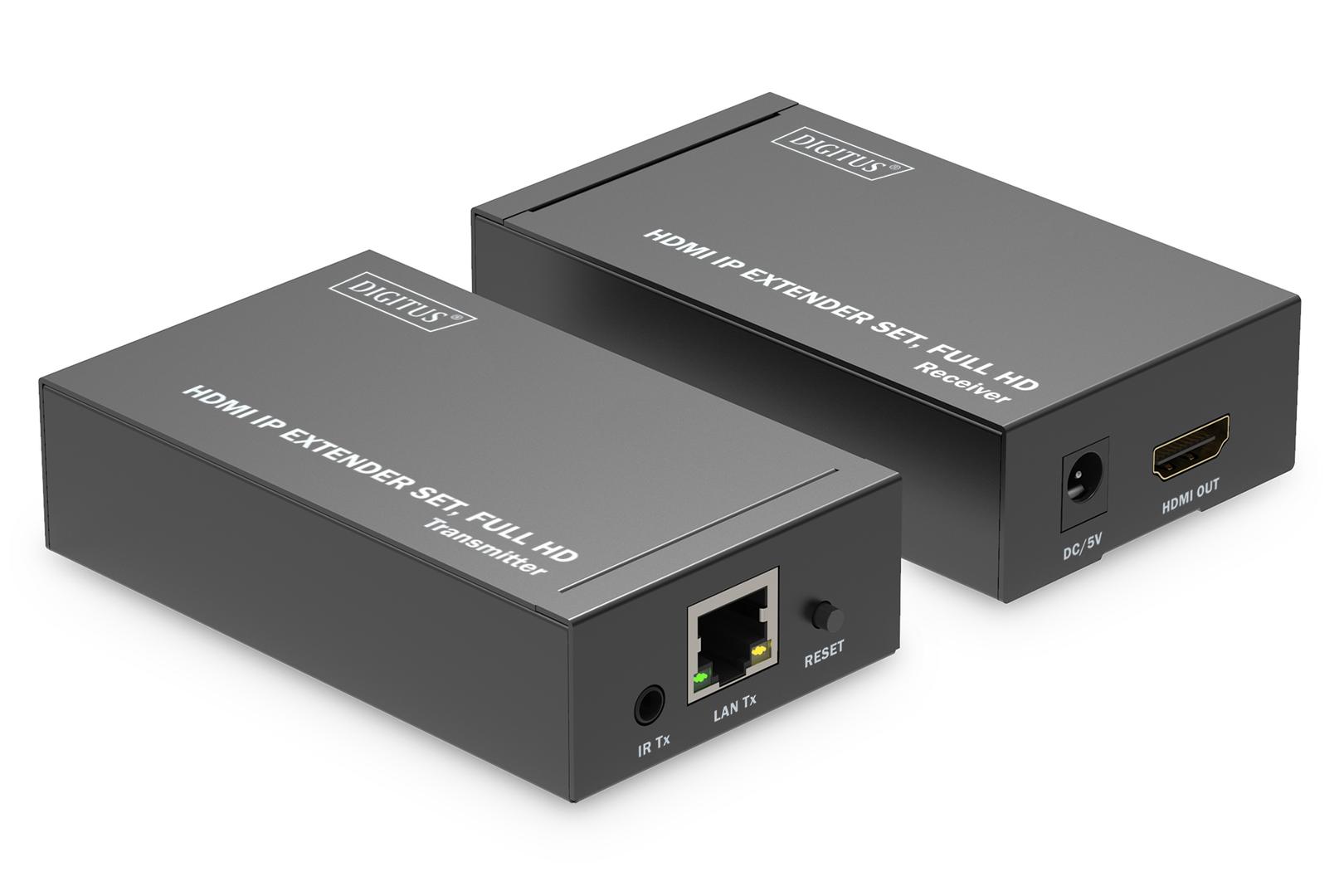

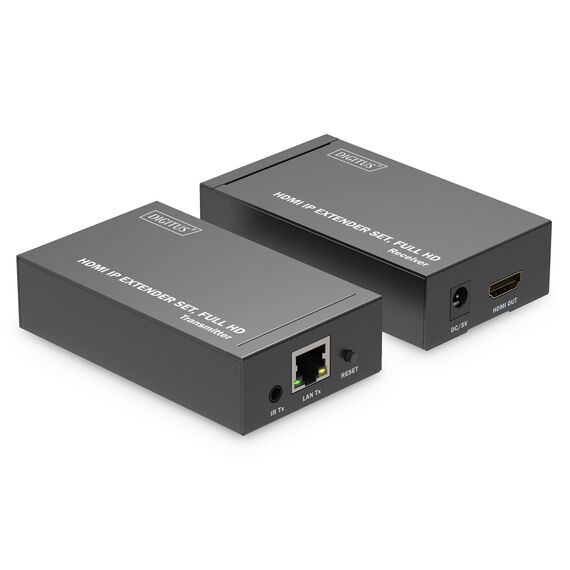

Digitus HDMI IP Extender Set, Full HD / AV transmitter & receiver / 1920 x 1080 pixels / Cat6 / Wired / 5 V / 2 A / 8 W / 196 mm / 243 mm / 60 mm | DS-55517

Product Features

· Use additional receiver units (DS-55518) and your existing network infrastructure to display video content on up to 253 screens (IP connection)
· Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches
· Extends Full HD AV signals with a CAT6 cable up to 120 m (point-to-point connection)
· Supports resolutions of up to 1080p/60Hz, Full HD
· Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable
· IR interface enables remote control of the input source from the output screen
· HDCP 1.3

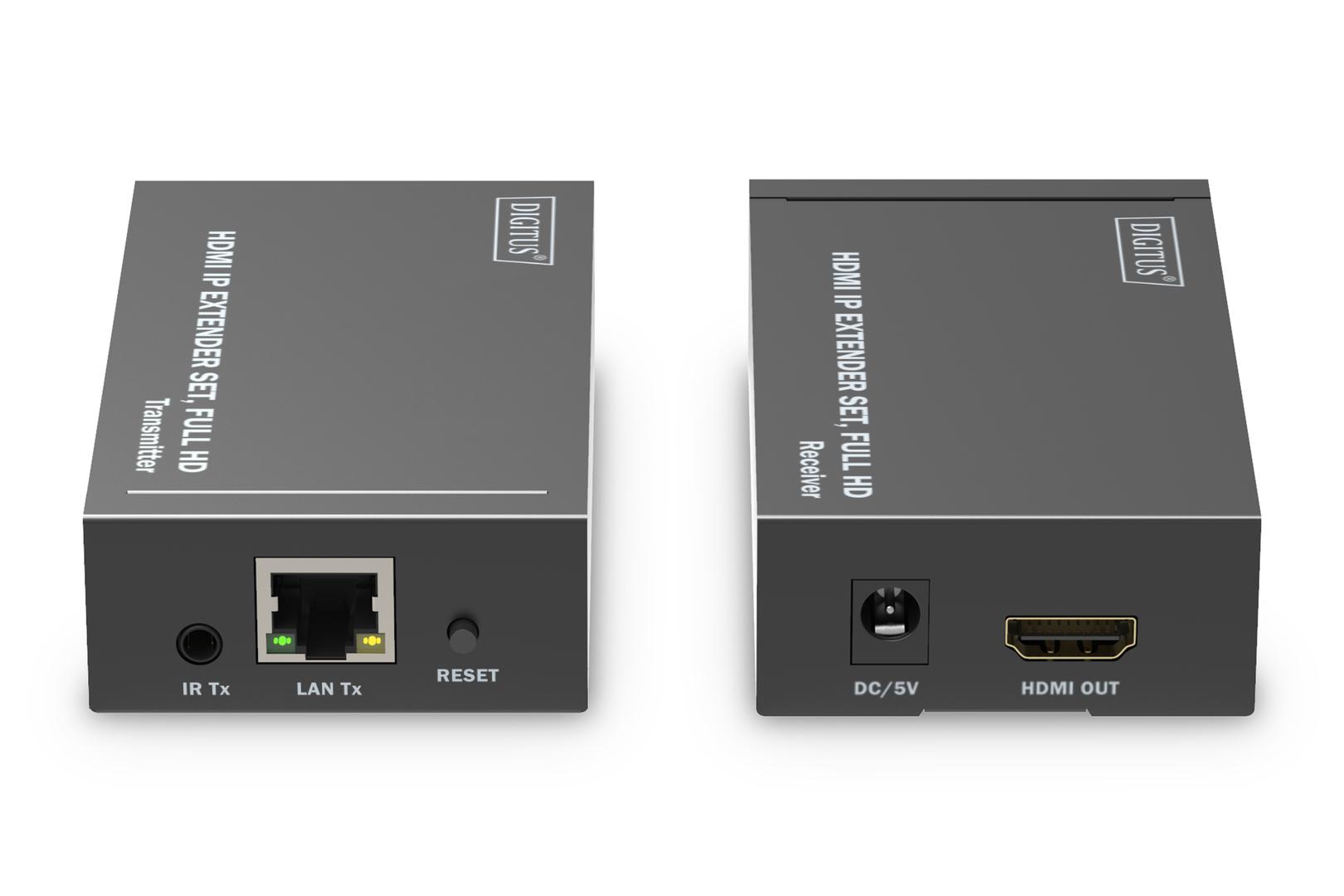

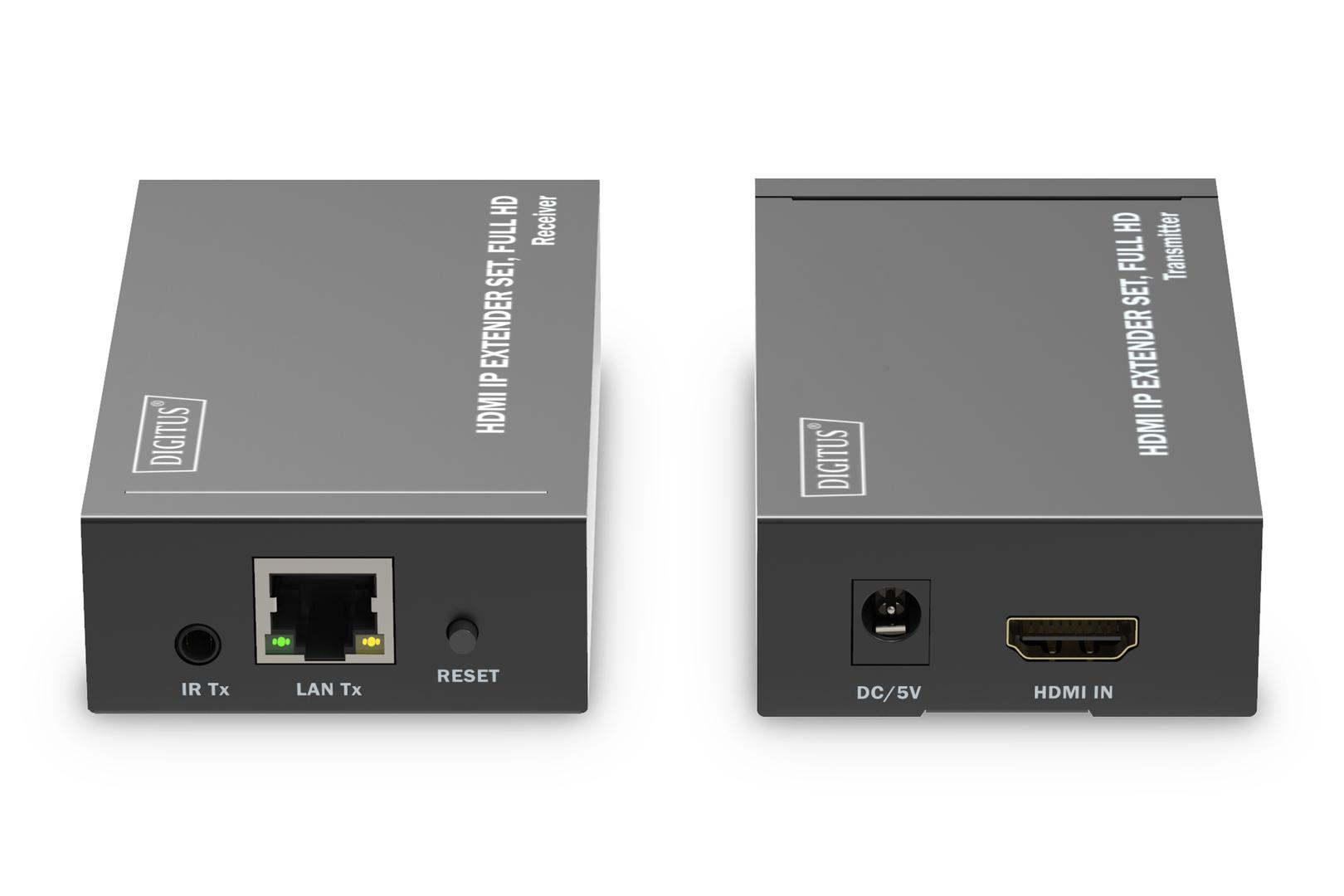

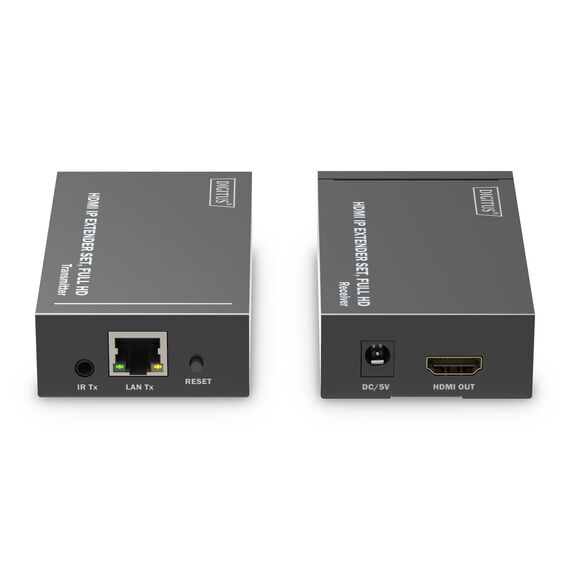

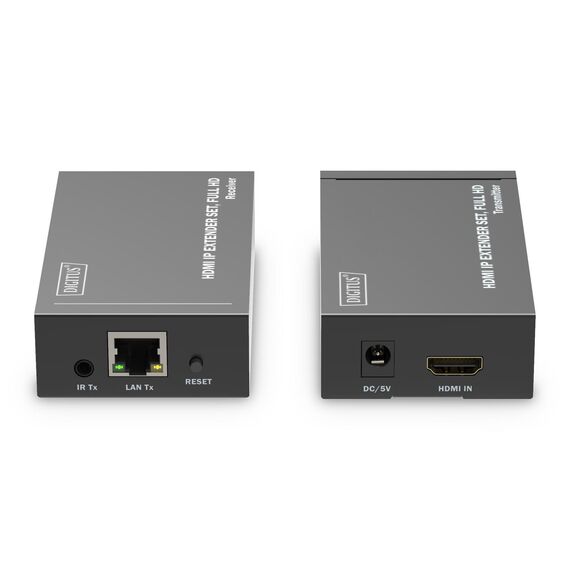

· Transmitter unit connections:
· 1x HDMI input (1080p/60Hz) - Connection signal source
· 1x RJ45 output - Connection CAT transmission cable
· 1x IR output - Connection of IR transmitter
· 1x Power adapter input (DC 5V/2A) - Connection for external power adapter
· 1x Reset button
· Receiver unit connections:
· 1x HDMI output (1080p/60Hz) - Connection output device
· 1x RJ45 input - Connection CAT transmission cable
· 1 x IR input - Connection of IR receiver
· 1x Power adapter input (DC 5V/2A) - Connection for external power adapter
· Suitable for wall mounting
· Operating temperature: 0-50°
· Power consumption: 8W
· Housing: Metal
· Dimensions (1 unit): L 10 x W 5.9 x H 2.5 cm
· Weight (1 unit): 165 g
· Color: black

Special Fetures

· Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches
· Extends Full HD AV signals with a CAT6 cable up to 120 m (point-to-point connection)
· Supports resolutions of up to 1080p/60Hz, Full HD
· Supports CAT 5e, 6, 6A,7, 8 network cables
· IR interface enables remote control of the input source from the output screen
· HDCP 1.3
· Video bandwidth: 1.65 Gbps per channel

Product Specification

Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat6, Cat6a, Cat7, Cat8
Connectivity technology	Wired
Operating voltage	5 V
Input current	2 A
Power consumption (typical)	8 W
Width	59 mm
Depth	100 mm
Height	25 mm
Package width	196 mm
Package depth	243 mm
Package height	60 mm
