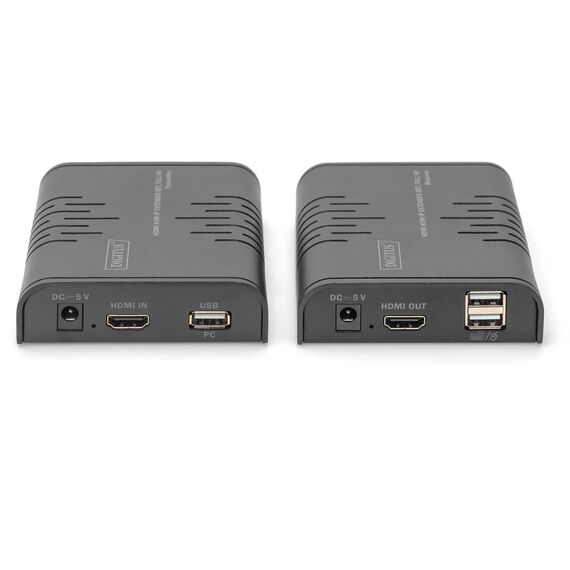

DIGITUS HDMI KVM IP Extender Receiver, Full HD | DS-55529

Product Features

· Extends Full HD AV signals with a CAT-5e (or higher) over an unlimited distance via the existing local network infrastructure or commercial network switches
· Extends Full HD AV signals with a CAT-5e (or higher) cable up to 120 m (point-to-point connection)
· KVM function on the receiver side for connection of mouse/keyboard to control the signal source on the output screen
· Can be extended on up to 253 screens (receivers) - additional receivers. DS-55530
· Supports resolutions of up to 1080p/60Hz, Full HD
· Supports CAT 5e (or higher) network cable
· Easy installation thanks to Plug & Play - no additional software/drivers etc. required
· Supports Full-HD resolutions of up to 1920x1080 / 60 Hz
· HDMI 1.3
· HDCP 1.4
· Transmitter unit connections:
· 1x HDMI input (1080p/60Hz) - Connection signal source
· 1x RJ45 output - Connection CAT transmission cable
· 1x USB-A (2.0) input - Connection of signal source to use KVM functionality
· 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
· 1x Reset button
· 4x LED activity light
· Receiver unit connections:
· 1x HDMI output (1080p/60Hz) - Connection output device
· 1x RJ45 input - Connection CAT transmission cable
· 2x USB-A (2.0) input - Connection of mouse/keyboard
· 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
· 1x KVM button - Switch to the desired receiver (output device) to use the KVM functionality
· 1x Reset button
· Operating temperature: -10 - 60°
· Power consumption (1 unit): approx. 3.5W
· Housing: Metal
· Dimensions (1 unit): L 11 x W 9 x H 2.7 cm
· Weight (1 unit): 244 g
· Color: black

Special Features

· Extends Full HD AV signals with a CAT-5e (or higher) over an unlimited distance via the existing local network infrastructure or commercial network switches
· Extends Full HD AV signals with a CAT-5e (or higher) cable up to 120 m (point-to-point connection)
· KVM function on the receiver side for connection of mouse/keyboard to control the signal source on the output screen
· Can be extended on up to 253 screens (receivers) - additional receivers. DS-55530
· Supports resolutions of up to 1080p/60Hz, Full HD
· Supports CAT 5e (or higher) network cable
· Easy installation thanks to Plug & Play - no additional software/drivers etc. required
· HDMI 1.3
· HDCP 1.4

Product Specification

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	120 m
Transmitter video port type	HDMI
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
Input current	1 A
Power consumption (receiver) (max)	3.5 W
DC voltage	5 V
Transmitter width	9 cm
Transmitter depth	11 cm
Transmitter height	2.7 cm
