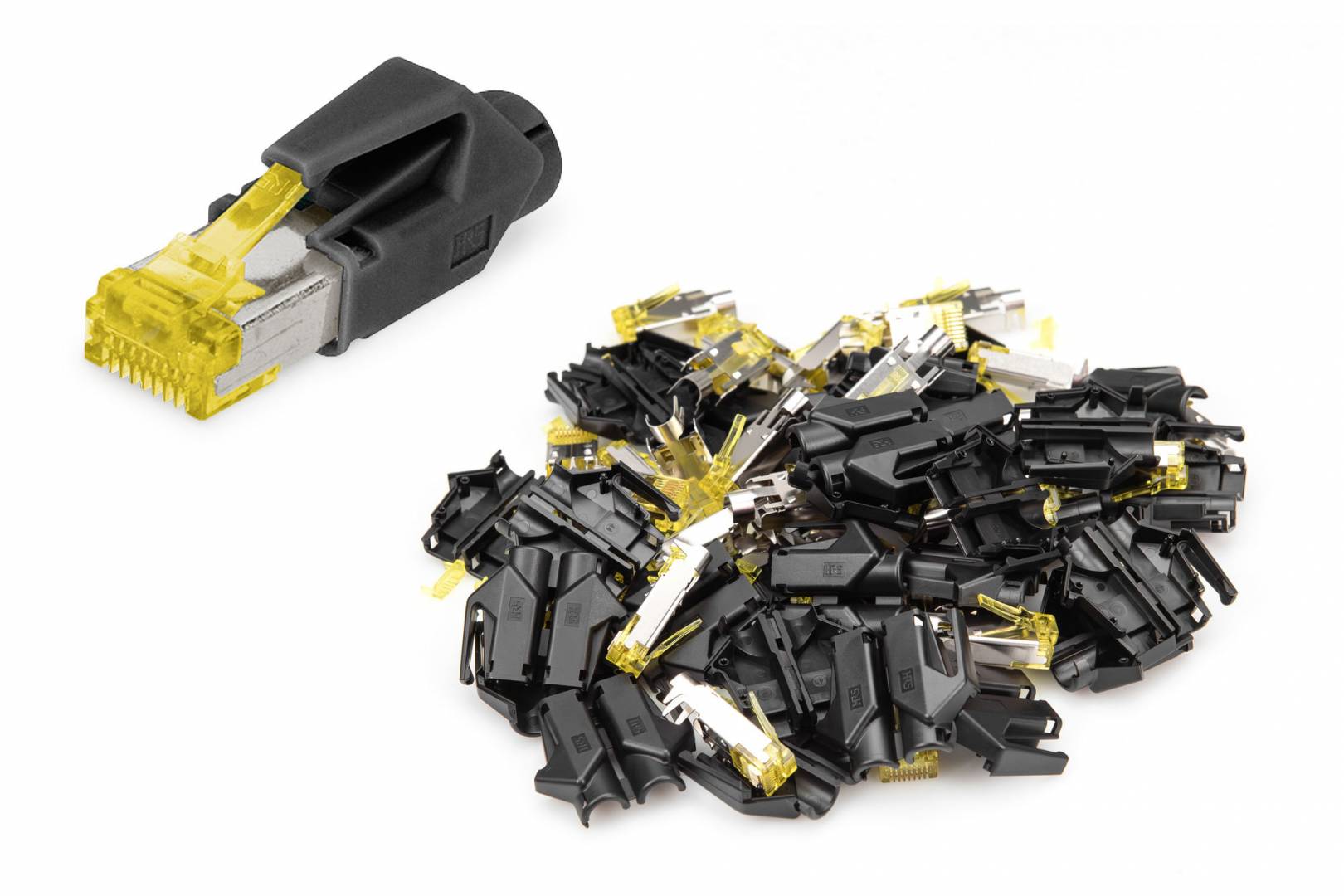

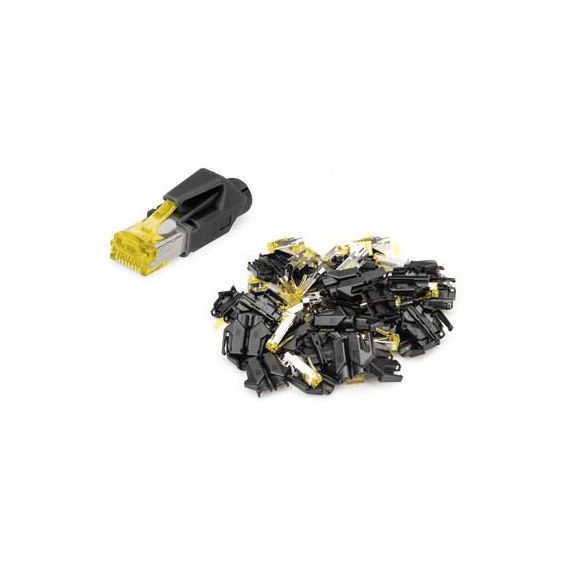

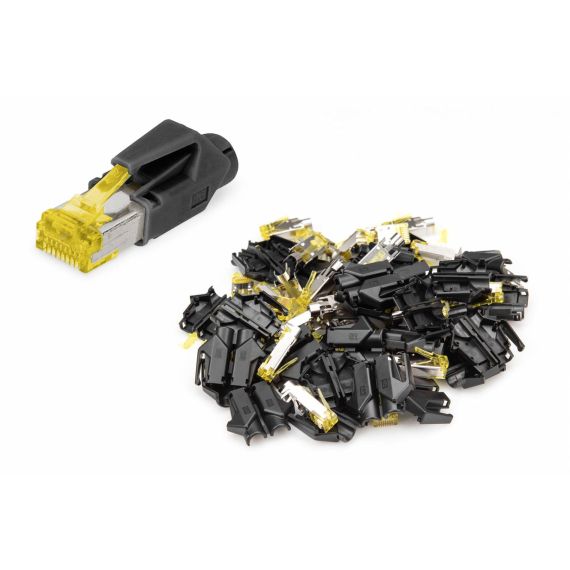

DIGITUS Hirose / Network connector / RJ-45 (M) / shielded / CAT 6a / snagless (pack of 10) | A-MO6A-8-8-HRS-10
DIGITUS Hirose / Network connector / RJ-45 (M) / shielded / CAT 6a / snagless (pack of 10) | A-MO6A-8-8-HRS-10
€25.59 inc. VAT
A-MO6A-8-8-HRS-10
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Layout performance: CAT 6A, 10GBase-T· Area of application: Patch cable assembly
· General properties:
· Fully shielded with strain relief for installation cables
· Incl. comb
· Technical properties:
· Mating cycles: 750 (ISO/IEC 11801, IEC 60603-7-5)
· Material connector body: Polycarbonat, clear
· Connector contact: Phosphor bronze, brass 0.8 gold-plated
· Material shielding housing: Brass 0.5 mm, 2 nickel-plated
· Flammability: UL 94V-2
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Diameter Cu-Conductor: AWG (27/7 ... 24/7)
· Operating temperature: -20 °C to +60 °C
· Current carrying capacity: 1A at 50 °C
· Diameter outer jacket: 5,5 ... 6,2mm
· 10 pieces
Special Features
- Supports data transmission speeds of up to 10 Gbps
- Features strain relief for enhanced durability
- Equipped with HiRose TM31 connectors in polycarbonate housing
- Snagless design prevents accidental disconnections
- Compliant with international standards for reliability
Product Specification
| Packaged Quantity | 10 (specifications are for single item) |
| Network Cable Type | Network connector - CAT 6a |
| Technology | Shielded |
| Shielding Material | Brass |
| American Wire Gauge (AWG) | 27/7/24 |
| Plated Connector | Gold/nickel |
| Features | Snagless, strain relief, for round cable, polycarbonate housing, phosphor bronze contacts, HiRose TM31 connectors, 30 N insertion force, 750 mating cycles, up to 10 Gbps, modular connector |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEC 60603-7-5, ISO/IEC 11801, UL 94V-2 |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 22 cm |
| Shipping Depth | 21 cm |
| Shipping Height | 10 cm |
| Shipping Weight | 700 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - A-MO6A-8-8-HRS-10
More Details
Product Code
CL29725
EAN Code
4016032494973
Manufacturer
Digitus
