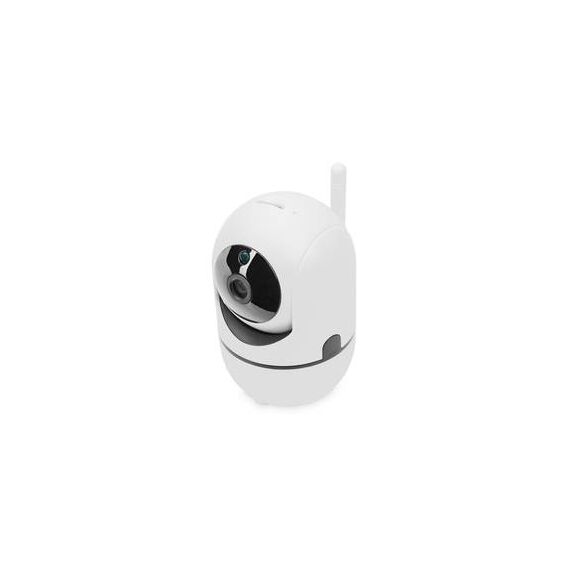

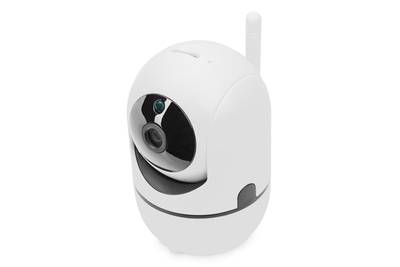

DIGITUS / Network surveillance camera / pan / tilt / turret / indoor / colour (Day&Night) / 2 MP / 1920 x 1080 / 720p, 1080p / fixed focal / audio / Wi-Fi / H.264 / DC 5 V | DN-18603

Product Features

· Video resolution: 1920 x 1080p@25 BpS (Full HD)
· Video compression: H.264
· Bit rates: 16 Kbps - 2 Mbps
· Lens: FOV: 100° viewing angle / 3.6 mm lens
· Rotatable by 355° (PAN) / Swivel range 90° (TILT)
· Supports motion detection with auto tracking (movement tracking)
· Light sensitivity: 0.1 Lux / Aperture: F1.2
· Sensor: 1/2.7" CMOS - 2 megapixel
· Night vision range: Up to 5 m
· Day / night switching: IR-CUT (automatic white balancing)
· Video frame rate: Mainstream 1080p@25bps, 720p@25bps
· Infrared LEDs: 6 pcs.
· Integrated speaker and microphone
· Two-way audio communication / compression: G.711
· Wireless LAN: 2.4 GHz (IEEE 802.11b/g/n)
· Recording modes: Manual / Motion / Scheduled
· With microSD card slot
· MicroSD card storage capacity: Up to 128 GB
· Supports cloud storage
· Network protocol: TCP/IP, UDP, DDNS, P2P, RTSP, Private Cloud, ONVIF
· System requirements: iOS 7 / Android 4 or higher
· Security: User authentication, software encryption
· Power supply camera: USB 5 V DC / 1.5 A via MicroSD jack
· Power consumption: 2 - 4 W max.
· Power adapter input voltage: 100 - 240 V, 50/60 Hz, 0.35 A via Euro plug Type C (CEE 7/16)
· Power adapter output voltage: 5 V DC, 1.5 A, 7.5 W via coaxial plug 5.5 mm
· Integrated 1/4" screw thread for optional mounting options
· Adapter for wall and ceiling mounting included
· Operating temperature: -10°C ~ +50°C
· Dimensions: L 85 x W 67 x H 105 mm
· Material: Plastic
· Weight: 280 g incl. bracket
· Color: White

Special Features

· Full HD video resolution 1080p with wide angle of 100°
· Auto-tracking function (movement tracking)
· Rotatable by 355° (PAN) / Swivel range 90° (TILT)
· Voice control via Amazon Alexa & Google Assistant possible
· Motion detection with push notification via app
· Supports two-way audio transmission
· Night vision mode (6 IR LEDs)
· Recording on MicroSD card or cloud possible (manual/movement/scheduled)
· Free Smart Life (Tuya) app available for iOS and Android
· Simple installation by scanning the QR code possible

Product Specification

Device Type	Network surveillance camera
Audio Support	Yes: built-in speaker, two-way audio capability, built-in microphone
Audio Formats	G.711
Form Factor	Turret
Camera Mount Type	Wall mount, ceiling mount
Connectivity Technology	Wireless
Width	6.7 cm
Depth	8.5 cm
Height	10.5 cm
Weight	280 g
Camera	Camera
Type	Colour - Day&Night - pan / tilt - indoor
Digital Video Format	H.264
Max Digital Video Resolution	1920 x 1080
Motion Detection	Yes
Video Modes	720p, 1080p
Minimum Illumination	0.1 lux F1.2
Infrared LEDs	6
Infrared Distance	5 m
Video Capture	1920 x 1080 @ 25 fps
Features	ONVIF support, infrared cut filter, Push Notification, voice control, auto tracking, auto white balance, cloud recording, plastic housing, 100° field of view
Image Sensor	Image Sensor
Type	2 MP CMOS 1/2.7"
Lens Construction	Lens Construction
Type	Fixed focal
Focal Length	3.6 mm
Panning	Panning
Range (degree)	355
Tilting	Tilting
Range (degree)	90
Interfaces	Interfaces
Network Interface	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Protocols	DDNS, TCP/IP, UDP/IP, RTSP
Expansion / Connectivity	Expansion / Connectivity
Supported Memory Cards	microSD Card, microSDHC Card, microSDXC Card
Miscellaneous	Miscellaneous
Included Accessories	Wall mount bracket, ceiling mount bracket
Cables Included	1 x USB power cable - external - 1 m
Colour	White
Power	Power
Power Requirements	DC 5 V - 1.5 A
Power Device	Power adapter - external AC 100-240 V (50/60 Hz) 2 Watt
Software / System Requirements	Software / System Requirements
OS Required	Android 4.0 or later, Apple iOS 7 or later
Internet of Things (IoT)	Internet of Things (IoT)
Internet of Things (IoT) Compatible	Yes
Supported Host Device Platform	iOS, Android
Intelligent Assistant	Google Assistant, Alexa
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	13.8 cm
Shipping Depth	11.8 cm
Shipping Height	8.8 cm
Shipping Weight	340 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-10 °C
Max Operating Temperature	50 °C
