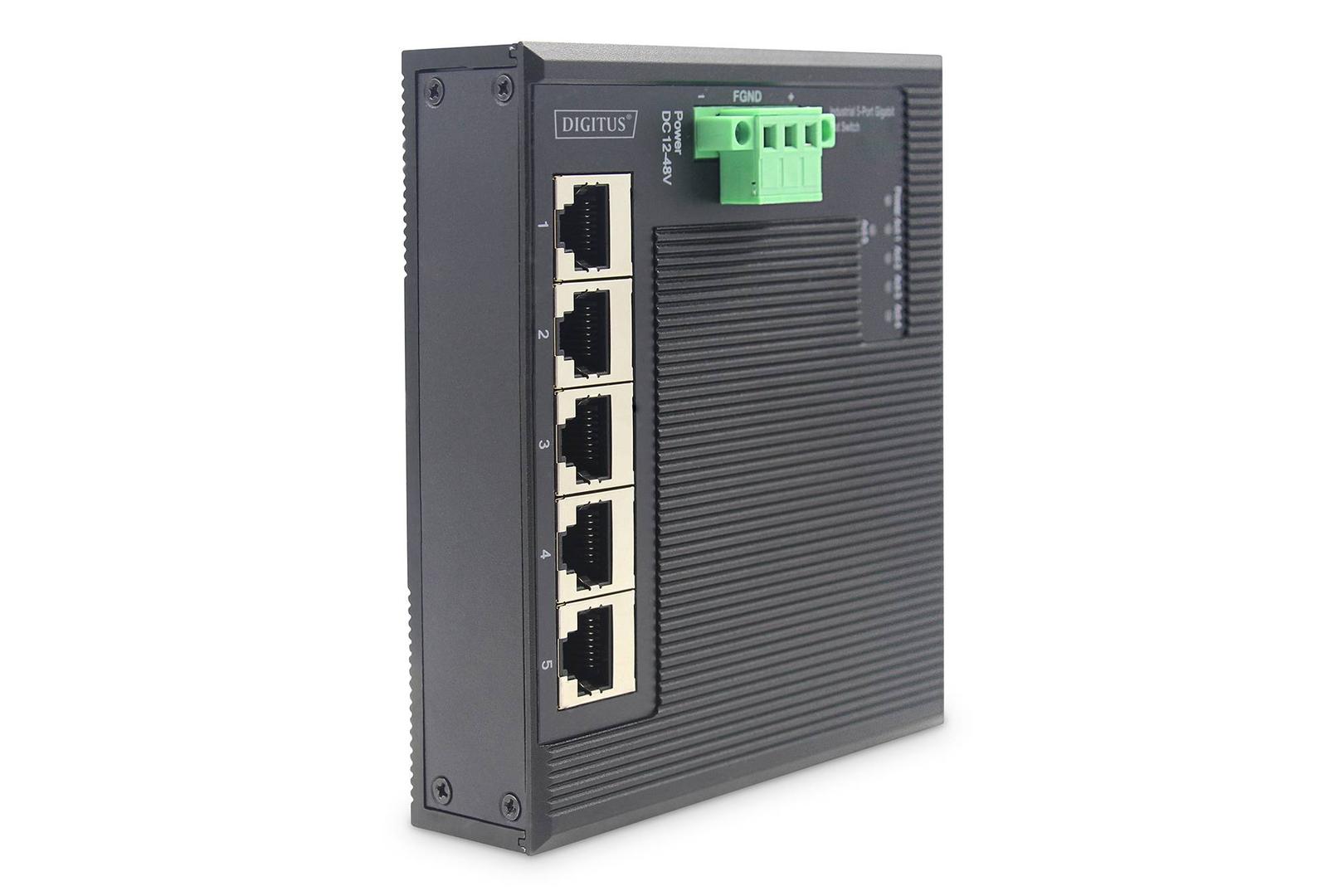

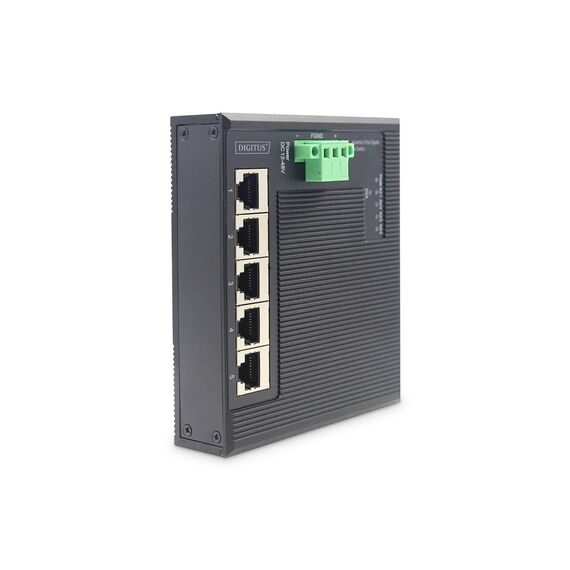

DIGITUS Industrial Gigabit Flat Switch / Extended temperature range / switch / 5 x 10/100/1000 / DIN rail mountable, wall-mountable / DC power | DN-651126

Product Features

· 5 x 10/100/1000 Base-TX Ethernet ports
· Automatic cable recognition - auto MDI/MDI-X function
· Supports standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
· LED display: Power (on/off), link (on/off/data)
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex detection/adjustment
· Backplane capacity: 14 Gbps
· MAC address memory: 2K (auto-learning, auto-aging)
· Robust, flat metal case
· Excellent protection against short circuits
· Lightning and surge protection
· Suitable for DIN rail (top-hat rail) mounting
· Fanless design
· Electrostatic standard: Contact 8kV, air 12kV
· Power supply via terminal strip (3 clamps, +/-/PE)
· Power supply: DC 12 - 48 V
· Operating temperature: -40 °C to +80 °C
· Storage temperature: -40 °C to +80 °C
· Operating humidity: 5% - 95% (non condensing)
· Storage humidity: 5% - 95% (non condensing)
· Dimensions: L 121 x W 104 x H 29,5 mm
· Protection type: IP40
· Power consumption: max. 3 Watts

Special Features

· 5 x 10/100/1000 Base-TX Ethernet ports
· Suitable for DIN rail (top-hat rail) mounting
· Space-saving, flat housing
· Fanless design
· Store and forward technology for optimized data transfer
· Backplane capacity: 14 Gbps
· MAC address memory: 2K (auto-learning, auto-aging)
· Excellent protection against short circuits
· Lightning and surge protection

Product Specification

Device Type	Switch - 5 ports
Enclosure Type	DIN rail mountable, wall-mountable
Subtype	Gigabit Ethernet
Ports	5 x 10/100/1000
Performance	Backplane switching capacity: 10 Gbps
MAC Address Table Size	4K entries
Features	Auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, surge protection, fanless, short circuit protection, metal housing, MAC address learning, MAC address aging, auto duplex mode, lightning protection, automatic cable equalisation, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Status Indicators	Power, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	5 x 1000Base-T RJ-45
Power	Power
Power Redundancy	Yes
Voltage Required	DC 12 - 48 V
Miscellaneous	Miscellaneous
Colour	Black
Included Accessories	Power terminal block
Compliant Standards	IP40
Dimensions & Weight	Dimensions & Weight
Width	9 cm
Depth	12.1 cm
Height	3.7 cm
Weight	620 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	85 °C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	85 °C
