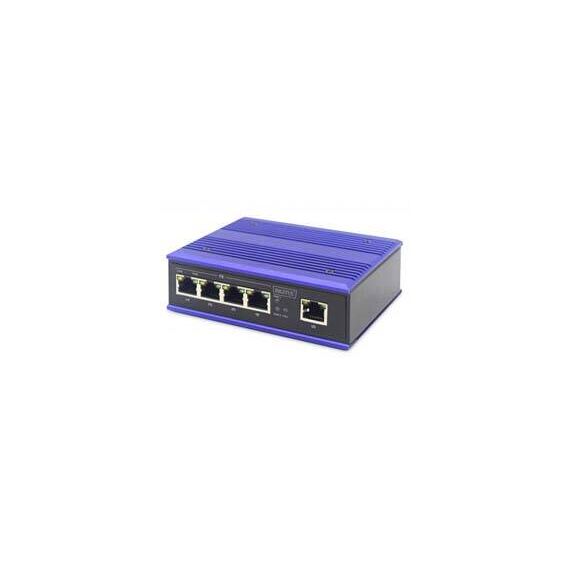

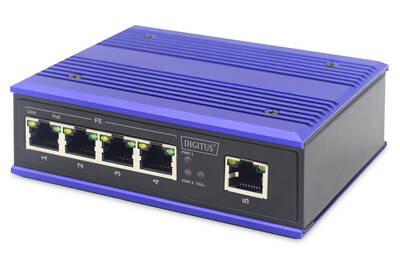

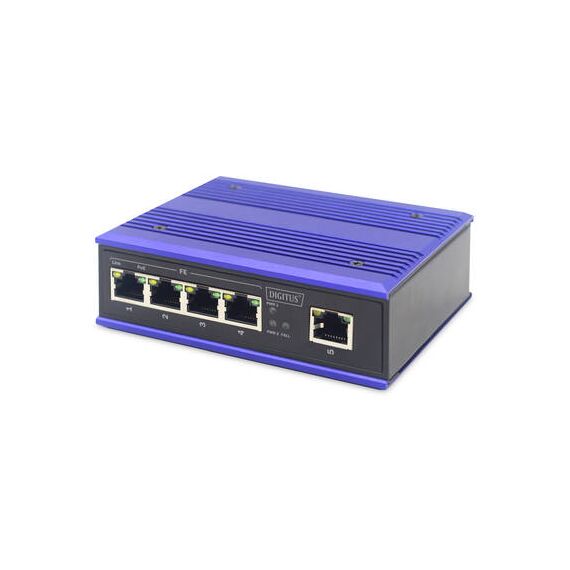

DIGITUS Industrial - Switch - unmanaged - 4 x 10/100 (PoE+) + 1 x 10/100 (uplink) - desktop, DIN rail mountable - PoE+ | DN-650107
Please sign in so that we can notify you about a reply
Product Features
· 4 x 10/100Base-TX Ethernet PoE Ports· 1 x 10/100Base-TX Ethernet uplink port
· Supports IEEE802.3af/at
· Automatic cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3af, IEEE802.3at
· IEEE802.3x Flow Control und Back Pressure
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex recognition/adjustment
· Backplane with 1.6Gbps
· Supports up to 2K MAC addresses
· Compact, robust metal housing
· Excellent short-circuit protection
· Lightning and overvoltage protection
· Suitable for DIN rail (top-hat rail) mounting
· Redundant power supply: 48~57 V DC, redundant power supply with reverse polarity protection function
· Extended operating temperature range, -40 °C ~ +80 °C
· Removable terminal connection
· Protection class: IP40
Special Fetures
· Industrial 4-Port Fast Ethernet PoE Switch + 1 uplink port· 4 x 10/100Base-TX Ethernet PoE ports
· 1 x 10/100Base-TX Ethernet uplink port
Product Specification
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | Desktop, DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE+) + 1 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Backplane speed: 1 Gbps |
| MAC Address Table Size | 2K entries |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, over-voltage protection, short circuit protection, metal housing, Back Pressure Support, lightning protection |
| Compliant Standards | IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 4 x 100Base-TX RJ-45 30 W ¦ 1 x 100Base-TX RJ-45 |
| Power | |
| Power Redundancy | Yes |
| Features | Power Polarity Reverse Protect |
| Miscellaneous | |
| Colour | Black, blue |
| Compliant Standards | IP40 |
| Dimensions & Weight | |
| Width | 11.8 cm |
| Depth | 9.24 cm |
| Height | 4 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.2 cm |
| Shipping Depth | 13.5 cm |
| Shipping Height | 5.3 cm |
| Shipping Weight | 480 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Digitus - DN-650107
General
5-Port
More Details
Product Code
03:166696
EAN Code
4016032458852
Manufacturer
Digitus
No posts found
