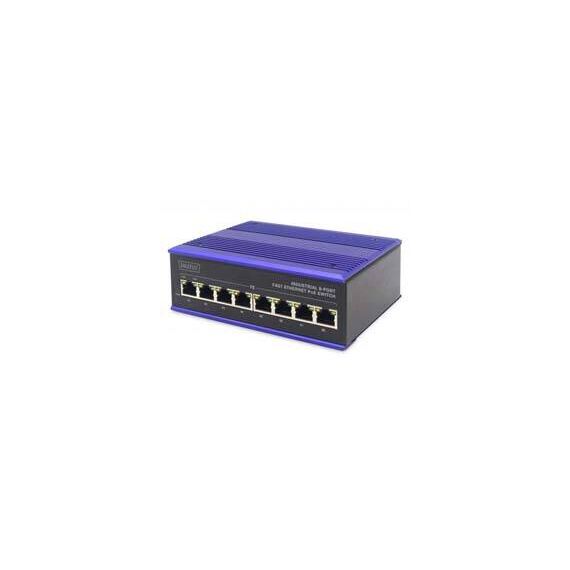

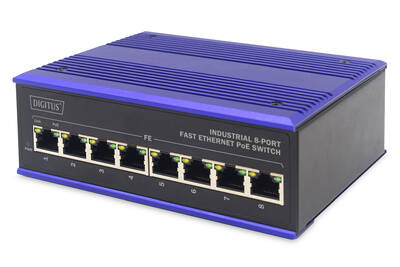

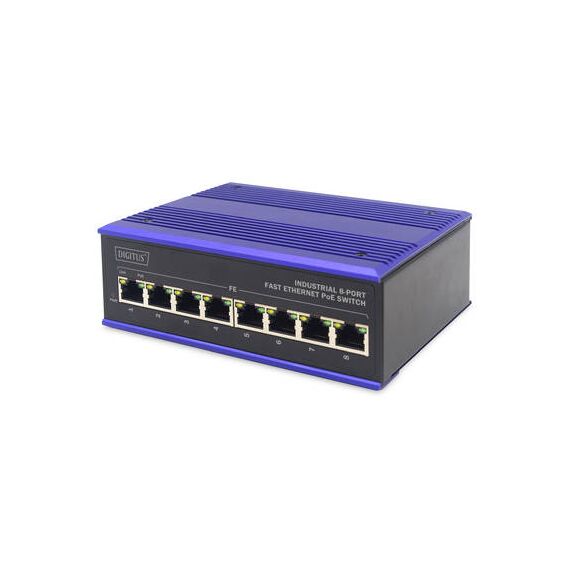

DIGITUS Industrial - Switch - 8 x 10/100 (PoE) - DIN rail mountable, wall-mountable - PoE - DC power | DN-650108
Please sign in so that we can notify you about a reply
Product Features
· 8 x 10/100Base-TX Ethernet PoE Ports· Supports IEEE802.3af/at
· Automatic cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3af, IEEE802.3at
· IEEE802.3x Flow Control und Back Pressure
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex recognition/adjustment
· Backplane with 1.6Gbps
· Supports up to 2K MAC addresses
· Compact, robust metal housing
· Excellent short-circuit protection
· Lightning and overvoltage protection
· Suitable for DIN rail (top-hat rail) mounting
· Redundant power supply: 48~57 V DC, redundant power supply with reverse polarity protection function
· Extended operating temperature range, -40 °C ~ +80 °C
· Removable terminal connection
· Protection class: IP40
· Electricity consumption: <5 Watts
Special Fetures
· Industrial 8-Port Fast Ethernet PoE Switch· 8 x 10/100Base-TX Ethernet PoE ports
· DIN rail mountable
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE) |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching capacity: 1.6 Gbps |
| MAC Address Table Size | 2K entries |
| Features | Auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, fanless, over-voltage protection, short circuit protection, metal housing, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link |
| Expansion / Connectivity | |
| Interfaces | 8 x 100Base-TX RJ-45 PoE - 30 W |
| Power | |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 57 V |
| Features | Power Polarity Reverse Protect |
| Miscellaneous | |
| MTBF | 300,000 hours |
| Compliant Standards | IP40 |
| Dimensions & Weight | |
| Width | 12 cm |
| Depth | 15.7 cm |
| Height | 4.8 cm |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Digitus - DN-650108
General
8-Port
More Details
Product Code
04:319820
EAN Code
4016032458869
Manufacturer
Digitus
