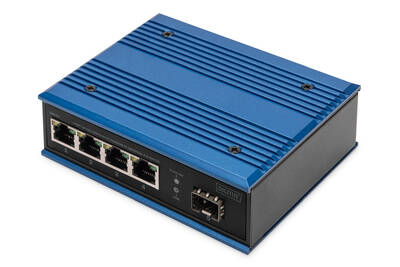

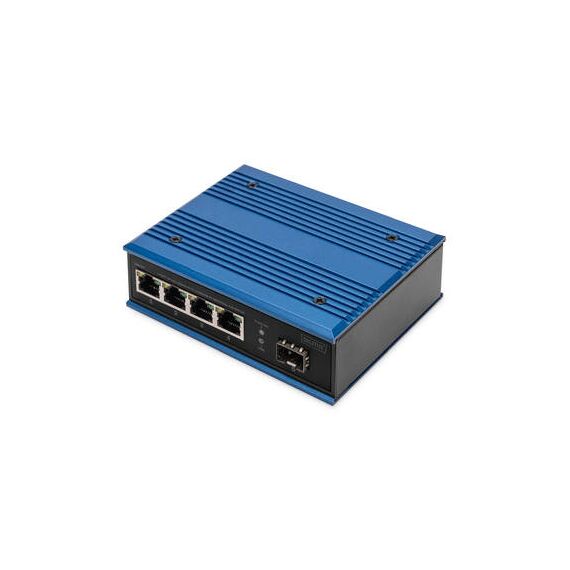

DIGITUS - Switch - industrial - unmanaged - 4 x 10/100/1000 (PoE) + 1 x Gigabit SFP (uplink) - DIN rail mountable - PoE | DN-651135

Product Features

· 4-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE
· 1-port 1000Base-Fx interface SFP
· -40 to 80 operating temperature
· Enclosure: IP40 aluminum housing
· Supports 6KV DC Ethernet ESD protection
· DIN-rail Installation
· Performance Specification: Bandwidth: 14Gbps, Packet Buffer Memory:1.2Mbit, Packet Forwarding Rate: 10.5Mpps, MAC Address Table: 2K
· Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
· LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
· Power Input: 48 to 57V DC redundant power
· Power Consumption: < 3 watts
· Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
· Network cables: 10BASE-T: Cat3,4,5 UTP(100 meter), 100BASE-TX: Cat5 or later UTP(100meter)
· Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV, IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV, IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz), IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
· Dimensions (W x D x H): 118 x 92.4 x 40 mm
· Weight: Product Weight: 0.55KG
· Working Environment: working temperature: -4080 ;Storage temperature: -4080
· Relative Humidity: 5%~95 % ( no condensation)
· Product weight: 0.45 kg
· Working environment: Operating temperature: -40 to max. 80; storage temperature: -40 to max. 80
· Relative humidity: 5% to max. 95% (non-condensing)
· Total PoE Power budget (W): 120 W

Special Fetures

· The use of high quality photoelectric integration module to provide good optical and electrical characteristics
· Ensure reliable data transmission and long working life
· Support full duplex or half duplex mode, with automatic negotiation capability
· Network port support automatic cross identification
· Internal storage and forwarding mechanism
· In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
· Working power supply: DC 48-57V to provide reverse protection
· Lightning Surge Protection (Power): 5000A(8/20s)

Product Specification

Device Type	Switch - 4 ports - unmanaged
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	4 x 10/100/1000 (PoE) + 1 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE
Performance	Bandwidth: 14 Gbps ¦ Packet forwarding rate: 10.5 Mpps
Capacity	Packet buffer size: 1.2 Mbit
MAC Address Table Size	2K entries
Features	Flow control, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, 6KV ESD Protector, 6KV EFT protector, aluminium housing, ground points, LED status indicator
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Status Indicators	Power, fibre, link, Ethernet link/activity
Expansion / Connectivity
Interfaces	4 x 10/100/1000Base-TX RJ-45 PoE - 30 W ¦ 1 x 1000Base-FX SFP uplink
Power
Power Device	Internal power supply
Power Redundancy	Yes
Voltage Required	DC 48 - 57 V
Power Consumption Operational	3 Watt
Miscellaneous
MTBF	300,000 hours
Compliant Standards	CISPR 22 Class A, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, FCC CFR47 Part 15, IP40, IEC 61000-4-16, Directive 1907/2006/EC, Directive 2015/863/EU, 2011/65/EU, EN/IEC 63000:2018, EN 55035:2017+A11:2020, 2014/30/EU, EN 55032:2015 + A11:2020
Dimensions & Weight
Width	11.8 cm
Depth	9.24 cm
Height	4 cm
Weight	450 g
Dimensions & Weight (Shipping)
Shipping Width	13.5 cm
Shipping Depth	5.4 cm
Shipping Height	16.5 cm
Shipping Weight	560 g
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	80 °C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	80 °C
Humidity Range Storage	5 - 95% (non-condensing)
