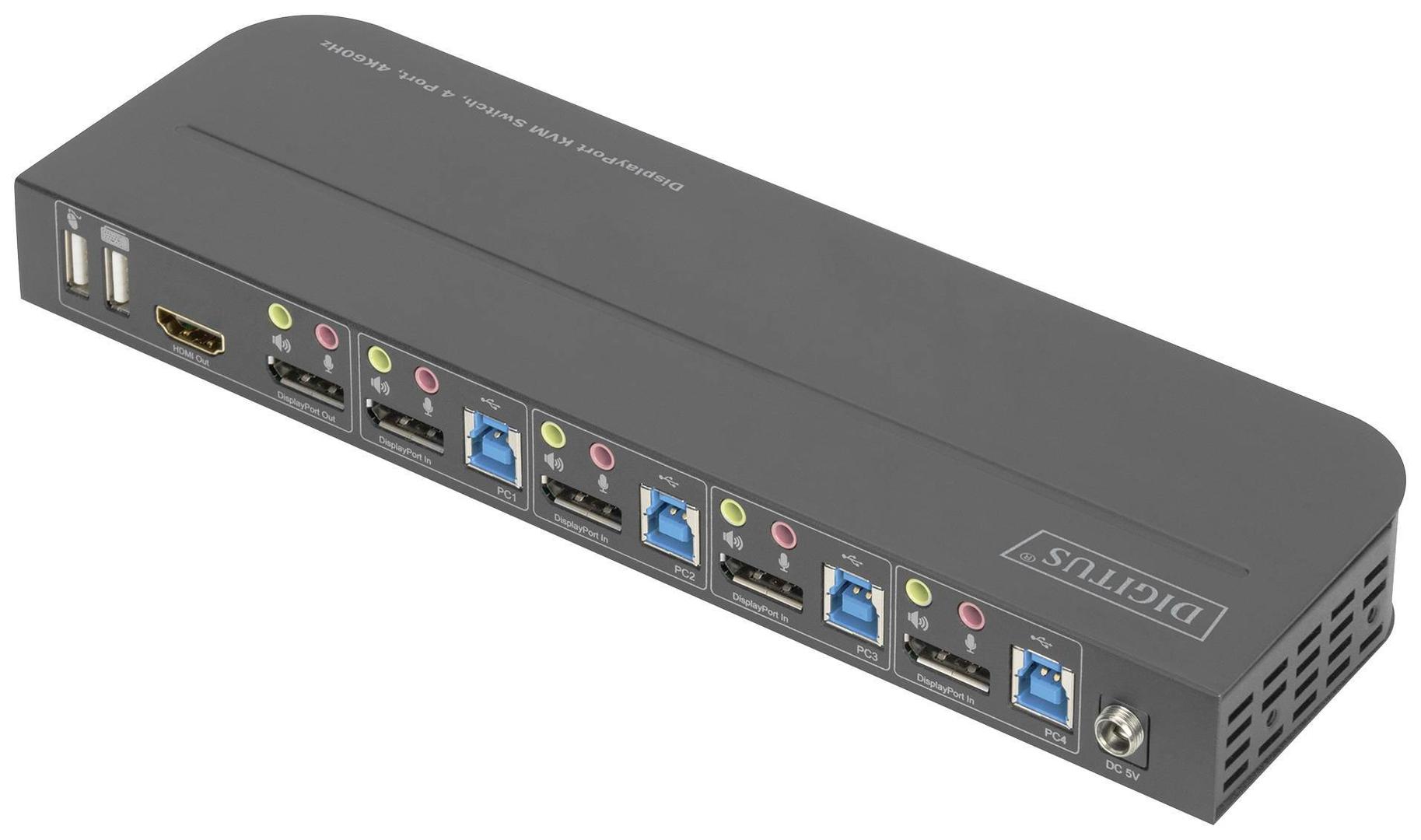

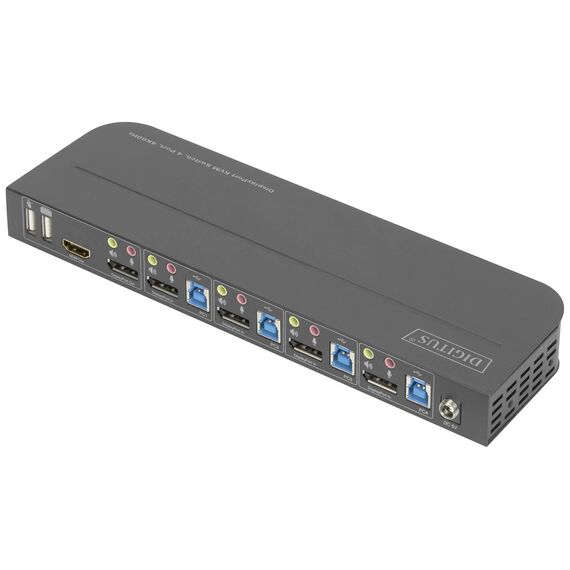

DIGITUS / KVM / audio switch / 4 x KVM / audio / 1 local user / desktop | DS-12890

Product Features

· Inputs: 4 x DisplayPort, 4 x USB B (3.0), 4 x audio input, 4 x audio output
· Output: 1 x DisplayPort, 1 x HDMI®, 1 x audio input, 1 x audio output, 2 x USB A 2.0
· Additional connections front side: 2 x USB A 3.0, 1 x audio input, 1 x audio output, 1x infrared receiver, 1x IR output
· Audio inputs/outputs: 3.5 mm stereo jack socket
· LED front side: Power, 4 x Online, 4 x Selection PC
· Switch: Power On/Off, Toggle PC1 / PC2 / PC3 / PC4
· HDMI® version: 2.0
· HDCP version: 2.2 / 1.4
· DisplayPort version: 1.2
· UHD resolution: 4096 x 2160p / 60 Hz
· Subsampling: RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
· Bandwidth DisplayPort: 32.4 Gbps all channels (8.1 Gbps per channel), supports HDR
· Bandwidth HDMI®: 18 Gbps all channels (6 Gbps per channel), supports HDR
· Color depth DisplayPort: 48 bit (all channels)
· Color depth HDMI®: 36 bit (all channels)
· Power supply power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A
· Power supply KVM switch: 5 V / 3 A / 15 W
· Operating temperature: 0°C ~ 45°C
· Operating humidity: 10% - 85% RH (non-condensing)
· Housing material: Metal
· Installation bracket for wall mounting included
· External receiver for signals from remote control included
· Dimensions: 24,3 x 7.5 x 2.6 cm (WxDxH)
· Weight: 505,4 g
· Color: Black

Special Features

· Use a monitor, a mouse and a keyboard to operate four computers
· USB ports for mouse and keyboard
· Audio connections for microphone/speaker
· Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
· Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
· External receiver for signals from remote control included
· Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync
· LED status and functional displays on the front side
· Wall installation possible
· Plug and Play - no driver installation required

Product Specification

Device Type	KVM / audio switch - 4 ports
Enclosure Type	Desktop
Subtype	KVM
Ports	4 x KVM / audio
KVM Local Users Qty	1 local user
Keyboard / Mouse Interface	USB
Max Resolution	4096 x 2160 @ 60 Hz
Features	Wall mountable, 4K resolution support, metal housing, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), HDR support, built-in 2-port USB 3.0 hub
Compliant Standards	HDCP 1.4, HDCP 2.2
Built-in Devices	Infrared receiver
Status Indicators	Port status, power
Expansion / Connectivity	Expansion / Connectivity
Interfaces	4 x DisplayPort input ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x audio output mini-jack ¦ 4 x microphone mini-jack ¦ 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 2 x audio output mini-jack console ¦ 2 x microphone mini-jack console ¦ 1 x DisplayPort output console ¦ 1 x HDMI input console ¦ 2 x USB 3.0 Type A ¦ 1 x IrDA mini-jack
Power	Power
Power Device	External power adapter
Power Provided	15 Watt - 5 V - 3 A
Voltage Required	AC 100-240 V (50/60 Hz)
Miscellaneous	Miscellaneous
Colour	Black
Included Accessories	Wireless remote control, IR receiver, wall mount brackets
Cables Included	4 x SuperSpeed USB type A to USB type B cable ¦ 4 x DisplayPort cable - 1.2 m
Compliant Standards	Plug and Play, DisplayPort 1.2, HDCP 2.2, HDCP 1.4
Dimensions & Weight	Dimensions & Weight
Width	24.3 cm
Depth	7.5 cm
Height	2.6 cm
Weight	505.4 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	10 - 85% RH (non-condensing)
Min Storage Temperature	-10 °C
Max Storage Temperature	80 °C
Humidity Range Storage	5 - 90% RH (non-condensing)
