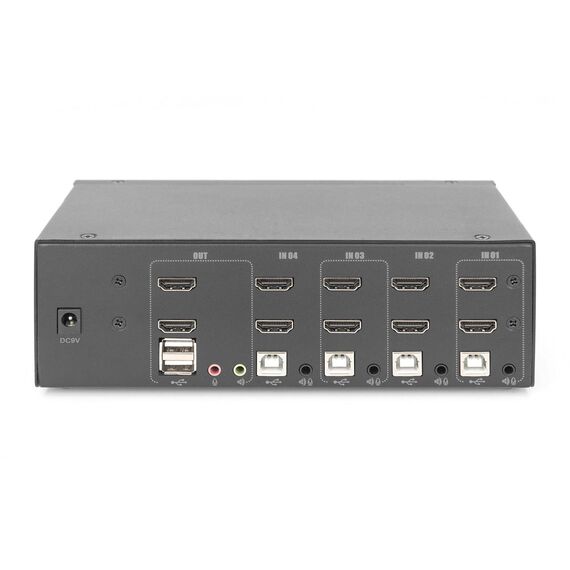

DIGITUS / KVM / audio / USB switch / 4 x KVM port(s) / 1 local user / desktop | DS-12883

Product Features

· UHD resolution: 4K / 30 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4
· Inputs: 8 x HDMI® inputs (4x2), 4 x USB B, 4 x Audio combo socket 3.5 mm jack (microphone, speaker)
· Outputs (console): 2 x HDMI®, 2 x USB A (mouse, keyboard), 2 x Stereo audio 3.5 m jack (microphone, speaker)
· Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
· HDMI® version: 1.4b
· USB specifications: USB 2.0 compliant (full speed)
· Supported audio formats: Dolby True HD, DTS HD Master Audio
· Switching between the PCs: Switch on the front side or hot keys
· Status LED on front side shows current configuration
· The device is platform-independent, suitable for all operating systems
· Operating temperature: 0 °C to 50 °C
· Storage temperature: -20 °C to +60 °C
· Operating humidity: 0% - 80% RH (non-condensing)
· Case material: Metal
· Power supply device: USB power supply or optional 9 V DC power adapter (300 mA, 5.5x2.1 mm plug)
· Dimensions: 20.2 x 11.0 x 6.6 cm (WxDxH)
· Weight: 920 g

Special Features

· Use two monitors, a mouse / keyboard to operate 4 computers with dual display
· Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
· USB ports for mouse and keyboard
· Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
· Integrated USB hub with USB A port for additional peripheral equipment
· Switching between the PCs via switch on the KVM switch or hot key on the keyboard
· LED status and functional displays on the front side
· Laborious replugging of connection cables no longer necessary
· Real Plug and Play - no software or driver installation required (BIOS hardware connection)
· Sturdy metal housing

Product Specification

Device Type	KVM / audio / USB switch - 4 ports
Enclosure Type	Desktop
Subtype	KVM
Ports	4 x KVM port(s)
KVM Local Users Qty	1 local user
Keyboard / Mouse Interface	USB
Max Resolution	3840 x 2160 @ 30 Hz
Features	Metal housing, Dolby TrueHD support, DTS-HD Master Audio support, Pushbutton/Hotkey switching, YUV 4:4:4, AMD FreeSync
Expansion / Connectivity	Expansion / Connectivity
Interfaces	4 x USB 2.0 Type B ¦ 8 x HDMI input ¦ 4 x audio / microphone mini-jack ¦ 2 x HDMI output ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x audio output mini-jack ¦ 1 x microphone mini-jack
Power	Power
Power Device	External power adapter (not included)
Voltage Required	DC 9 V
Miscellaneous	Miscellaneous
Compliant Standards	Plug and Play, HDMI 1.4b
Dimensions & Weight	Dimensions & Weight
Width	20.2 cm
Depth	11 cm
Height	6.6 cm
Weight	920 g
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	21 cm
Shipping Depth	21 cm
Shipping Height	12 cm
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	0 - 80% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	60 °C
