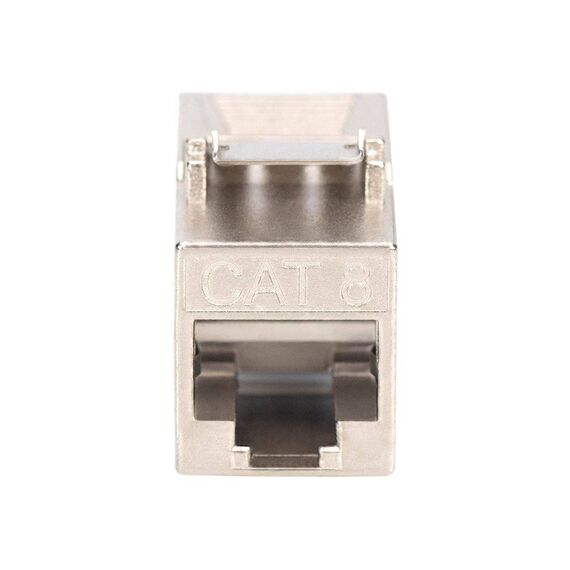

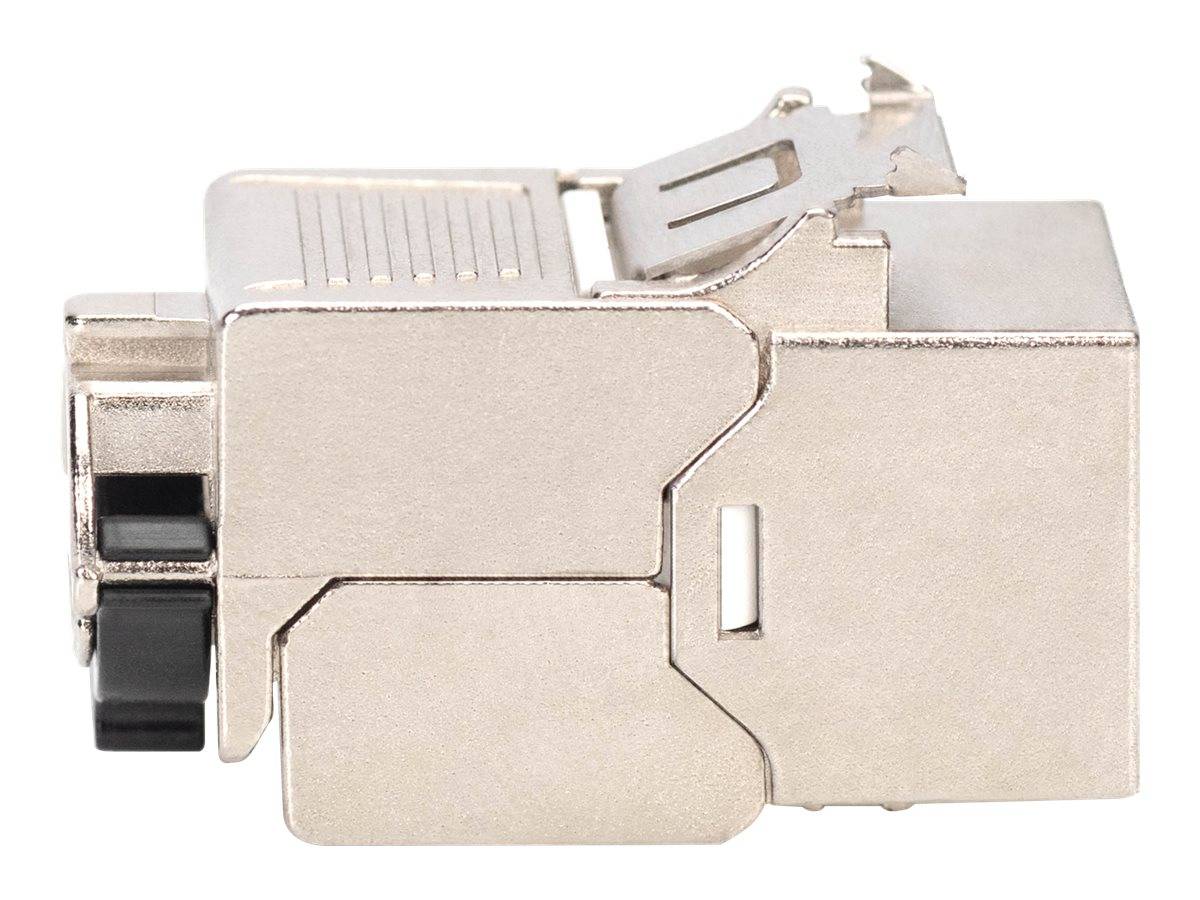

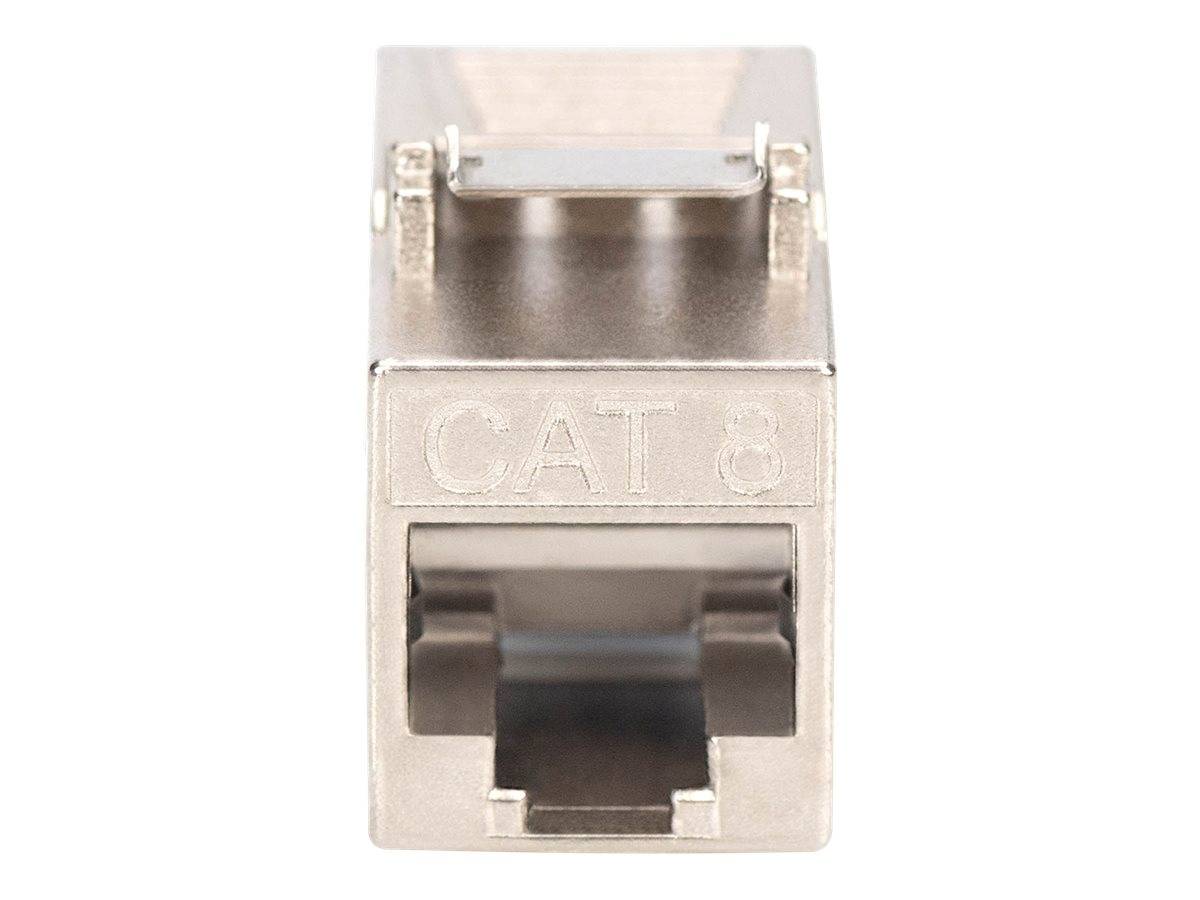

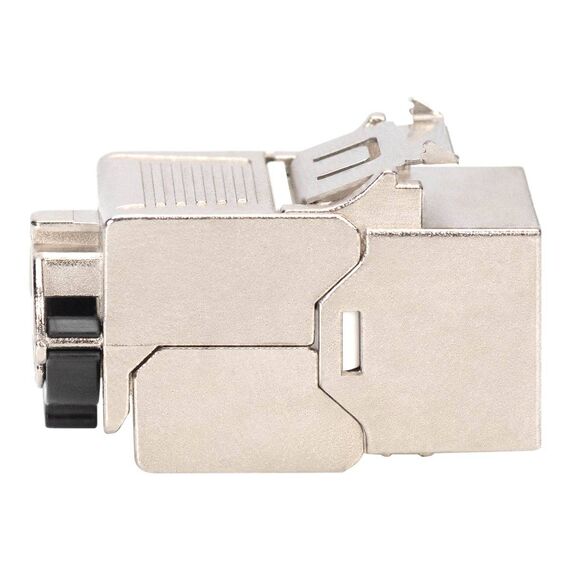

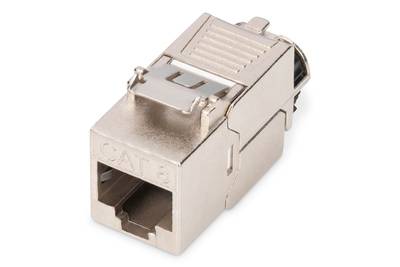

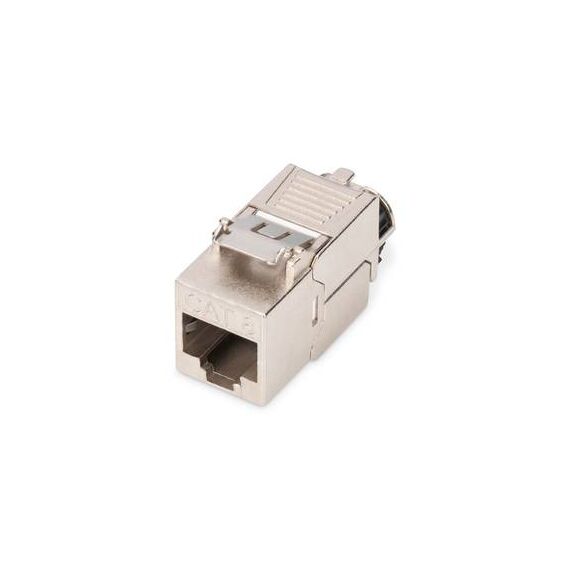

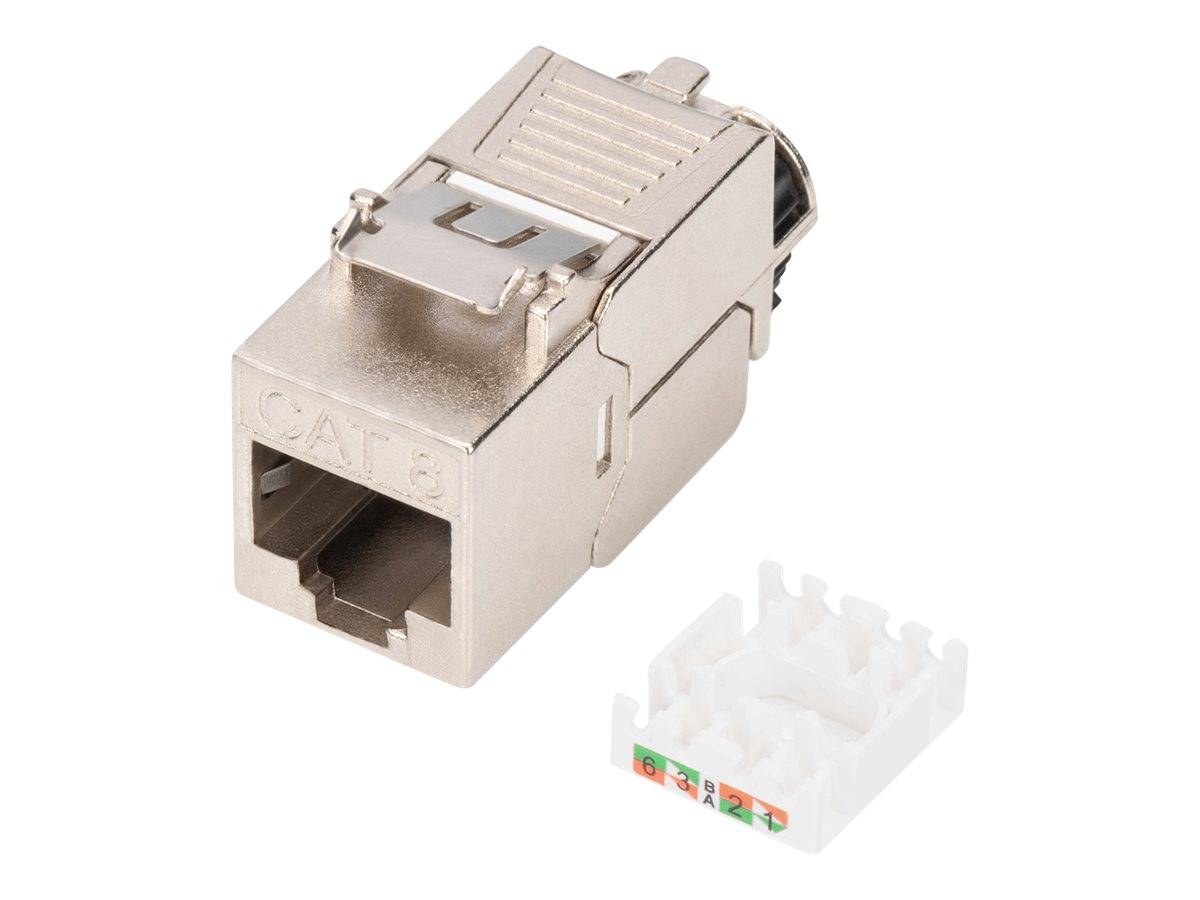

DIGITUS / Modular insert / CAT 8.1 / STP / RJ-45 | DN-93816

Product Features

· Transmission properties: Category 8, Class I
· Area of application: Up to 2000 MHz, 25/40GBase-T
· Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE)
· General properties:
· Suitable for patch panels and mounting outlets
· RJ45 female, 8P8C

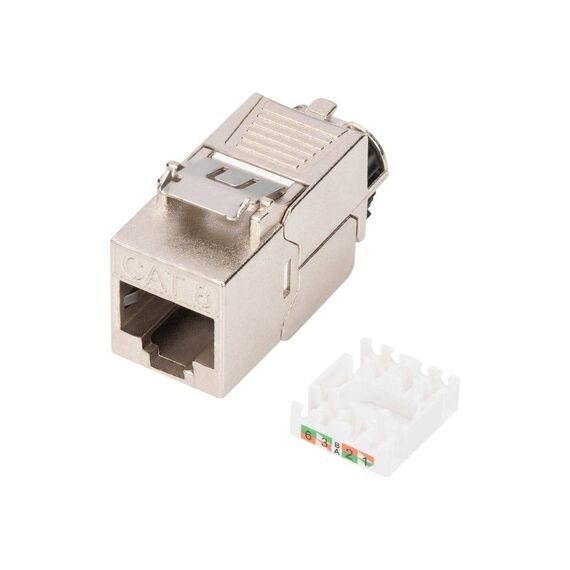

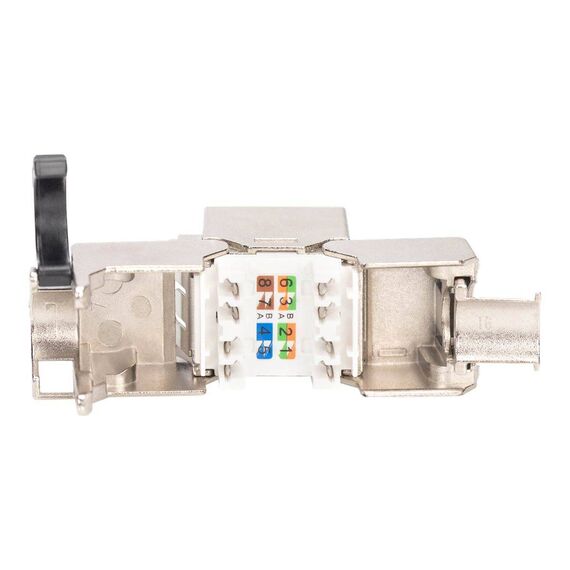

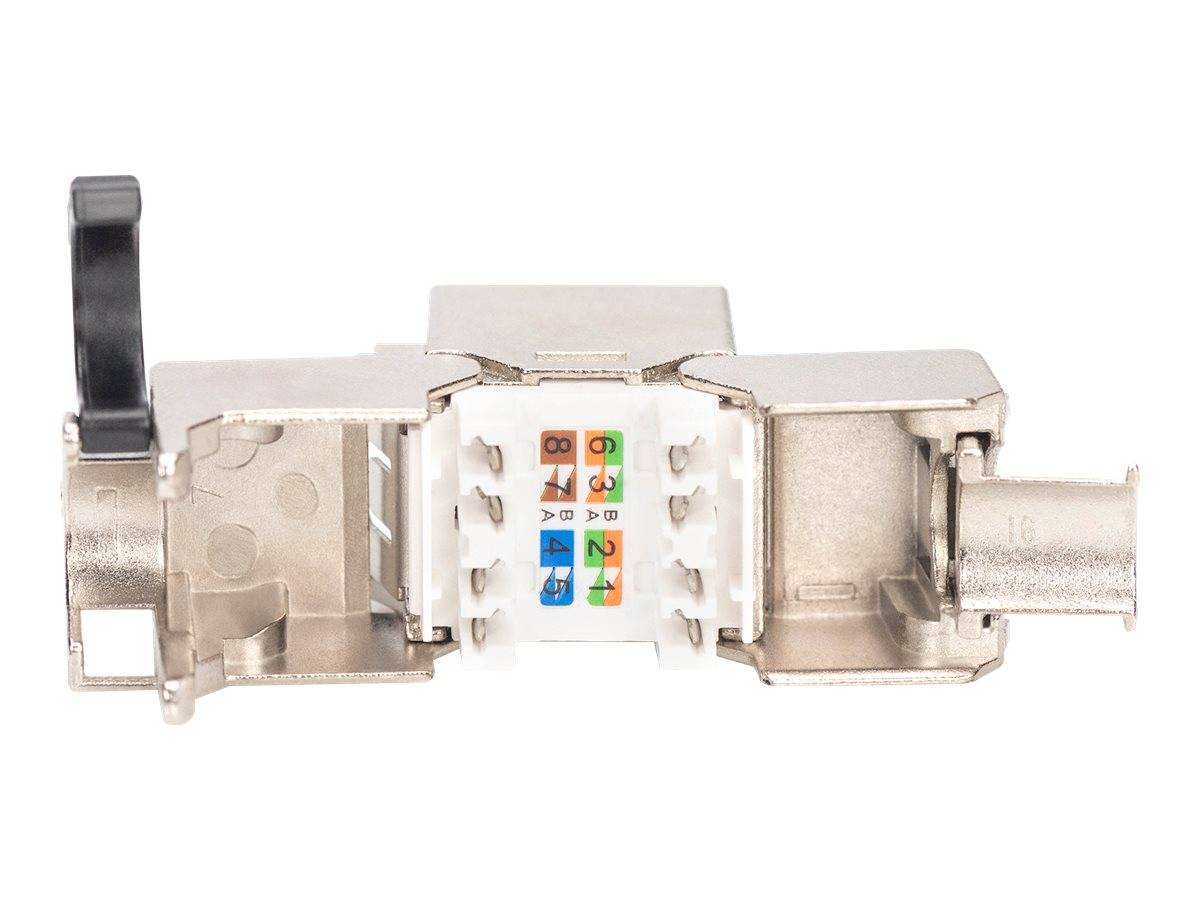

· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
· Tool-free mounting connection
· 360°-Schirmkontaktierung
· Technical properties:
· Housing material: Zinc die-cast, nickel-plated
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 gold-plated contact
· RJ45 shielding: Tinned bronze
· IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 gem. ISO/IEC 11801, IEC 60603-7-81
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Special Features

· 25/40GBase-T
· 2000 MHz
· AWG 22/1 - 26/7
· Werkzeugfreier Montageanschluss

Product Specification

Product Type	Modular insert - CAT 8.1
Package Content	Cable tie
Product Material	Nickel plated zinc die-cast
Cabling & Wiring	Cabling & Wiring
Port Qty	1 port
Termination Type	LSA (Krone)
Technology	Shielded twisted pair (STP)
Features	Keystone type, gold-plated connectors, toolless, 22-26 AWG
Compliant Standards	IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Connector Provided	1 x RJ-45 female
Miscellaneous	Miscellaneous
Compliant Standards	EN 50173-1, ISO/IEC 11801, IEC 60603-7-81
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	8 cm
Shipping Depth	2 cm
Shipping Height	11 cm
Shipping Weight	30 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	70 °C
