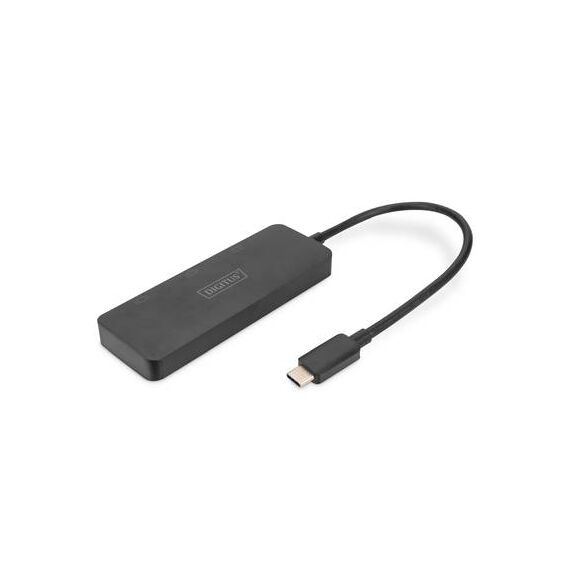

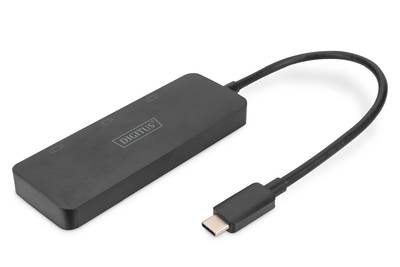

DIGITUS MST Hub / Video splitter / USB-C / 3 x HDMI / desktop | DS-45333

Product Features

· 1x USB-C input
· 3x HDMI output
· Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels
· Supports Windows OS (11, 10)
· Resolutions 3 external monitors - MST mode: max. 1x 4K/60Hz + 2x 4K/30Hz
· Resolutions 2 external monitors - MST mode: max. 2x 4K/60Hz
· Power supply via a USB-C connection - BUS powered
· No driver or software required - Configuration via the display settings in Windows OS
· Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
· HDCP 2.2 & 1.4
· Supports HDR (High Dynamic Range)
· Supports MST (Multi Stream Transport) & SST - Single Stream Transport
· Housing: ABS
· Operating temperature: 0-45 °
· Standby power consumption: approx. 1W
· Dimensions: L 26.3 x W 3.6 x H 1.15 cm
· Weight: 55 g
· Color: Black
· Note:
· To achieve the resolutions stated above, the host PC should support DP 1.4 (Alt mode). If your PC only supports DP 1.2, the corresponding resolutions are reduced due to the bandwidth restriction
· The resolution combinations stated above are a theoretical reference, the actual resolutions depend from the connected host PC as well as the display
· In order to use the full scope of features, make sure that your device (graphics card) uses DP 1.4.
· If you use a DisplayPort 1.1 graphics card, the MST Hub acts as a splitter and mirrors your video source on all displays
· Functionality can be restricted depending on the specifications of your device and operating system
· MST Hubs cannot increase the number of screens supported by a graphics card. Every graphics card has a limited number of screens that it can support. Please check your specifications in advance.
· Requires at least a host system with DP 1.2/HBR2/MST or higher (recommended)
· Supports AMD, Nvidia and Intel graphics cards

Special Features

· Supports DP 1.4 (Alt mode) with maximum 8.1 Gbps per channel, max. 32.4 Gbps on 4 channels
· Supports Windows OS (11, 10)
· Resolutions 3 external monitors - MST mode: max. 1x 4K/60Hz + 2x 4K/30Hz
· Resolutions 2 external monitors - MST mode: max. 2x 4K/60Hz
· Power supply via a USB-C connection - BUS powered
· No driver or software required - Configuration via the display settings in Windows OS
· Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
· HDCP 2.2 / 1.4
· Supports HDR (High Dynamic Range)
· Supports MST (Multi Stream Transport) & SST - Single Stream Transport

Product Specification

Device Type	Video splitter - 3 ports
Enclosure Type	Desktop
Subtype	HDMI / USB
Ports	3 x HDMI
Performance	Bandwidth per channel: 8.1 Gbps ¦ Maximum video bandwidth: 32.4 Gbps
Features	Screen mirroring, Supports MultiStream (MST), DisplayPort Single Stream Transport (SST) support, HDR support, extended display mode, ABS housing, distribute display mode
Expansion / Connectivity	Expansion / Connectivity
Interfaces	3 x HDMI output ¦ 1 x USB-C input
Power	Power
Power Consumption Stand by	1 Watt
Miscellaneous	Miscellaneous
Colour	Black
Compliant Standards	HDCP 2.2, HDCP 1.4, HDMI 2.0
Software / System Requirements	Software / System Requirements
OS Required	Windows 10, Windows 11
Dimensions & Weight	Dimensions & Weight
Width	3.6 cm
Depth	26.3 cm
Height	1.15 cm
Weight	55 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
