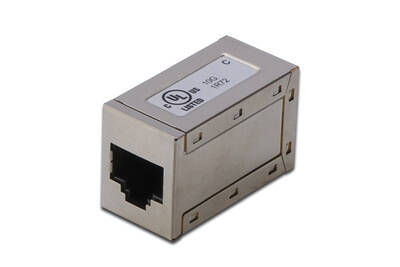

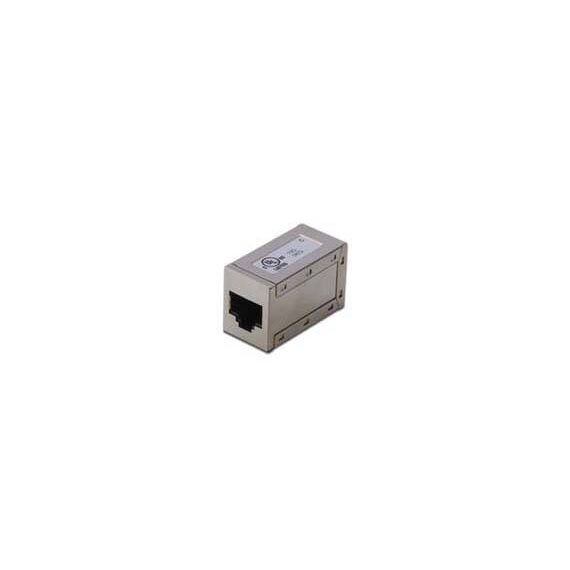

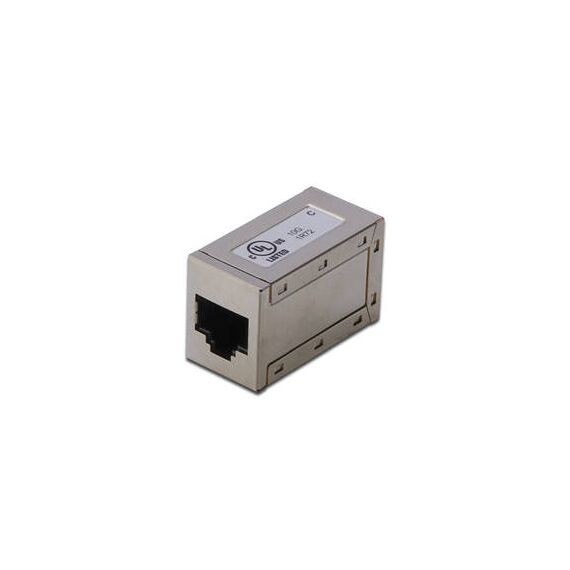

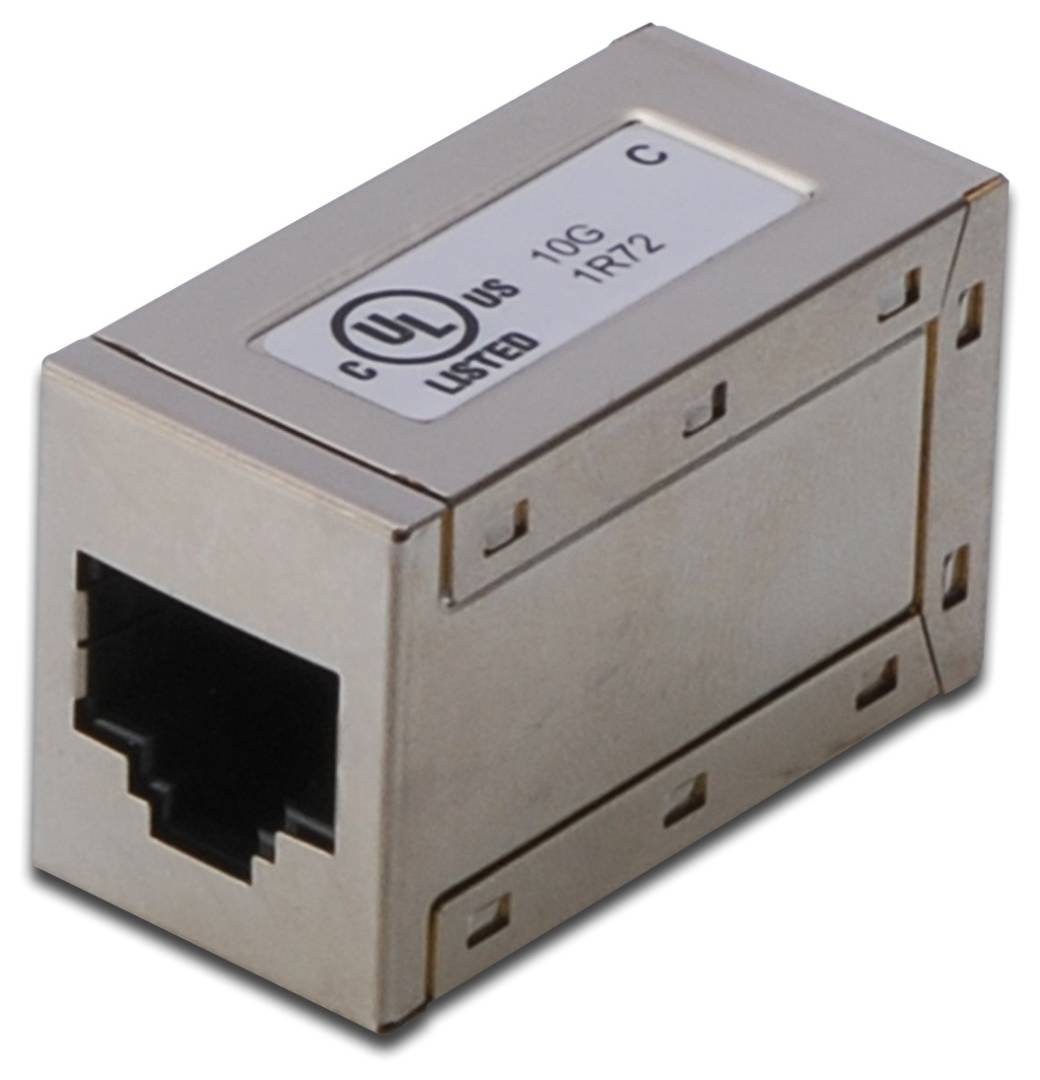

DIGITUS - Network coupler - RJ-45 (F) to RJ-45 (F) - shielded - CAT 6 | AT-AG 8/8 C6S
Please sign in so that we can notify you about a reply
Product Features
· Technical properties:· Housing material: ABS UL-94V-0
· Contacts coating: Nickel, gold-plated 0.5 µ
· Shielding: Tinned bronze
· PCB:FR4, UL 94V-0
· Material contacts: Phosphor bronze
· Physical properties:
· Mating cycles: 750 (ISO/IEC 11801, IEC 60603-7-5)
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
Special Fetures
· Quick and easy extention of patch cables· The RJ45 sockets are shielded which provides optimized safety
· The coupler offers a long life time (mating cycles)
Product Specification
| Network Cable Type | Network coupler - CAT 6 |
| Technology | Shielded |
| Plated Connector | Gold |
| Connectivity | |
| Connector | RJ-45 - female |
| Connector (Second End) | RJ-45 - female |
| Miscellaneous | |
| Compliant Standards | UL 94 V-0, ISO/IEC 11801, IEC 60603-7-5 - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - AT-AG 8/8 C6S
More Details
Product Code
04:365769
EAN Code
4016032229032
Manufacturer
Digitus
