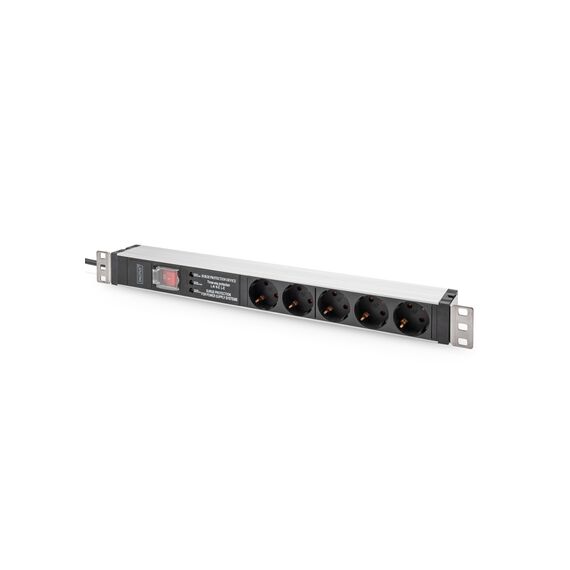

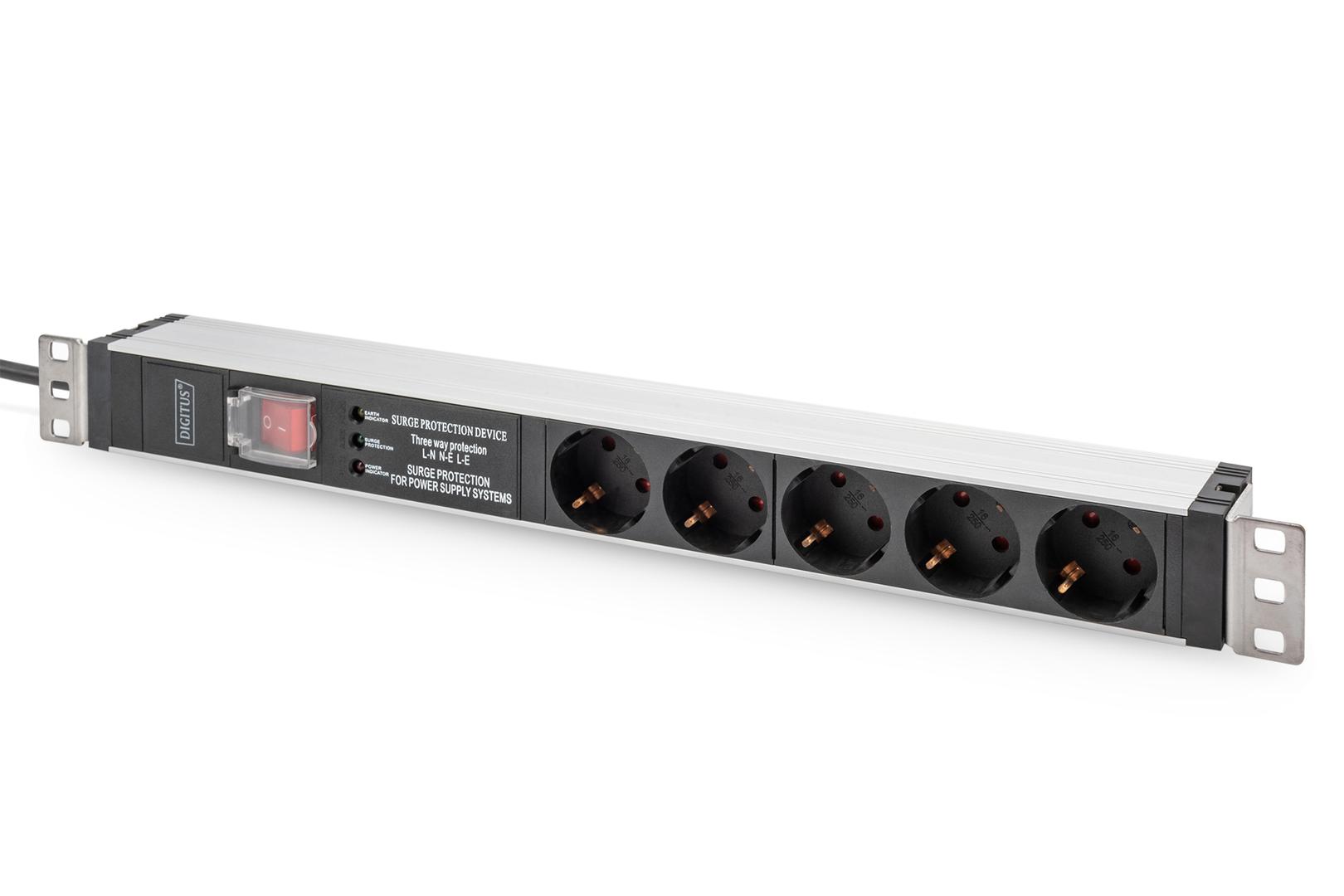

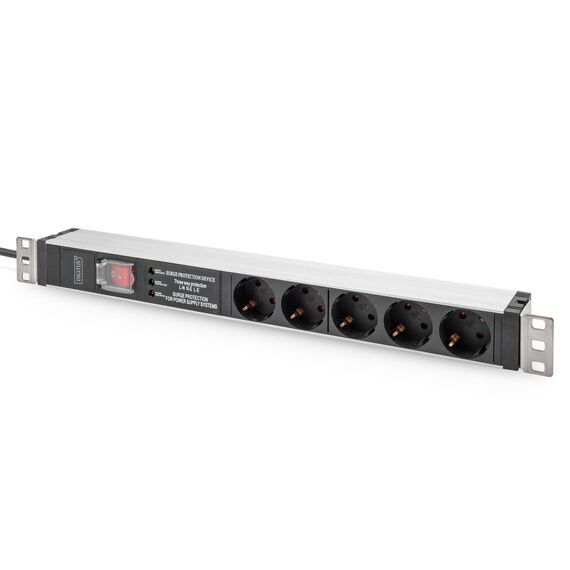

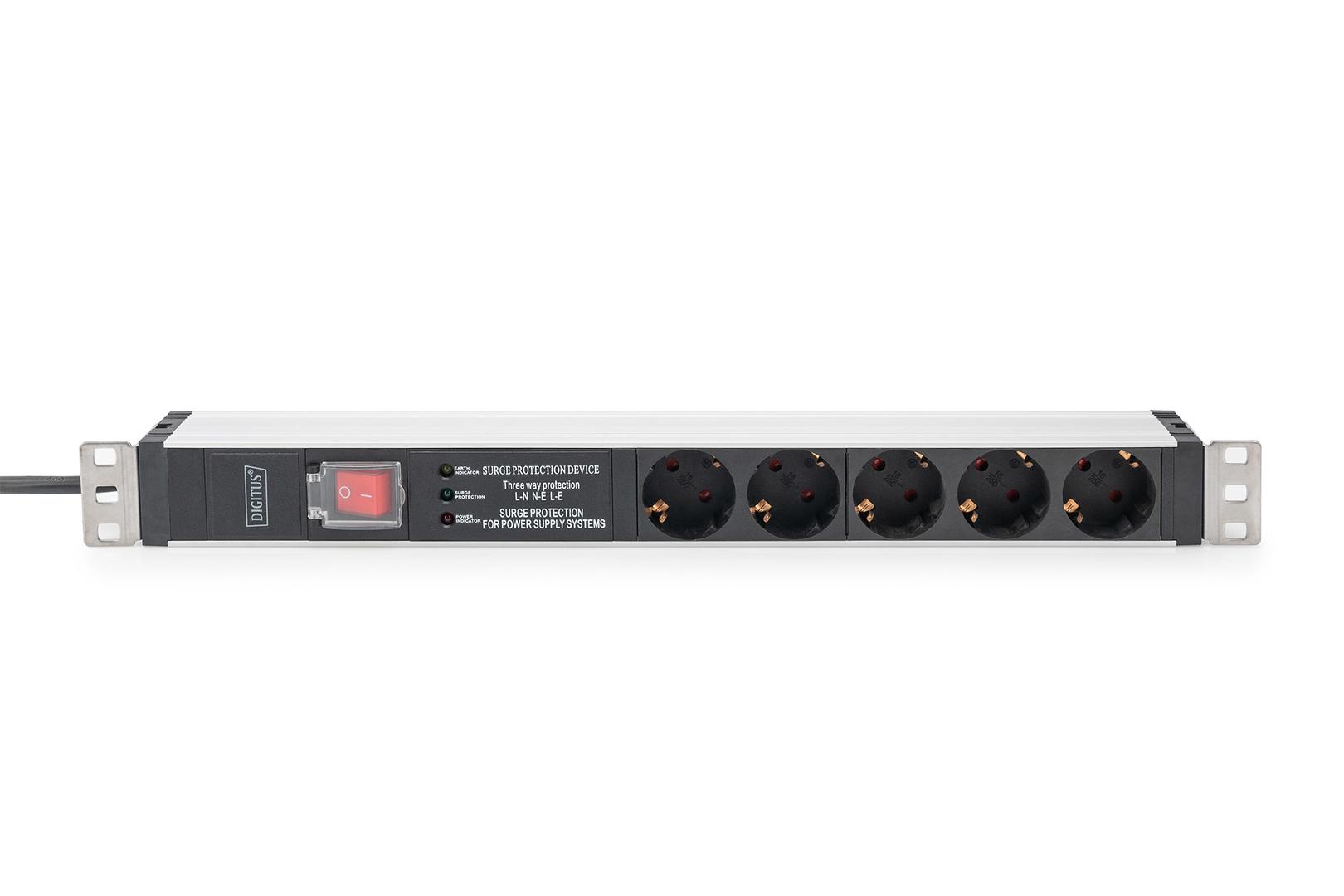

DIGITUS - Power distribution unit (rack-mountable) - AC 230 V - 3600 VA - 1-phase - input: power CEE 7/7 - output connectors: 5 (power CEE 7/3) - 1U - 19" - 2 m cord | DN-95433
DIGITUS - Power distribution unit (rack-mountable) - AC 230 V - 3600 VA - 1-phase - input: power CEE 7/7 - output connectors: 5 (power CEE 7/3) - 1U - 19" - 2 m cord | DN-95433
€45.51 inc. VAT
DN-95433
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

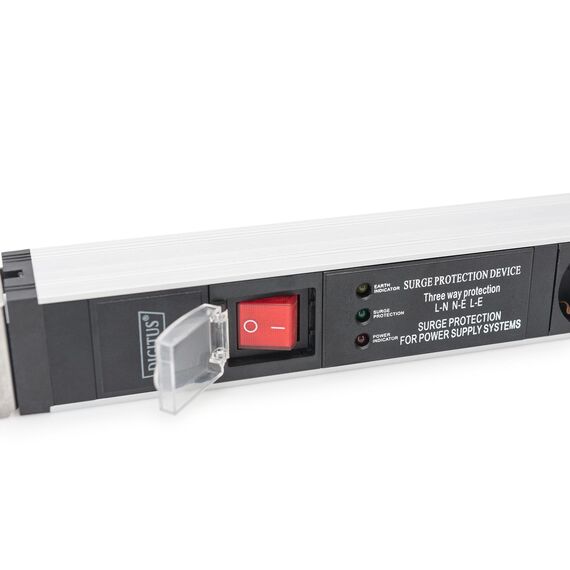

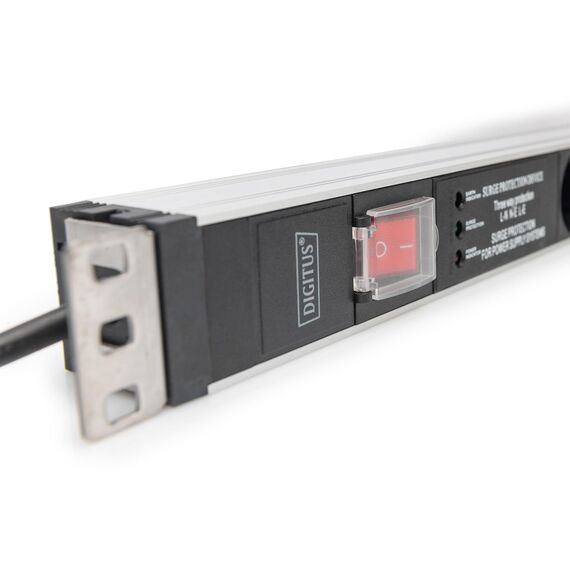

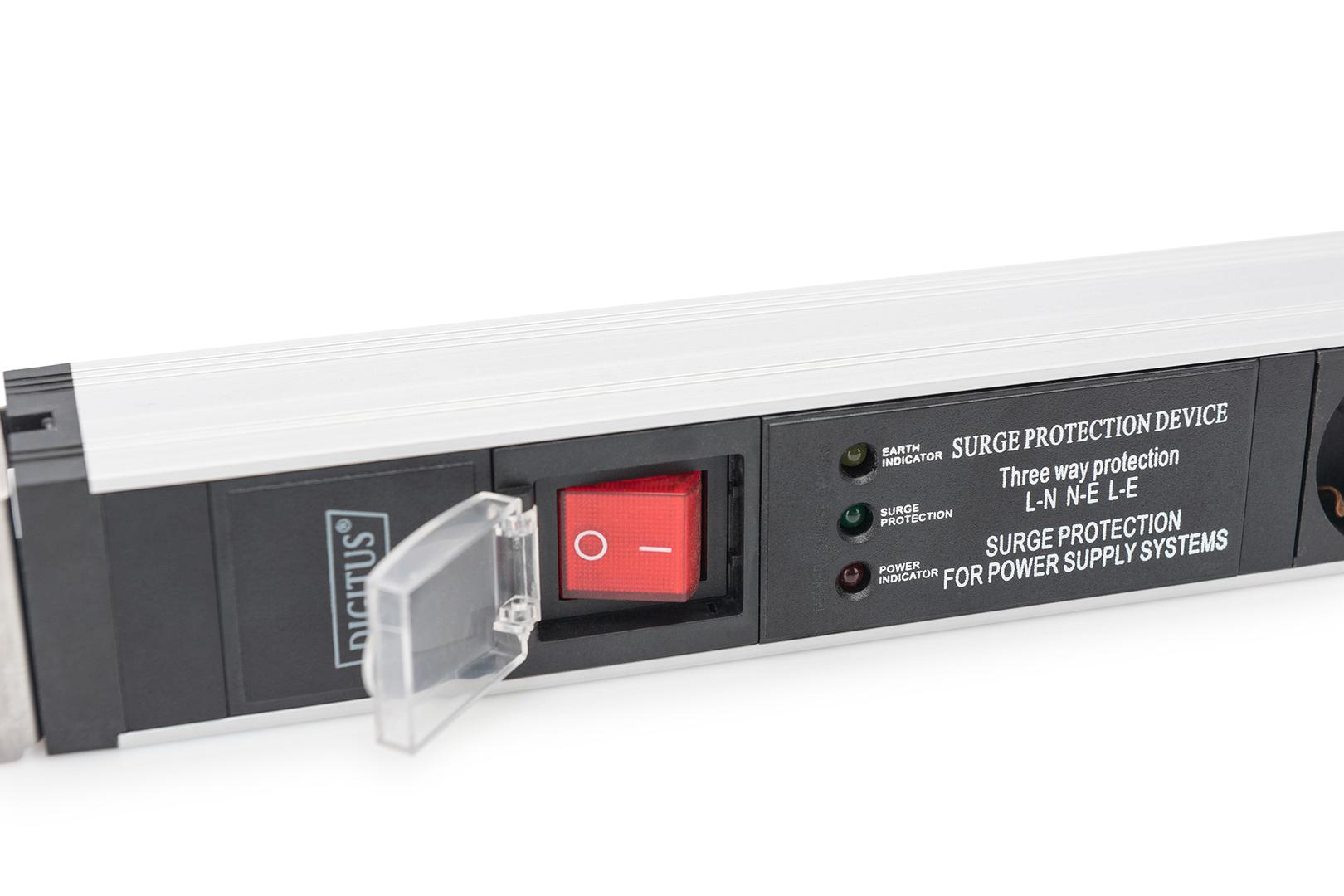

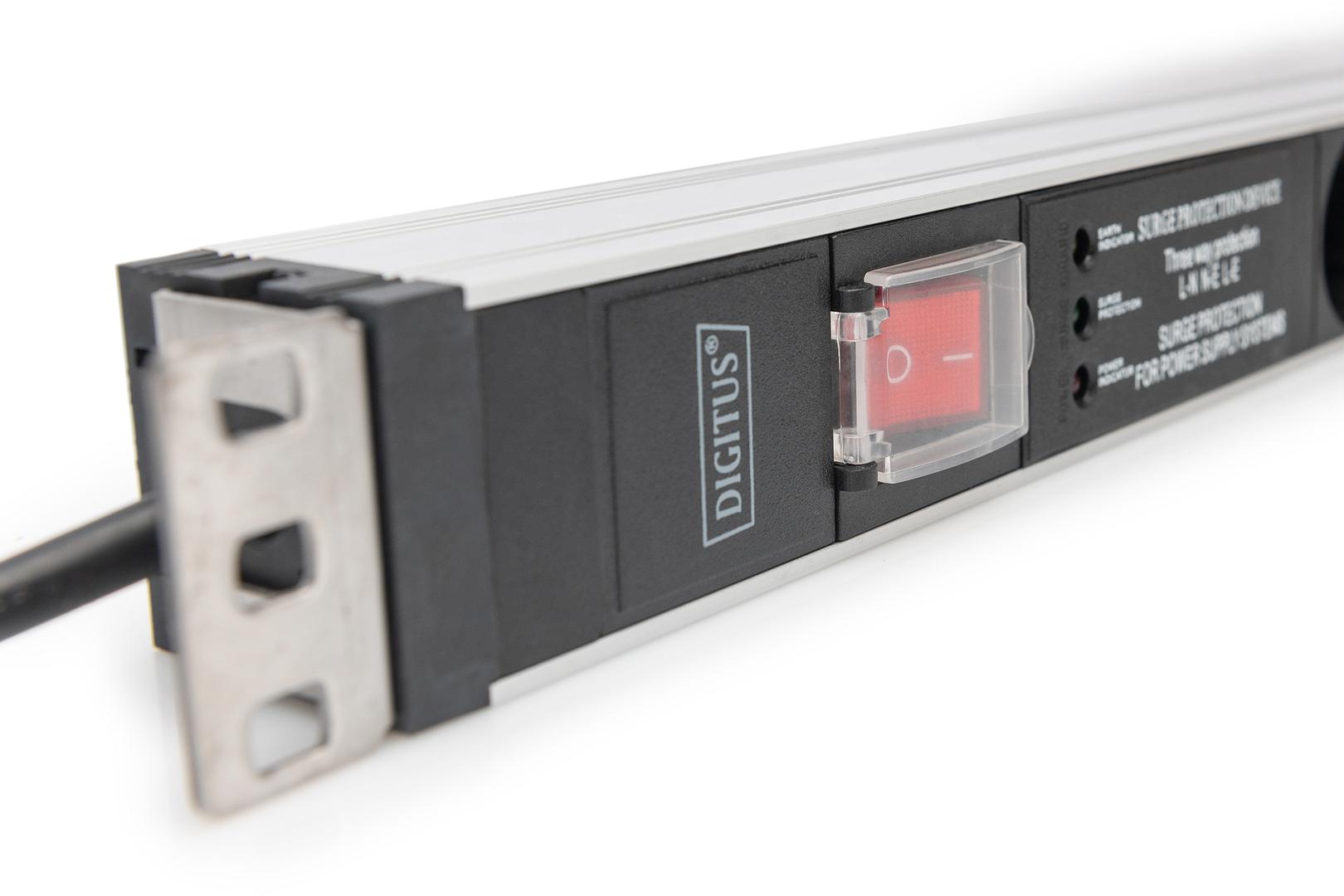

· Illuminated switch - protected against accidentally being switched off· Integrated line filter
· Integrated surge protection: Nominal
· discharge current (In) - 10 kA
· Socket rotation: 35°
· Housing: Aluminum
· Plastic components made of ABS UL-94V-0

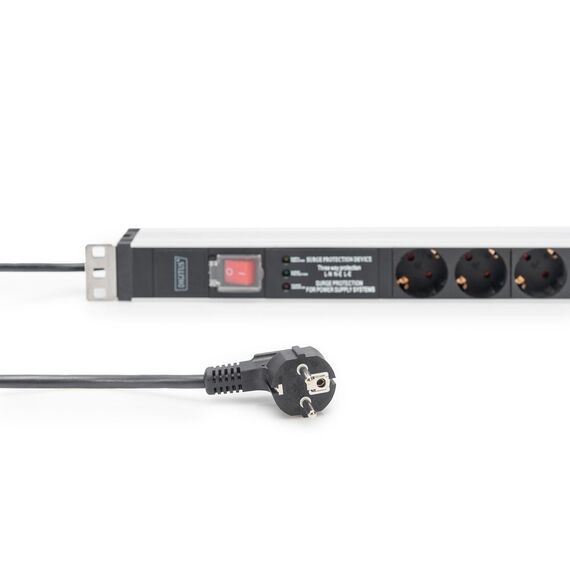

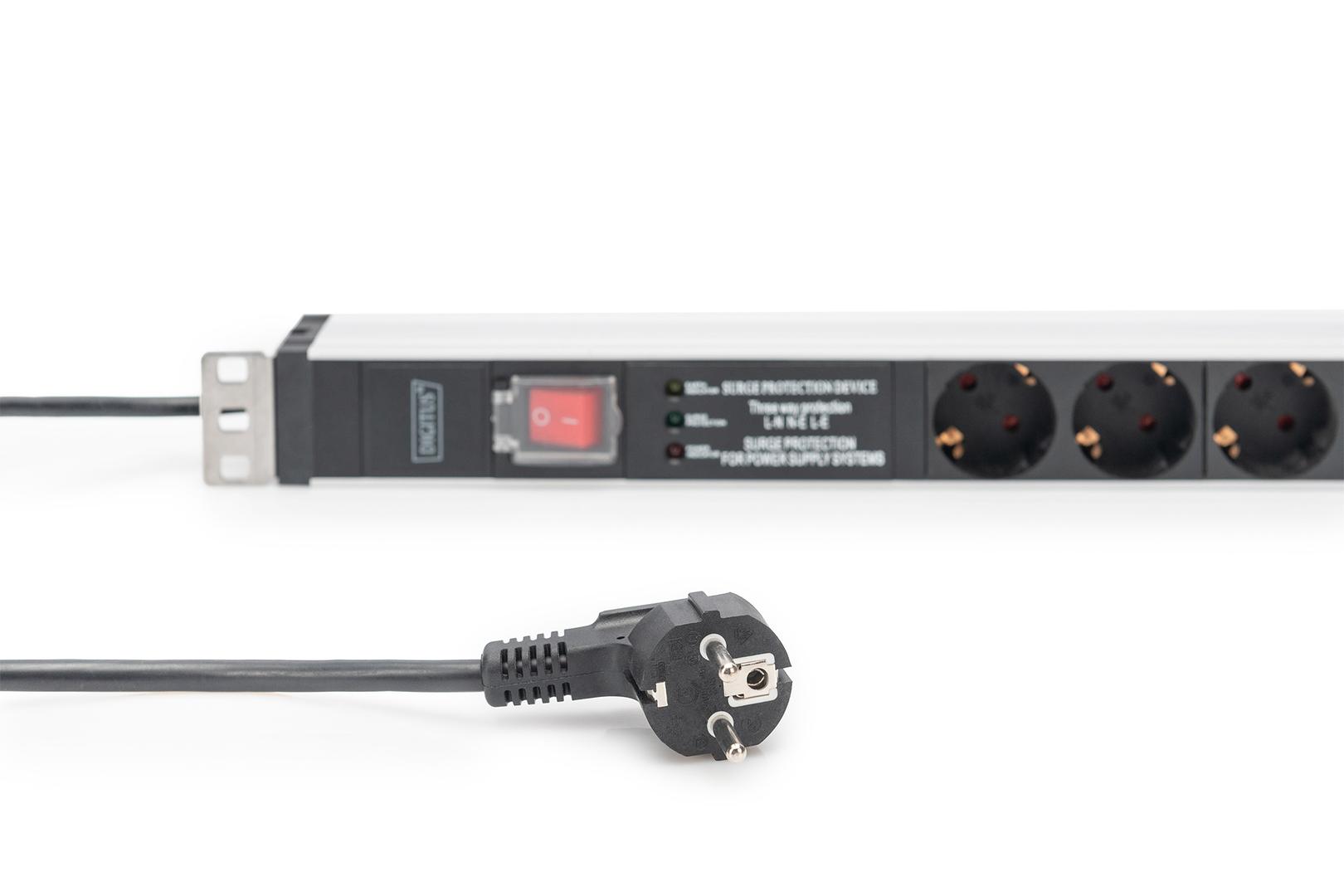

· Input: Plug grounding contact CEE 7/7, 230 Vac / 16 A
· Output: Device socket 5 x grounding contact DIN 49440, max. 16 A per output
· Cable: H05VV-F 3G 1.5 mm², length: 2 m
· Dimensions: 482.6 (19") x 45 (1U) x 45 mm (HxWxD)
Special Fetures
· Perfect current distribution for your network and IT rack· The illuminated switch is protected against accidentally being switched off
· Integrated line filter and surge protection module protect the connected consumers against disruptions from the grid

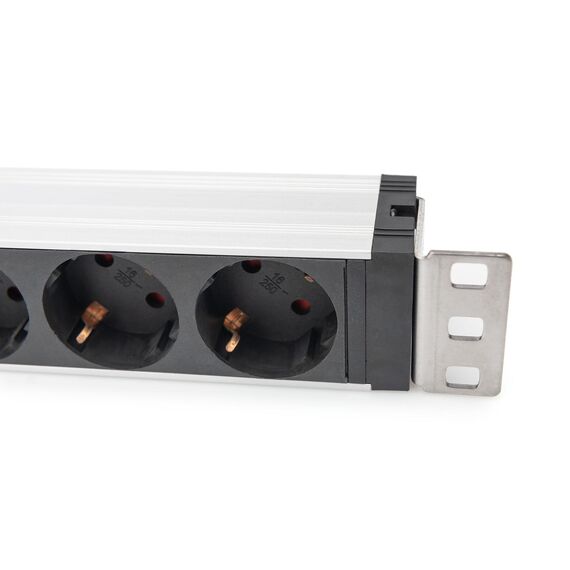

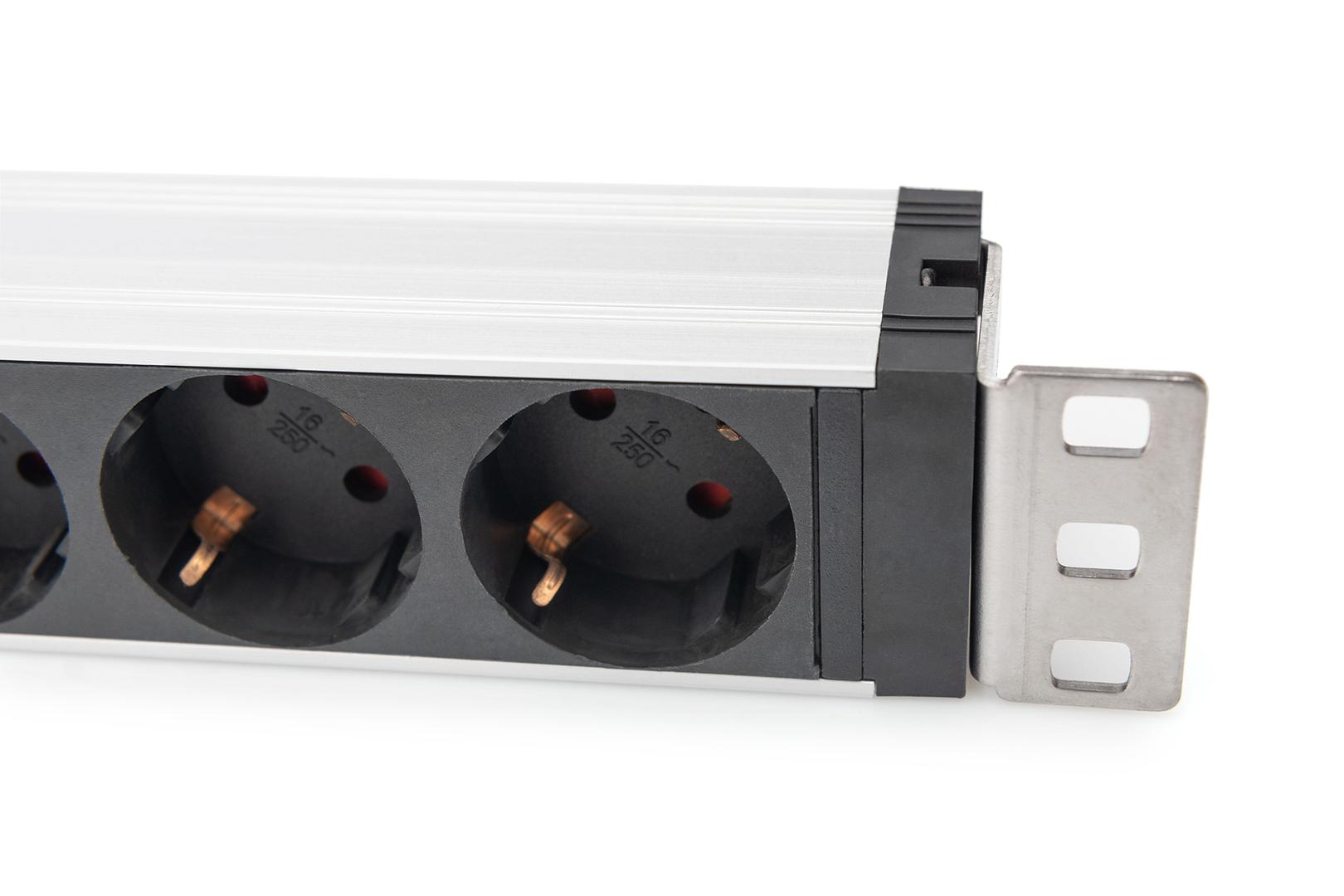

· Jacks are rotated by up to 35°, which offers optimal space management and easy access
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Cord Length | 2 m |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |
| Power Output Connectors Details | 5 x power CEE 7/3 |
| Max Electric Current | 16 A |
| Power Capacity | 3600 VA |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets |
| Cables Included | Power cable 2 m |
| Features | Surge protection, illuminated on/off switch with cover, aluminium profile, over voltage protection, internal line filter, 35° rotating outlets |
| Compliant Standards | UL 94 V-0 |
| Dimensions & Weight | |
| Width | 48.26 cm |
| Depth | 4.5 cm |
| Height | 4.5 cm |
| Weight | 850 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 51 cm |
| Shipping Depth | 9.7 cm |
| Shipping Height | 5.8 cm |
| Shipping Weight | 1.18 kg |
Features - Digitus - DN-95433
More Details
Product Code
03:202451
EAN Code
4016032483595
Manufacturer
Digitus
