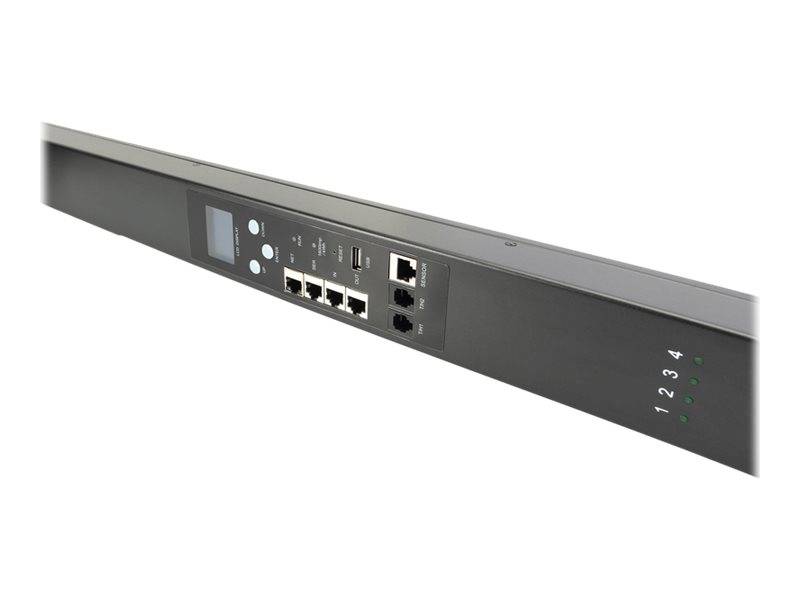

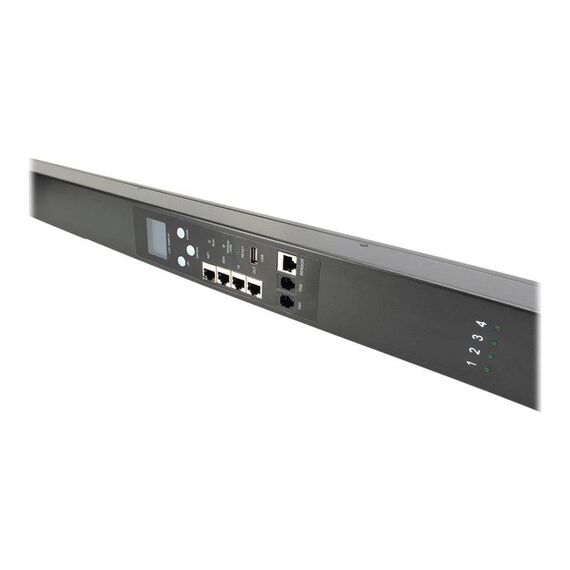

DIGITUS / Power distribution unit (rack-mountable) / AC 250 V / 4000 Watt / 1-phase / Ethernet 10/100, serial / input: IEC 60309 16A / output connectors: 16 (16 x IEC 60320 C13) / 3 m cord / black | DN-95628

Product Features

· Monitoring of input current / voltage / total energy consumption / total power / power factor
· Monitoring of output current / total energy consumption / total power
· Remote access method: Web interface, HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet and serial console
· Daisy-chaining of up to five PDUs (including master device)
· Multi-stage user access
· Compatible with temperature/humidity/smoke/leak sensors
· User-defined alarm: E-mail notification & alarm signal if threshold values are exceeded for total current, temperature / humidity
· Standard system alarm: If the total nominal power is exceeded; if smoke, water or an open door is detected
· RJ45 connections for Ethernet and serial communication
· USB A port for WLAN access or software upgrade
· Mains cable: 3 x 2.5 mm², IEC60309 16 A plug
· Cable: 3 m
· Max. load: 4000 W / 250 V AC / 16 A (50/60 Hz)

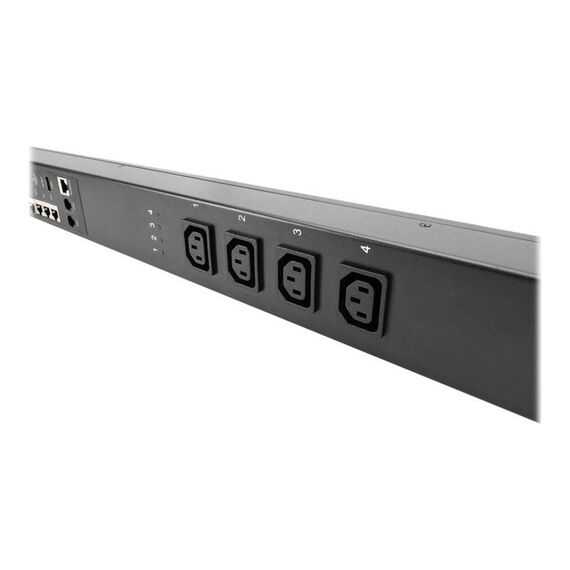

· Outlets: 16 x C13 outlet
· Output power: C13 (10A)
· 180 degree rotating HD display
· Dimensions (LxWxD): 1730 x 66 x 52 mm
· Temperature range (operation / storage): 0 °C to +45 °C/ -20 °C to +70 °C
· Humidity range (operation / storage): 5% - 95% RH / 5 - 95% RH (non-condensing)
· Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m
· Color: Black
· Protection type: IP44

Special Features

· Supports remote access via web, SNMP or Telnet
· Monitoring of input and output values
· Configurable system with user-defined threshold value setting
· Daisy chaining possible for up to 5 PDUs
· 180 degree rotating local HD display
· Supports alarm functions
· Monitoring of the rack environment with optional external sensors
· Intelligent integration into the central system
· Supports tool-free installation

Product Specification

Device Type	Power distribution unit - rack-mountable
Cord Length	3 m
Colour	Black
Power Device	Power Device
Input Voltage	AC 250 V
Input Wiring	1-phase
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60309 16A
Power Output Connectors Details	16 x power IEC 60320 C13 10 A
Max Electric Current	16 A
Power Capacity	4000 Watt
Circuit Protection	Circuit breaker
Networking	Networking
Remote Management Interface	Ethernet 10/100, serial
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, Modbus
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x USB 2.0 - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x cascading - RJ-45 ¦ 2 x sensor - RJ-11 ¦ 1 x sensor - RJ-45
Miscellaneous	Miscellaneous
Cables Included	Power cable 3 m
Features	On/off switch, audible alarm, LCD display, voltage monitoring, LED indicators, vertical orientation, email alerts support, cascadable, energy metre, power factor metre, monitored per outlet, rotating display, power measuring
Compliant Standards	IP44
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 95% RH (non-condensing)
Dimensions & Weight	Dimensions & Weight
Width	6.6 cm
Depth	5.2 cm
Height	173 cm
