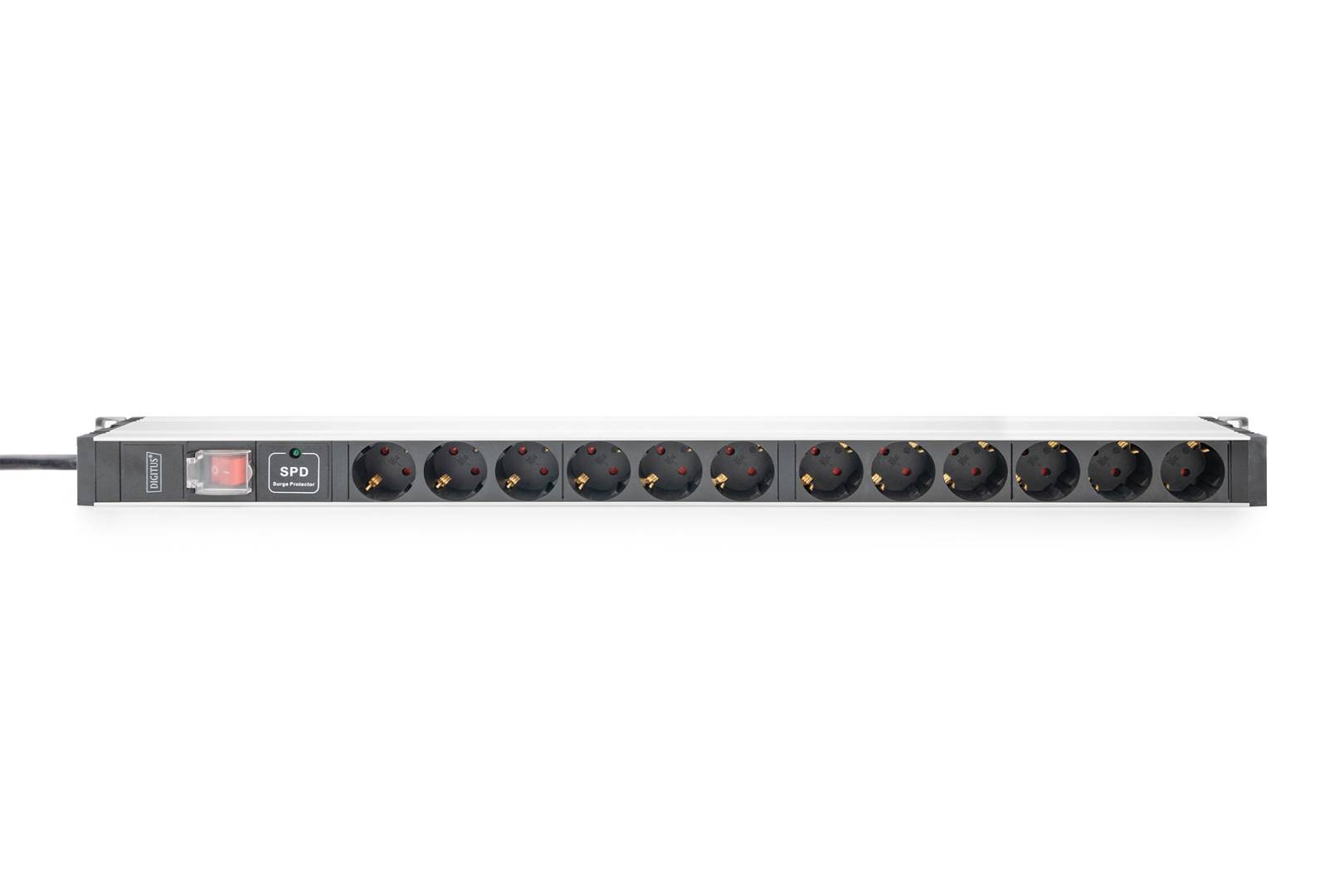

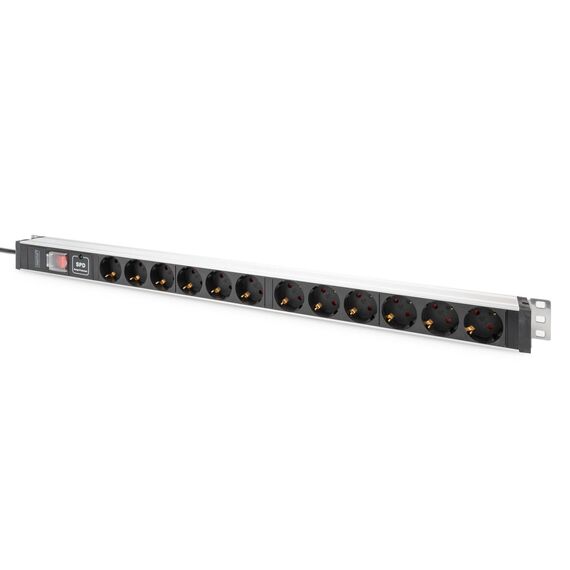

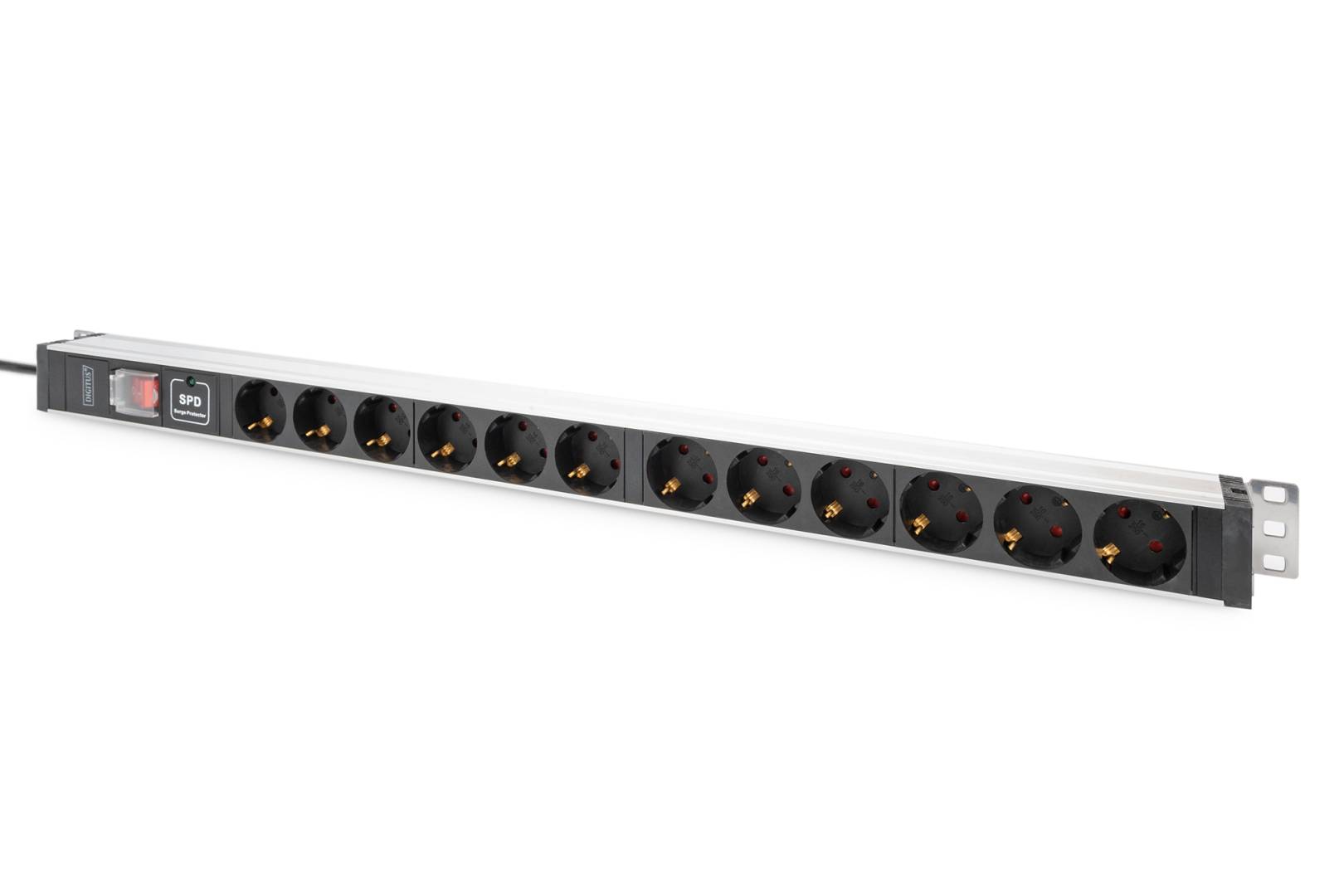

DIGITUS / Power distribution unit (rack-mountable) / AC 230 V / 3600 VA / 1-phase / input: CEE 7/7 / output connectors: 12 (CEE 7/3) / 0U / 2 m cord | DN-95435
Please sign in so that we can notify you about a reply
Product Features
· Vertical installation· Illuminated switch - protected against accidental
· Surge protection module against overvoltage
· Surge protection: Nominal discharge current (In) 5 kA
· Socket rotation: 35°
· Housing: Aluminum
· Plastic components made of ABS UL-94V-0

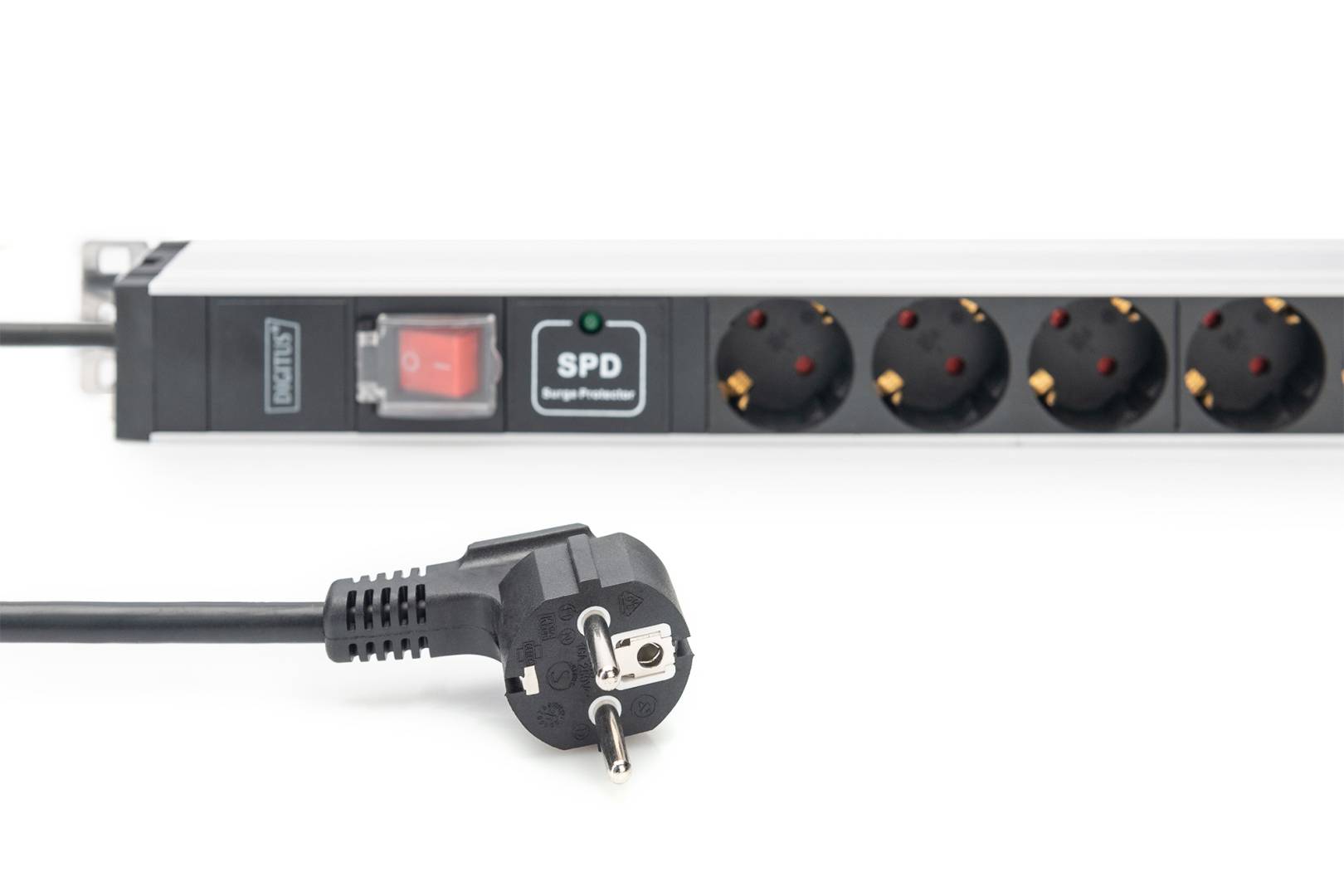

· Input: Plug grounding contact CEE 7/7, 230 Vac / 16 A
· Output: Device socket 12 x grounding contact DIN 49440, max. 16 A per output
· Cable: H05VV-F 3G 1.5 mm², length: 2 m
· Dimensions: 643.9 x 45 x 45 mm (HxWxD)
Special Features

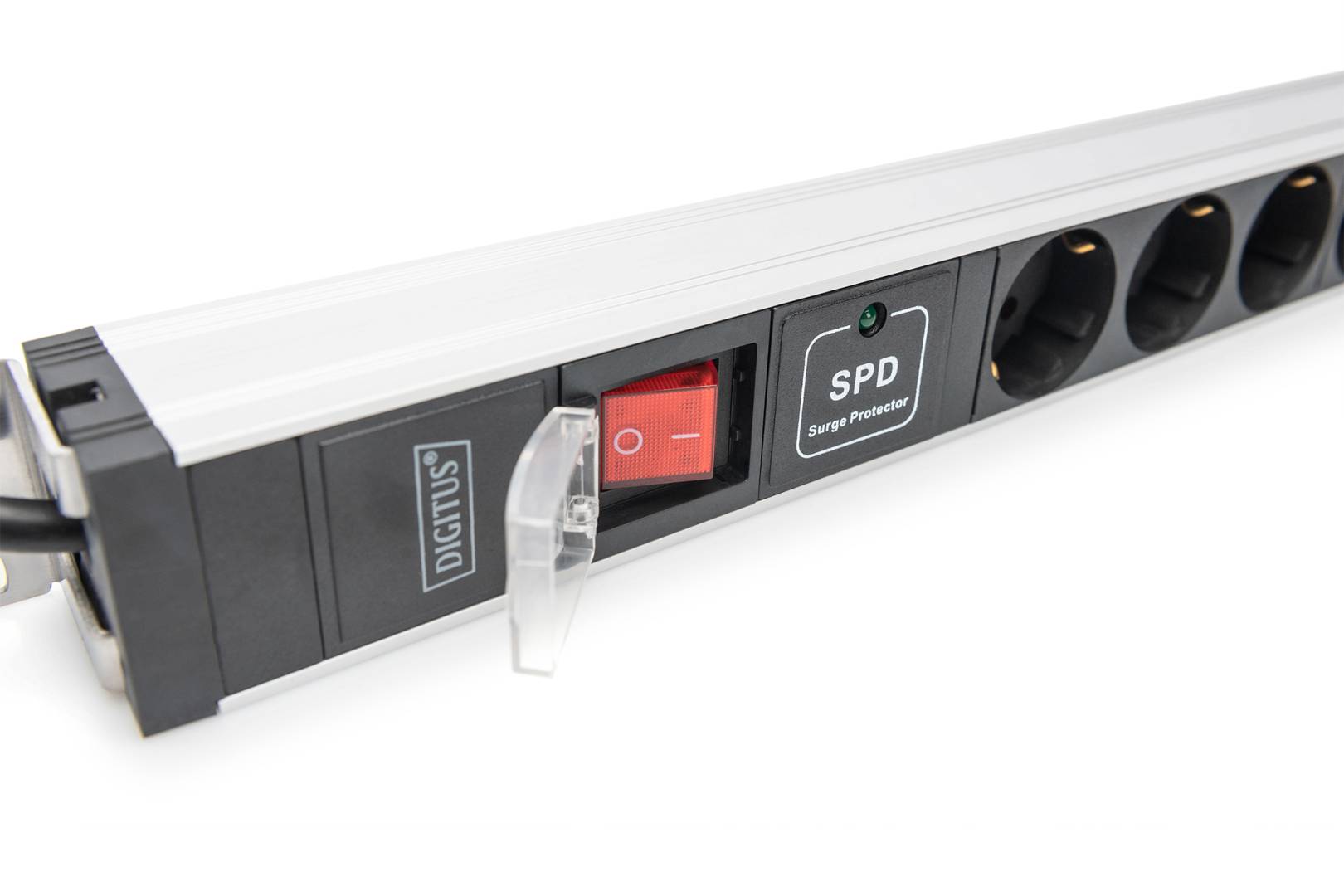

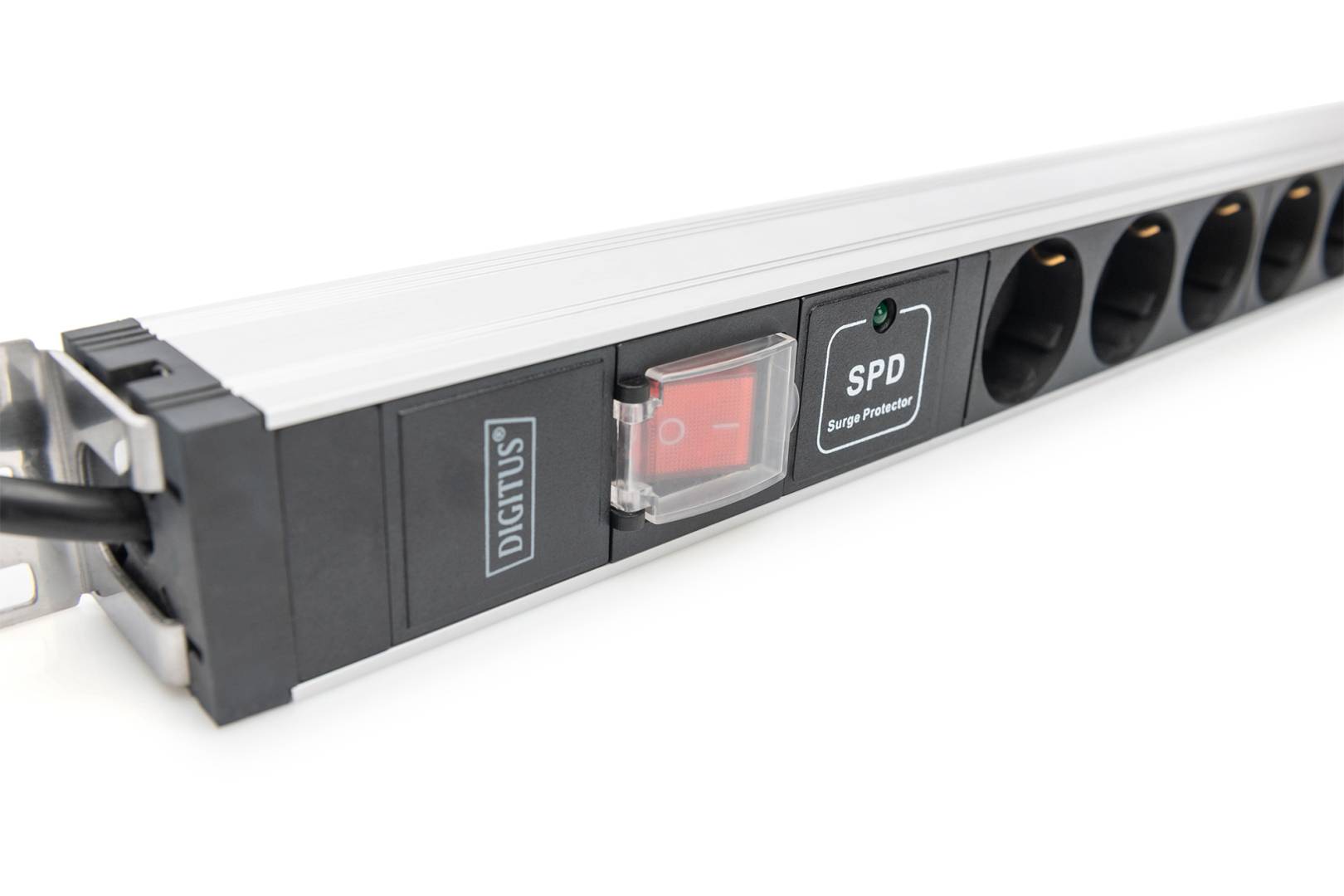

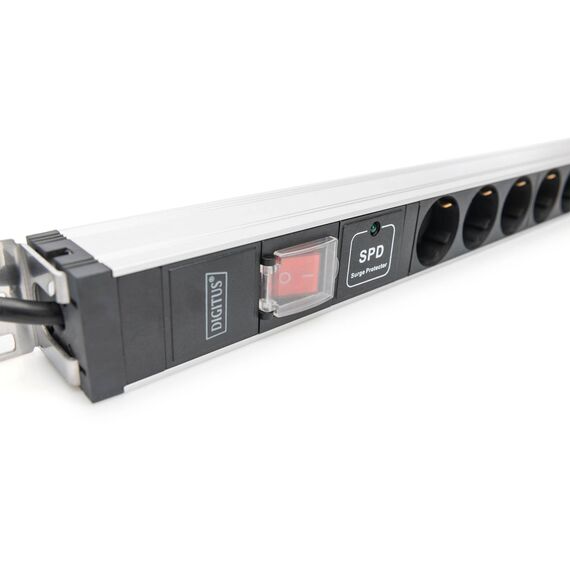

· Perfect current distribution for your network and IT rack· The illuminated switch is protected against accidentally being switched off
· Integrated surge protection protects connected users from overvoltage.
· Jacks are rotated by up to 35°, which offers optimal space management and easy access
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 2 m |
| Power Device | Power Device |
| Input Voltage | AC 230 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |
| Power Output Connectors Details | 12 x power CEE 7/3 |
| Max Electric Current | 16 A |
| Power Capacity | 3600 VA |
| Max Spike Current | 5000 A |
| Miscellaneous | Miscellaneous |

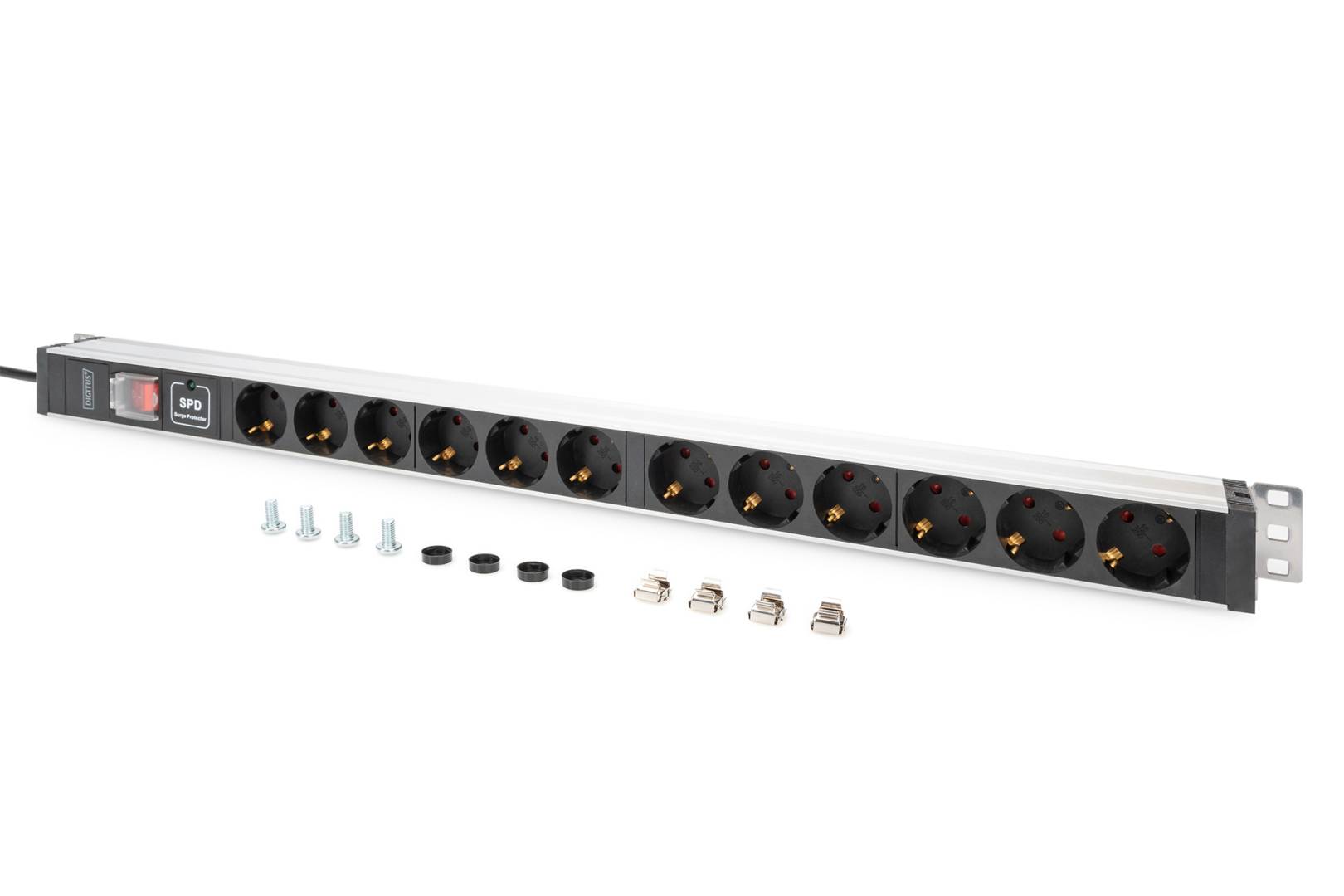

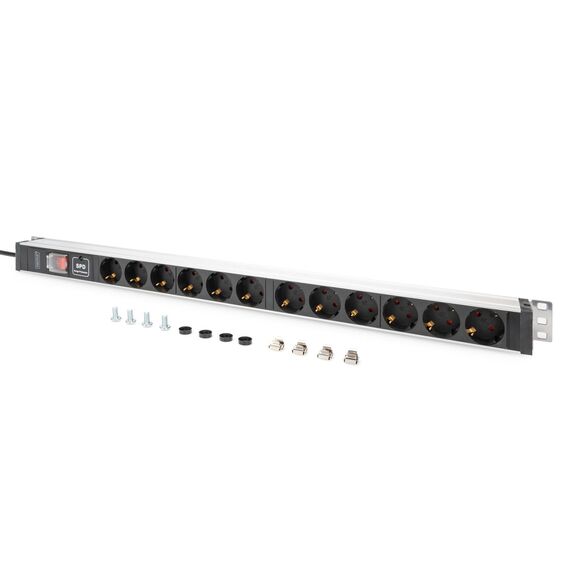

| Included Accessories | 2 mounting brackets |
| Cables Included | Power cable - integrated - 2 m |
| Features | Surge protection, illuminated on/off switch with cover, vertical mount, aluminium profile, over voltage protection, 35° rotating outlets |
| Compliant Standards | UL 94 V-0, DIN 49440 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.5 cm |
| Depth | 4.5 cm |
| Height | 64.39 cm |
Features - Digitus - DN-95435
More Details
Product Code
04:415086
EAN Code
4016032483618
Manufacturer
Digitus
