Digitus Long Range PoE Extender 10/100 Mbit. Type: Network transmitter, Maximum transfer distance: 800 m, Data transfer rate: 100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 8 | DN-95129

Product Features

· Complies with IEEE802.3af/at/bt Standard
· Capable of transmitting both data and power on a single network cable
· Support 10/100Mbps data transmission
· Single DN-95129 use with a regular PoE Switch, power over internet(PoE) distance is 100 meters maximum with 100Mpbs
· Two DN-95129 use with a regular PoE Switch, power over internet(PoE) distance is 300 meters with 100Mbps or up to 800 meters maximum with 10Mbps
· 1 PD receiving terminal ,1 PSE supply terminal
· Plug-and-play, no configuration required
· Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

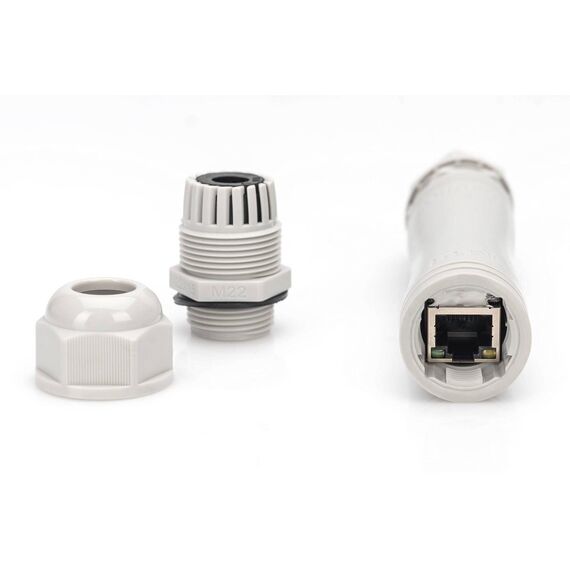

· Port: 2*10/100Mbps RJ45 ports
· Dimensions (L*W*H):156.5*29*29MM
· RJ45 PoE: Data Pairs 1/2 (+) 3/6 (-) 4/5 (+) 7/8 (-)
· Power Supply:PoE
· PD Port Input:IEEE802.3af/at/bt
· PoE Power Output:IEEE802.3af/at/bt
· Operating Temperature:-10 °C ~ 55 °C
· Storage Temperature: -40 °C ~ 70 °C
· Operating Humidity: 10% ~ 90% non-condensing
· Storage Humidity: 5% ~ 90% non-condensing
· It's ideal for harsh outdoor environment
· Plastic housing, protection class IP67

Special Features

· Complies with IEEE802.3af/at/bt Standard
· Capable of transmitting both data and power on a single network cable
· Support 10/100Mbps data transmission
· Single DN-95129 use with a regular PoE Switch, power over internet(PoE) distance is 100 meters maximum with 100Mpbs
· Two DN-95129 use with a regular PoE Switch, power over internet(PoE) distance is 300 meters with 100Mbps or up to 800 meters maximum with 10Mbps
· 1 PD receiving terminal ,1 PSE supply terminal
· Plug-and-play, no configuration required
· Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
· Port: 2*10/100Mbps RJ45 ports
· It's ideal for harsh outdoor environment

Product Specification

Type	Network transmitter
Maximum transfer distance	800 m
Data transfer rate	100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Product colour	White
Housing material	Plastic
Quantity per pack	1 pc(s)
Width	29 mm
Depth	156.5 mm
Height	29 mm
Package width	32 mm
Package depth	175 mm
Package height	32 mm
