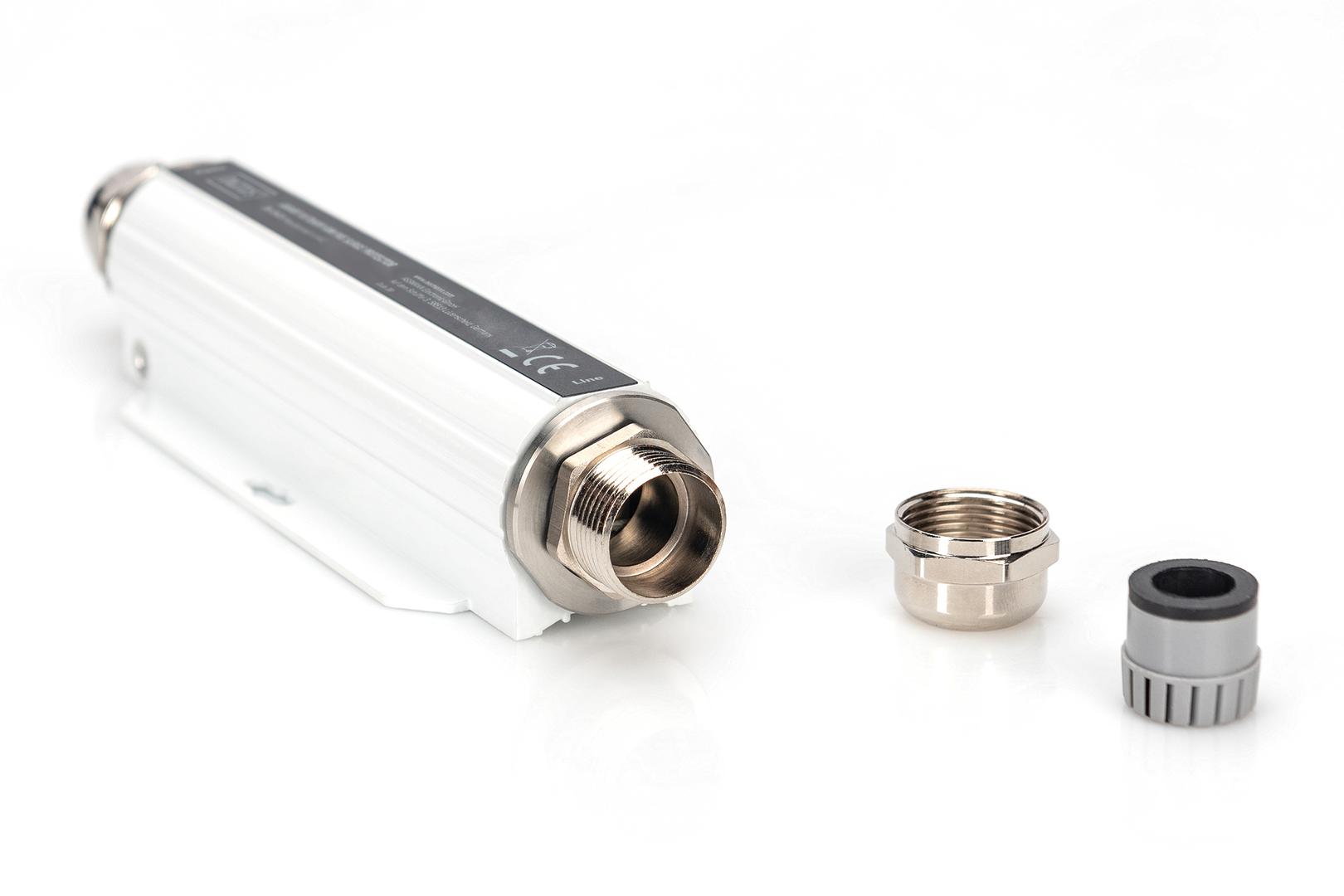

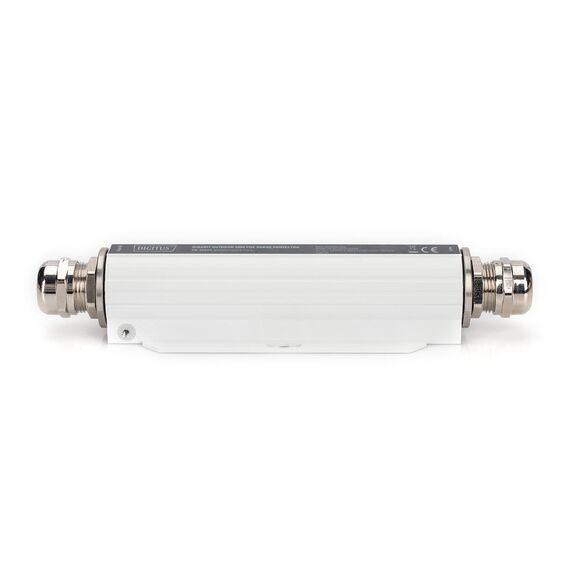

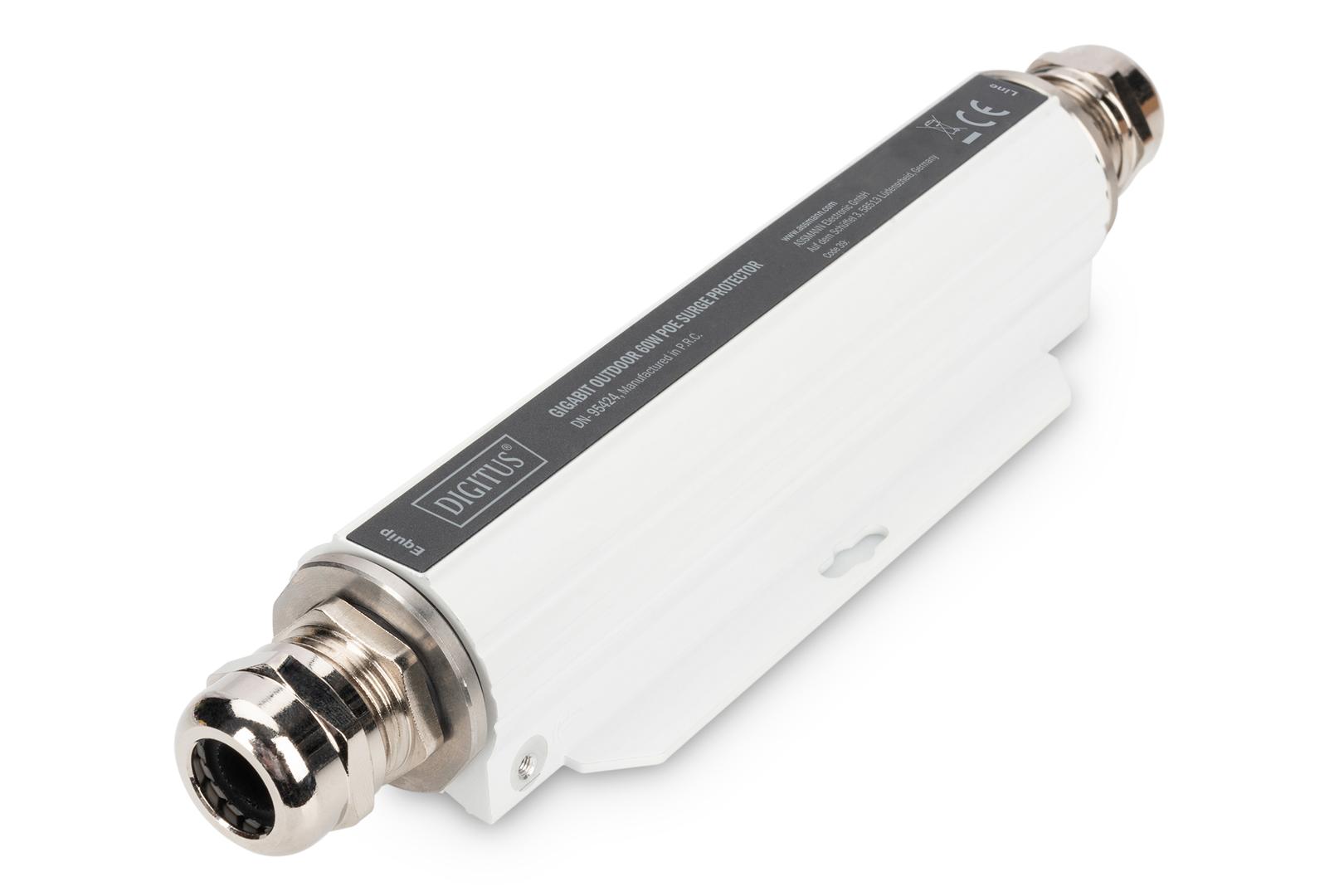

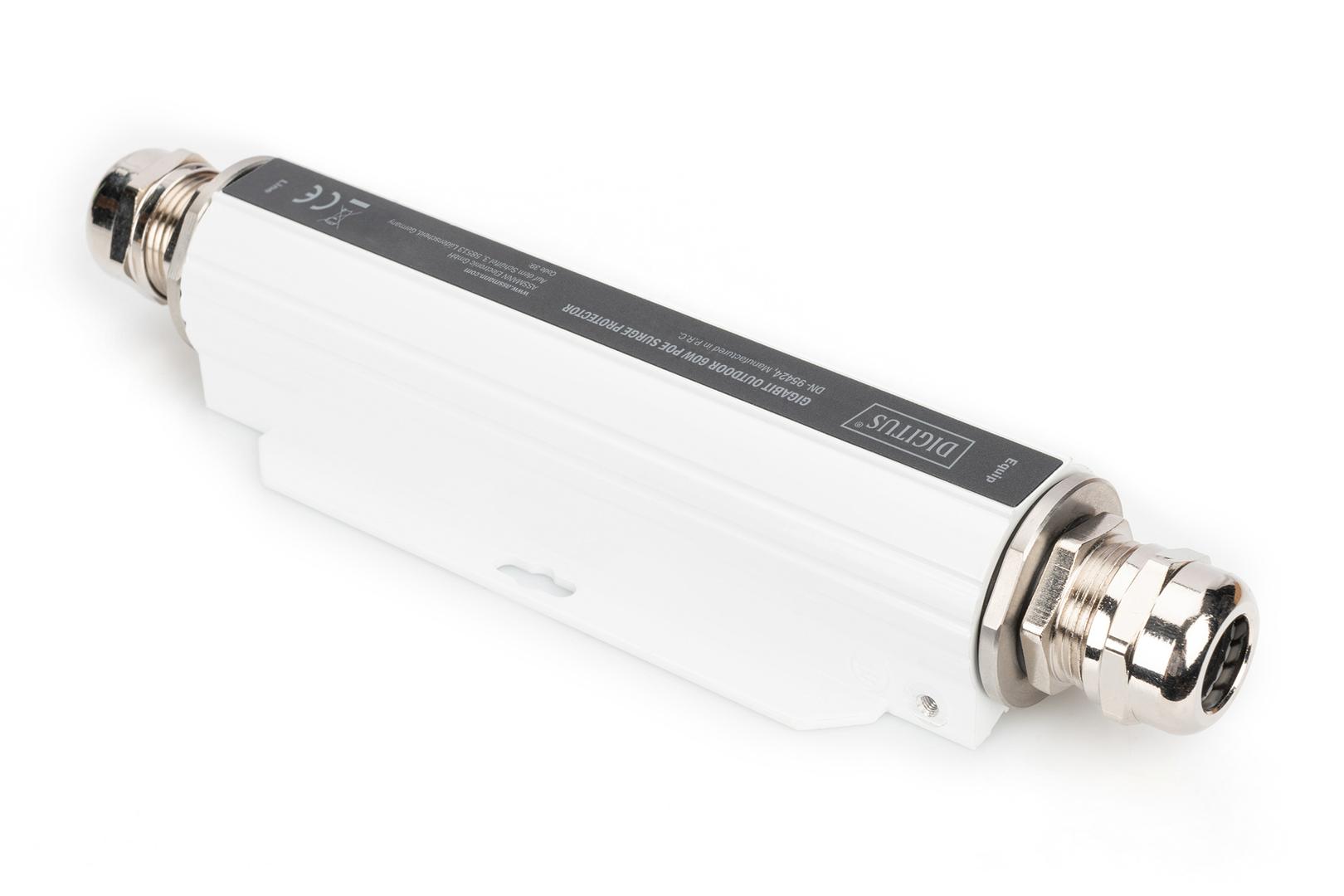

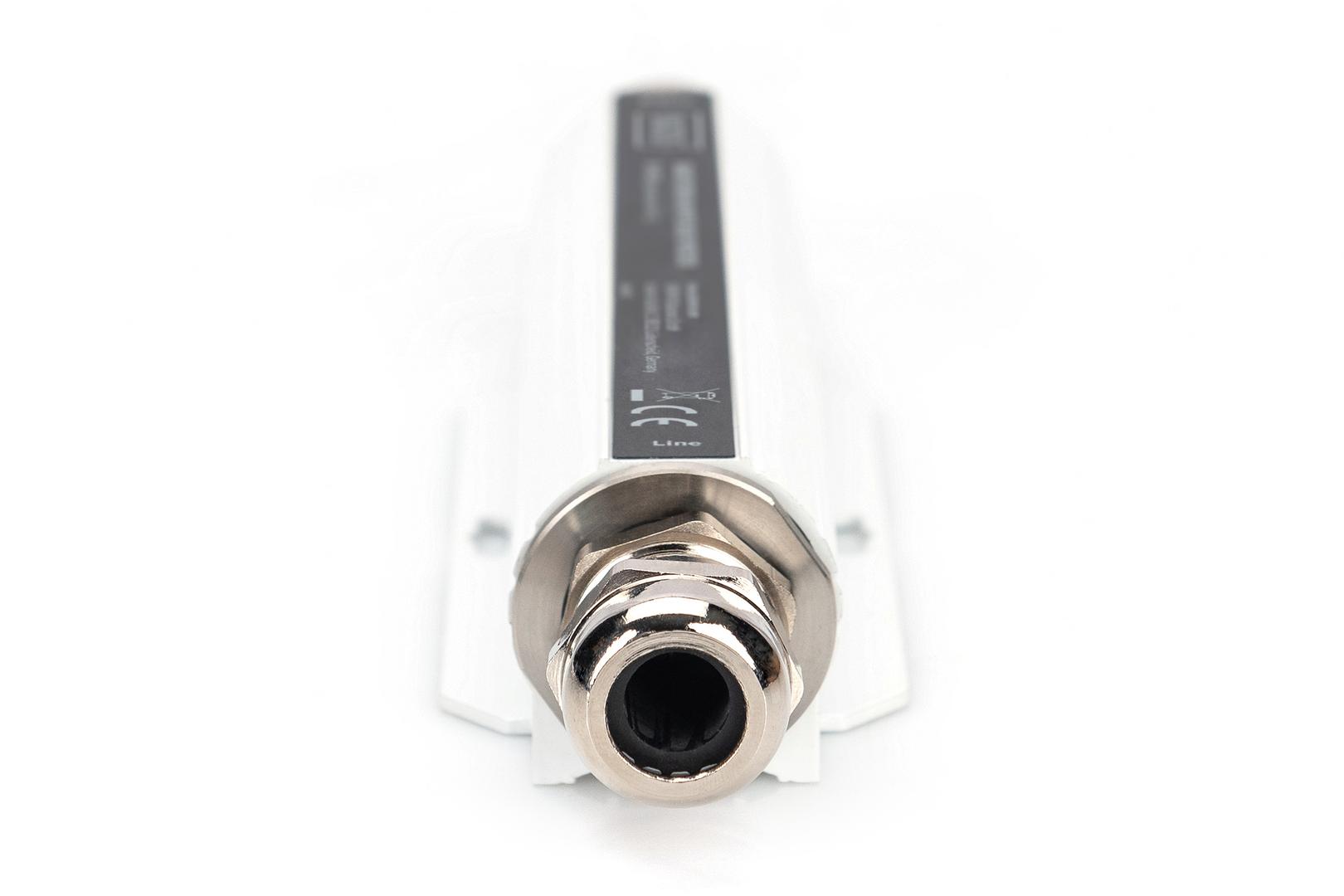

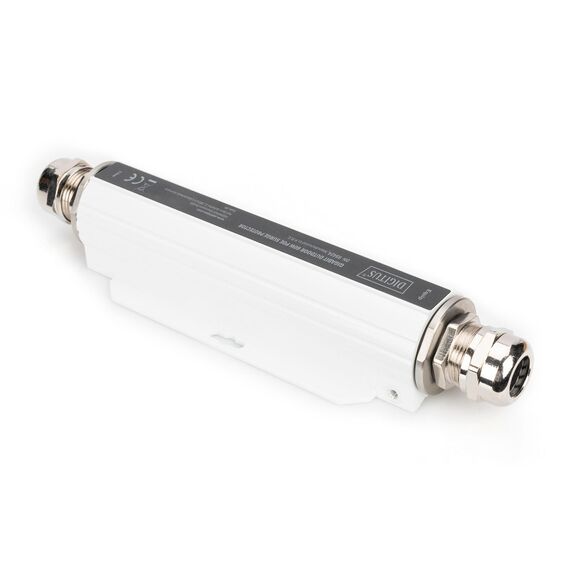

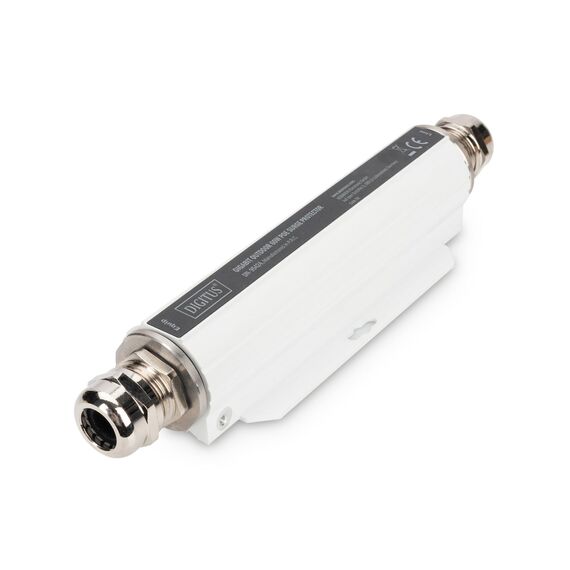

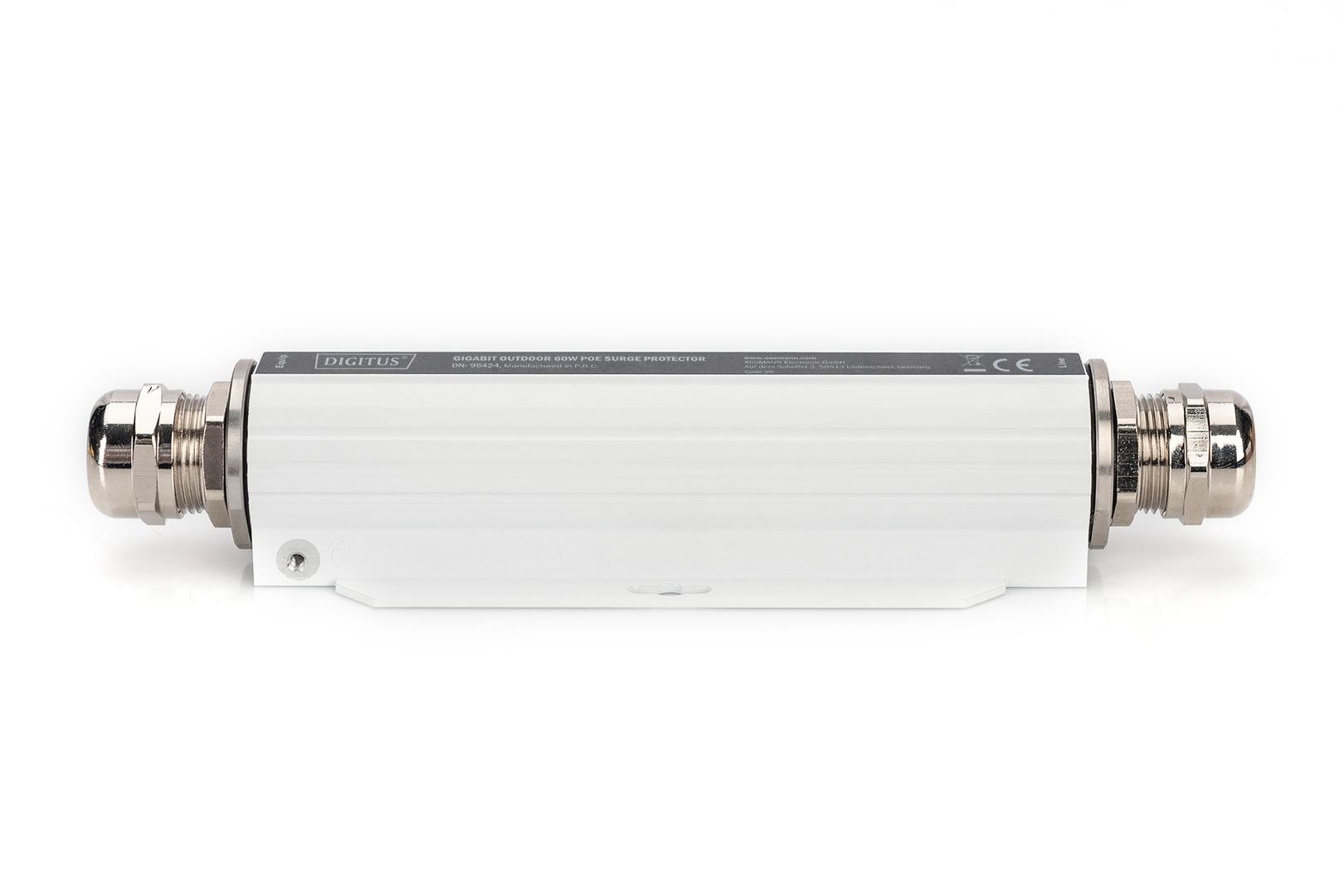

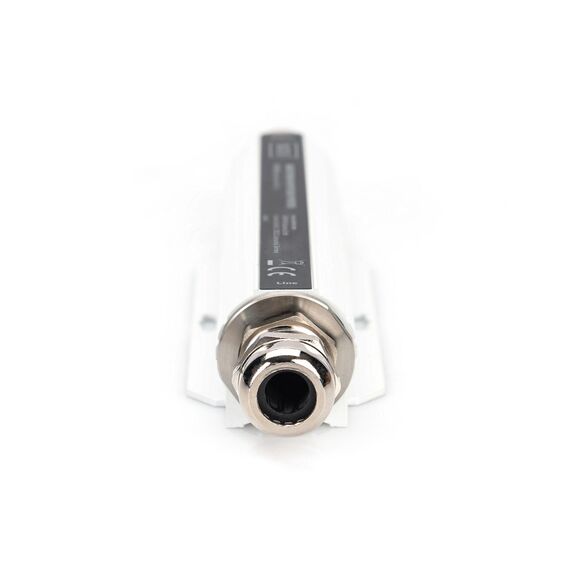

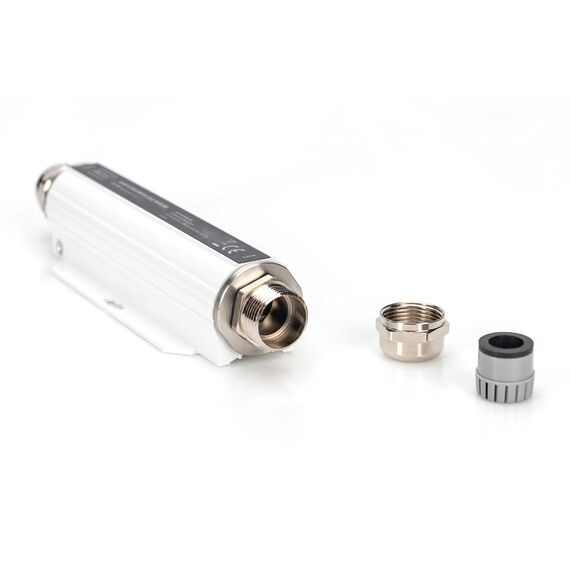

DIGITUS / PoE surge protector (wall mountable) / gigabit, outdoor, 60W / output connectors: 1 | DN-95424

Product Features

· maximum common mode surge voltage is 10KV(10/700us)
· and max differential mode surge voltage is 6KV(10/700us)
· supports 10/100/1000Mbps of data rates
· Ideal for 60W(max) PoE wires
· IP 67 ideal designed for outdoor use
· -  IEEE802.3 10Base-T Ethernet
· -  IEEE802.3u 100Base-Tx Fast Ethernet
· -  IEEE802.3ab 1000Base-T Gigabit Ethernet
· -  Support PoE wire with IEEE802.3af/at standards
· Support 60W PoE++ standards
· Operating Voltage : Support Max 60Vdc
· Maximum Operating DC Current :0.68A for 2 pairs, 1.36A for 4 pairs, maximum 60W
· Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
· Data Speed: 10/100/1000Mbps
· Operating Temperature: -40 to 65
· Operating Humidity: 20% to 80%, non-condensation
· Storage Temperature: -40 to 85
· Storage Humidity: 10% to 95%, non-condensation
· Operating Altitude: up to 5000meters
· Max Discharge Current: 20KA(8/20us,2.5KA per line)
· Protected Line: 1,2,3,4,5,6,7,8
· Common Mode Protection Level(10/700us): 10KV
· Differential Mode Protection Level(10/700us): 6KV
· Clamping Voltage(Line to GND): 120V
· Clamping Voltage(Line to Line): 25V
· Insertion Loss @10MHz/100MHz-1db
· Return Loss @10MHz/100MHz: -20db
· Response Time5ns
· Mounting: Wall-mounted
· IP Rated: IP67
· Size: 209mm X 53mm X 37.5mm
· Weight: 380g

Special Features

· maximum common mode surge voltage is 10KV(10/700us)
· and max differential mode surge voltage is 6KV(10/700us)
· supports 10/100/1000Mbps of data rates
· Ideal for 60W(max) PoE wires
· IP 67 ideal designed for outdoor use

Product Specification

Device Type	PoE surge protector - wall mountable
Power Over Ethernet (PoE)	PoE++ (IEEE 802.3bt)
Power Device	Power Device

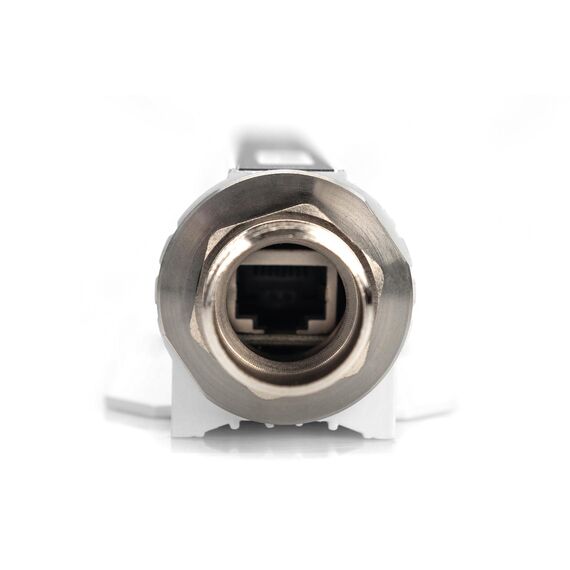

Input Connectors	1 x RJ-45
Power Output Connectors Details	1 x RJ-45 (surge)
Clamping Level	120 V
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Gigabit LAN - RJ-45
Miscellaneous	Miscellaneous
Included Accessories	Ground lug wire 16AWG x1
Features	For outdoor use
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IP67
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	65 °C
Humidity Range Operating	20 - 80% (non-condensing)
Dimensions & Weight	Dimensions & Weight
Width	20.9 cm
Depth	5.3 cm
Height	3.75 cm
Weight	380 g
