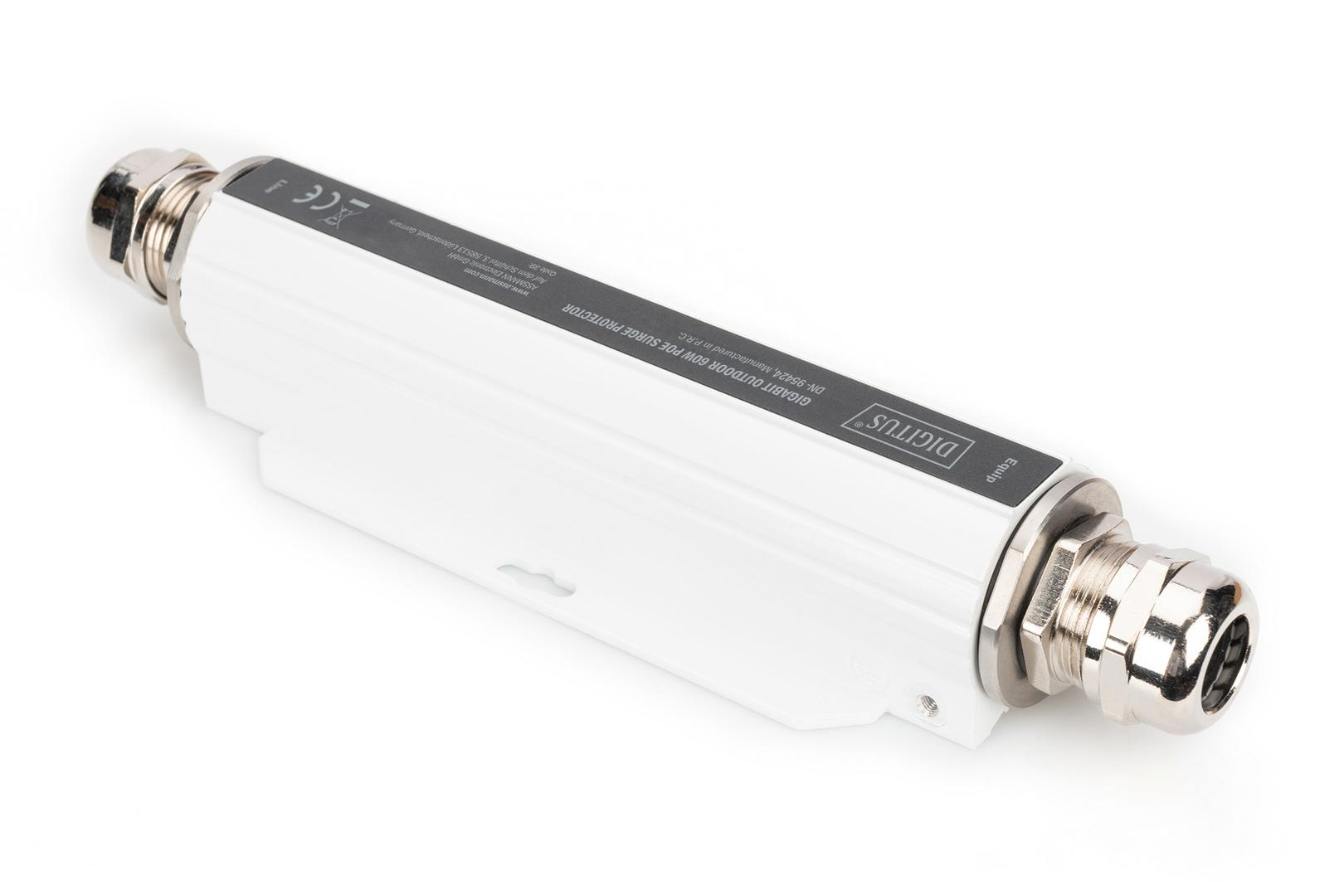

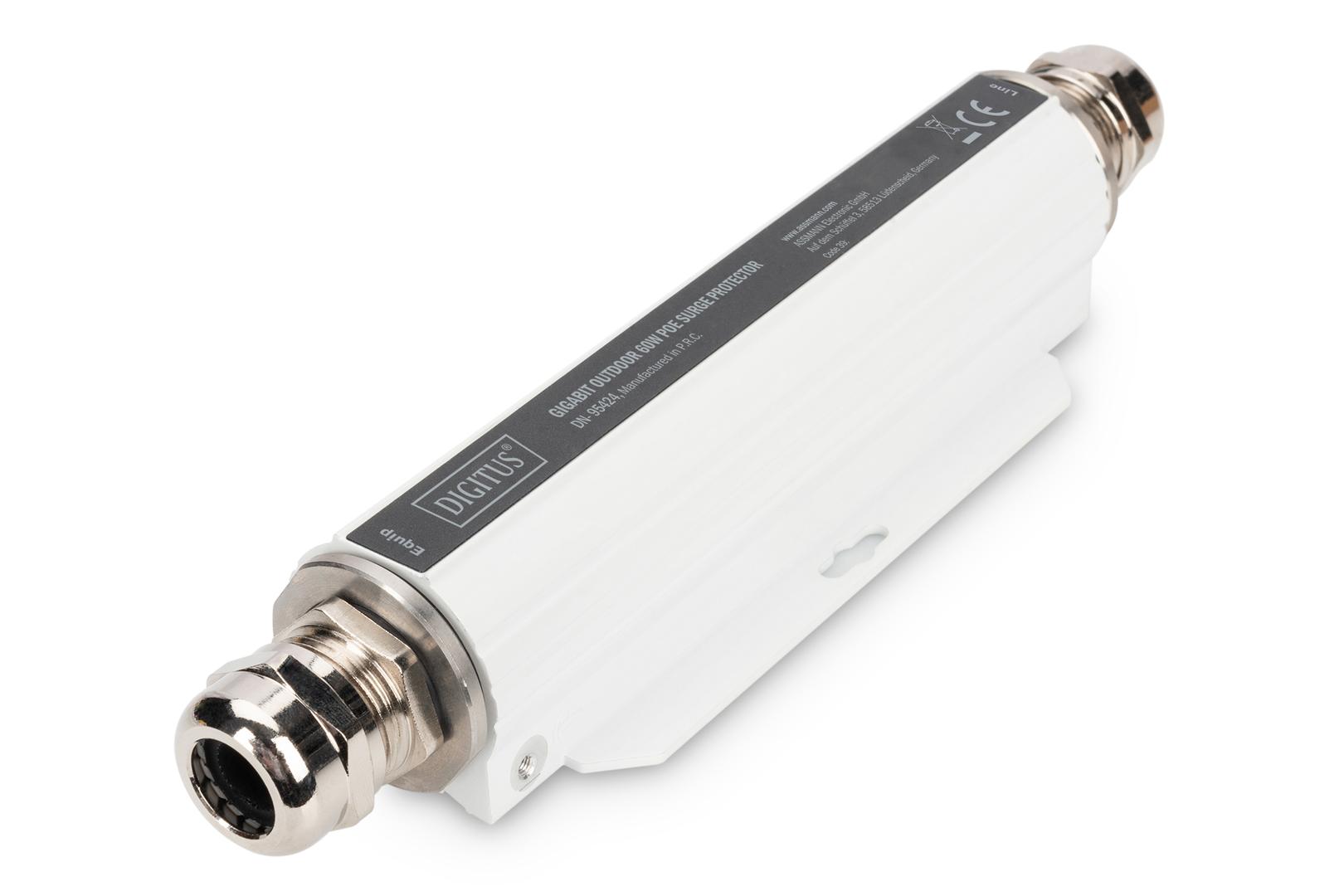

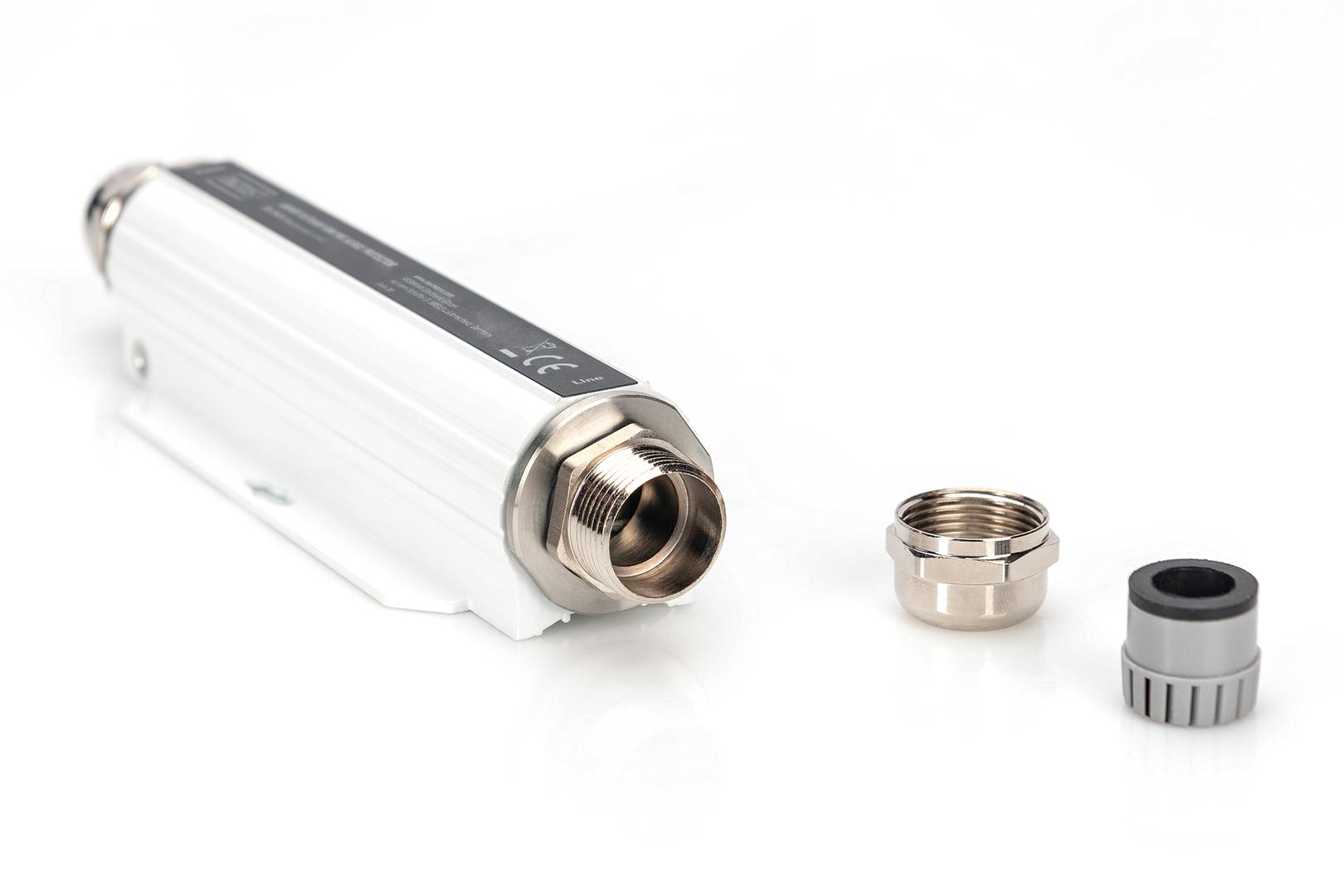

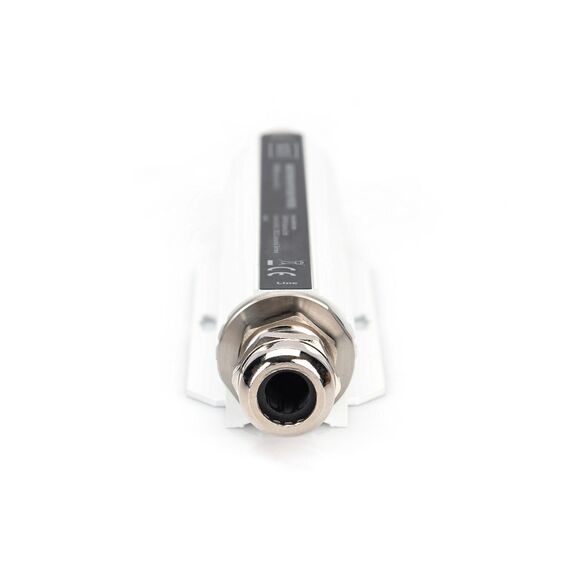

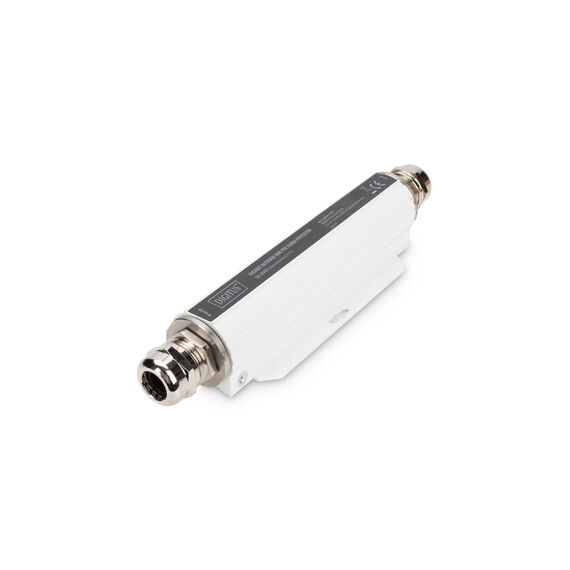

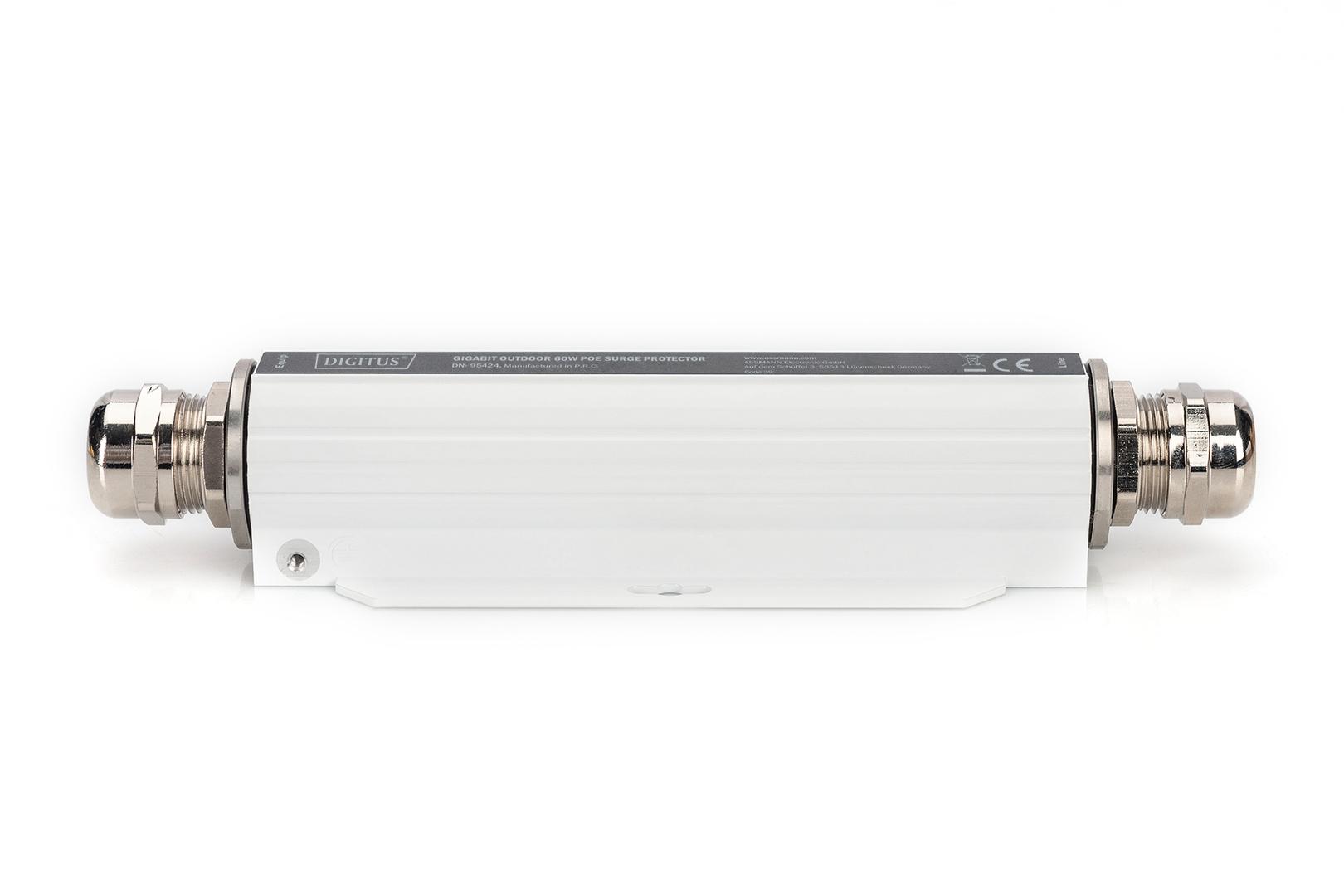

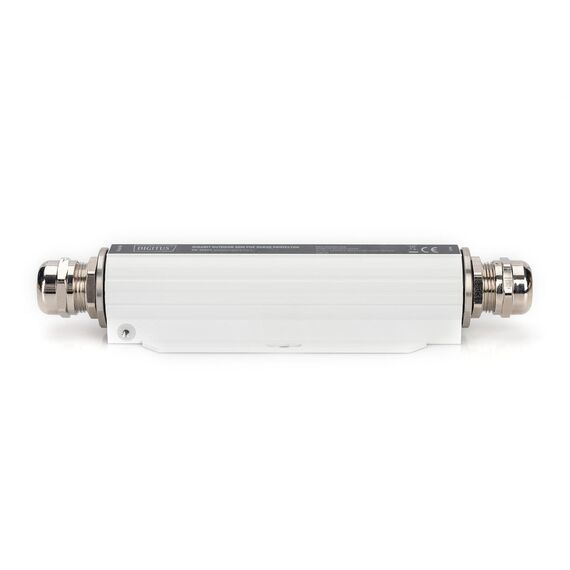

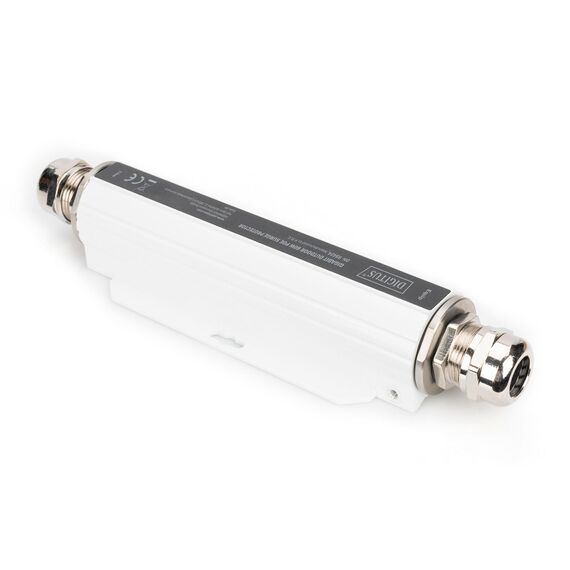

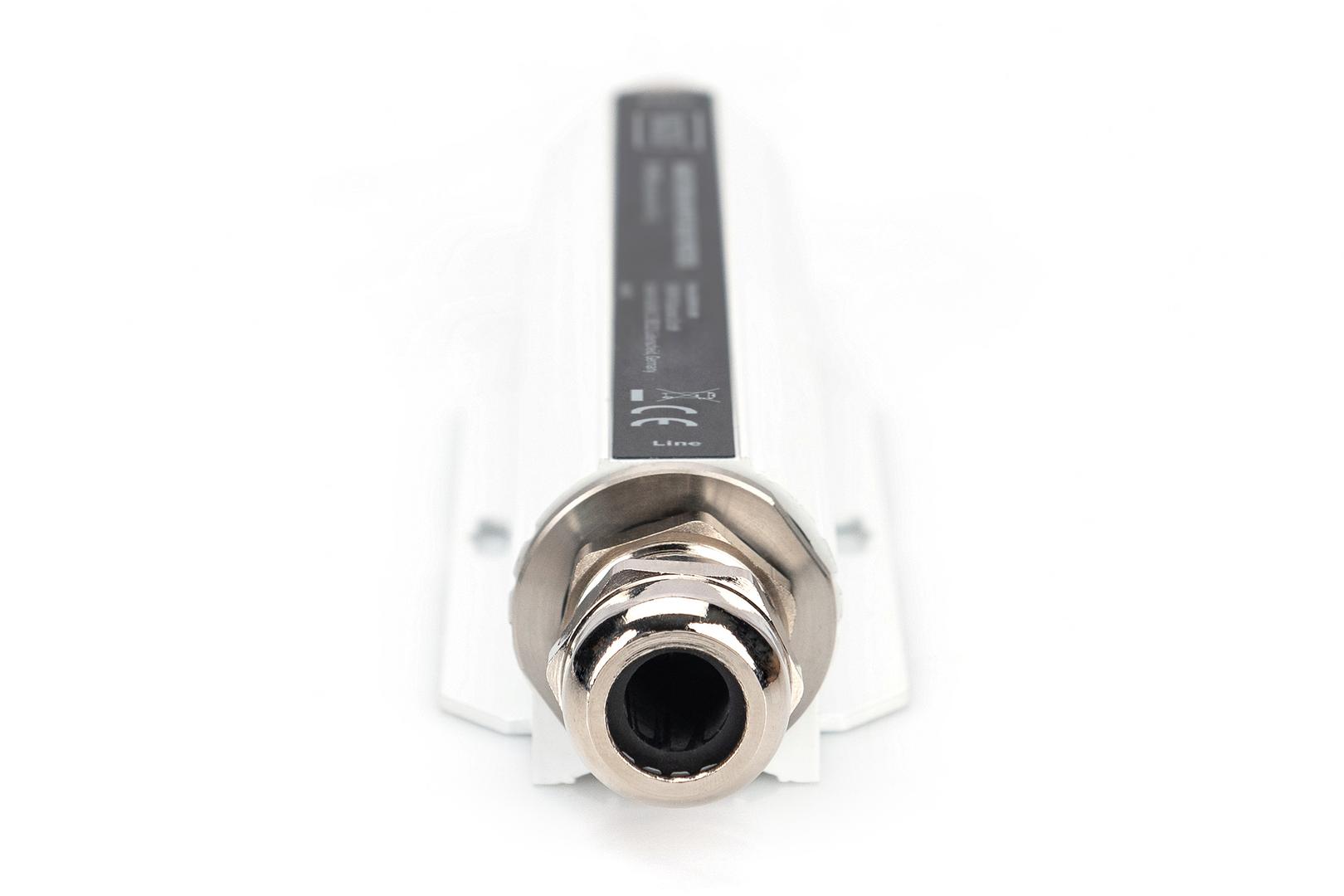

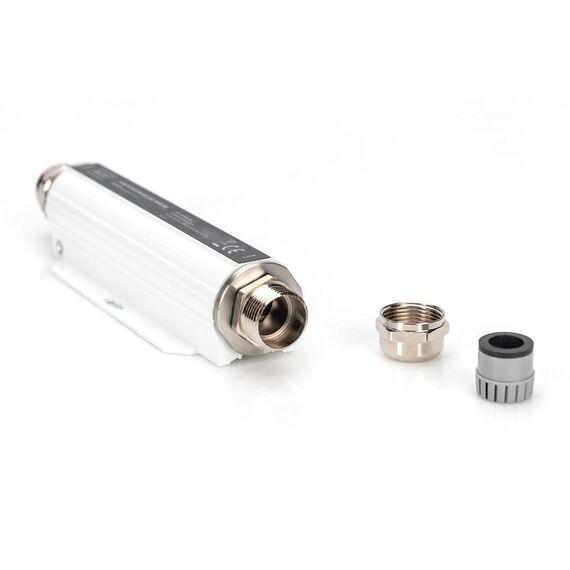

DIGITUS - PoE surge protector (wall mountable) - outdoor - 100 Watt - output connectors: 1 - white | DN-95425

Product Features

· maximum common mode surge voltage is 10KV(10/700us)
· and max differential mode surge voltage is 6KV(10/700us)
· supports 10/100/1000Mbps of data rates
· Ideal for 110W(max) PoE wires
· IP 67 ideal designed for outdoor use
· IEEE802.3 10Base-T Ethernet
· IEEE802.3u 100Base-Tx Fast Ethernet
· IEEE802.3ab 1000Base-T Gigabit Ethernet
· Support PoE wire with IEEE802.3af/at standards
· Support 100W PoE++ standards
· Operating Voltage : Support Max 60Vdc
· Maximum Operating DC Current :1A for 2 pairs, 2A for 4 pairs, maximum100W
· Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
· Data Speed: 10/100/1000Mbps
· Operating Temperature: -40 to 65
· Operating Humidity: 20% to 80%, non-condensation
· Storage Temperature: -40 to 85
· Storage Humidity: 10% to 95%, non-condensation
· Operating Altitude: up to 5000meters
· Max Discharge Current: 20KA(8/20us,2.5KA per line)
· Protected Line: 1,2,3,4,5,6,7,8
· Common Mode Protection Level(10/700us): 10KV
· Differential Mode Protection Level(10/700us): 6KV
· Clamping Voltage(Line to GND): 120V
· Clamping Voltage(Line to Line): 25V
· Insertion Loss @10MHz/100MHz-1db
· Return Loss @10MHz/100MHz: -20db
· Response Time5ns
· Case: Aluminium alloy
· Color: White
· Mounting: Wall-mounted
· IP Rated: IP67
· Size: 209mm X 53mm X 37.5mm
· Weight: 380g

Special Fetures

· maximum common mode surge voltage is 10KV(10/700us)
· and max differential mode surge voltage is 6KV(10/700us)
· supports 10/100/1000Mbps of data rates
· Ideal for 110 W(max) PoE wires
· IP 67 ideal designed for outdoor use

Product Specification

Device Type	PoE surge protector - wall mountable
Power Over Ethernet (PoE)	PoE++ (IEEE 802.3bt)
Colour	White
Power Device

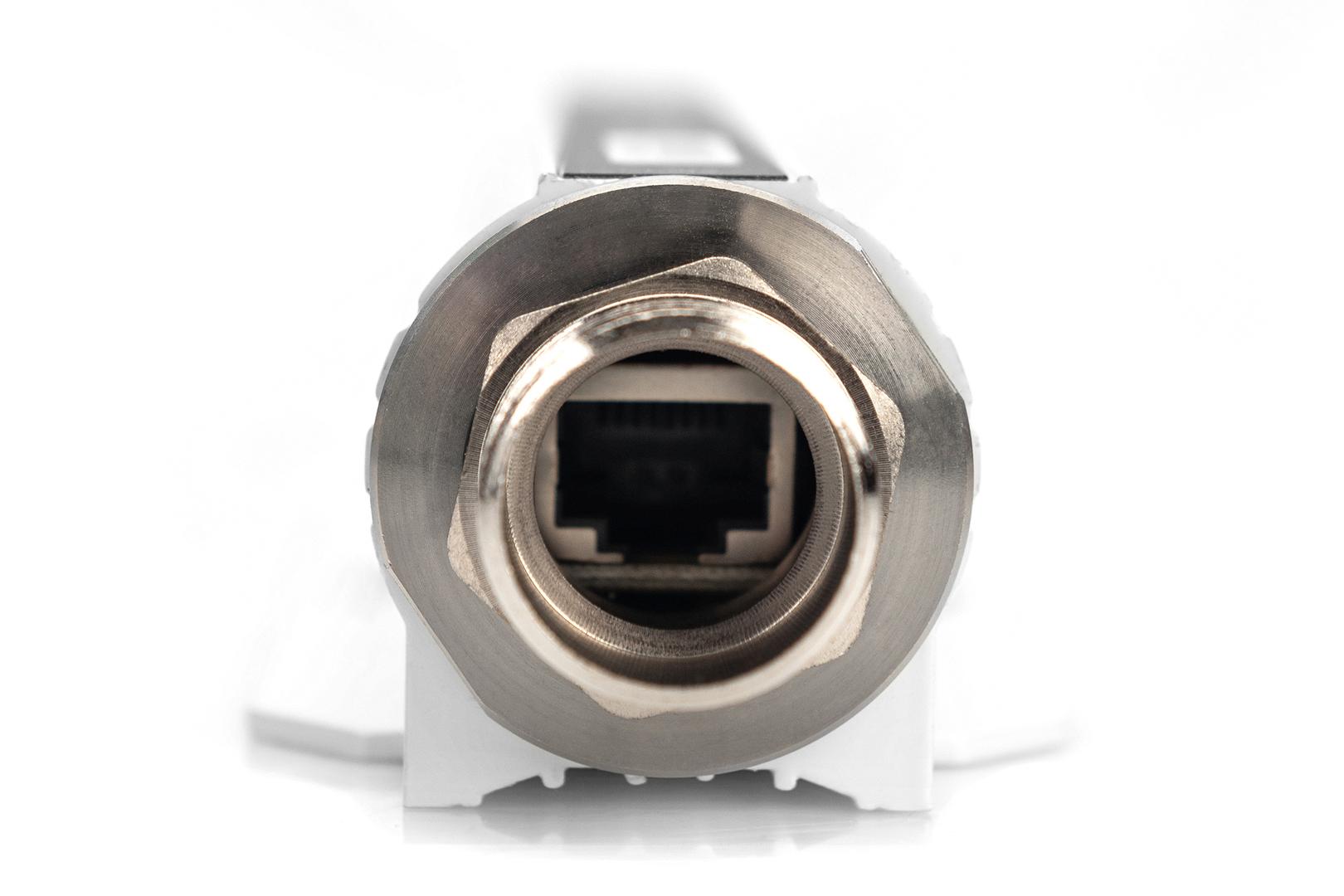

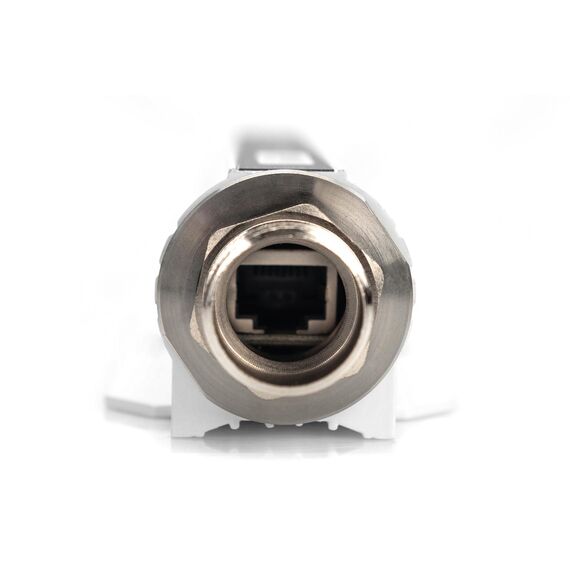

Input Connectors	1 x RJ-45
Power Output Connectors Details	1 x RJ-45 (surge)
Output Voltage	DC 60 V
Max Electric Current	2 A
Power Capacity	100 Watt
Surge Suppression	Yes
Surge Response Time	5 ns
Clamping Level	120 V
Max Spike Voltage	10000 V
Max Spike Current	2500 A
Expansion / Connectivity
Interfaces	1 x Gigabit LAN - RJ-45
Miscellaneous
Features	Aluminium alloy, outdoor
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IP67
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	65 °C
Humidity Range Operating	20 - 80% (non-condensing)
Dimensions & Weight
Width	20.9 cm
Depth	5.3 cm
Height	3.75 cm
Weight	380 g
