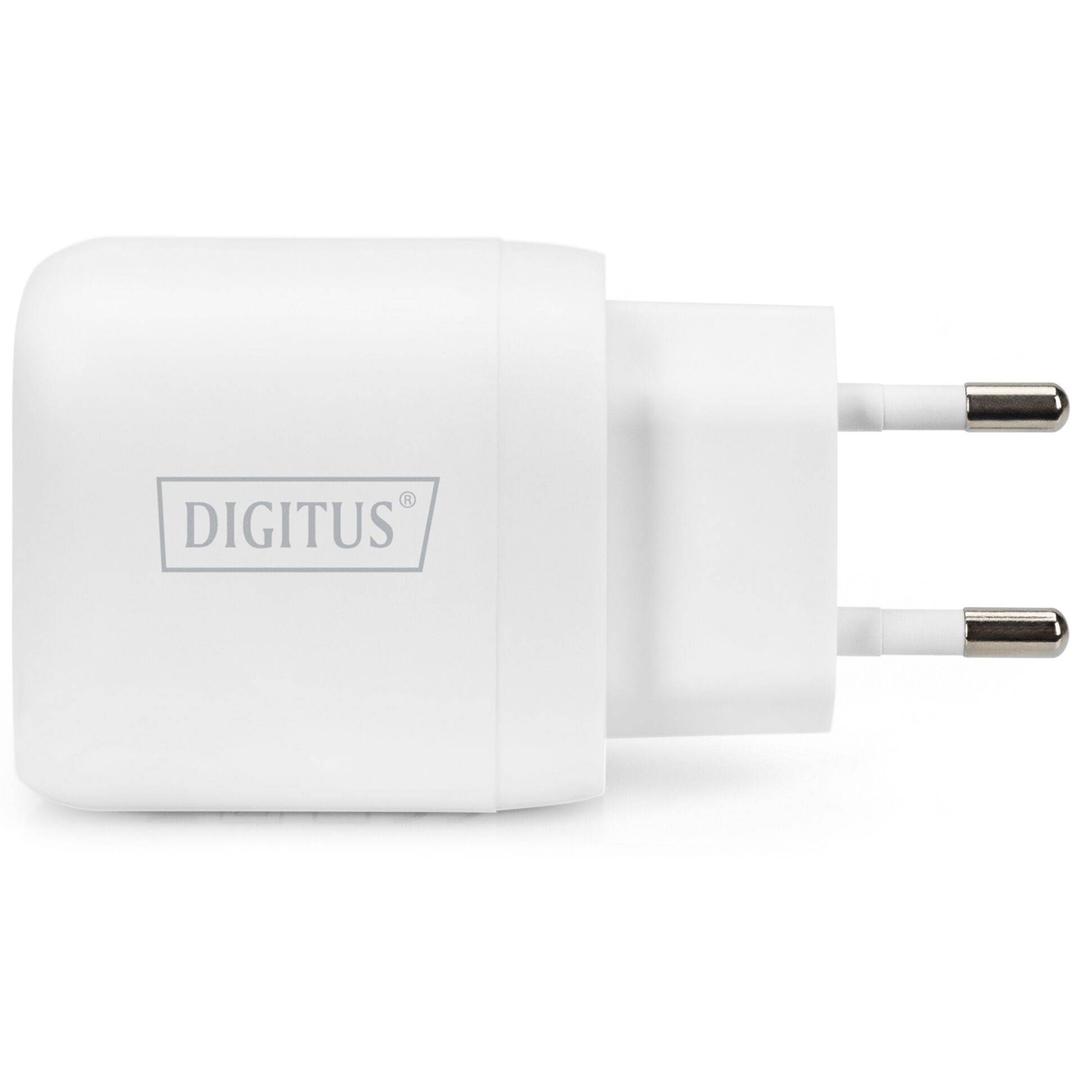

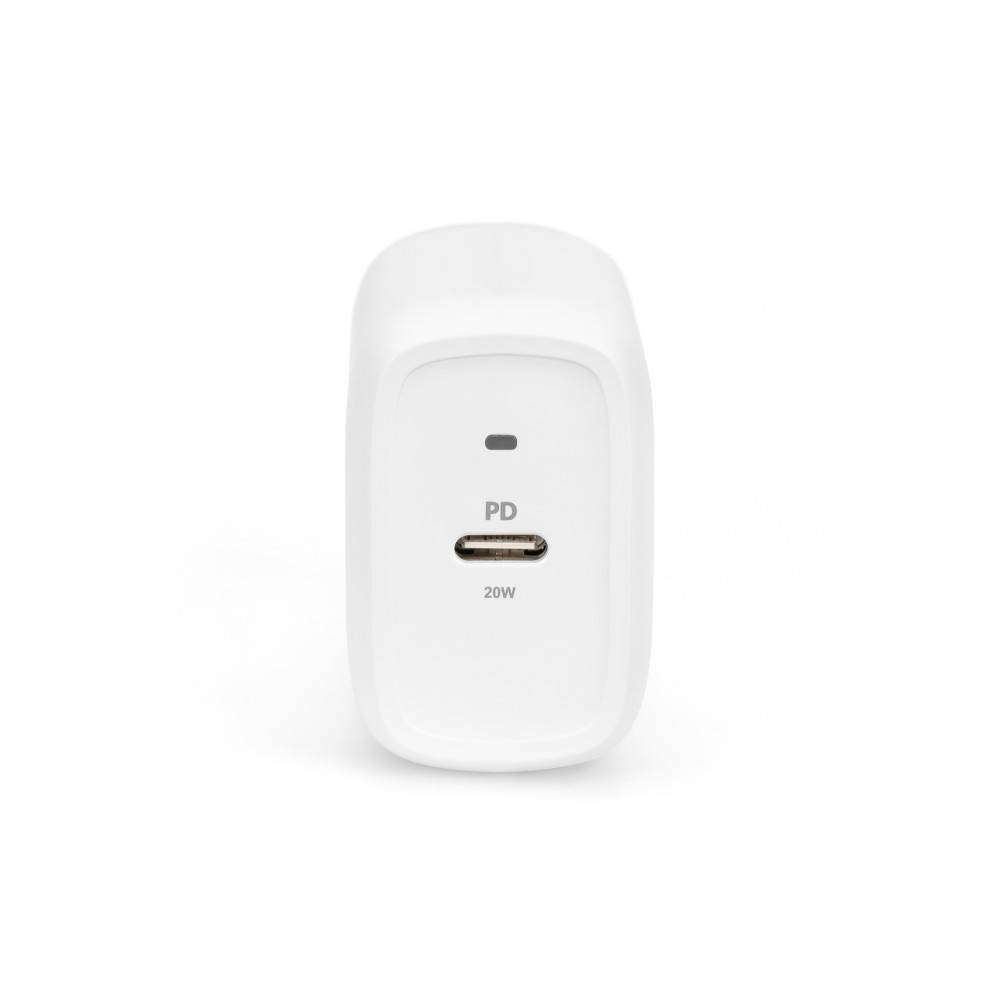

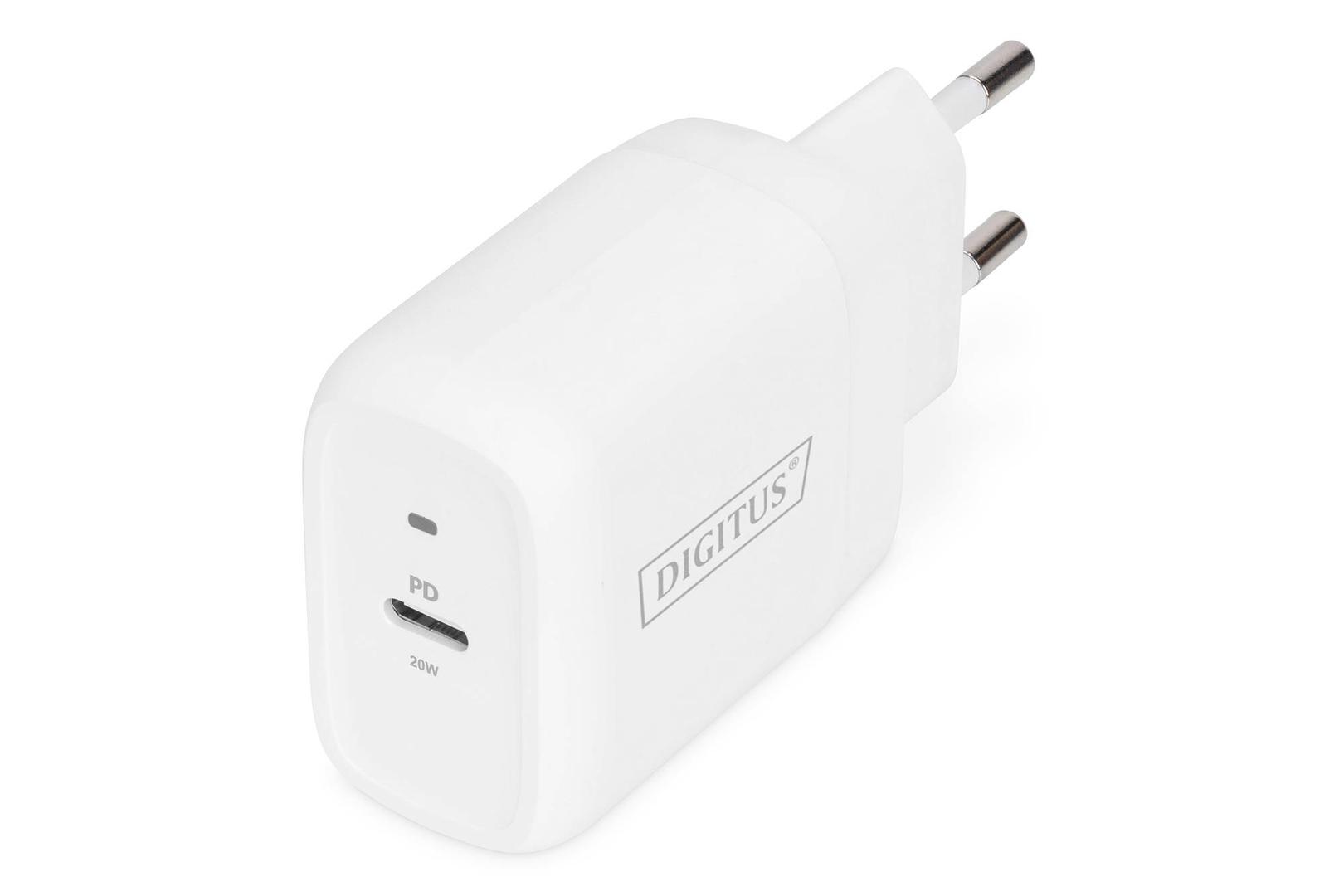

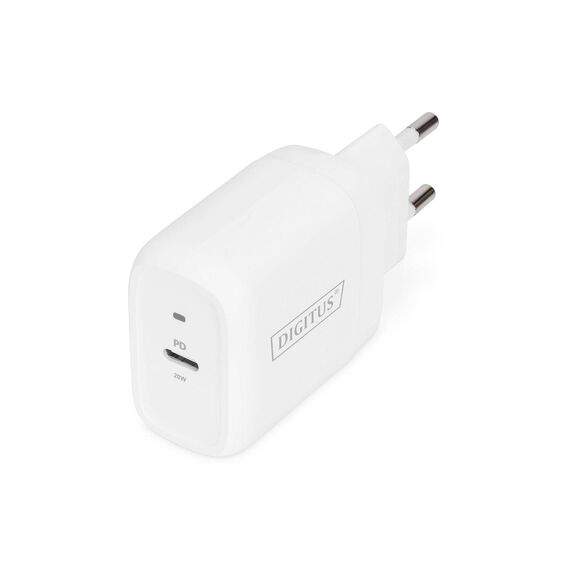

Digitus / Power adapter / 20 Watt / 3 A / PD 3.0 (USB-C) / white | DA-10196

Product Features

· Connection: USB Type-C
· Compatible with smartphones with 20 W charging adapted, e.g. from Apple, Huawei, XIAOMI, Google, Samsung
· Input voltage: 100 - 240 V AC, 50/60 Hz
· Plug designation: CEE-7/16 Euro plug (Type C)
· Standby power consumption: 0.1 W
· Output voltage: 5 V / 3 A, 9 V / 2.22 A (20 W max.)
· Supports Power Delivery 3.0 with 20 W charging capacity
· Surge protection / excess current protection / overload protection / short circuit protection
· Protection against overheating with automatic switch-off and recovery (auto-recovery)
· Operating temperature: 0 °C to 40 °C
· Storage temperature: -20 °C to +85 °C
· Operating humidity: 20% - 90% RH (non-condensing)
· Storage humidity: 5% - 95% RH (non-condensing)
· Housing: Fire-resistant material
· Dimensions: L 64.1 x W 44 x H 27.7 mm
· Color: White
· Weight: 59 g

Special Features

· Compact charger for USB-C devices such as smartphones or tablets
· Supports charging power of up to 20 W - compatible with Power Delivery (PD 3.0)
· Integrated surge protection / excess current protection / short circuit protection
· Integrated overheating protection with auto-recovery for the highest degree of security
· LED charging display
· Ideal for use on the go thanks to compact dimensions
· Housing made of fire-resistant material
· Compatible with many smartphones / tables with 20 W charging adapter

Product Specification

Product Type	Power adapter
Designed For	Tablet, mobile phone, notebook
Width	4.4 cm
Depth	6.41 cm
Height	2.77 cm
Weight	59 g
Enclosure Colour	White
Power Device	Power Device
Voltage Required	AC 100-240 V (50/60 Hz)
Input Connectors	Europlug (power CEE 7/16)
Input Connectors Qty	1
Voltage Provided	5 / 9 V
Output connectors	24 pin USB-C
Power Provided	20 Watt
Max Electric Current	3 A
Fast Charge Technology	Power Delivery 3.0
Features	Short circuit protection, overheat protection, surge protection, overcurrent protection, charging LED indication, fire-resistant
