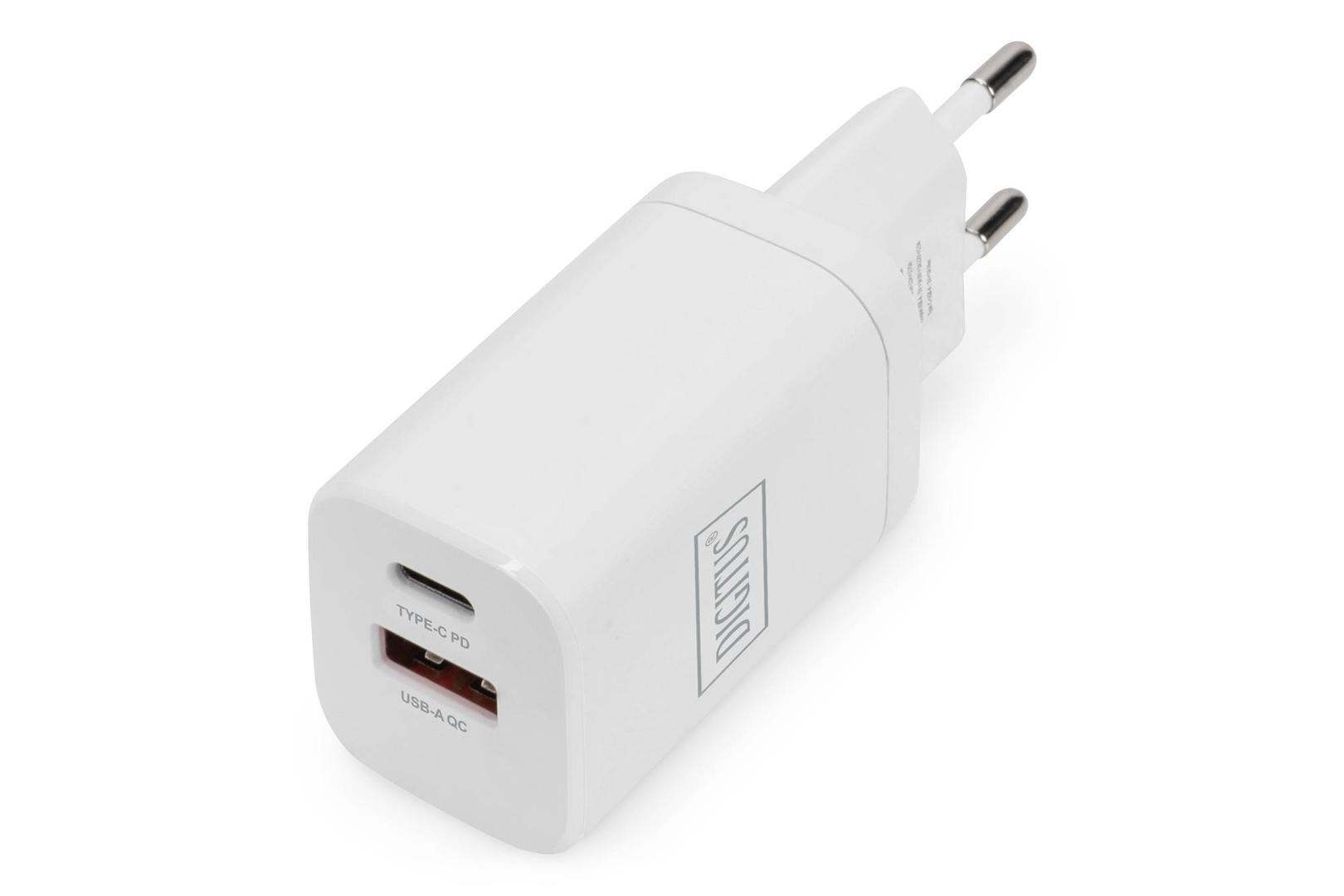

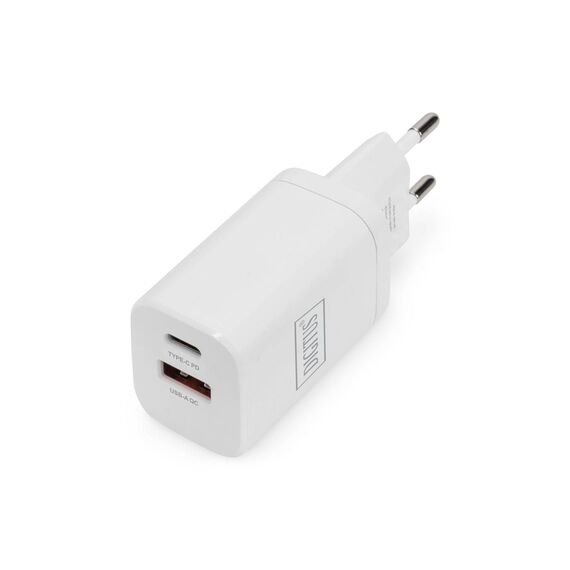

Digitus / Power adapter / 30 Watt / 3 A / PD 3.0, QC 3.0 / 2 output connectors (USB Type A, 24 pin USB-C) / white | DA-10062

Product Features

· Double connection: 1x USB Type-C (PD) and 1x USB A (QC)
· Compatible with smartphones and tablets from Apple, Huawei, XIAOMI, Google, Samsung
· Input voltage: 100 - 240 V AC, 50/60 Hz
· Output voltage USB-C, PD: 5/3A, 9V/3A, 12V/2,5A, 15V/2A, 20V/1.5A (30W max.)
· Output voltage USB-A QC3.0: 5V/3A, 9V/2A, 12V/1.5A (18W max.)
· Note: When both ports are connected, they share a power output of at most 15W (5V, 3A) and do not support any PD and QC fast charging.
· Supports Power Delivery 3.0 with 18W charging capacity
· Surge protection / excess current protection / overload protection / short circuit protection
· Protection against overheating with automatic switch-off and recovery (auto-recovery)
· Housing: Fire-resistant material
· Dimensions: L 29 x W 35 x H 84 mm
· Color: White
· Weight: 61g

Special Features

· The 2 powerful ports charge the simultaneously connected devices at high speed
· Compact charger for USB-C (PD) and USB A (QC) devices such as smartphones or tablets
· Supports charging power of up to 30 W - compatible with Power Delivery (PD 3.0) and QC3.0
· Note: When both ports are connected, they share a power output of at most 15W (5V, 3A) and do not support any PD and QC fast charging.
· Fast charge for all smartphones: Supports the most important fast charging protocols, including PD3.0, QC 3.0, PPS.
· High compatibility as both USB-A and USB-C devices can be charged
· Integrated surge protection / excess current protection / short circuit protection
· Integrated overheating protection with auto-recovery for the highest degree of security
· LED charging display
· Housing made of fire-resistant material

Product Specification

Product Type	Power adapter
Designed For	Tablet, mobile phone
Width	3.5 cm
Depth	2.9 cm
Height	8.4 cm
Weight	61 g
Enclosure Colour	White
Power Device	Power Device
Voltage Required	AC 100-240 V (50/60 Hz)
Input Connectors	Power 2-pole
Input Connectors Qty	1
Voltage Provided	5 / 9 / 12 / 15 / 20 V
Output connectors	Total 2: 9 pin USB Type A, 24 pin USB-C
Power Provided	30 Watt
Max Electric Current	3 A
Power Device Details	AC power adapter: 24 pin USB-C - output - 5 V - 3 A ¦ AC power adapter: 24 pin USB-C - output - 9 V - 3 A ¦ AC power adapter: 24 pin USB-C - 12 V - 2.5 A ¦ AC power adapter: 24 pin USB-C - output - 15 V - 2 A ¦ AC power adapter: 24 pin USB-C - output - 20 V - 30 W - 1.5 A ¦ AC power adapter: 9 pin USB Type A - output - 5 V - 3 A ¦ AC power adapter: 9 pin USB Type A - output - 9 V - 2 A ¦ AC power adapter: 9 pin USB Type A - output - 12 V - 18 W - 1.5 A
Fast Charge Technology	Power Delivery 3.0, Qualcomm Quick Charge 3.0
Features	Overload protection, short circuit protection, overheat protection, over-current protection, surge protection, LED display, fire-resistant, Programmable Power Supply (PPS), over-temperature protection
