DIGITUS / Power distribution unit (rack-mountable) / AC 230 V / 2300 VA / 1-phase / input: IEC 60320 C14 / output connectors: 9 (IEC 60320 C13) / 1U / 19" | DN-95429
Please sign in so that we can notify you about a reply
Product Features
· Horizontal 19" installation in the rack· 10A input fuse protects against excess voltage
· Housing: Aluminum profile
· Plastic components made of ABS UL-94V-0
· Input: IEC60320 C14, 230 Vac / 10 A
· Output: Device socket 9 x IEC60320 C13, max. 10 A per output
· Dimensions: 482.6 (19") x 45 (1U) x 45 mm (HxWxD)
Special Features
· Perfect current distribution for connection to a UPS (IEC-60320 C14 input)· Compact construction, 19" 1U housing
· 10A input fuse protects the PDU and the connected consumers against excess voltage.
· The jacks offer optimal space management and easy access
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Power Device | Power Device |
| Input Voltage | AC 230 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 9 x power IEC 60320 C13 |
| Max Electric Current | 10 A |
| Power Capacity | 2300 VA |
| Circuit Protection | Fuse |
| Miscellaneous | Miscellaneous |

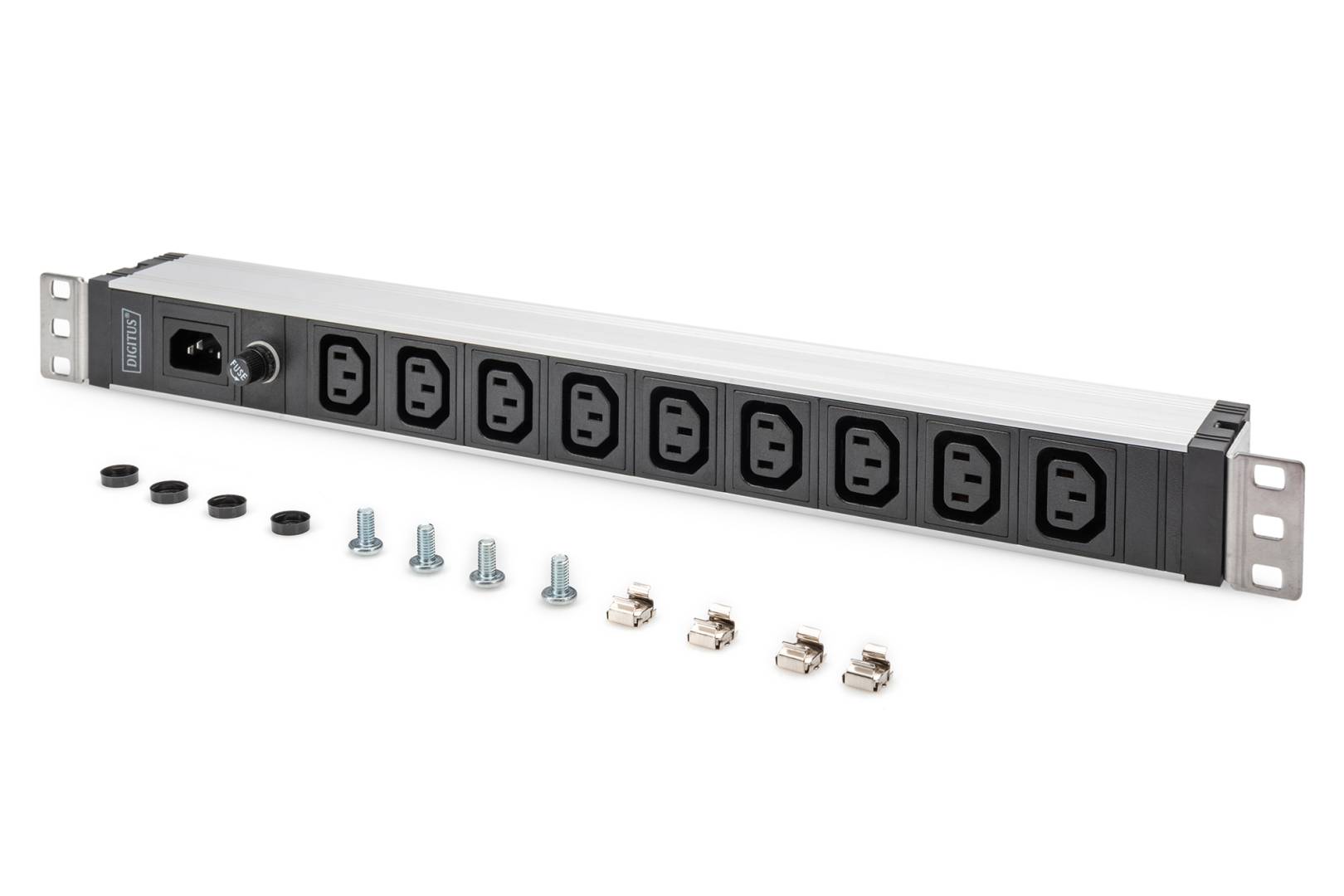

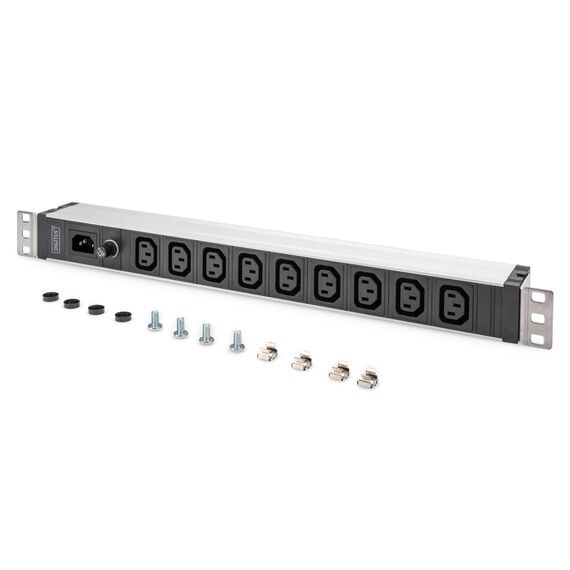

| Included Accessories | 2 mounting brackets |
| Features | Horizontal mount, aluminium profile, overload protection |
| Compliant Standards | UL 94 V-0 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 48.26 cm |
| Depth | 4.5 cm |
| Height | 4.5 cm |
| Weight | 650 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 890 g |
Features - Digitus - DN-95429
More Details
Product Code
03:202447
EAN Code
4016032483557
Manufacturer
Digitus
