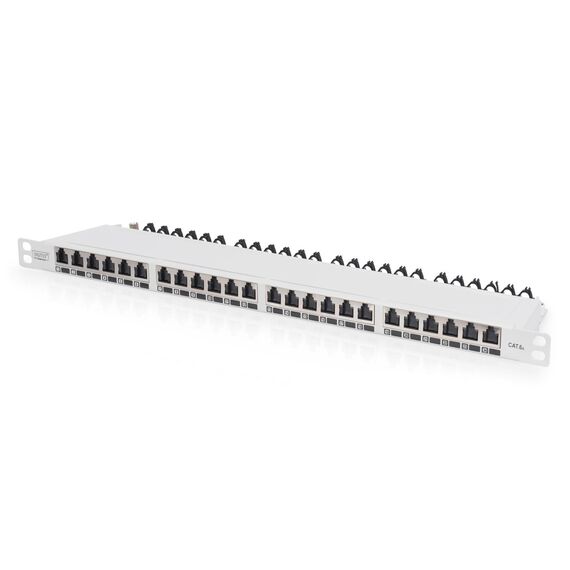

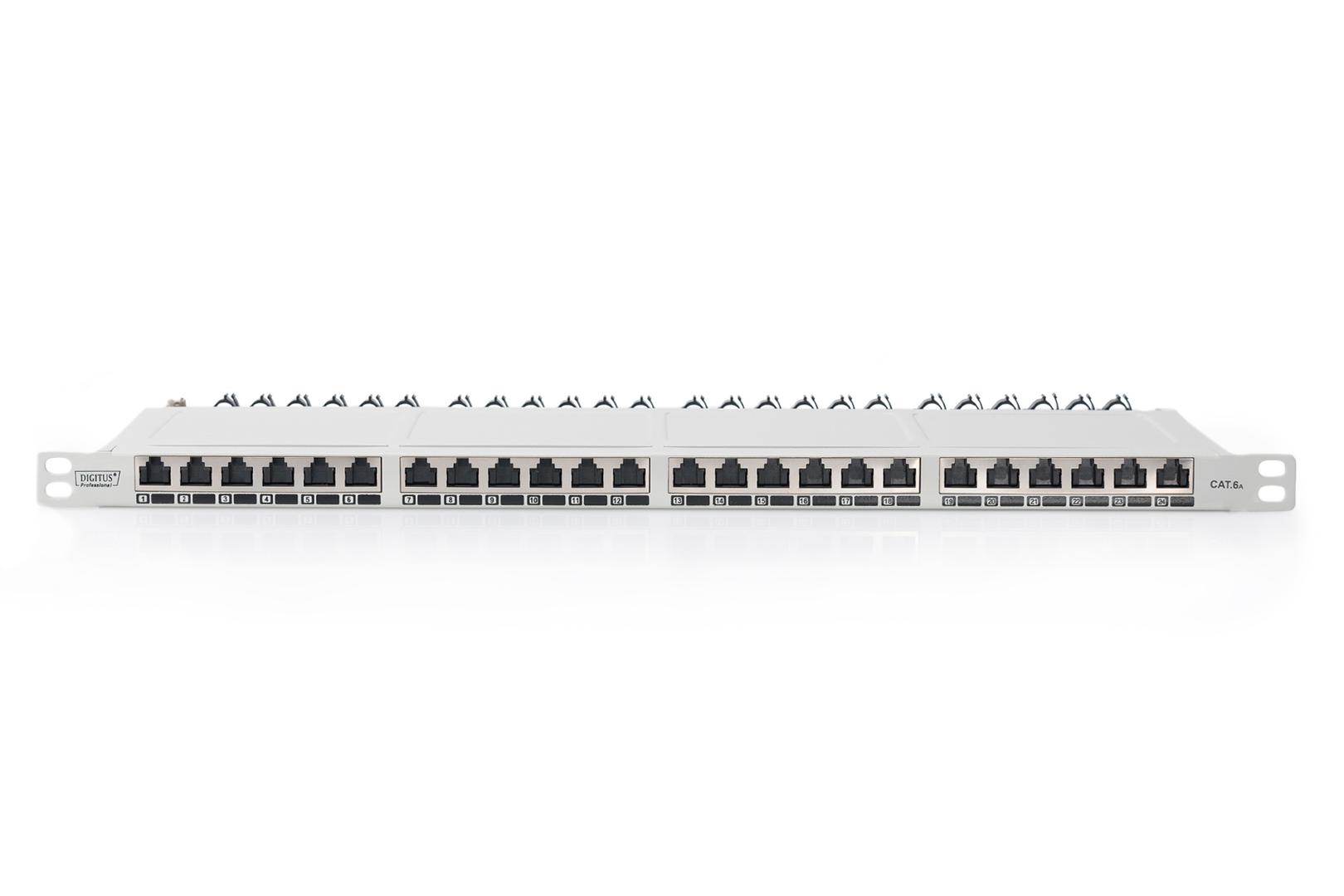

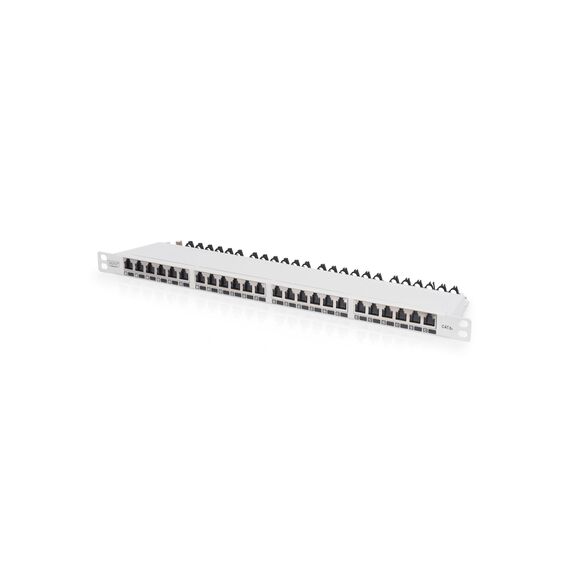

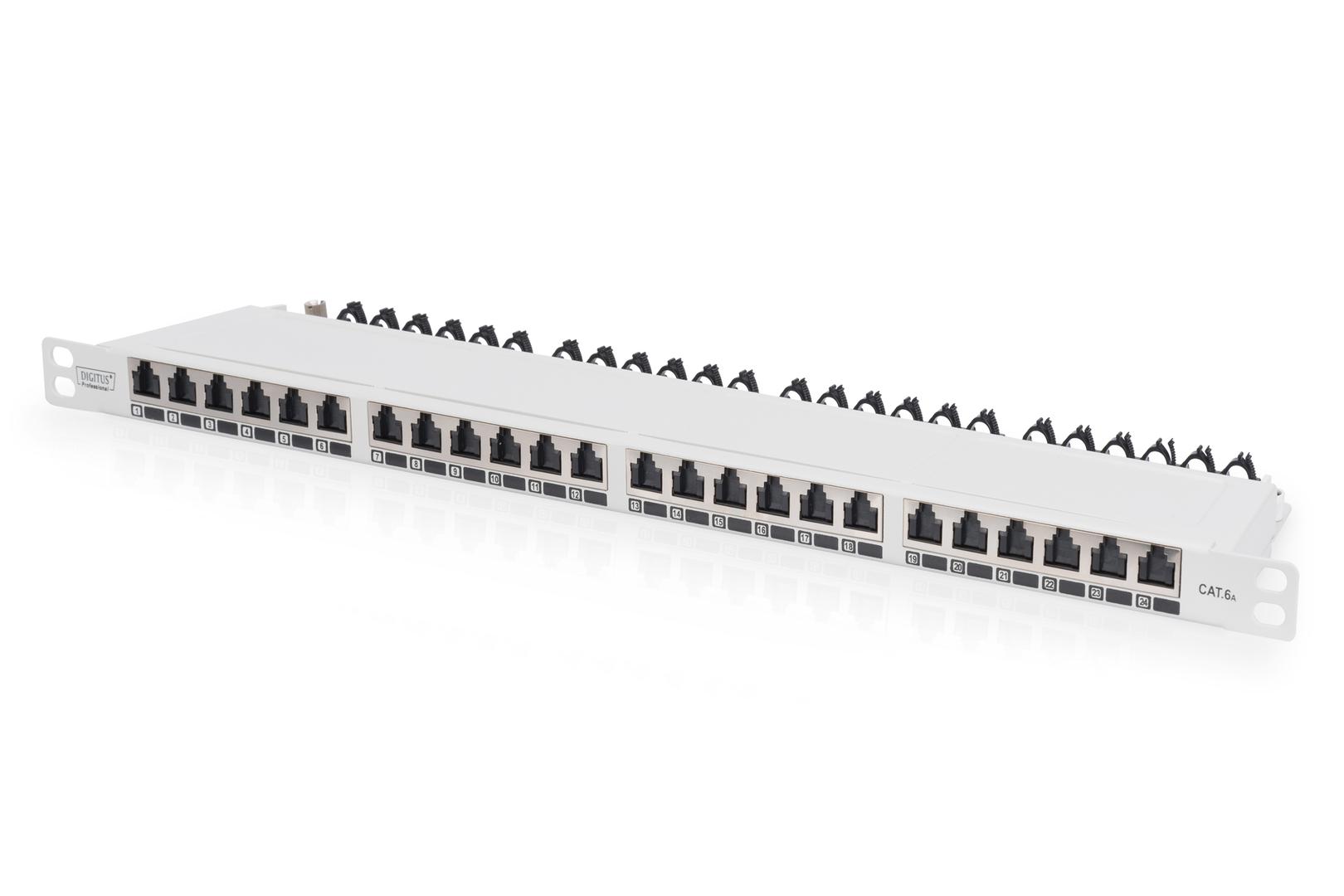

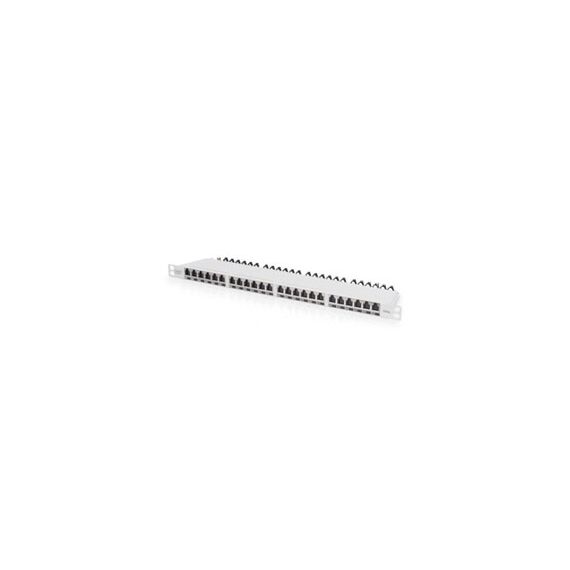

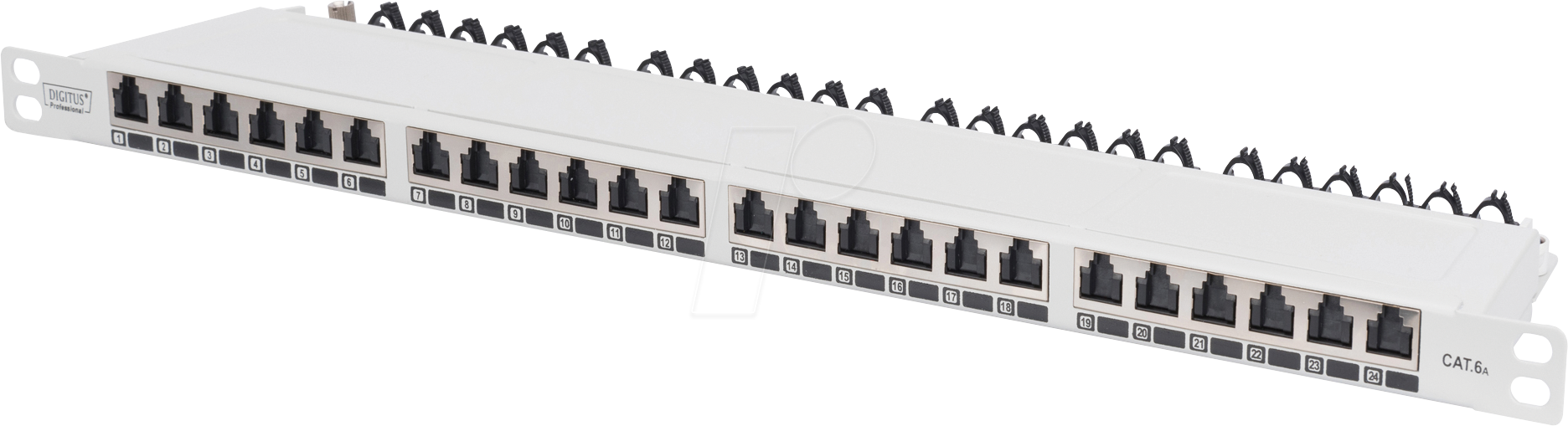

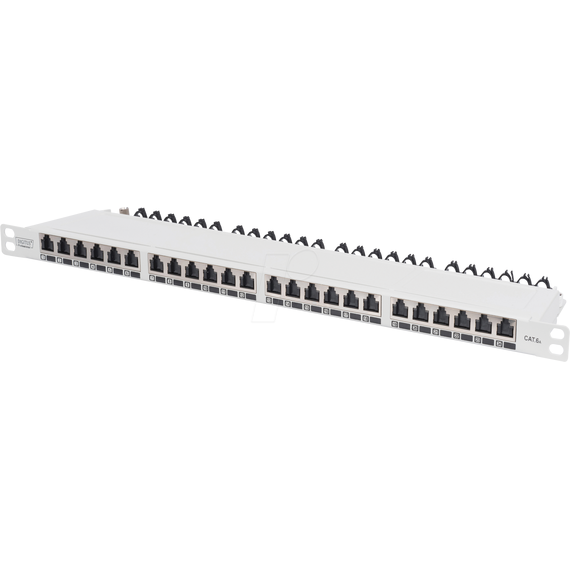

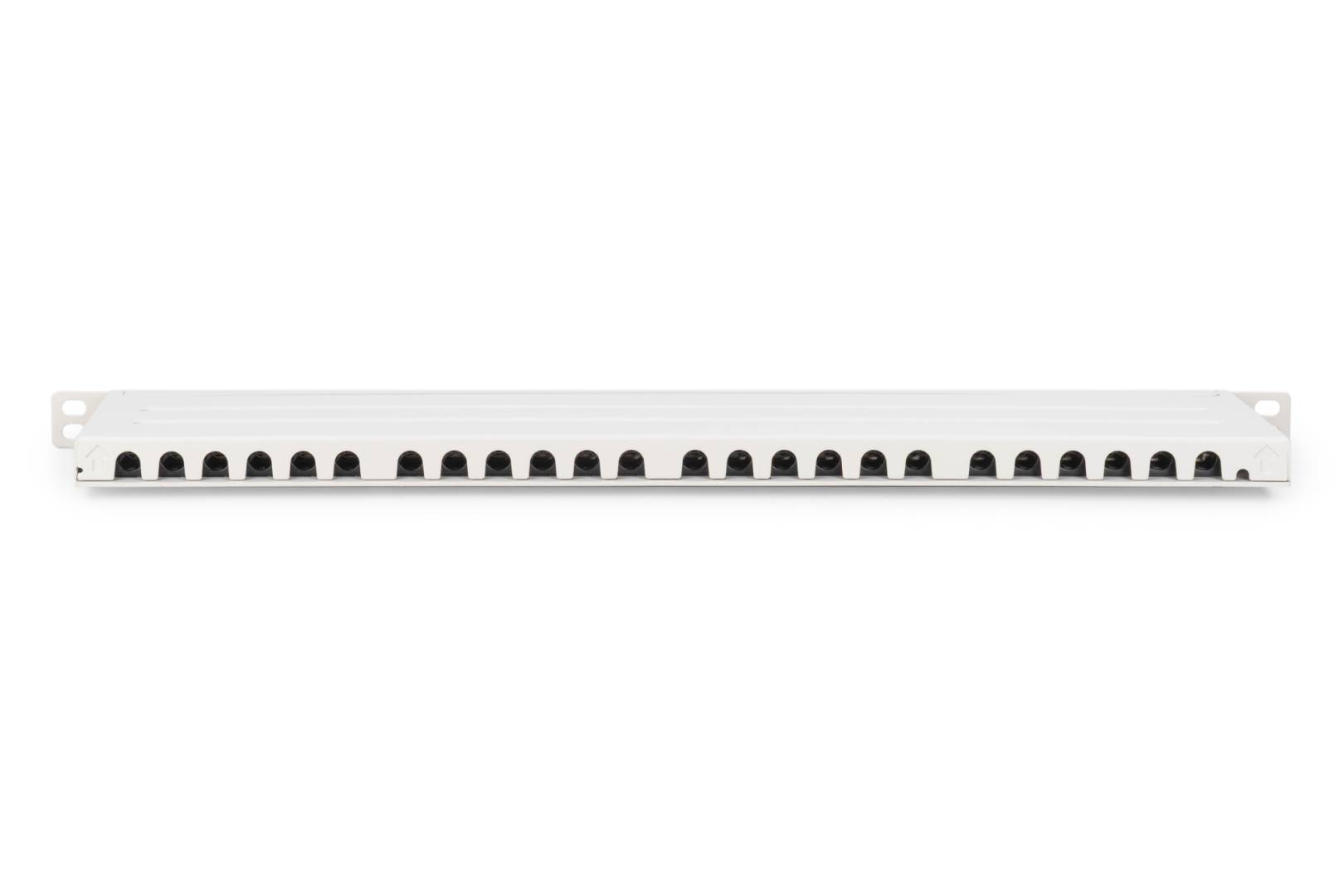

Digitus Professional - Patch panel - rack mountable - CAT 6a - STP - RJ-45 X 24 - light grey, RAL 7035 - 0.5U - 19" | DN-91624S-SL-EA-G

Product Features

· Transmission properties: Category 6A, Class EA
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· General properties:
· Suitable for 483 mm (19") cabinet mounting
· RJ45 female, 8P8C

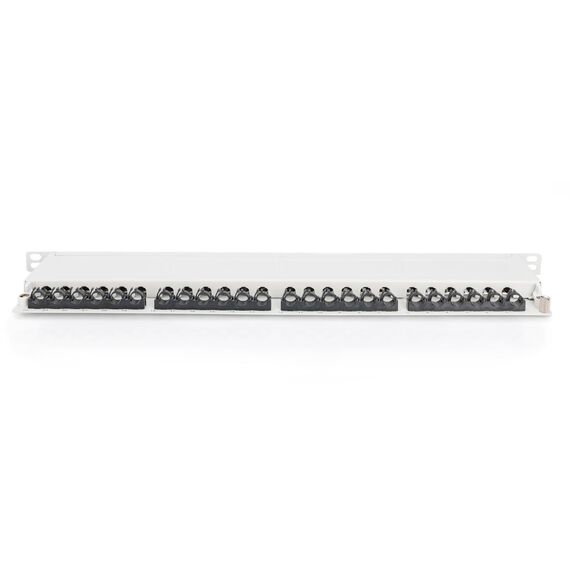

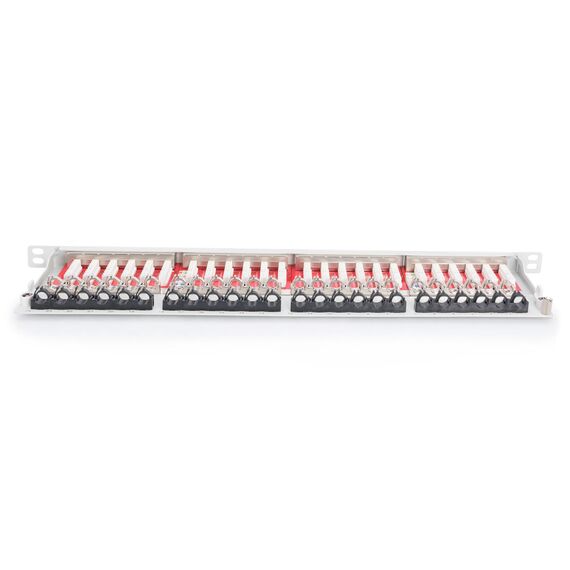

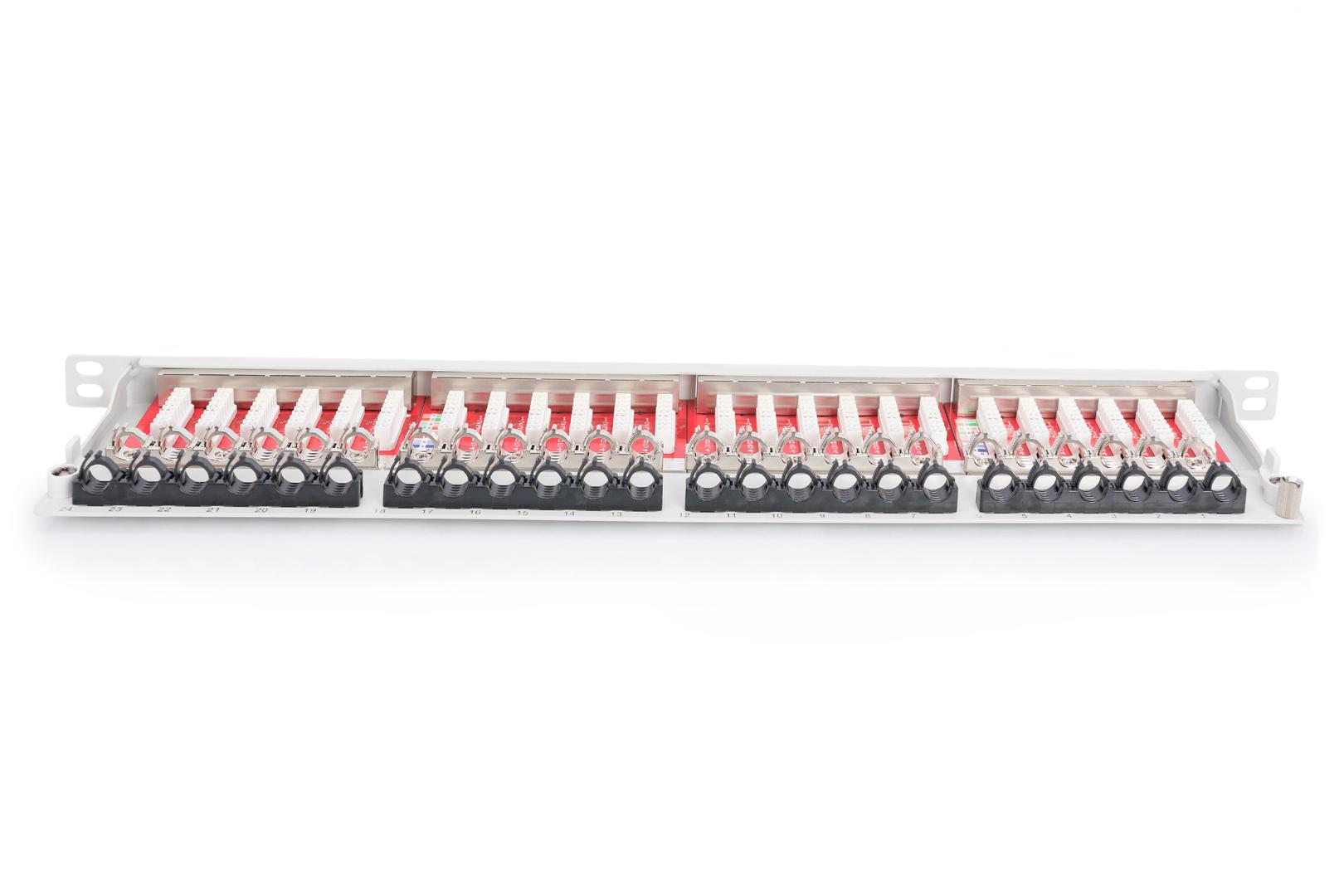

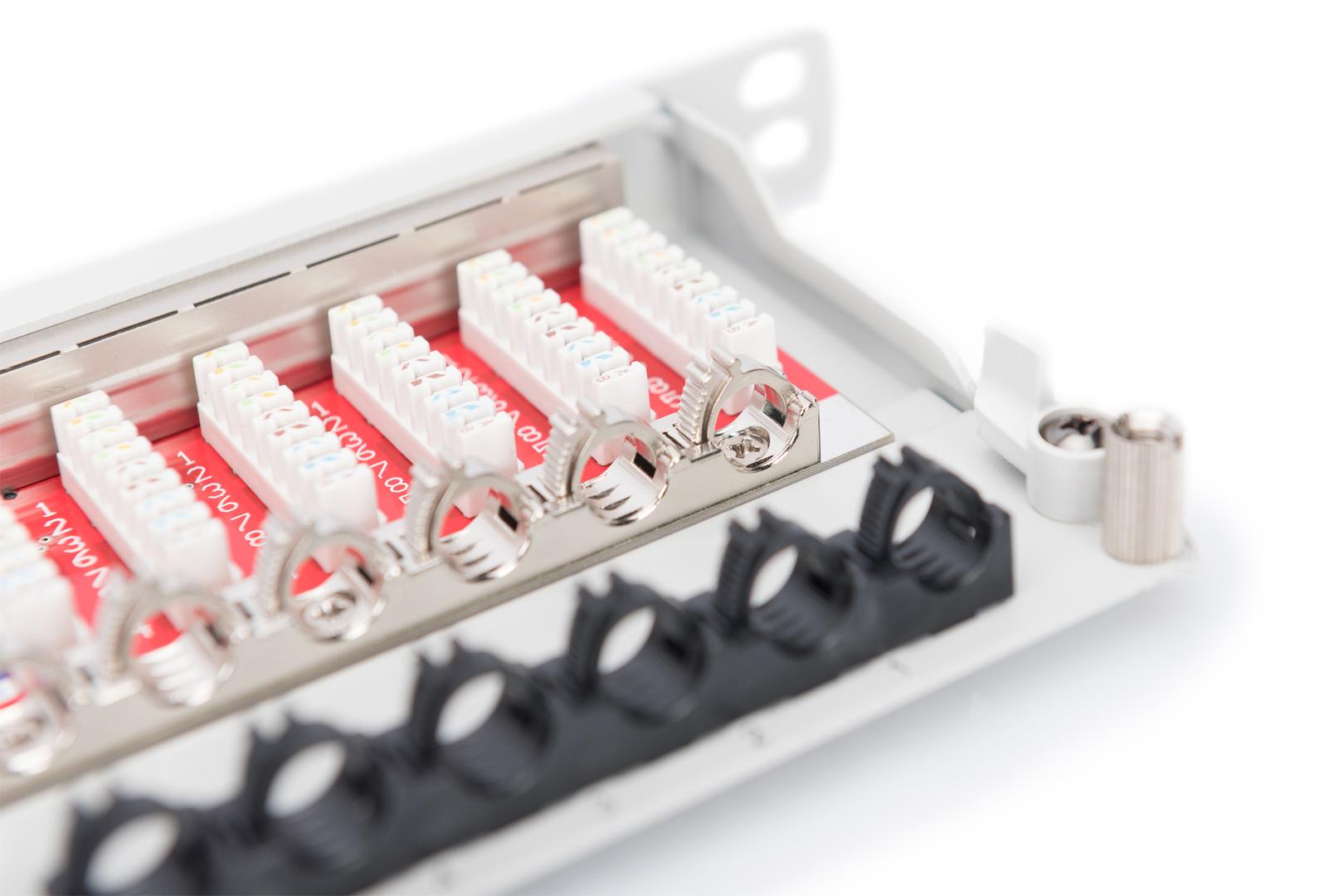

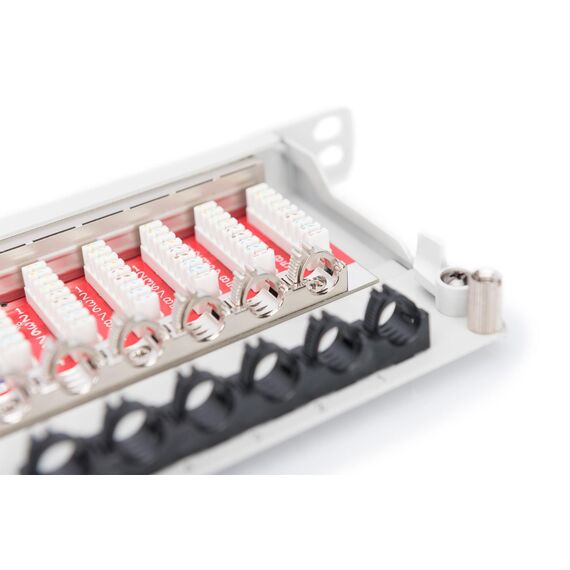

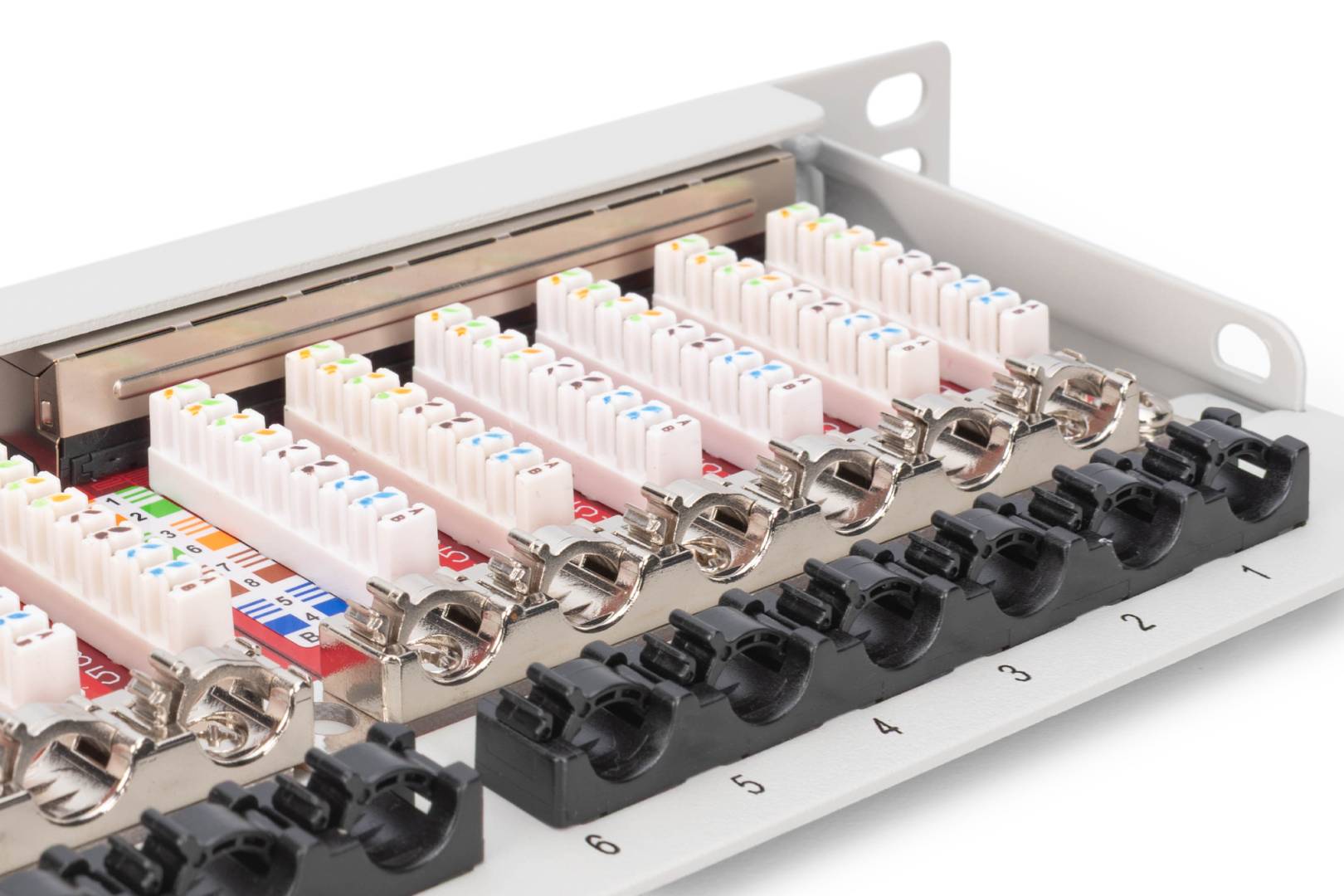

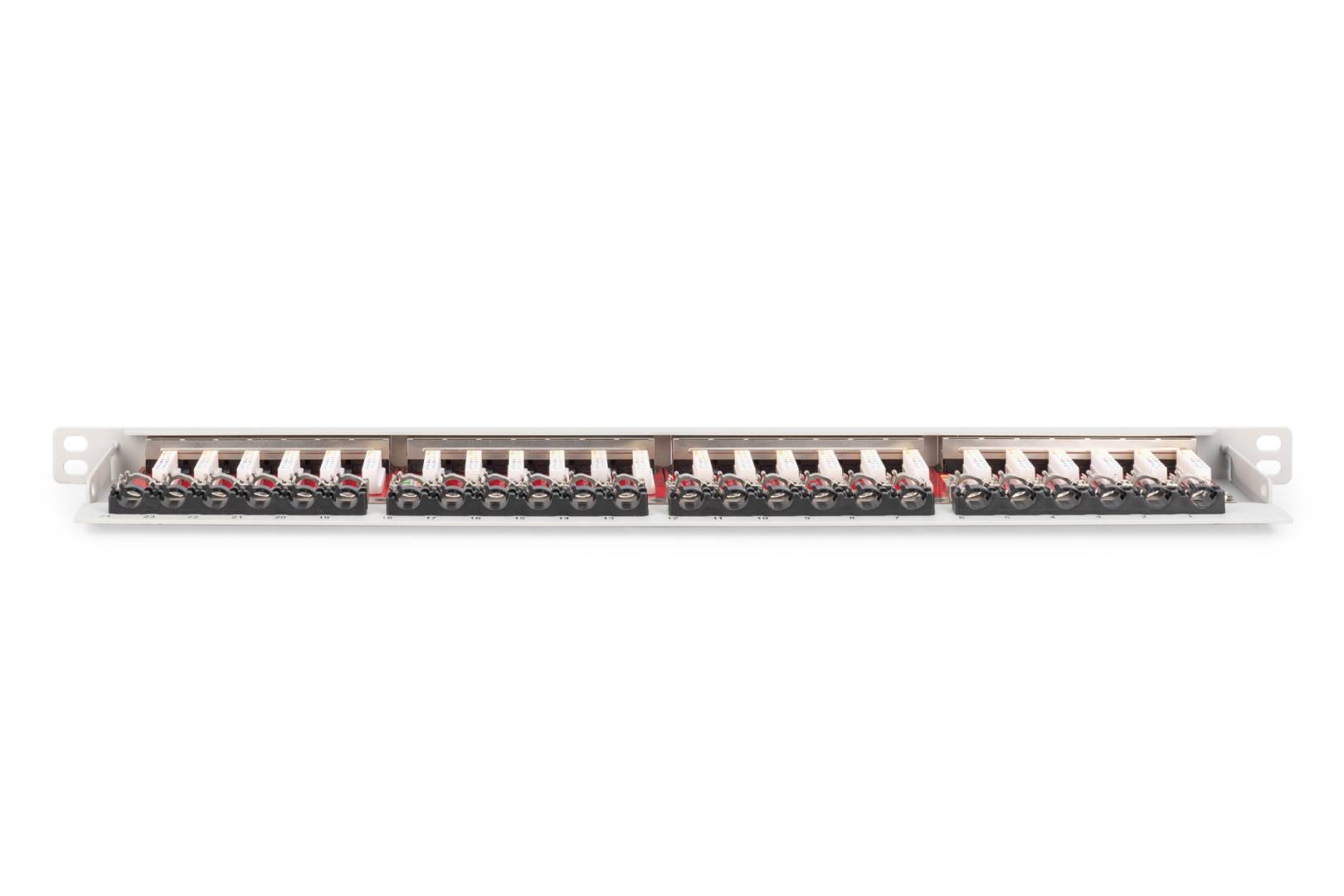

· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

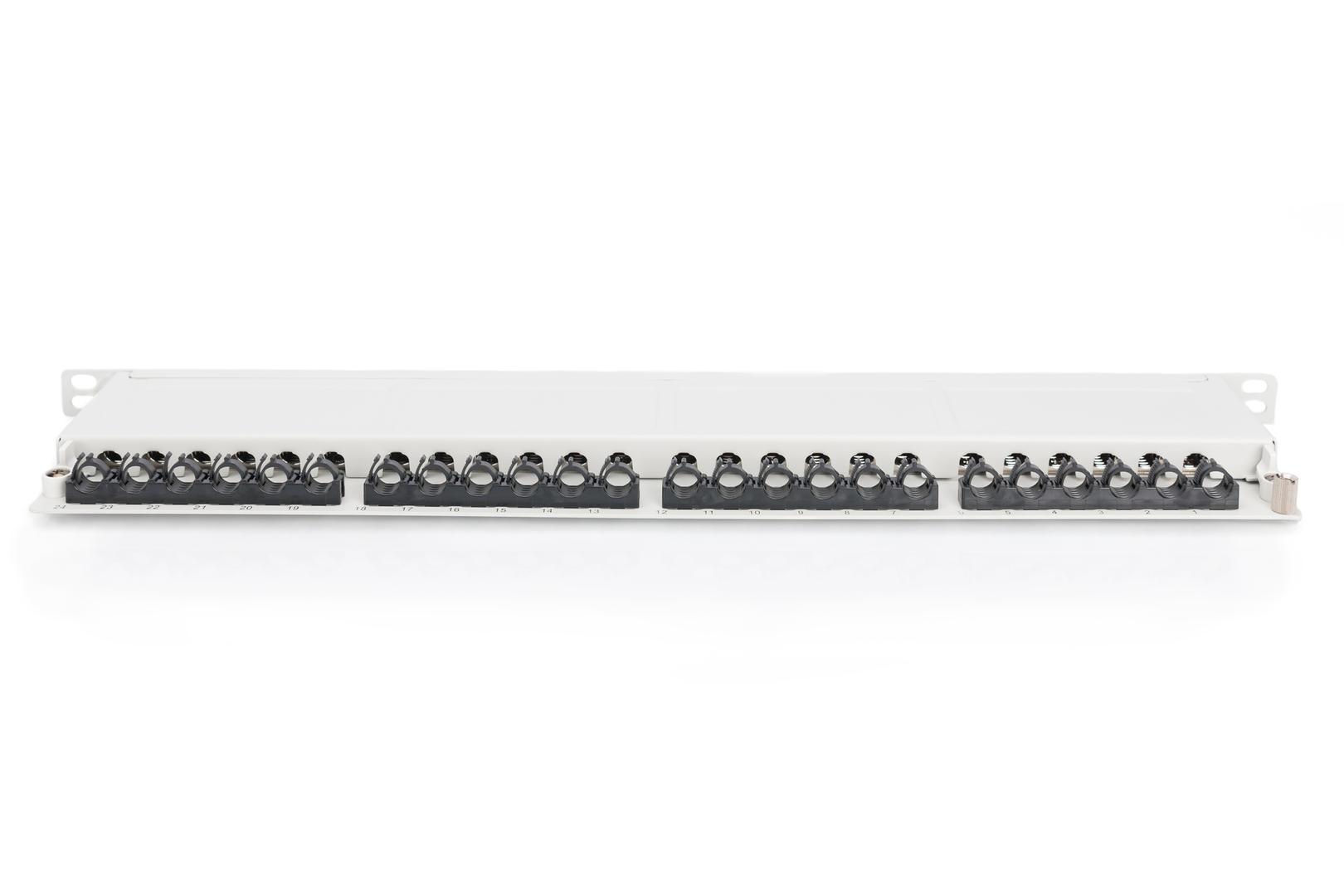

· Cable fixing with smart cable ties
· Central ground connection
· 360° shield coverage
· Integrated dust cover
· Mechanical properties:
· Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Ground wire: Not included
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
· Colour: Grey RAL7035

Special Fetures

· 0.5U
· CAT6A

Product Specification

Product Type	Patch panel - CAT 6a
Placing / Mounting	Rack mountable
Product Material	Galvanised steel
Height (Rack Units)	0.5U
Enclosure Colour	Light grey, RAL 7035
Cabling & Wiring
Port Qty	24 ports
Termination Type	LSA+
Technology	Shielded twisted pair (STP)
Features	Phosphor bronze plated terminal
Compliant Standards	IEEE 802.3af/IEEE 802.3at
Connector Provided	24 x RJ-45 female
Miscellaneous
Rack Size	19"
Features	Dust cover, shuttered
Dimensions & Weight (Shipping)
Shipping Width	51.5 cm
Shipping Depth	13 cm
Shipping Height	3.5 cm
Shipping Weight	980 g
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	70 °C
